Product Details | PANEL FASTENER INSERT

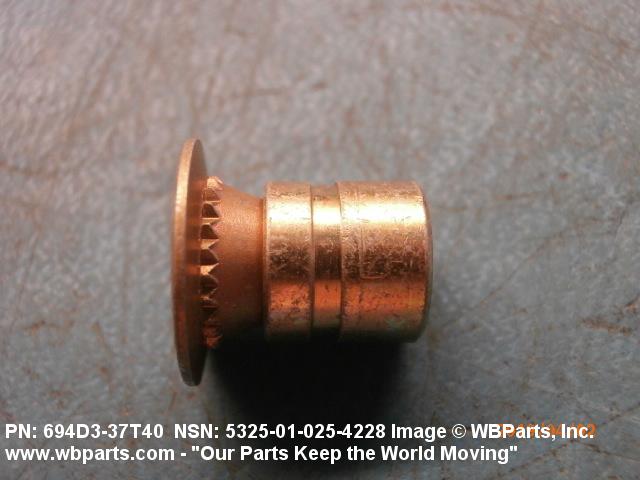

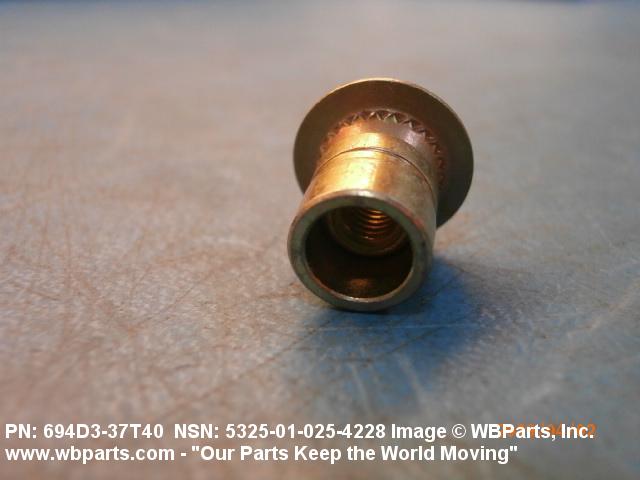

5325-01-025-4228 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.

Part Alternates: 694D337F39, 694D3-37-F39, 694D337T40, 694D3-37T40, 5325-01-025-4228, 01-025-4228, 5325010254228, 010254228

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 02 AUG 1976 01-025-4228

Drawings & Photos | NSN 5325-01-025-4228


Demand History | NSN 5325-01-025-4228

Part Number Request Date QTY Origin
694D3-37T40 2021-03-63 648 DIBBS
694D3-37T40 2021-02-52 648 DIBBS
694D3-37T40 2021-01-19 398 DIBBS
694D3-37T40 2021-01-05 398 DIBBS
694D3-37T40 2020-09-268 250 DIBBS
694D3-37T40 2020-09-257 250 DIBBS
694D3-37T40 2020-03-83 311 DIBBS
694D3-37T40 2020-03-75 311 DIBBS
5325-01-025-4228 2020-01-24 44 US
5325-01-025-4228 2020-01-16 50 US
5325-01-025-4228 2019-12-344 286 US
694D337T40 2019-04-106 150 United States
694D337T40 2019-04-102 140 United States
5325-01-025-4228 2019-03-87 15 United States
694D337T40 2019-03-87 140 United States
694D337T40 2019-03-79 63 United States
694D337T40 2017-01-27 100 United States
5325-01-025-4228 2016-01-08 50 us
694D337T40 2015-07-202 20 United States
694D337T40 2014-01-31 8 United States
5325-01-025-4228 2014-01-29 250 DIBBS
5325-01-025-4228 2013-03-82 250 DIBBS
5325-01-025-4228 2012-12-342 40 DIBBS
5325-01-025-4228 2012-04-96 250 DIBBS
694D337F39 2010-10-285 30 United States
5325-01-025-4228 2010-09-254 50 DIBBS
5325-01-025-4228 2010-07-205 50 DIBBS
5325-01-025-4228 2010-06-178 60 DIBBS
5325-01-025-4228 2010-01-07 5 DIBBS
5325-01-025-4228 2010-01-04 275 DIBBS
5325-01-025-4228 2009-12-341 5 DIBBS

Cross Reference | NSN 5325-01-025-4228

Part Number Cage Code Manufacturer
694D3-37-F39 29372 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
694D3-37T40 29372 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
694D3-37T40 83324 ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-025-4228

Technical Data | NSN 5325-01-025-4228

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM OVERALL

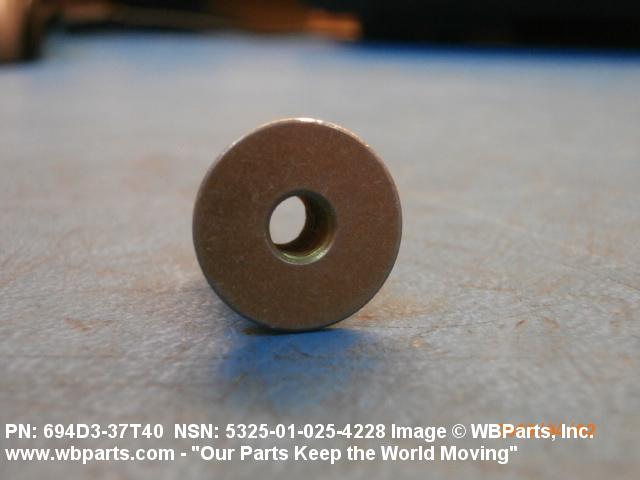

INSERT STYLE 12 FLUSH FLANGE

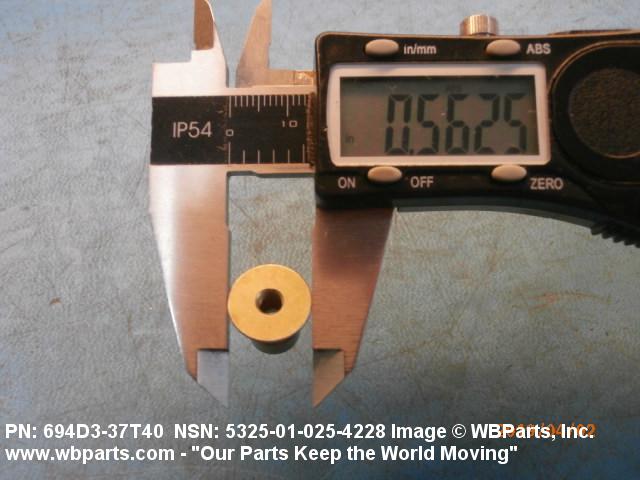

FLANGE DIAMETER 0.562 INCHES NOMINAL

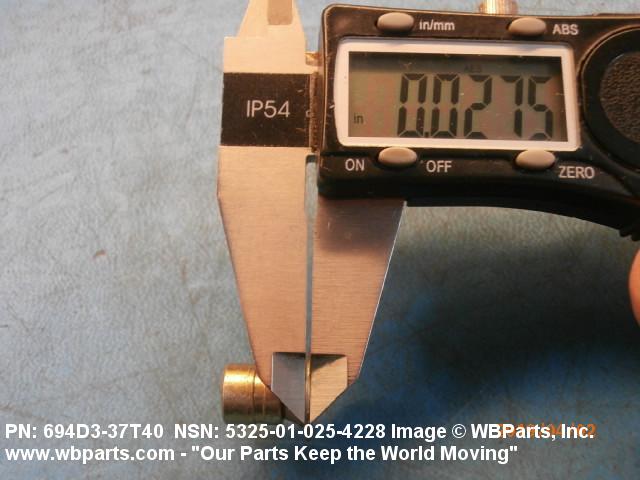

FLANGE THICKNESS 0.023 INCHES NOMINAL

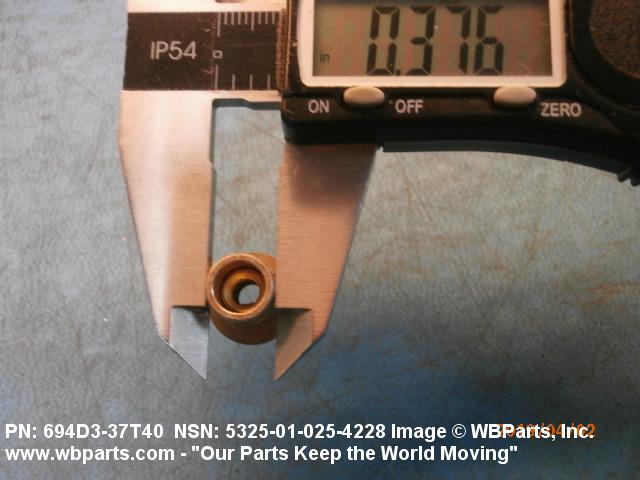

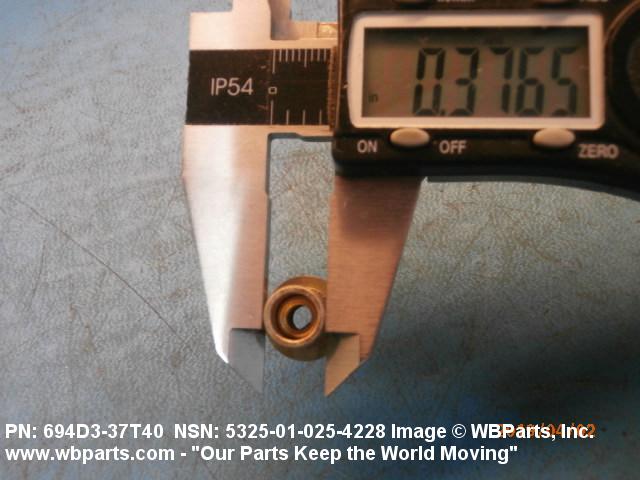

SLEEVE DIAMETER 0.375 INCHES NOMINAL

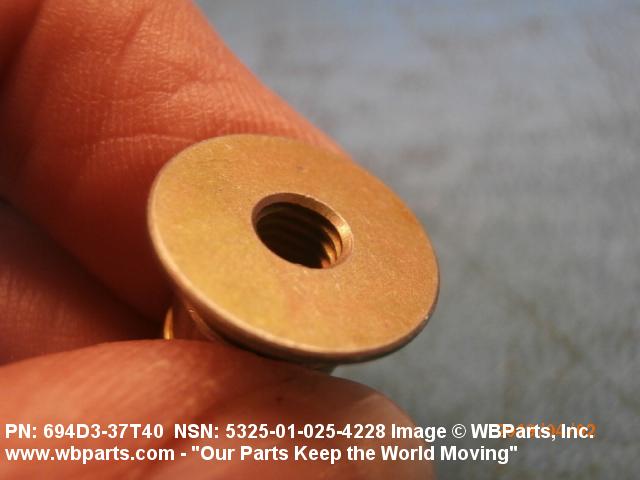

HOLE TYPE THREADED
