Product Details | RETAINING RING

5325-01-025-4660 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: 35473, 433, 5325-01-025-4660, 01-025-4660, 5325010254660, 010254660

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 02 AUG 1976 01-025-4660

Drawings & Photos | NSN 5325-01-025-4660


Cross Reference | NSN 5325-01-025-4660

Part Number Cage Code Manufacturer
35473 52304 DANA COMMERCIAL VEHICLE PRODUCTS, LLC
433 72800 EATON CORP ENGINEERED FASTENERS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-01-025-4660

Technical Data | NSN 5325-01-025-4660

Characteristic Specifications
MATERIAL STEEL
STRENGTH RATING NOT RATED
MATERIAL HARDNESS RATING NOT RATED
CASEHARDENING INDICATOR NOT CASEHARDENED
RING STYLE A1 STRAIGHT GAP

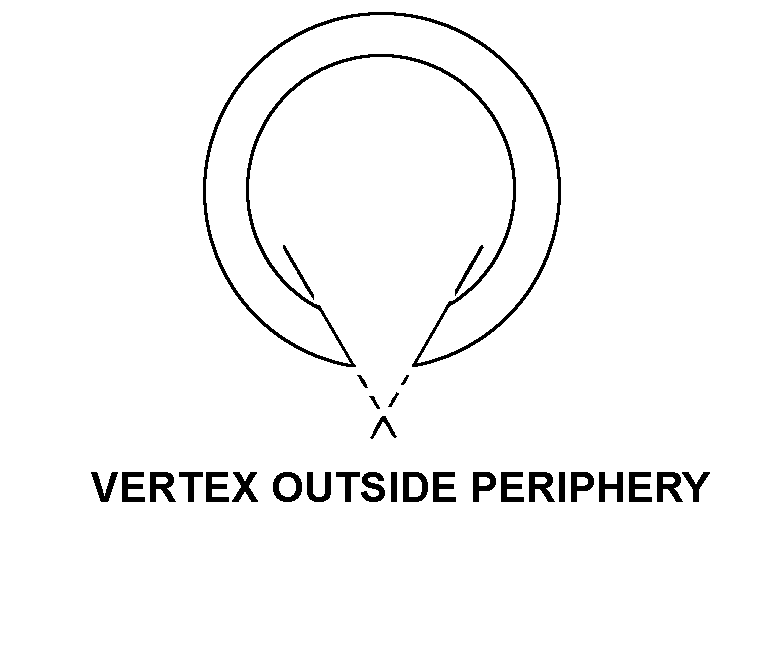

END STYLE C5 VERTEX OUTSIDE PERIPHERY
INSIDE DIAMETER 1.003 INCHES MINIMUM AND 1.044 INCHES MAXIMUM
OUTSIDE DIAMETER 1.280 INCHES MINIMUM AND 1.327 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE D4 RECTANGULAR
MAJOR THICKNESS 0.137 INCHES MINIMUM AND 0.143 INCHES MAXIMUM
USAGE DESIGN EXTERNAL

Restrictions/Controls & Freight Information | NSN 5325-01-025-4660

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
