Product Details | SNAP FASTENER CAP

5325-00-276-4953 An item designed to permanently fasten a SOCKET, SNAP FASTENER to a material. It may be either hemispherical in shape with prongs on the underside or have a hemispherical shaped head with a tubular shank. See also SOCKET, SNAP FASTENER.

Part Alternates: MS279801N, MS27980-1N, AN2276, AN227-6, 5325-00-276-4953, 00-276-4953, 5325002764953, 002764953

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-276-4953

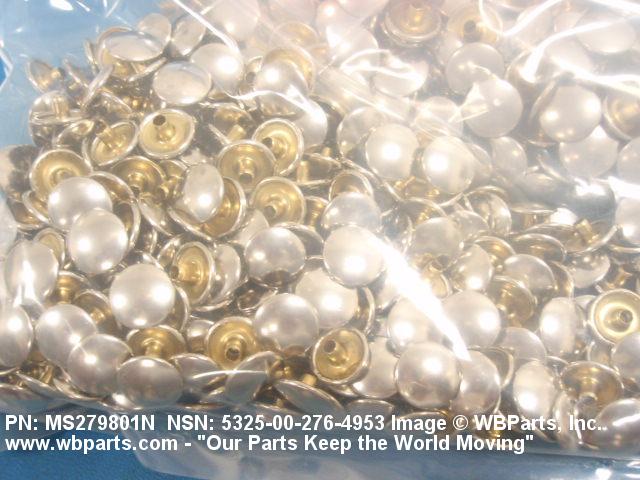

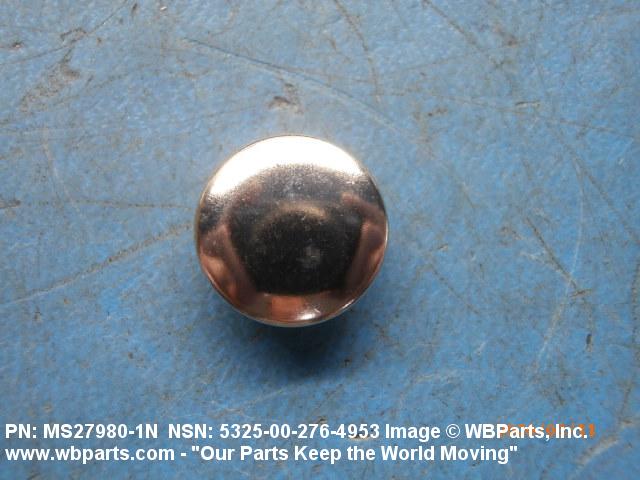

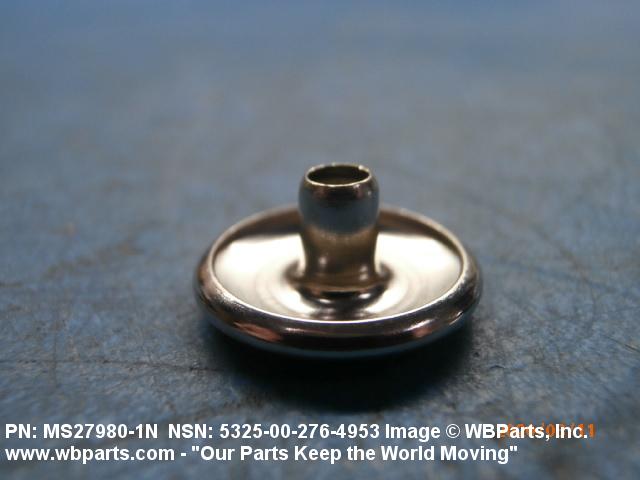

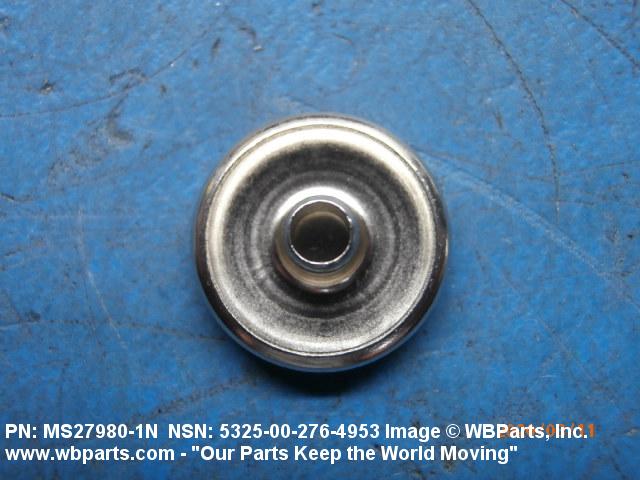

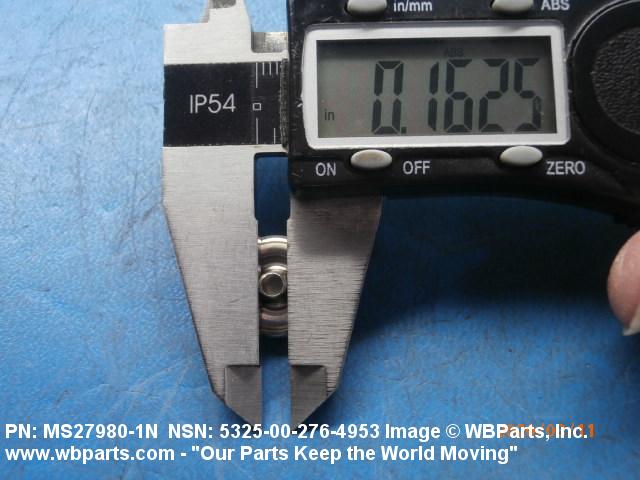

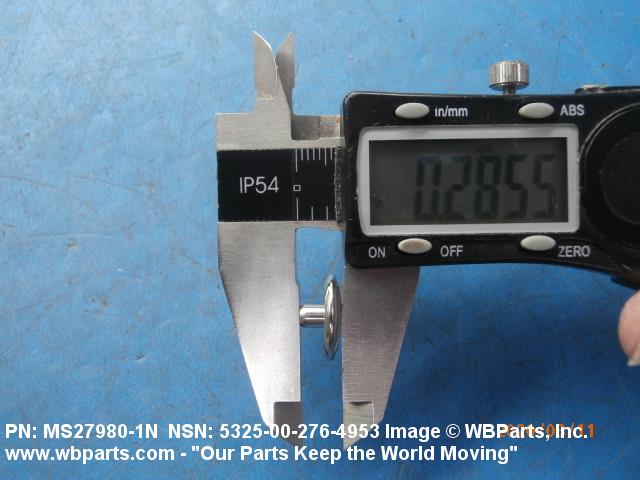

Drawings & Photos | NSN 5325-00-276-4953


Demand History | NSN 5325-00-276-4953

Part Number Request Date QTY Origin
5325-00-276-4953 2024-07-211 888 United States
5325-00-276-4953 2021-08-214 2917 DIBBS
5325-00-276-4953 2021-03-66 299 DIBBS
5325-00-276-4953 2021-01-06 640 DIBBS
5325-00-276-4953 2020-07-212 1602 DIBBS
5325-00-276-4953 2020-02-37 16 United States
5325-00-276-4953 2019-09-248 180 DIBBS
AN2276 2017-11-321 5 United States
MS27980-1N 2016-06-173 102
5325-00-276-4953 2012-04-94 500 US
5325-00-276-4953 2011-10-291 100 US
MS279801N 2011-02-47 57 United States
MS279801N 2010-12-335 100 Canada
MS279801N 2010-06-170 2000 United States
5325-00-276-4953 2010-04-99 30 United States
5325-00-276-4953 2009-06-173 50 Canada
5325-00-276-4953 2008-12-353 50 US
5325-00-276-4953 2008-09-264 666 DIBBS

Cross Reference | NSN 5325-00-276-4953

Part Number Cage Code Manufacturer
AN227-6 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS27980-1N 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS27980-1N 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-276-4953

Technical Data | NSN 5325-00-276-4953

Characteristic Specifications
MATERIAL COPPER ALLOY 260 OVERALL
SURFACE TREATMENT NICKEL OVERALL

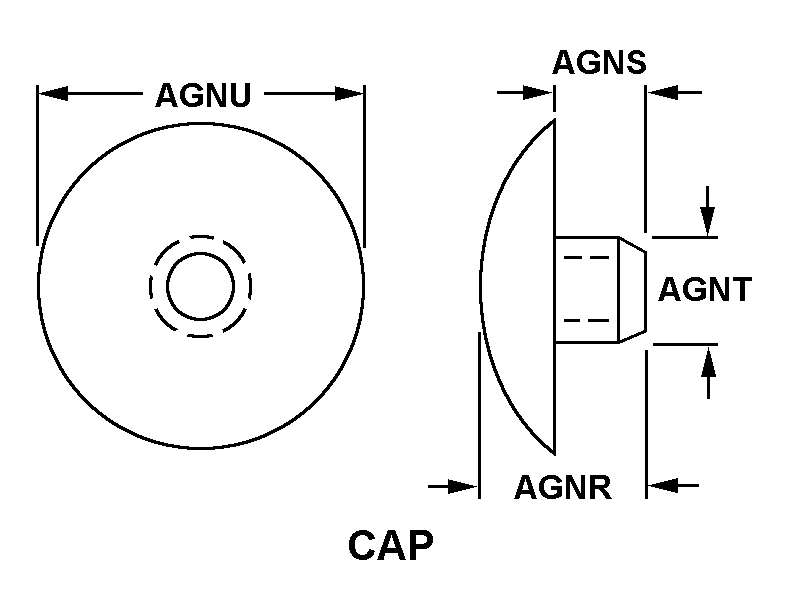

CAP STYLE 1 CAP
CAP OVERALL LENGTH 0.265 INCHES MINIMUM AND 0.297 INCHES MAXIMUM

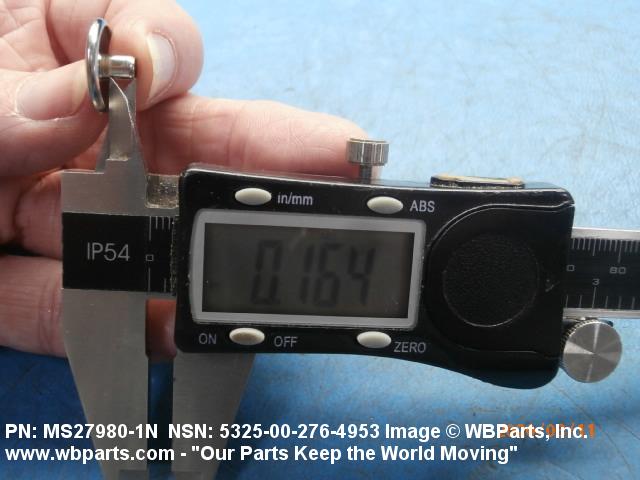

CAP SHANK LENGTH 0.156 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
CAP SHANK DIAMETER 0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM

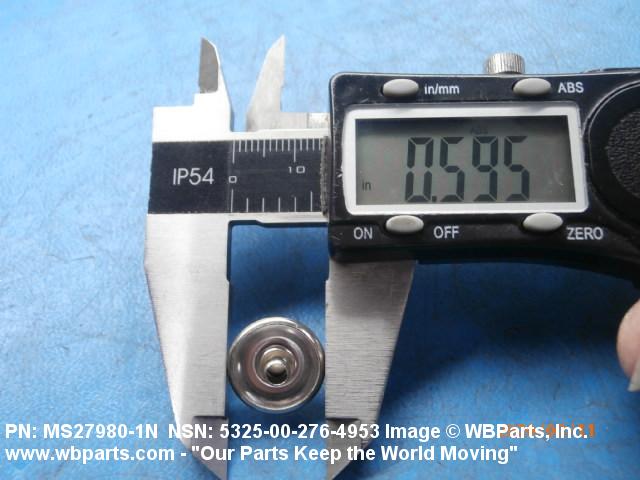

CAP HEAD DIAMETER 0.593 INCHES MINIMUM AND 0.625 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5325-00-276-4953

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 066440 FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-00-276-4953

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
