Product Details | SCREW THREAD INSERT

5325-00-811-8315 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: B31014122, B31014-1-22, 9020607, 934C10CS1375, 934C-10CS1375, 5325-00-811-8315, 00-811-8315, 5325008118315, 008118315

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-811-8315

Drawings & Photos | NSN 5325-00-811-8315


Cross Reference | NSN 5325-00-811-8315

Part Number Cage Code Manufacturer
9020607 18876 U S ARMY AVIATION AND MISSILE COMMAND
934C-10CS1375 01556 EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
B31014-1-22 01556 EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-811-8315

Technical Data | NSN 5325-00-811-8315

Characteristic Specifications
MATERIAL STEEL COMP 1117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-633-CANCELED FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM OVERALL

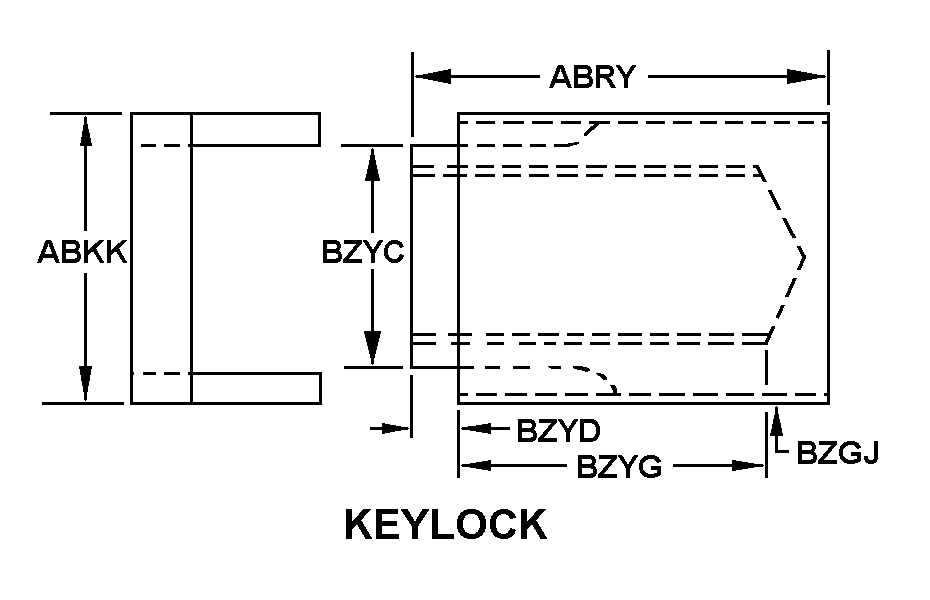

STYLE DESIGNATOR H18 KEYLOCK
LENGTH 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM
TOP UNTHREADED PORTION OUTSIDE DIAMETER 0.728 INCHES MINIMUM AND 0.733 INCHES MAXIMUM
TOP PORTION UNTHREADED OUTSIDE LENGTH 0.075 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
FULL INTERNAL THREAD LENGTH 1.000 INCHES MINIMUM
INSERT SIZE 0.875-14 UNF-3A
