NSN 5325-00-811-8394 956A789P001, 956A789P1, 00-811-8394
Product Details | RETAINING RING
5325-00-811-8394 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 956A789P001, 956A789P1, 5325-00-811-8394, 00-811-8394, 5325008118394, 008118394
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-811-8394 | 07623 ( RING, RETAINING ) |

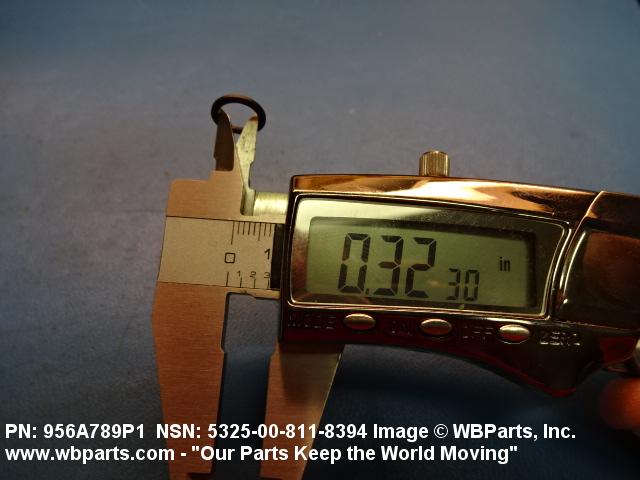

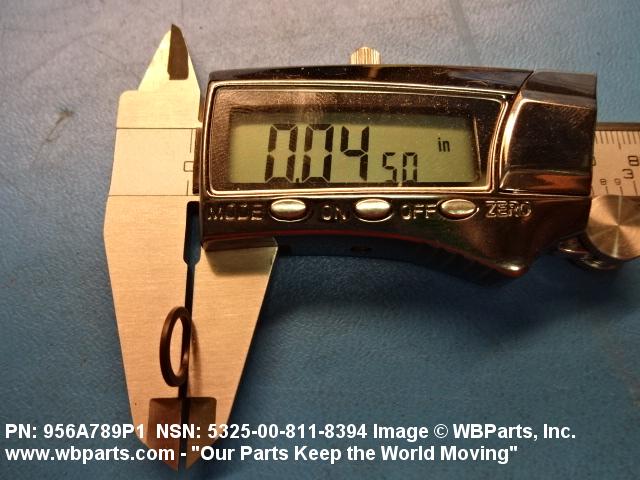

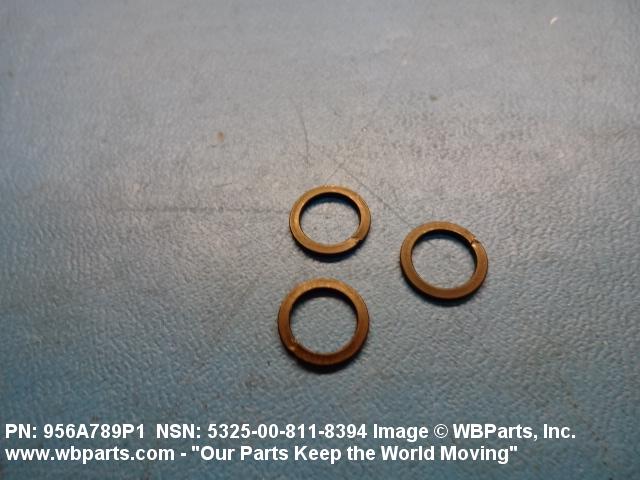

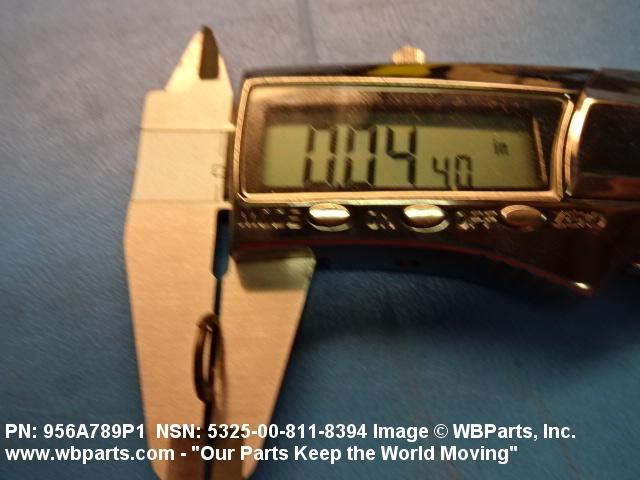

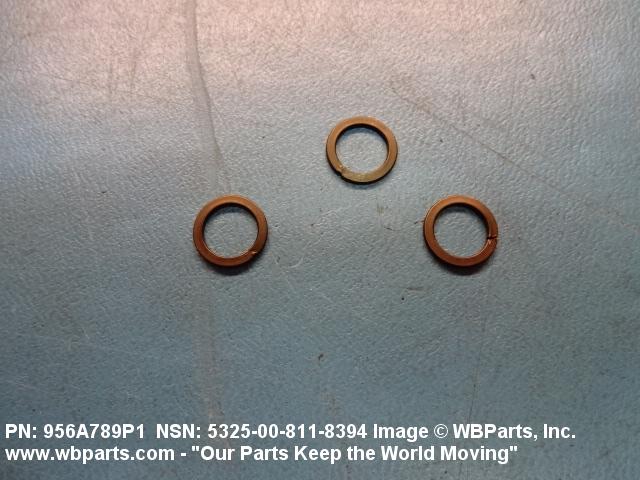

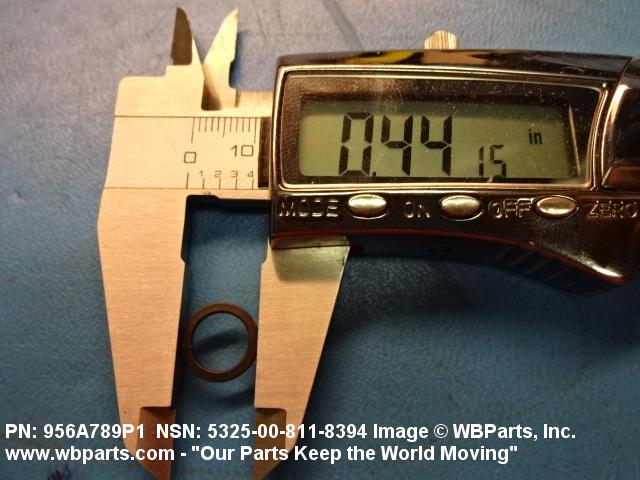

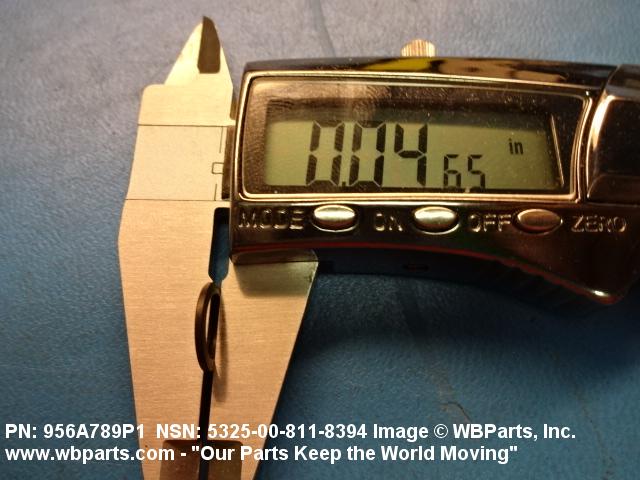

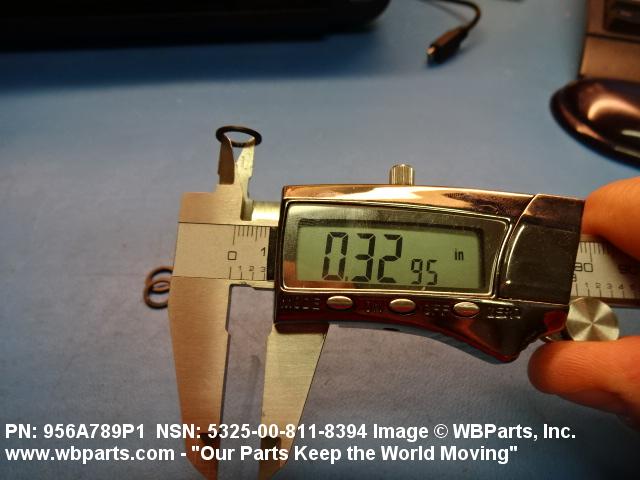

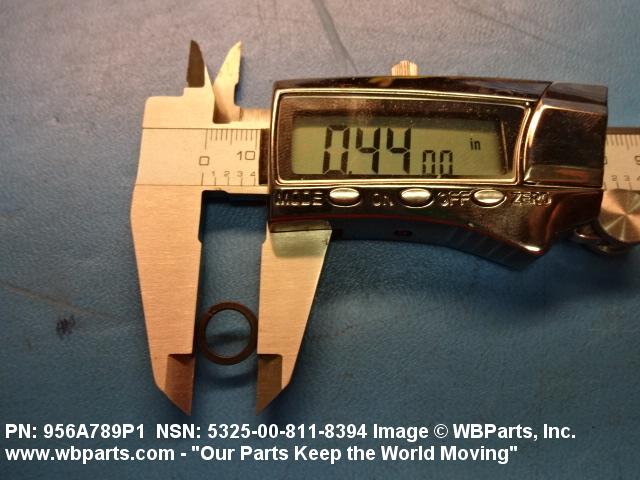

Drawings & Photos | NSN 5325-00-811-8394
