NSN 5325-00-497-0756 CA181213HS, CA18121-3HS, GS520BF3HS
Product Details | TURNLOCK FASTENER STUD
5325-00-497-0756 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: CA181213HS, CA18121-3HS, GS520BF3HS, 5325-00-497-0756, 00-497-0756, 5325004970756, 004970756
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 OCT 1972 | 00-497-0756 | 18421 ( STUD, TURNLOCK FASTENER ) |

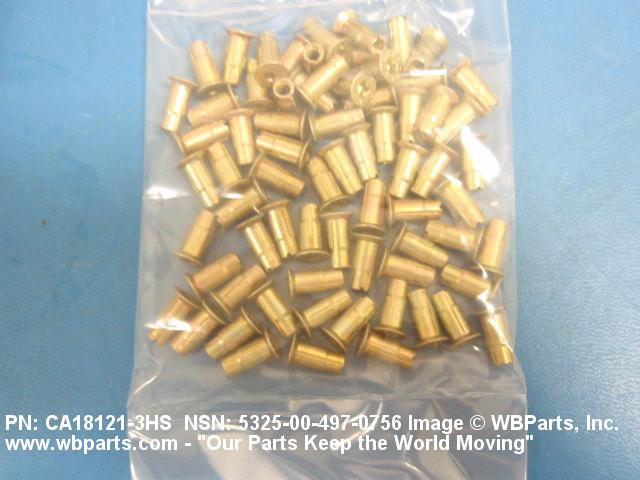

Drawings & Photos | NSN 5325-00-497-0756
Demand History | NSN 5325-00-497-0756
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA18121-3HS | 2021-12-353 | 931 | DIBBS |
| GS520BF3HS | 2021-12-353 | 931 | DIBBS |
| CA18121-3HS | 2021-11-333 | 739 | DIBBS |
| GS520BF3HS | 2021-11-333 | 739 | DIBBS |
| CA18121-3HS | 2021-10-280 | 155 | DIBBS |
| GS520BF3HS | 2021-10-280 | 155 | DIBBS |
| CA18121-3HS | 2021-07-196 | 422 | DIBBS |
| GS520BF3HS | 2021-07-196 | 422 | DIBBS |
| 5325-00-497-0756 | 2018-05-149 | 1000 | DIBBS |
| 5325-00-497-0756 | 2018-05-140 | 1000 | DIBBS |
| 5325-00-497-0756 | 2018-03-87 | 1500 | DIBBS |
| 5325-00-497-0756 | 2017-09-270 | 1248 | DIBBS |
| 5325-00-497-0756 | 2017-02-43 | 1468 | DIBBS |
| 5325-00-497-0756 | 2016-06-181 | 1052 | DIBBS |
| 5325-00-497-0756 | 2015-04-99 | 1926 | DIBBS |
| 5325-00-497-0756 | 2014-08-237 | 1926 | DIBBS |
| 5325-00-497-0756 | 2014-06-167 | 1926 | DIBBS |
| 5325-00-497-0756 | 2014-03-68 | 2156 | DIBBS |
| CA181213HS | 2012-05-125 | 57 | IN |
| 5325-00-497-0756 | 2011-06-167 | 1040 | DIBBS |
| 5325-00-497-0756 | 2011-03-60 | 57 | IN |
| 5325-00-497-0756 | 2010-10-294 | 5000 | DIBBS |
| 5325-00-497-0756 | 2010-09-252 | 5000 | DIBBS |
| 5325-00-497-0756 | 2010-08-223 | 4000 | DIBBS |
| CA181213HS | 2010-07-193 | 20 | United States |
| CA181213HS | 2010-06-167 | 360 | United Kingdom |
| CA181213HS | 2010-06-166 | 70 | United States |
| 5325-00-497-0756 | 2009-11-314 | 3500 | DIBBS |
| 5325-00-497-0756 | 2009-05-148 | 3000 | DIBBS |
| 5325-00-497-0756 | 2008-10-297 | 2526 | DIBBS |
| 5325-00-497-0756 | 2008-10-281 | 2500 | DIBBS |
| 5325-00-497-0756 | 2008-09-266 | 2500 | DIBBS |
| 5325-00-497-0756 | 2008-09-248 | 928 | DIBBS |
| 5325-00-497-0756 | 2008-09-246 | 1500 | DIBBS |
| 5325-00-497-0756 | 2008-07-190 | 1188 | DIBBS |
| 5325-00-497-0756 | 2008-05-130 | 863 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-497-0756
Related Products | NSN 5325-00-497-0756
Technical Data | NSN 5325-00-497-0756
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD SHANK STYLE | 16 STUD SHANK |
| GRIP LENGTH | 0.360 INCHES MAXIMUM |
| EXTENSION LENGTH | 0.210 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.2470 INCHES MINIMUM AND 0.2495 INCHES MAXIMUM |
| TURNLOCK STUD HEAD STYLE | 1 FLAT COUNTERSUNK |
| DIAMETER | 0.360 INCHES MINIMUM |
| STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNC |
| SECURING DEVICE TYPE | RING |
| DRIVE TYPE | SOCKET |
| MATERIAL ACCOMMODATED THICKNESS | 0.291 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-497-0756
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-497-0756
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
