NSN 5325-00-497-0770 CA181214HS, CA18121-4HS, GS520BF4HS

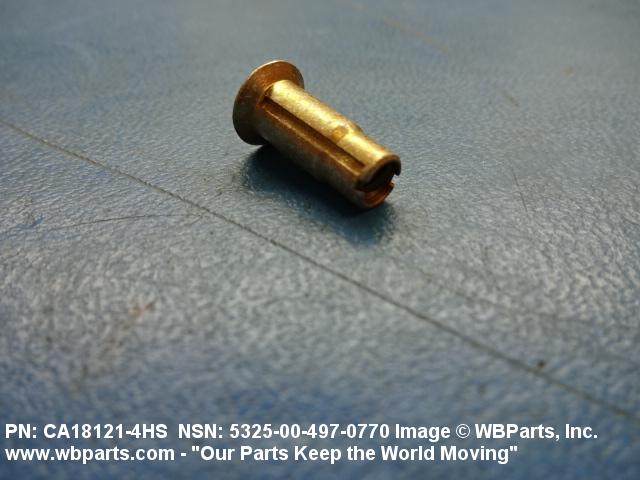

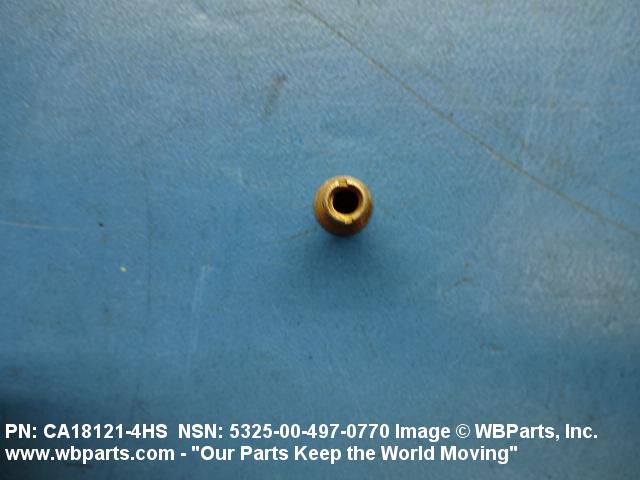

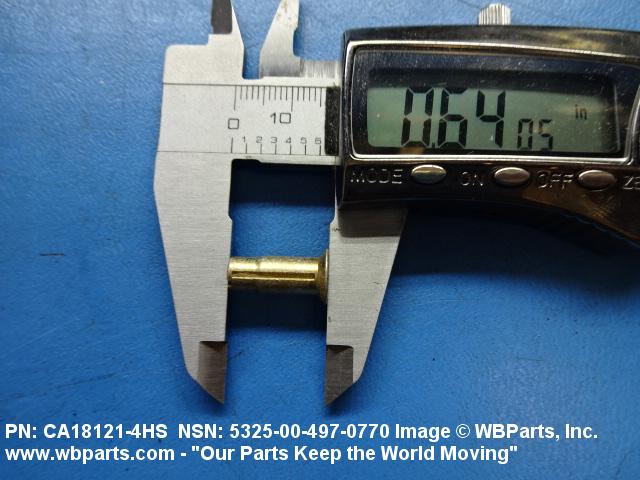

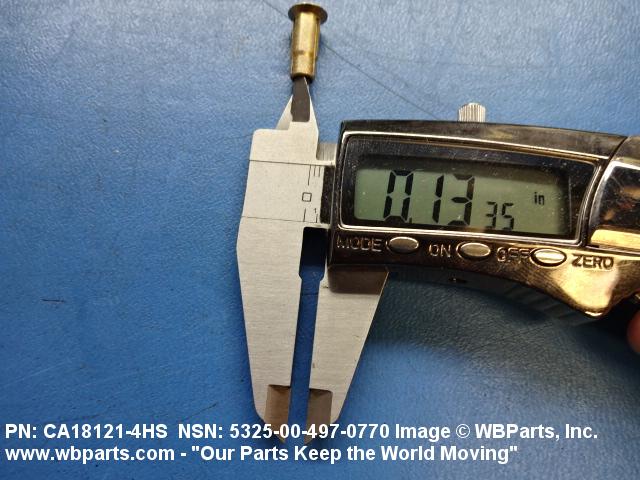

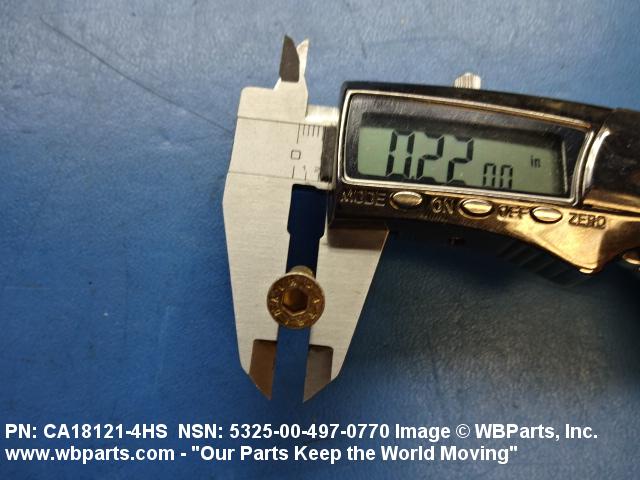

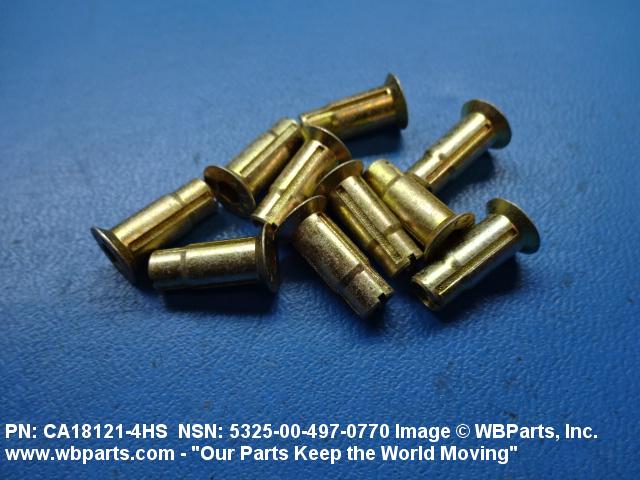

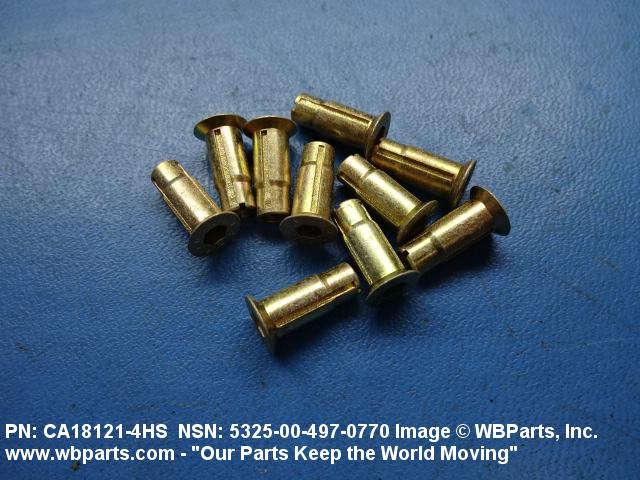

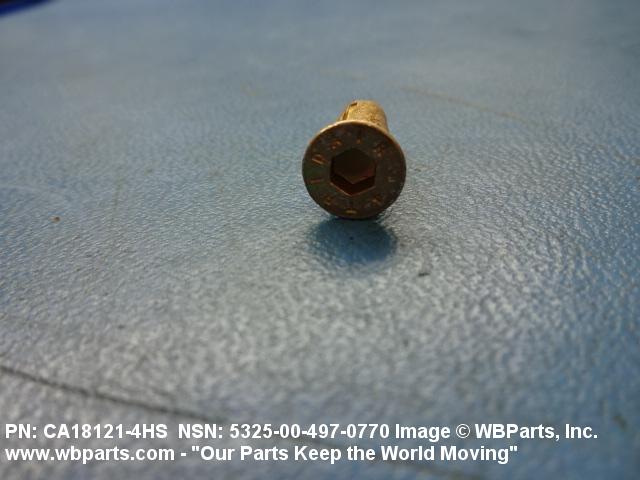

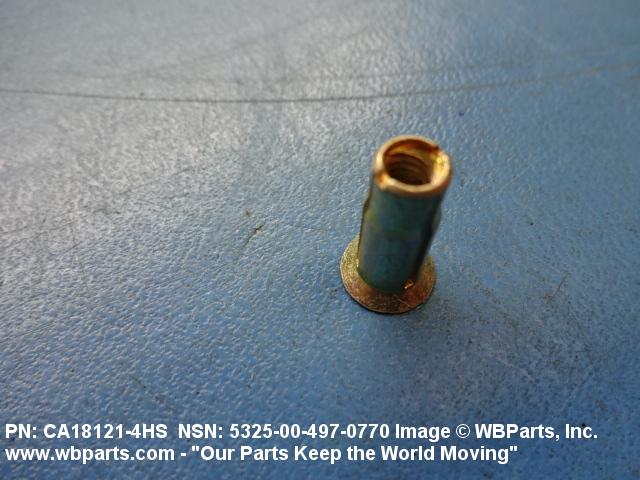

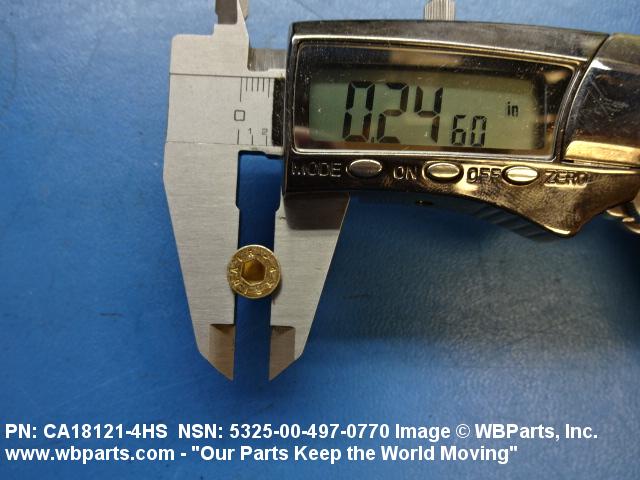

Product Details | TURNLOCK FASTENER STUD
5325-00-497-0770 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: CA181214HS, CA18121-4HS, GS520BF4HS, 2350210014, 235-021-0014, 5325-00-497-0770, 00-497-0770, 5325004970770, 004970770
