NSN 5325-00-449-2966 A105210, A10-5-2-10, BACS20A5C
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-449-2966 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: A105210, A10-5-2-10, BACS20A5C, 6969301, 69-693-01, 8531073, 99947C130, 99947-C130, 9M152F5C130, 9M152F5-C130, 5325-00-449-2966, 00-449-2966, 5325004492966, 004492966
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-449-2966 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

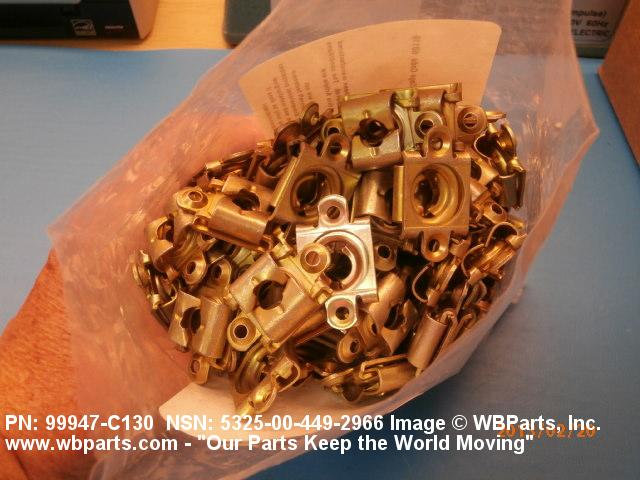

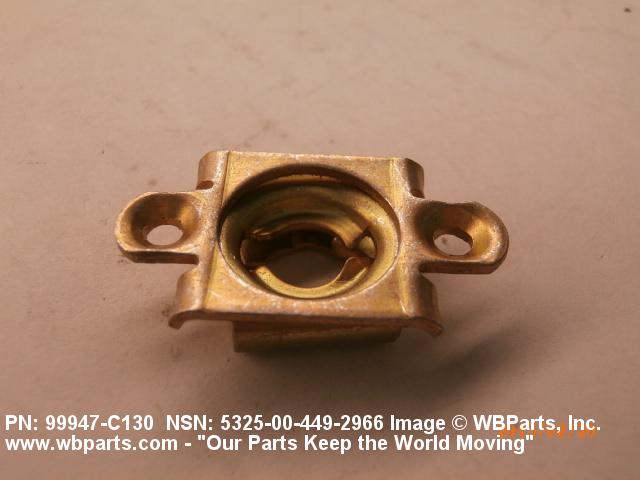

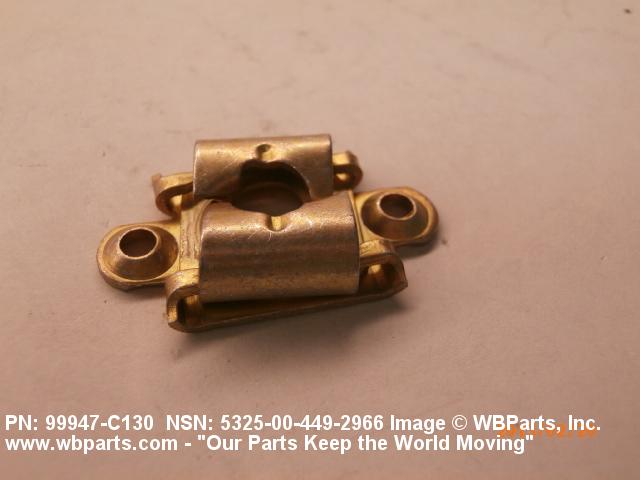

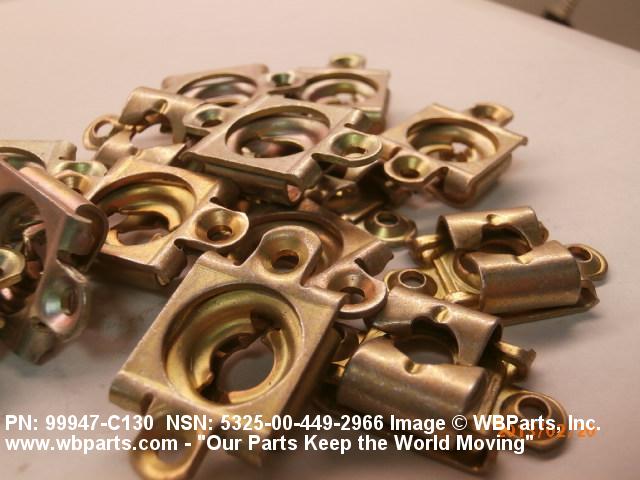

Drawings & Photos | NSN 5325-00-449-2966
Demand History | NSN 5325-00-449-2966
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 99947-C130 | 2024-05-140 | 241 | DIBBS |
| 9M152F5-C130 | 2024-05-140 | 241 | DIBBS |
| A10-5-2-10 | 2024-05-140 | 241 | DIBBS |
| BACS20A5C | 2024-05-140 | 241 | DIBBS |
| 99947-C130 | 2023-11-323 | 174 | DIBBS |
| 9M152F5-C130 | 2023-11-323 | 174 | DIBBS |
| A10-5-2-10 | 2023-11-323 | 174 | DIBBS |
| BACS20A5C | 2023-11-323 | 174 | DIBBS |
| BACS20A5C | 2018-01-11 | 22 | United States |
| 99947C130 | 2013-02-44 | 150 | Switzerland |
| 99947C130 | 2012-12-360 | 150 | Switzerland |
| 99947C130 | 2012-12-346 | 150 | Switzerland |
| BACS20A5C | 2011-04-103 | 135 | US |
| 99947C130 | 2009-07-195 | 2 | United States |
Cross Reference | NSN 5325-00-449-2966
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 69-693-01 | 30554 | DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER |
| 8531073 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 99947-C130 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 99947C130 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| 9M152F5-C130 | 76301 | BOEING COMPANY, THE DBA BOEING |
| A10-5-2-10 | 95335 | ATLANTIC RESEARCH CORP |
| BACS20A5C | 81205 | THE BOEING COMPANY DBA BOEING |
| BACS20A5C | 82918 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-449-2966
Related Products | NSN 5325-00-449-2966
Technical Data | NSN 5325-00-449-2966
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK RECEPTACLE STYLE | 3 RECEPTACLE |

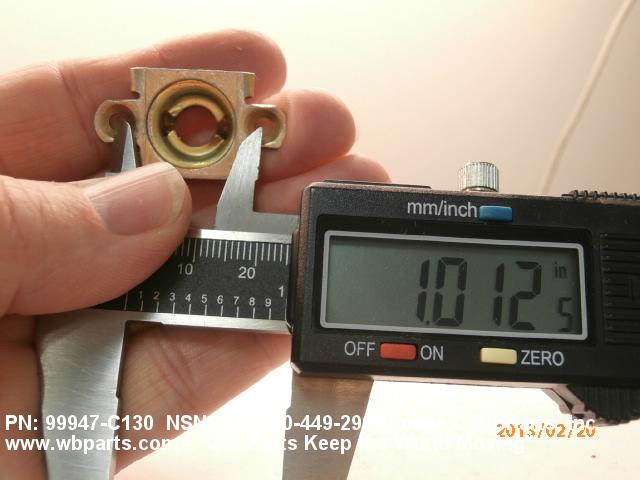

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.000 INCHES NOMINAL |

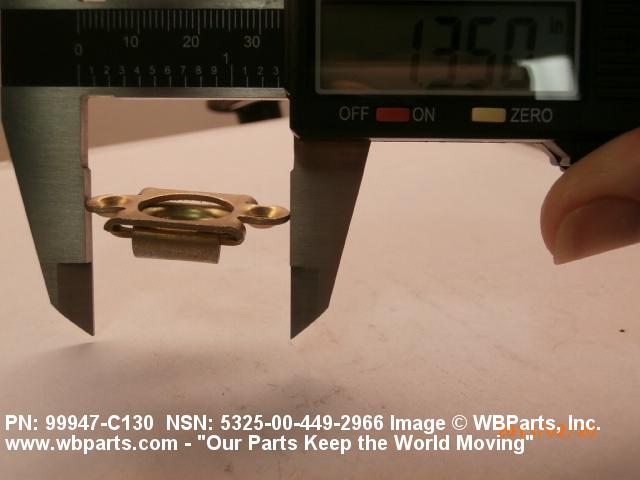

| RECEPTACLE OVERALL LENGTH | 1.344 INCHES NOMINAL |

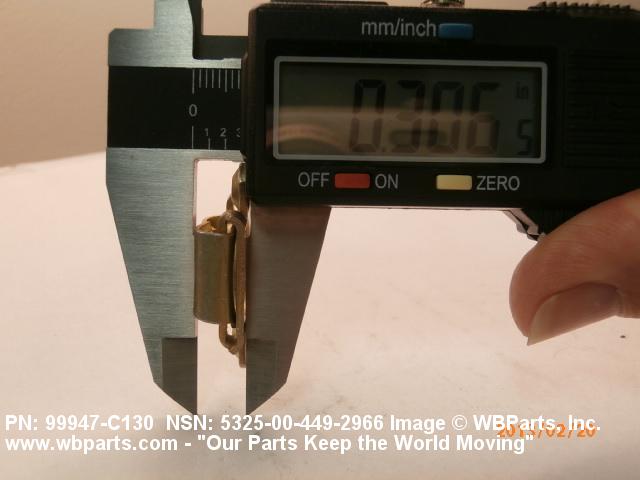

| RECEPTACLE HEIGHT | 0.312 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.750 INCHES NOMINAL |
| MOUNTING STYLE | 3 DIMPLED W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.130 INCHES NOMINAL |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 9M152F5-C130 |
Restrictions/Controls & Freight Information | NSN 5325-00-449-2966
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-449-2966
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
