NSN 5325-00-619-7216 BACR11AV1K, BACR11X1K, 683392

Product Details | TURNLOCK FASTENER RECEPTACLE

5325-00-619-7216 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.

Part Alternates: BACR11AV1K, BACR11X1K, 683392, 68339-2, 91783618, 990AS183, 0117518D00, 0745231266, 10164289, 1142725, 2118800230, 21188-00230, 40R121, 40R12-1, 40R1211, 40R121-1, 5325-00-619-7216, 00-619-7216, 5325006197216, 006197216

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-619-7216	18485 ( RECEPTACLE, TURNLOCK FASTENER )

Drawings & Photos | NSN 5325-00-619-7216

Part Number	Request Date	QTY	Origin
5325-00-619-7216	2024-07-186	20	CA
0117518D00	2024-06-172	443	DIBBS
1142725	2024-06-172	443	DIBBS
40R12-1	2024-06-172	443	DIBBS
68339-2	2024-06-172	443	DIBBS
91783618	2024-06-172	443	DIBBS
0117518D00	2024-06-163	443	DIBBS
1142725	2024-06-163	443	DIBBS
40R12-1	2024-06-163	443	DIBBS
68339-2	2024-06-163	443	DIBBS
91783618	2024-06-163	443	DIBBS
0117518D00	2024-04-105	403	DIBBS
1142725	2024-04-105	403	DIBBS
40R12-1	2024-04-105	403	DIBBS
68339-2	2024-04-105	403	DIBBS
91783618	2024-04-105	403	DIBBS
5325-00-619-7216	2023-04-109	600	United States
0117518D00	2021-01-18	160	DIBBS
1142725	2021-01-18	160	DIBBS
40R12-1	2021-01-18	160	DIBBS
68339-2	2021-01-18	160	DIBBS
91783618	2021-01-18	160	DIBBS
40R121	2017-05-144	1	US
5325-00-619-7216	2015-09-263	228	DIBBS
683392	2013-10-282	22	United States
40R121	2011-01-17	48	us
5325-00-619-7216	2010-01-09	140	Japan
5325-00-619-7216	2009-09-265	210	South Korea
40R121	2009-02-36	210	South Korea
5325-00-619-7216	2008-09-259	35	us

Cross Reference | NSN 5325-00-619-7216

Part Number	Cage Code	Manufacturer
0117518D00	F0555	MBDA FRANCE
0745231266	D2117	KIRSCH GMBH DBA FIRMA KIRSCH
10164289	18876	U S ARMY AVIATION AND MISSILE COMMAND
1142725	60119	MONADNOCK COMPANY THE DBA LISI AEROSPACE
21188-00230	K0662	SELEX ES LTD
40R12-1	71286	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
40R12-1	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
40R121-1	71286	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
68339-2	82340	EDO CORPORATION DIV DEFENSE SYSTEMS
91783618	F6481	THALES SA
990AS183	30003	NAVAL AIR SYSTEMS COMMAND
BACR11AV1K	81205	THE BOEING COMPANY DBA BOEING
BACR11X1K	77272	THE BOEING COMPANY DBA BOEING
BACR11X1K	81205	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-619-7216

Compare

Related Products | NSN 5325-00-619-7216

5325-00-619-7218, 5325-00-619-7229, 5325-00-619-7231, 5325-00-619-7261, 5325-00-619-7307

Technical Data | NSN 5325-00-619-7216

Characteristic	Specifications
MATERIAL	COPPER ALLOY OR ALUMINUM BRACKET
SURFACE TREATMENT	CADMIUM OVERALL
TURNLOCK RECEPTACLE STYLE	9 RECEPTACLE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES	1.000 INCHES NOMINAL
RECEPTACLE OVERALL LENGTH	1.380 INCHES NOMINAL
RECEPTACLE HEIGHT	0.650 INCHES MINIMUM AND 0.710 INCHES MAXIMUM
RECEPTACLE WIDTH	0.690 INCHES NOMINAL

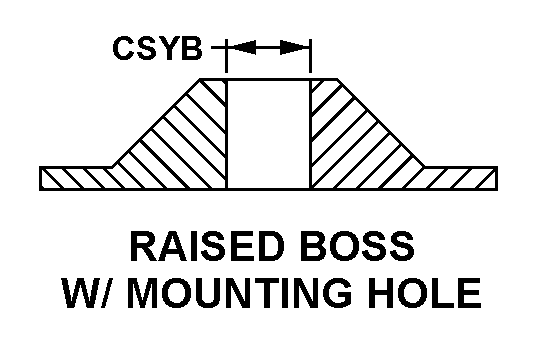

MOUNTING STYLE	9 RAISED BOSS W/MOUNTING HOLE
