NSN 5325-00-422-4188 PAF55583, PAF55-5-8-3, 1955583

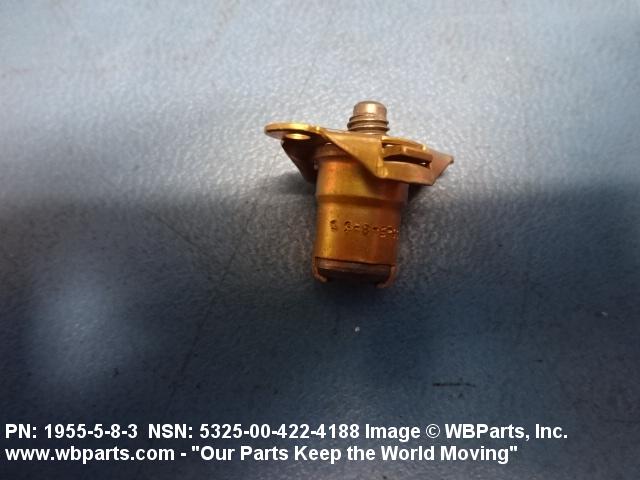

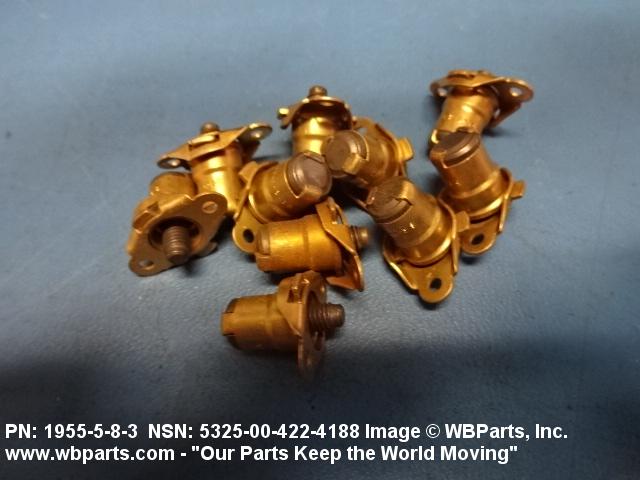

Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-422-4188 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: PAF55583, PAF55-5-8-3, 1955583, 1955-5-8-3, 5325-00-422-4188, 00-422-4188, 5325004224188, 004224188
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 APR 1971 | 00-422-4188 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

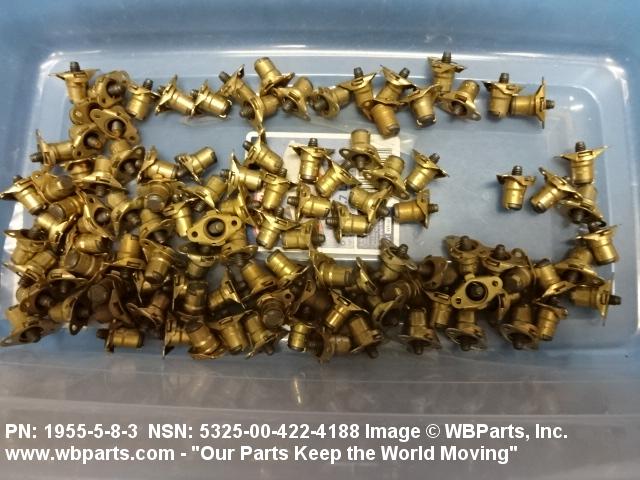

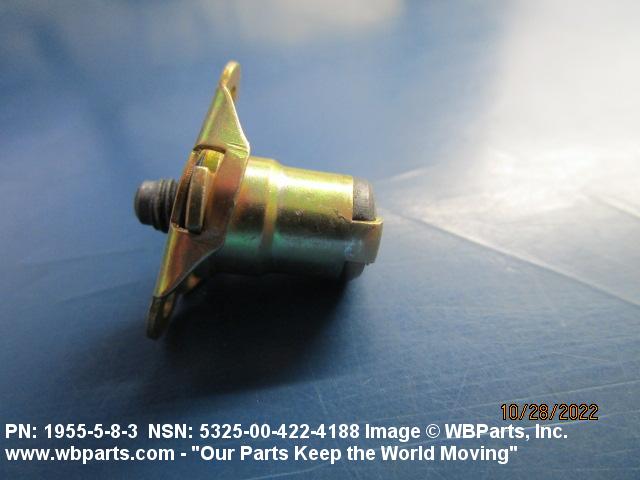

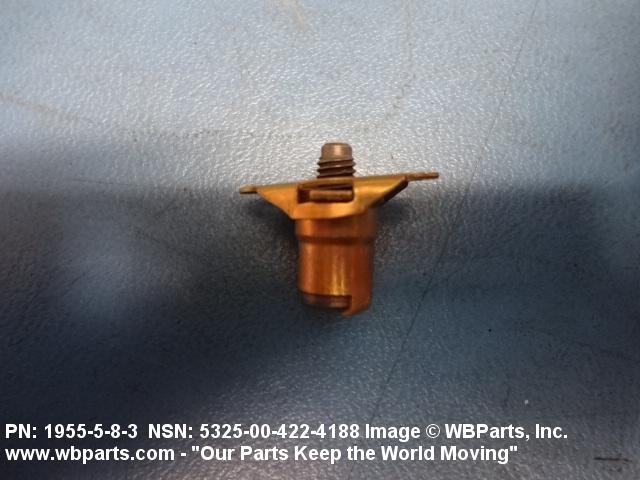

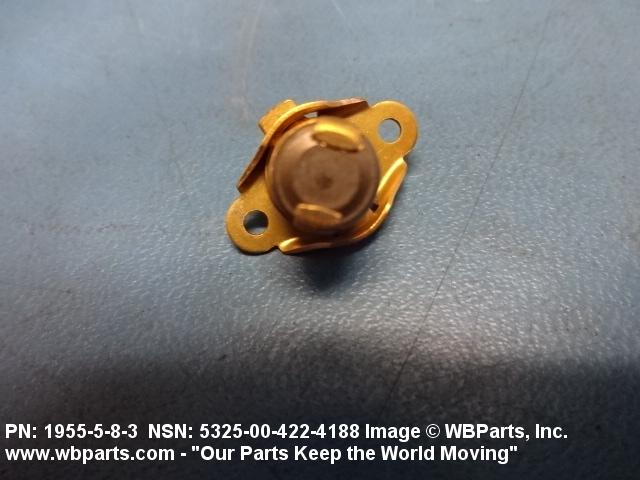

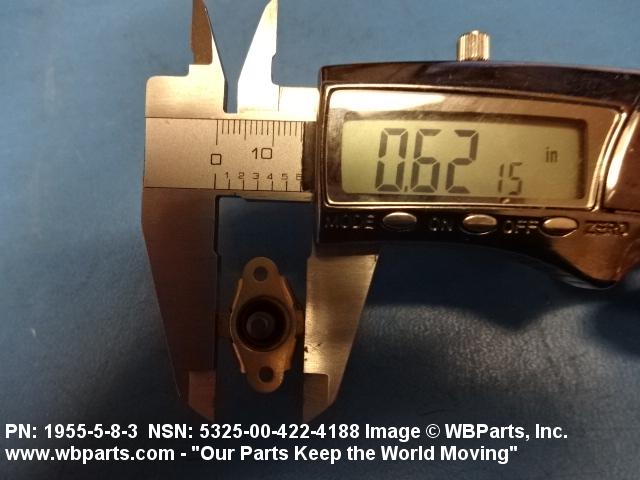

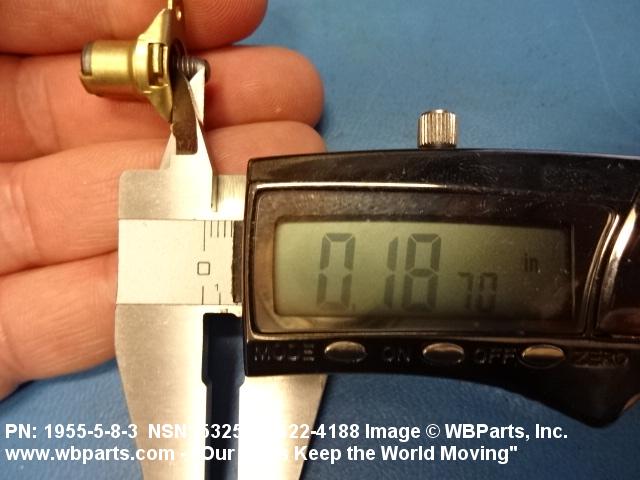

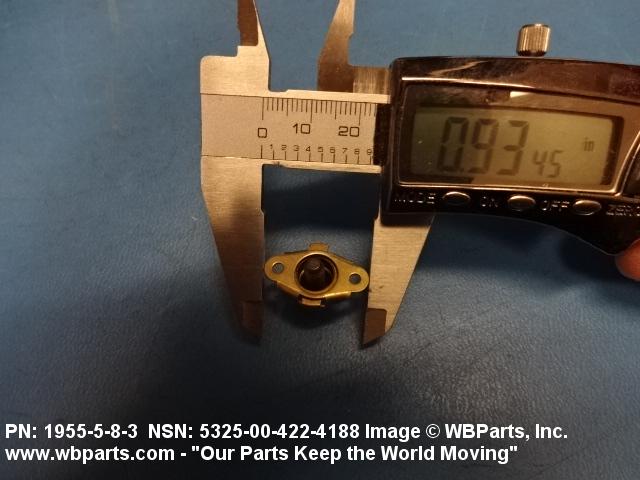

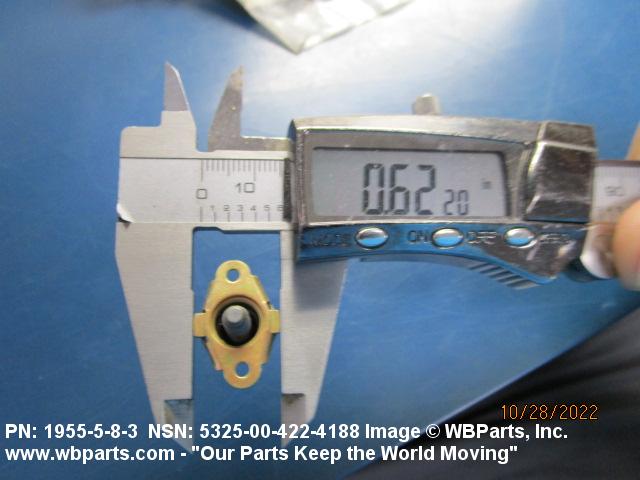

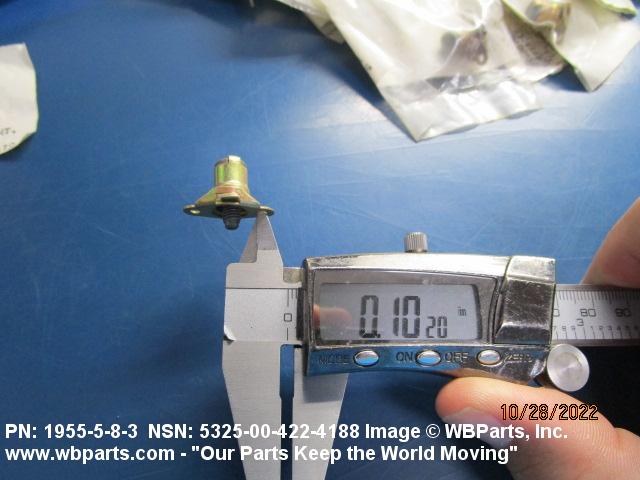

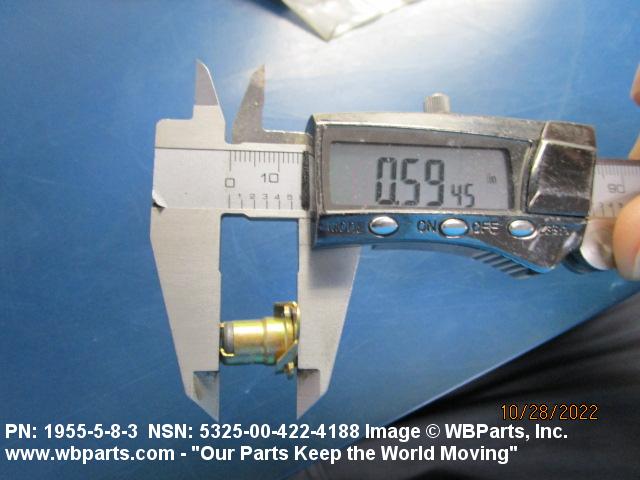

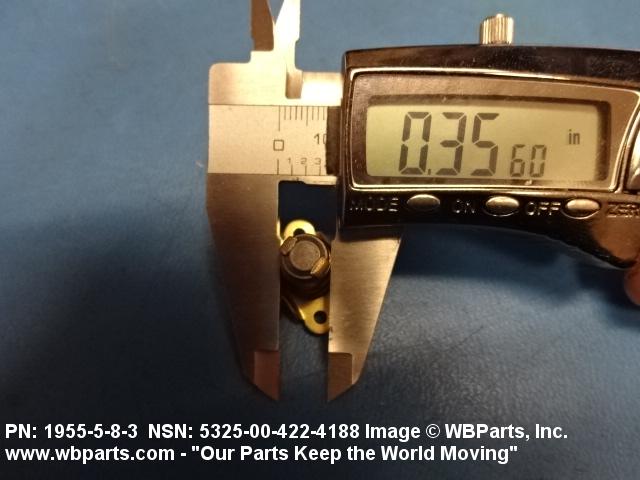

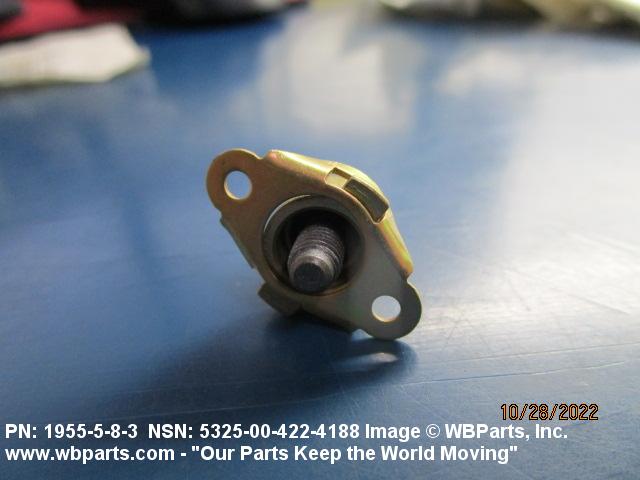

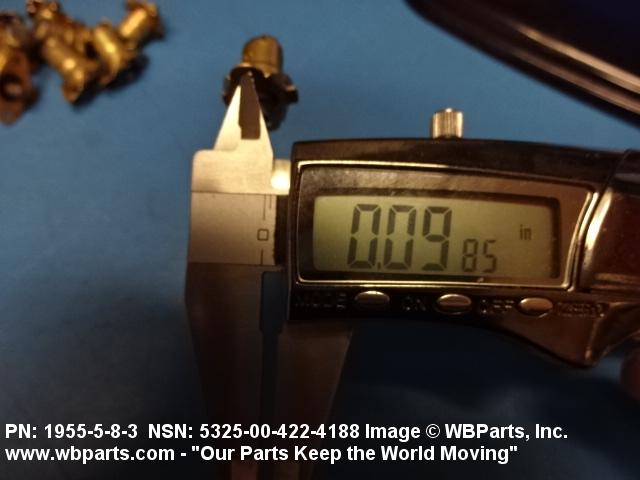

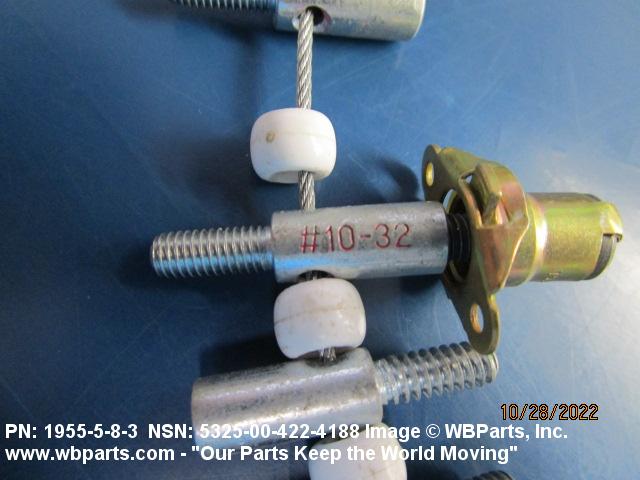

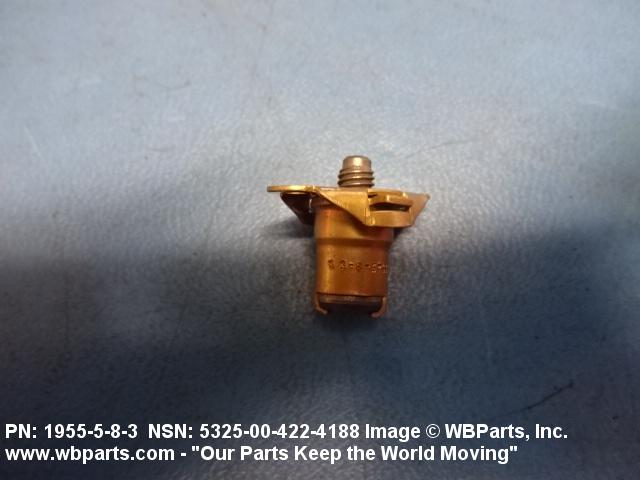

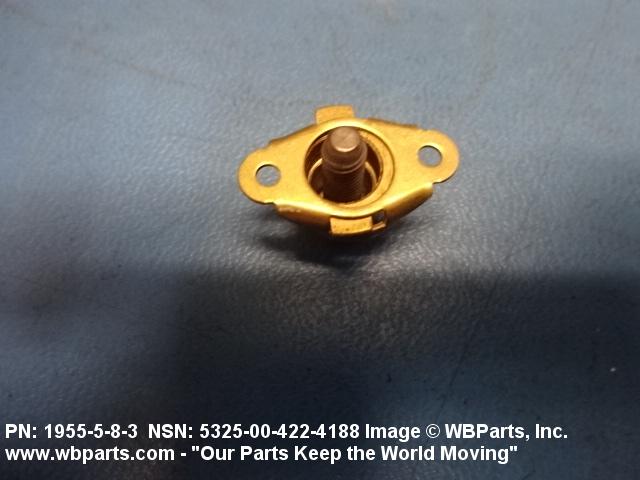

Drawings & Photos | NSN 5325-00-422-4188
Demand History | NSN 5325-00-422-4188
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-422-4188 | 2024-10-278 | 83 | United States |
| 5325-00-422-4188 | 2024-07-191 | 28 | US |
| 5325-00-422-4188 | 2024-07-189 | 28 | US |
| 5325-00-422-4188 | 2024-01-23 | 28 | United States |
| 5325-00-422-4188 | 2023-11-319 | 28 | US |
| 5325-00-422-4188 | 2023-10-289 | 28 | US |
| 1955-5-8-3 | 2023-03-85 | 28 | DIBBS |
| PAF55-5-8-3 | 2023-03-85 | 28 | DIBBS |
| 1955-5-8-3 | 2022-12-340 | 28 | DIBBS |
| PAF55-5-8-3 | 2022-12-340 | 28 | DIBBS |
| 5325-00-422-4188 | 2022-10-286 | 44 | United States |
| 1955-5-8-3 | 2022-09-258 | 53 | DIBBS |
| PAF55-5-8-3 | 2022-09-258 | 53 | DIBBS |
| 1955-5-8-3 | 2022-09-249 | 51 | DIBBS |
| PAF55-5-8-3 | 2022-09-249 | 51 | DIBBS |
| 1955-5-8-3 | 2022-08-235 | 51 | DIBBS |
| PAF55-5-8-3 | 2022-08-235 | 51 | DIBBS |
| 1955-5-8-3 | 2022-03-75 | 53 | DIBBS |
| PAF55-5-8-3 | 2022-03-75 | 53 | DIBBS |
| 1955-5-8-3 | 2020-10-293 | 60 | DIBBS |
| PAF55-5-8-3 | 2020-10-293 | 60 | DIBBS |
| 1955-5-8-3 | 2020-10-281 | 60 | DIBBS |
| PAF55-5-8-3 | 2020-10-281 | 60 | DIBBS |
| 5325-00-422-4188 | 2018-02-33 | 108 | United States |
| 5325-00-422-4188 | 2017-08-237 | 108 | DIBBS |
| 5325-00-422-4188 | 2017-08-229 | 108 | DIBBS |
| 5325-00-422-4188 | 2017-06-180 | 22 | DIBBS |
| 5325-00-422-4188 | 2017-06-172 | 22 | DIBBS |
| 5325-00-422-4188 | 2017-05-139 | 18 | DIBBS |
| 5325-00-422-4188 | 2017-05-131 | 18 | DIBBS |
| 5325-00-422-4188 | 2013-03-78 | 106 | DIBBS |
| 5325-00-422-4188 | 2008-11-311 | 100 | DIBBS |
| 5325-00-422-4188 | 2008-07-189 | 108 | DIBBS |
| 5325-00-422-4188 | 2008-06-156 | 113 | DIBBS |
| 5325-00-422-4188 | 2008-04-112 | 26 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-422-4188
Related Products | NSN 5325-00-422-4188
Technical Data | NSN 5325-00-422-4188
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 BARREL STEEL COMP 1050 RETAINER STEEL COMP 8740 STUD |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| TURNLOCK RECEPTACLE STYLE | 33 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |

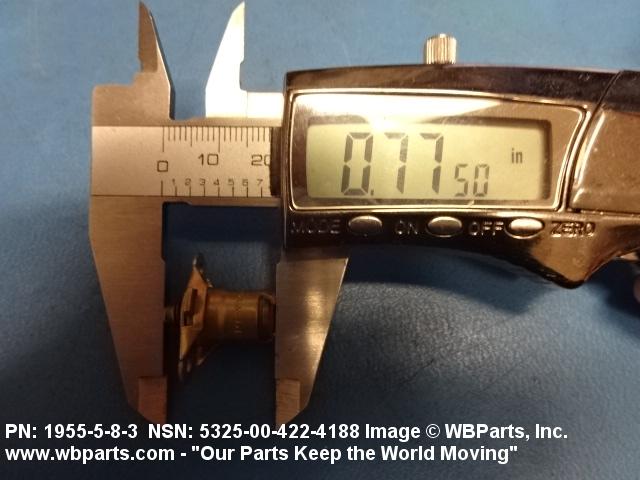

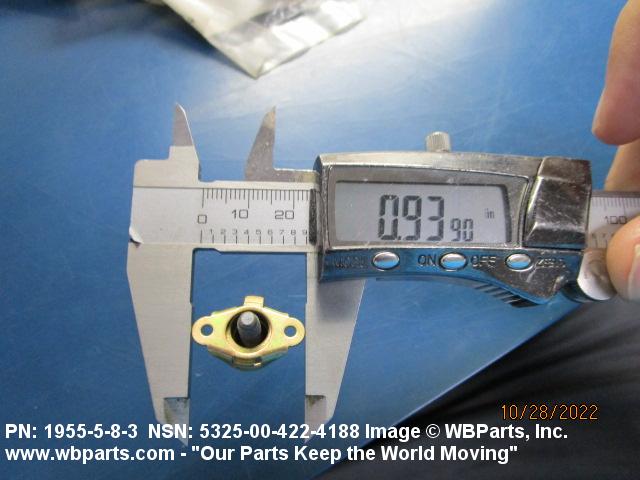

| RECEPTACLE OVERALL LENGTH | 0.955 INCHES MAXIMUM |
