NSN 5325-00-449-2969 4SRC, 00-449-2969, 004492969
Product Details | TURNLOCK FASTENER EYELET
5325-00-449-2969 A metallic item designed to be inserted into a preformed hole to guide and retain a STUD, TURNLOCK FASTENER. Excludes EYELET, METALLIC.
Part Alternates: 4SRC, 5325-00-449-2969, 00-449-2969, 5325004492969, 004492969
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-449-2969 | 18422 ( EYELET, TURNLOCK FASTENER ) |

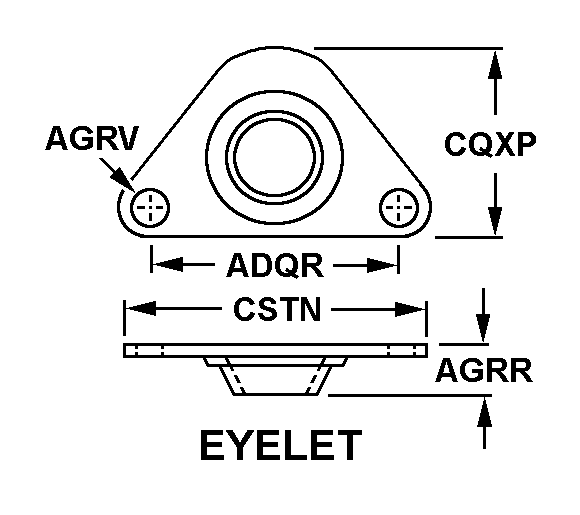

Drawings & Photos | NSN 5325-00-449-2969
Cross Reference | NSN 5325-00-449-2969
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4SRC | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-449-2969
Related Products | NSN 5325-00-449-2969
Technical Data | NSN 5325-00-449-2969
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TURNLOCK EYELET STYLE | 11 EYELET |
| CENTER TO CENTER DISTANCE | 0.688 INCHES NOMINAL |
| EYELET HEIGHT | 0.172 INCHES NOMINAL |
| EYELET MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| EYELET WIDTH | 0.906 INCHES NOMINAL |
| EYELET OVERALL LENGTH | 1.047 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-449-2969
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
