NSN 5325-01-004-9610 PC3 1-2X547-6BLACKEBONALC, PC312X5476BLACKEBONALC, PC35X5476RB

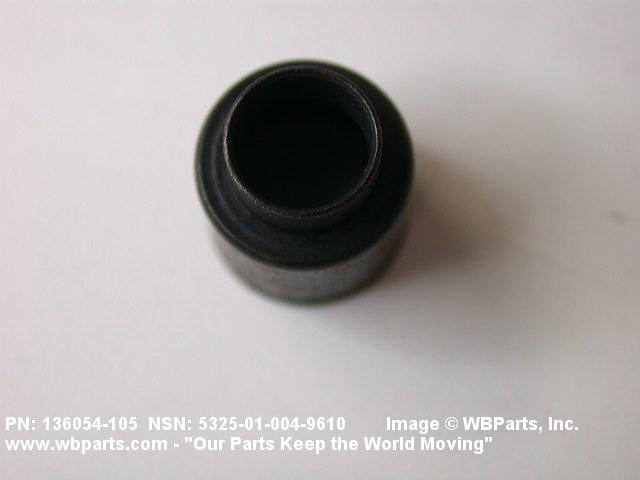

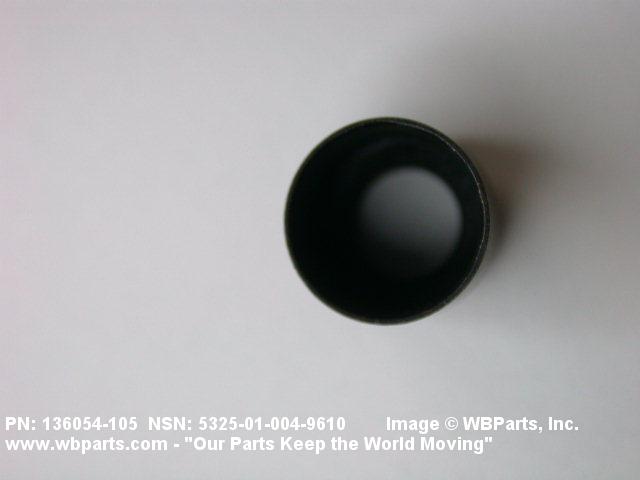

Product Details | TURNLOCK FASTENER EYELET
5325-01-004-9610 A metallic item designed to be inserted into a preformed hole to guide and retain a STUD, TURNLOCK FASTENER. Excludes EYELET, METALLIC.
Part Alternates: PC3 1-2X547-6BLACKEBONALC, PC312X5476BLACKEBONALC, PC35X5476RB, PC35X547-6RB, 136054-105, 35033BOC, 3503-3-BOC, 531900E995041, 531900E99504-1, 5325-01-004-9610, 01-004-9610, 5325010049610, 136054105, 010049610
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 JUN 1975 | 01-004-9610 | 18422 ( EYELET, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-01-004-9610
Demand History | NSN 5325-01-004-9610
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3503-3-BOC | 2021-02-54 | 406 | DIBBS |
| 5325-01-004-9610 | 2021-01-29 | 100 | US |
| 136054105 | 2012-11-313 | 900 | UM |
| 136054105 | 2009-07-209 | 3900 | US |
| 531900E995041 | 2007-05-141 | 50 | United States |
| 531900E995041 | 2007-05-141 | 47 | United States |
Cross Reference | NSN 5325-01-004-9610
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 136054-105 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 3503-3-BOC | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| 531900E99504-1 | 89297 | NAVAL AIR WARFARE CENTER TRAINING SYSTEMS DIV |
| PC3 1-2X547-6BLACKEBONALC | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| PC35X547-6RB | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
