NSN 5325-00-406-5478 MS177312, MS17731-2, NASM22978

Product Details | TURNLOCK FASTENER ASSEMBLY

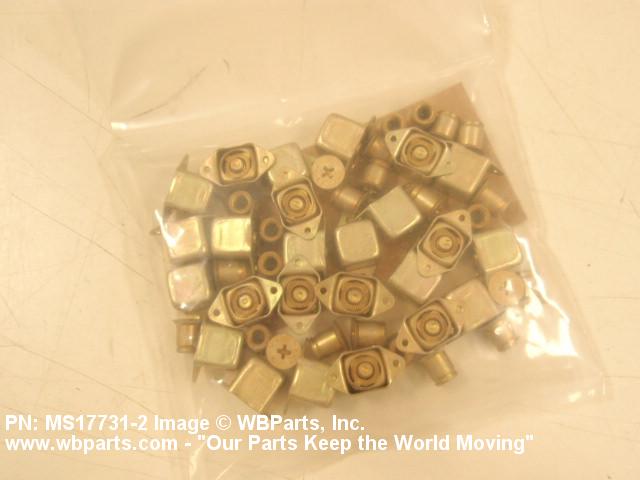

5325-00-406-5478 An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action.

Part Alternates: MS177312, MS17731-2, NASM22978 , MILF22978, MIL-F-22978, 803002, 8-03-00-2, 5325-00-406-5478, 00-406-5478, 5325004065478, 004065478

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	15 APR 1970	00-406-5478	61968 ( FASTENER ASSEMBLY, TURNLOCK )

Drawings & Photos | NSN 5325-00-406-5478

Part Number	Request Date	QTY	Origin
5325-00-406-5478	2019-12-346	900	DIBBS
5325-00-406-5478	2013-03-60	888	DIBBS
5325-00-406-5478	2013-02-45	888	DIBBS
5325-00-406-5478	2012-08-243	18	DIBBS
5325-00-406-5478	2012-05-126	192	DIBBS
5325-00-406-5478	2012-05-126	28	DIBBS
5325-00-406-5478	2012-03-80	274	DIBBS
5325-00-406-5478	2011-05-132	185	DIBBS
5325-00-406-5478	2009-11-324	1663	DIBBS
5325-00-406-5478	2009-10-294	1519	DIBBS
5325-00-406-5478	2009-08-226	2300	DIBBS
5325-00-406-5478	2009-07-187	1790	DIBBS
5325-00-406-5478	2009-05-150	1087	DIBBS
5325-00-406-5478	2009-04-105	293	DIBBS
MS177312	2009-03-72	25	United States
MS177312	2009-02-49	25	United States
5325-00-406-5478	2008-02-36	403	DIBBS

Cross Reference | NSN 5325-00-406-5478

Part Number	Cage Code	Manufacturer
8-03-00-2	14728	PRECISION FORM RIVET INC
8-03-00-2	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
8-03-00-2	17419	DEUTSCH CO THE
MIL-F-22978	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS17731-2	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17731-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM22978	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-406-5478

Compare

Related Products | NSN 5325-00-406-5478

5325-00-406-5489, 5325-00-406-5491, 5325-00-406-5492, 5325-00-406-5493, 5325-00-406-5495

Technical Data | NSN 5325-00-406-5478

Characteristic	Specifications
MATERIAL	STEEL COMP 1008 OR STEEL COMP 1010 OR STEEL COMP 1012 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1030 OR STEEL COMP 1035 OR STEEL COMP 1040 OR STEEL COMP 1045 OR STEEL COMP 1050 OR STEEL COMP 1055 OR STEEL COMP 1060 OR STEEL COMP 1095 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2 CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
TURNLOCK STUD SHANK STYLE	15 STUD SHANK
GRIP LENGTH	0.730 INCHES MAXIMUM
STUD SHANK MAJOR DIAMETER	0.373 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
TURNLOCK STUD HEAD STYLE	1 FLAT COUNTERSUNK
DIAMETER	0.525 INCHES NOMINAL
TURNLOCK RECEPTACLE STYLE	31 RECEPTACLE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES	0.873 INCHES MINIMUM AND 0.877 INCHES MAXIMUM
RECEPTACLE OVERALL LENGTH	1.135 INCHES MAXIMUM
RECEPTACLE HEIGHT	0.625 INCHES MAXIMUM
RECEPTACLE WIDTH	0.625 INCHES MAXIMUM
MOUNTING STYLE	2 PLAIN W/MOUNTING HOLE
TURNLOCK MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DRIVE TYPE	CROSS RECESS
MATERIAL ACCOMMODATED THICKNESS	0.221 INCHES MINIMUM AND 0.290 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	1 TYPE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-22978
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS17731-2
