NSN 5325-00-298-7024 GR520C12, R6, 5343101
Product Details | TURNLOCK FASTENER RECEPTACLE

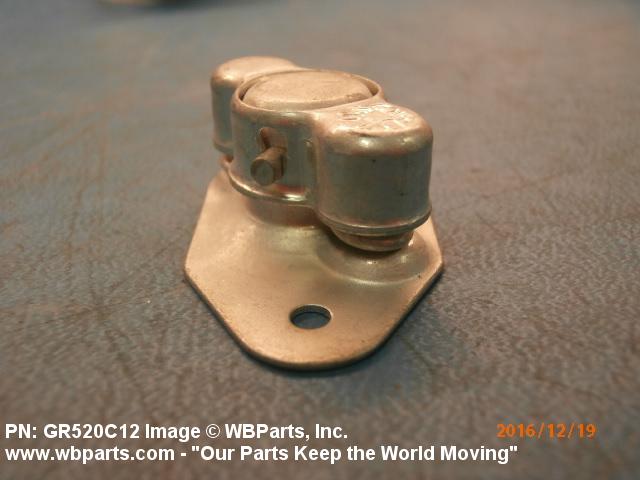

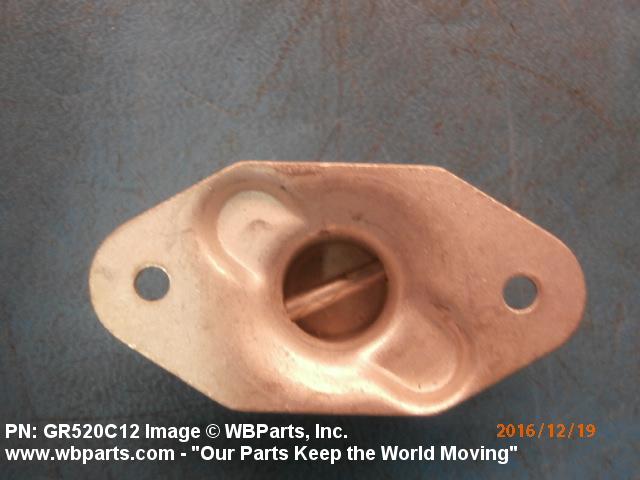

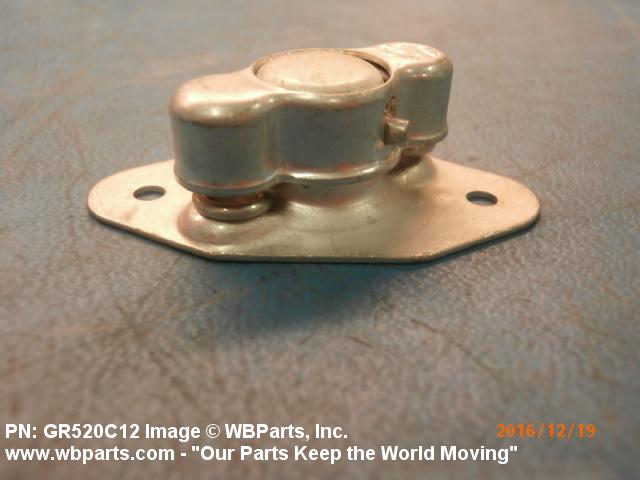

5325-00-298-7024 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: GR520C12, R6, 5343101, 534310-1, 260018C3C, 2600-18-C3C, 5325-00-298-7024, 00-298-7024, 5325002987024, 002987024
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-298-7024 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

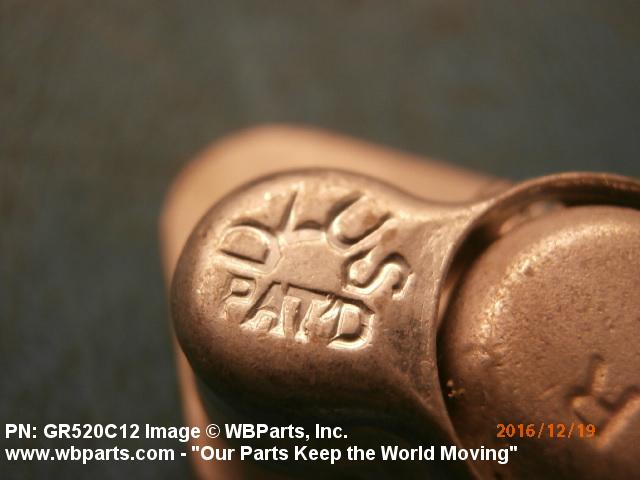

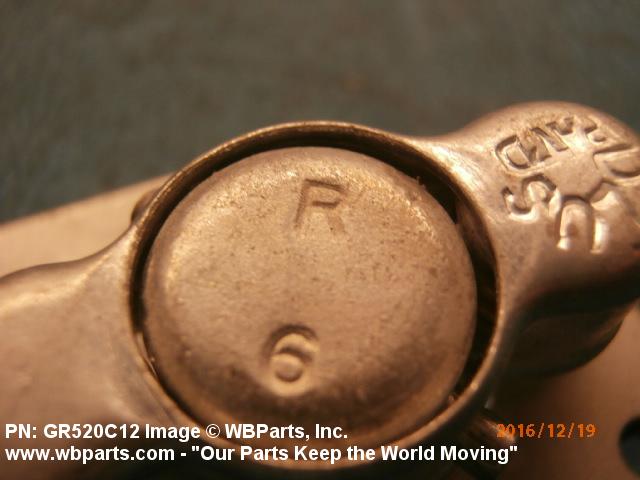

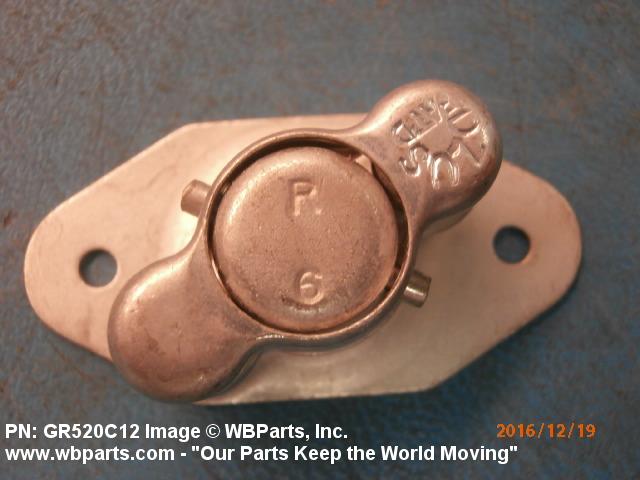

Drawings & Photos | NSN 5325-00-298-7024
Demand History | NSN 5325-00-298-7024
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-298-7024 | 2023-07-195 | 20 | US |
| 2600-18-C3C | 2022-06-178 | 72 | DIBBS |
| GR520C12 | 2022-06-178 | 72 | DIBBS |
| R6 | 2022-06-178 | 72 | DIBBS |
| 2600-18-C3C | 2022-06-166 | 72 | DIBBS |
| GR520C12 | 2022-06-166 | 72 | DIBBS |
| R6 | 2022-06-166 | 72 | DIBBS |
| 2600-18-C3C | 2020-10-293 | 103 | DIBBS |
| 2600-18-C3C | 2020-10-281 | 103 | DIBBS |
| 2600-18-C3C | 2020-06-155 | 228 | DIBBS |
| 2600-18-C3C | 2019-05-130 | 295 | DIBBS |
| 2600-18-C3C | 2019-05-122 | 295 | DIBBS |
| 2600-18-C3C | 2019-03-74 | 295 | DIBBS |
| 2600-18-C3C | 2019-03-66 | 295 | DIBBS |
| 5325-00-298-7024 | 2018-10-275 | 158 | DIBBS |
| 5325-00-298-7024 | 2018-09-267 | 158 | DIBBS |
| GR520C12 | 2018-06-163 | 26 | United States |
| GR520C12 | 2018-02-33 | 21 | United States |
| GR520C12 | 2016-12-340 | 20 | United States |
| 5325-00-298-7024 | 2014-09-247 | 326 | DIBBS |
| R6 | 2014-06-161 | 75 | United States |
| R6 | 2014-06-160 | 75 | United States |
| 5325-00-298-7024 | 2011-01-12 | 20 | United States |
| 5325-00-298-7024 | 2010-02-50 | 181 | DIBBS |
| 5325-00-298-7024 | 2008-12-343 | 176 | DIBBS |
Cross Reference | NSN 5325-00-298-7024
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-298-7024
Related Products | NSN 5325-00-298-7024
Technical Data | NSN 5325-00-298-7024
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CAP STEEL EJECTOR SPRING STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TURNLOCK RECEPTACLE STYLE | 26 RECEPTACLE |

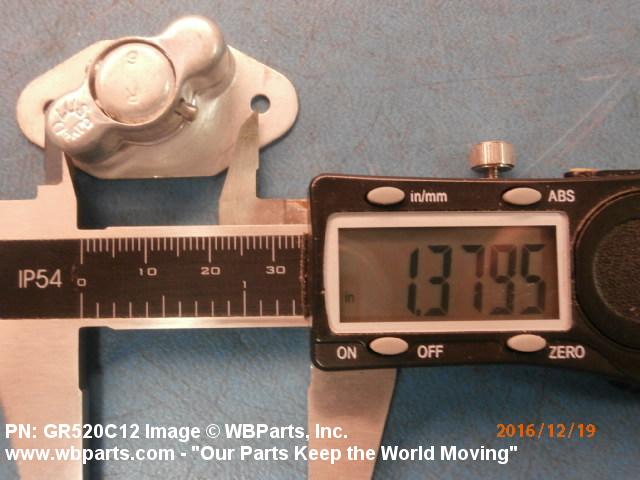

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.375 INCHES NOMINAL |

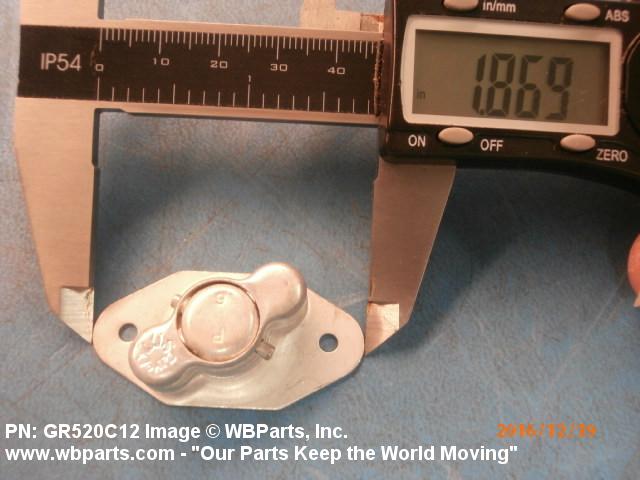

| RECEPTACLE OVERALL LENGTH | 1.875 INCHES NOMINAL |

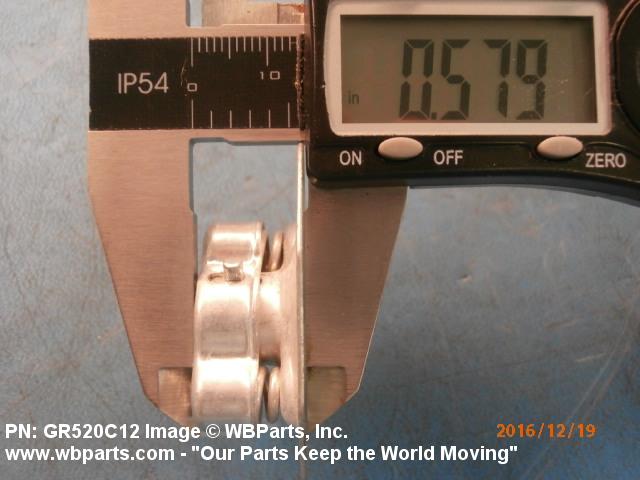

| RECEPTACLE HEIGHT | 0.580 INCHES NOMINAL |

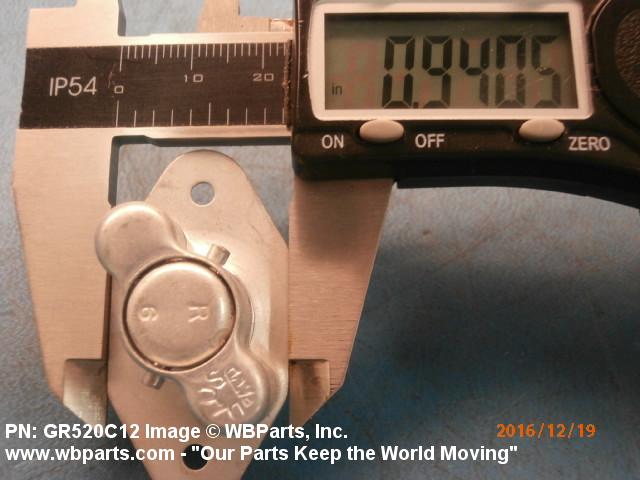

| RECEPTACLE WIDTH | 0.938 INCHES NOMINAL |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |

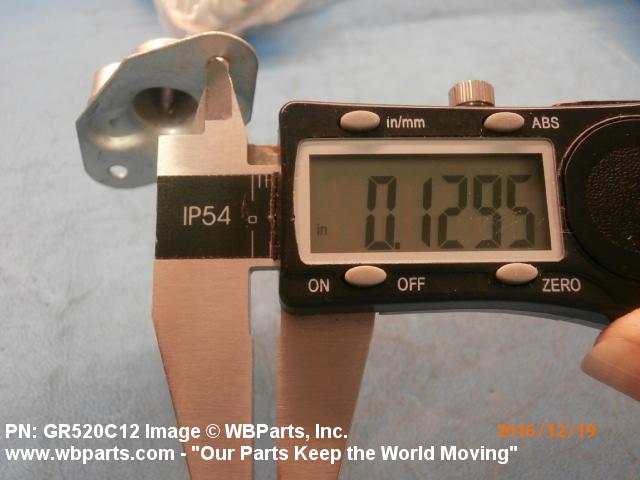

| TURNLOCK MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |
| FEATURES PROVIDED | PROTECTIVE CAP |
