NSN 5325-00-298-7026 GR520C10, R5, 250018C3C
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-298-7026 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: GR520C10, R5, 250018C3C, 2500-18-C3C, 50008R5, 50-008R5, 5L.3741.004.47, 5L374100447, 84382951, 8438295-1, 5325-00-298-7026, 00-298-7026, 5325002987026, 002987026
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-298-7026 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

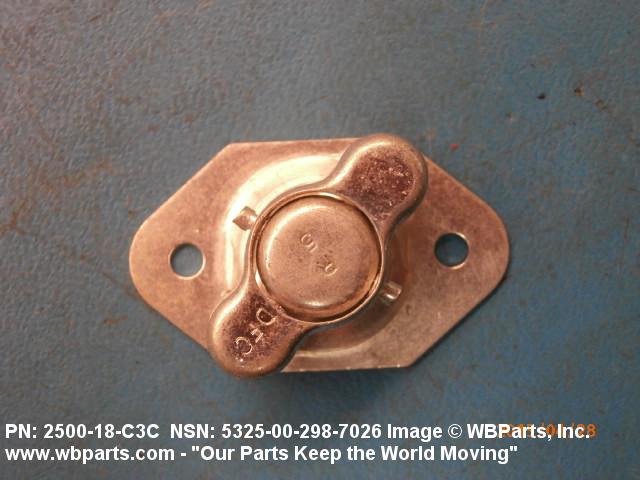

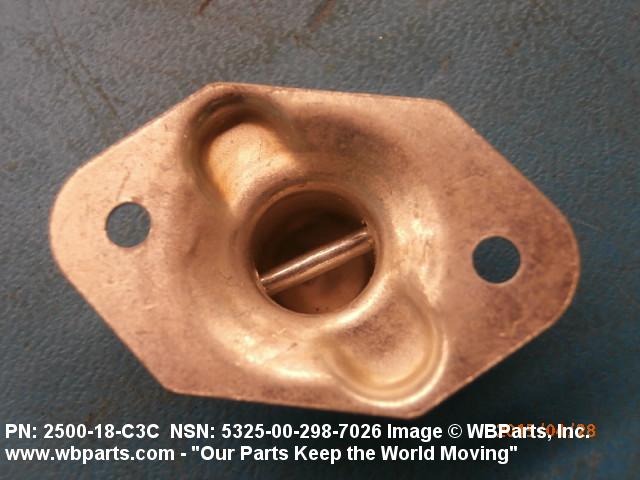

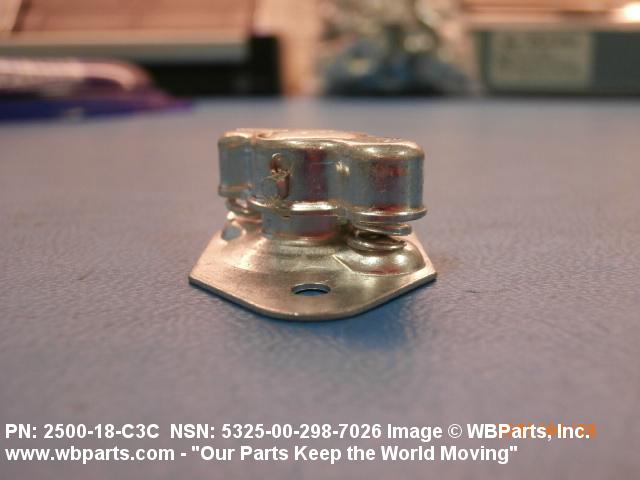

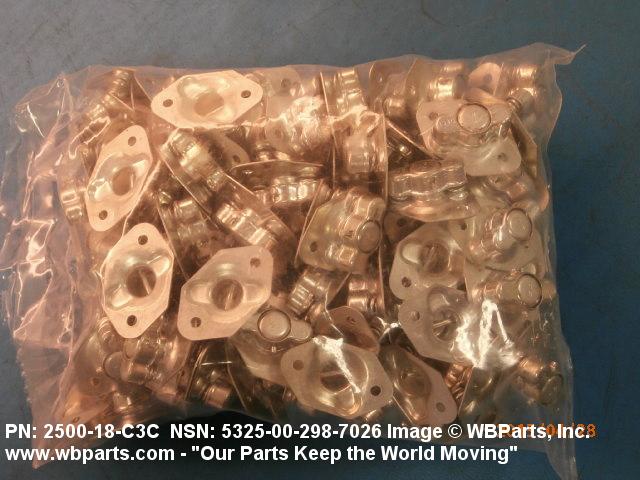

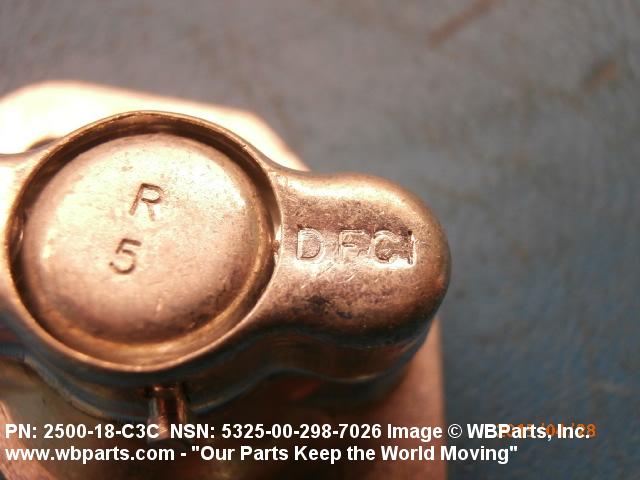

Drawings & Photos | NSN 5325-00-298-7026
Demand History | NSN 5325-00-298-7026
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2500-18-C3C | 2024-09-248 | 161 | DIBBS |
| 5325-00-298-7026 | 2023-10-299 | 200 | us |
| 5325-00-298-7026 | 2023-05-139 | 200 | us |
| 5325-00-298-7026 | 2022-02-33 | 48 | US |
| 50008R5 | 2016-06-163 | 1500 | United States |
| R5 | 2015-11-307 | 97 | United States |
| 5325-00-298-7026 | 2015-09-259 | 56 | UM |
| GR520C10 | 2015-06-162 | 4 | United States |
| 5325-00-298-7026 | 2015-03-76 | 122 | South Korea |
| 2500-18-C3C | 2014-06-157 | 50 | United States |
| 50008R5 | 2012-11-331 | 20 | FR |
| 5325-00-298-7026 | 2012-05-150 | 2533 | DIBBS |
| 250018C3C | 2010-03-89 | 10 | US |
| 50008R5 | 2010-03-89 | 10 | US |
| 50008R5 | 2009-06-162 | 100 | US |
| 5325-00-298-7026 | 2006-06-154 | 708 | us |
Cross Reference | NSN 5325-00-298-7026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2500-18-C3C | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| 50-008R5 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 5L.3741.004.47 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 8438295-1 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| GR520C10 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| R5 | 62060 | SOUTHCO INC. |
| R5 | 72749 | RAMSTAD INC |
| R5 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-298-7026
Technical Data | NSN 5325-00-298-7026
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CAP STEEL EJECTOR SPRING STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TURNLOCK RECEPTACLE STYLE | 26 RECEPTACLE |

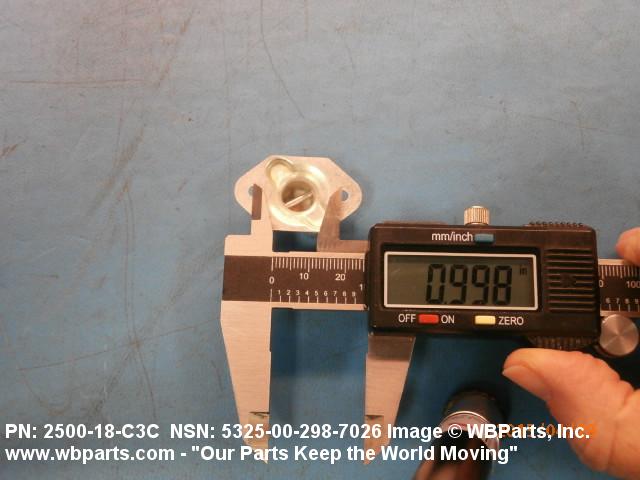

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.000 INCHES NOMINAL |

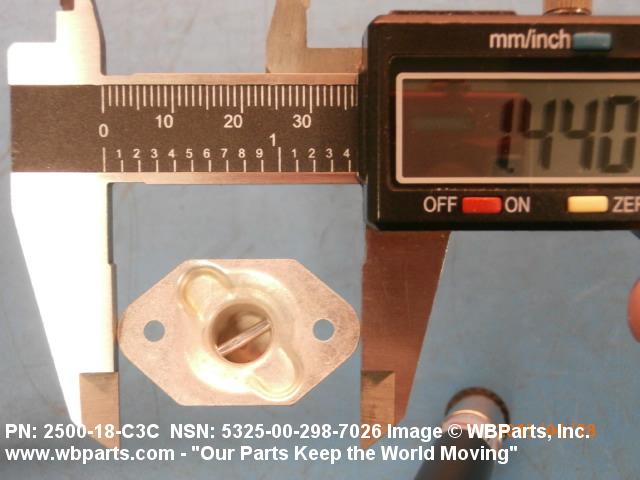

| RECEPTACLE OVERALL LENGTH | 1.438 INCHES NOMINAL |

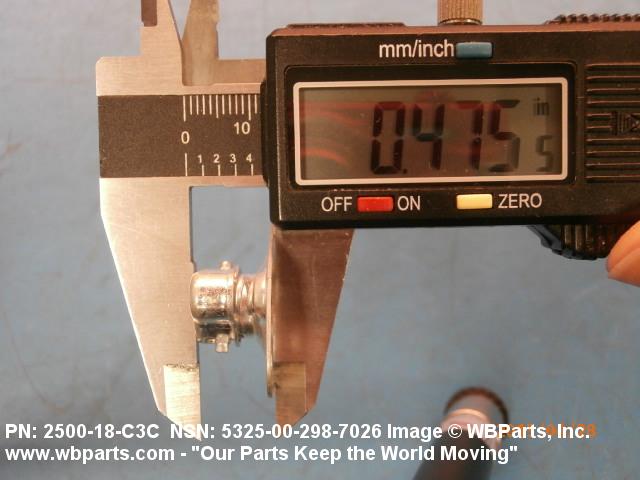

| RECEPTACLE HEIGHT | 0.485 INCHES NOMINAL |

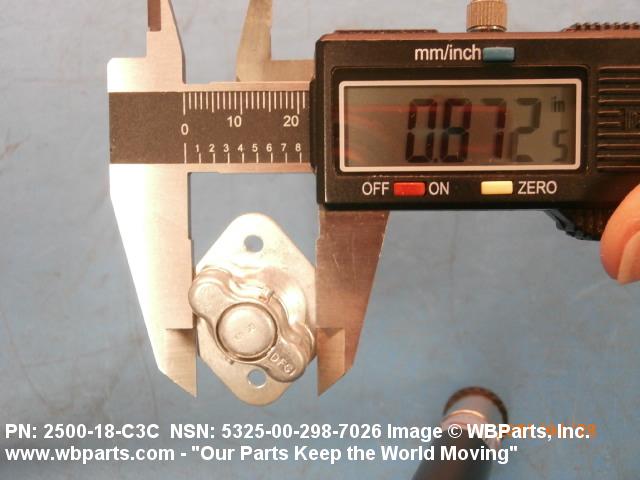

| RECEPTACLE WIDTH | 0.875 INCHES NOMINAL |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |

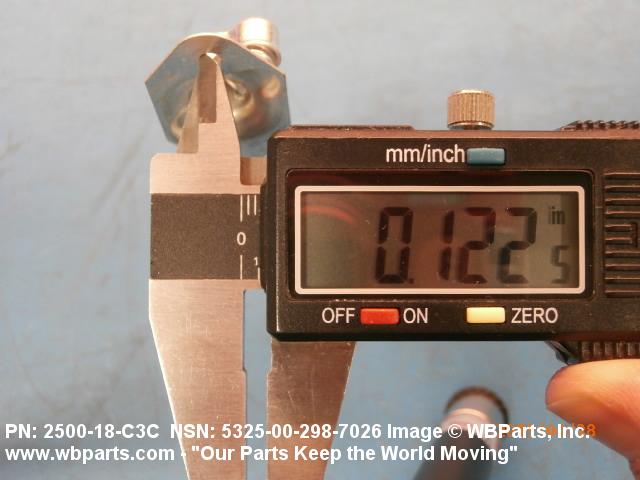

| TURNLOCK MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |
| FEATURES PROVIDED | PROTECTIVE CAP |
| MANUFACTURERS CODE | 72794 |
| DESIGN CONTROL REFERENCE | 2500-18-C3C |
Restrictions/Controls & Freight Information | NSN 5325-00-298-7026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
