NSN 5325-00-291-3484 MS124696, MS21208F415, MS21208F4-15

Product Details | SCREW THREAD INSERT

5325-00-291-3484 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS124696, MS21208F415, MS21208F4-15, MS214696, HNF14X28CN0375, HNF1-4X28CN0375, TNF4C0375, TNF-4C-0375, 6454011, 645401-1, 6704892, 69990412C, 69990-4-12C, 85109800, 851098-00, 90750502, 907505-02, 920072, 92007-2, 1001042, 1001-042, 11914CN0375, 1191-4CN0375, 11914CN375, 1191-4CN375, 11914CN6, 1191-4CN6, 11914CNX38, 1191-4CNX3-8, 134168-001, 190756, 208F40375, 208F4-0375, 3188500-25 FIND 56, 318850025FIND56, 41693653, 416936-53, 5325-00-291-3484, 00-291-3484, 5325002913484, 134168001, 002913484

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-291-3484	11444 ( INSERT, SCREW THREAD )

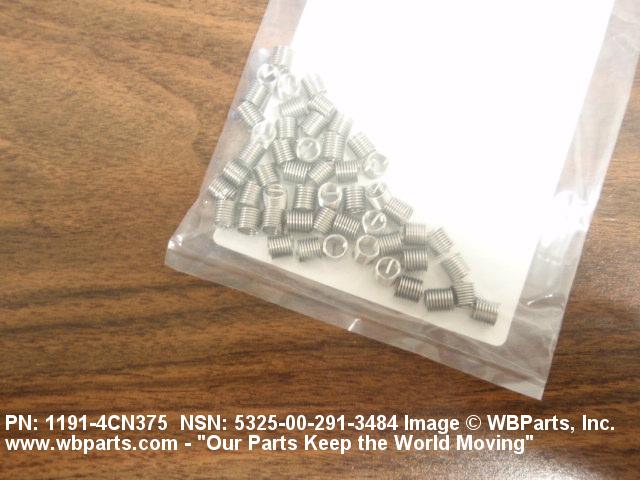

Drawings & Photos | NSN 5325-00-291-3484

Part Number	Request Date	QTY	Origin
MS124696	2024-04-109	1380	United States
MS21208F415	2023-10-283	4	United States
5325-00-291-3484	2023-08-228	300	TR
5325-00-291-3484	2023-04-95	38	United States
MS124696	2023-03-74	1	Singapore
5325-00-291-3484	2022-06-164	200	United States
5325-00-291-3484	2022-06-164	400	United States
MS124696	2021-11-314	100	United States
MS21208F415	2020-09-254	180	US
11914CN375	2019-03-64	60	United States
5325-00-291-3484	2018-01-23	17497	DIBBS
5325-00-291-3484	2017-12-339	59113	DIBBS
5325-00-291-3484	2017-09-253	5556	DIBBS
MS124696	2017-08-236	67	TW
MS124696	2017-06-165	1	Australia
MS124696	2017-06-165	1	Australia
5325-00-291-3484	2017-05-129	300	US
MS124696	2016-10-284	50	DK
MS124696	2016-05-132	30	us
MS124696	2015-03-85	1	US
MS124696	2015-03-69	500	US
MS124696	2014-06-168	60	United States
11914CN375	2014-05-122	100	US
5325-00-291-3484	2013-04-108	180	MANUAL
11914CN375	2012-11-319	20	CO
MS124696	2012-05-135	2	MY
5325-00-291-3484	2012-04-107	15521	DIBBS
MS124696	2012-03-62	10	United Kingdom
MS124696	2012-02-52	1000	CN
5325-00-291-3484	2011-05-133	14396	DIBBS
11914CN0375	2011-05-132	24	Spain
11914CN375	2010-10-281	50	Poland
5325-00-291-3484	2010-08-222	15632	DIBBS
5325-00-291-3484	2010-06-165	8363	DIBBS
MS214696	2009-12-356	100	US
TNF4C0375	2009-12-356	100	US
5325-00-291-3484	2009-10-289	2	US
5325-00-291-3484	2009-10-277	360	Malta
5325-00-291-3484	2009-01-15	13675	DIBBS
MS21208F415	2008-01-24	2000	us
11914CN0375	2007-12-355	10	Lithuania

Cross Reference | NSN 5325-00-291-3484

Part Number	Cage Code	Manufacturer
1001-042	99167	HAMILTON SUNDSTRAND CORPORATION
1191-4CN0375	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1191-4CN0375	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1191-4CN375	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1191-4CN6	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
1191-4CNX3-8	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
134168-001	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
190756	66503	WOODWARD, INC. DBA WOODWARD
190756	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
208F4-0375	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
3188500-25 FIND 56	77068	ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
416936-53	96214	RAYTHEON COMPANY DBA RAYTHEON
645401-1	99551	GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS
6704892	24617	GENERAL MOTORS CORP
6704892	73342	ALLISON TRANSMISSION, INC.
69990-4-12C	73030	HAMILTON SUNDSTRAND CORPORATION
851098-00	32345	DEFENSE REDUCTION AGENCY
907505-02	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
907505-02	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
92007-2	59875	EATON INDUSTRIAL CORPORATION DBA ARGO-TECH
HNF1-4X28CN0375	F1699	BOLLHOFF OTALU SA
MS124696	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21208F4-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS214696	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
TNF-4C-0375	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-291-3484

Compare

Related Products | NSN 5325-00-291-3484

5325-00-291-3487, 5325-00-291-3488, 5325-00-291-3491, 5325-00-291-3492, 5325-00-291-3493

Technical Data | NSN 5325-00-291-3484

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	H1 COIL
LENGTH	0.375 INCHES NOMINAL
INSERT SIZE	0.306 IN MIN 0.326 INMAX
THREAD SERIES DESIGNATOR	UNC
THREAD QUANTITY PER INCH	32
THREAD CLASS	2B
THREAD PITCH DIAMETERS	0.2297 TO 0.2339 INCHES
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS124696

Restrictions/Controls & Freight Information | NSN 5325-00-291-3484

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
