NSN 5325-00-291-3493 MS124658, MS12658, MS21208F610
Product Details | SCREW THREAD INSERT
5325-00-291-3493 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE
Part Alternates: MS124658, MS12658, MS21208F610, MS21208F6-10, SMB2077813, SMB207781-3, 0.375-24UNFX0.375L, 037524UNFX0375L, 11916CN0375, 1191-6CN0375, 11916CN375, 1191-6CN375, 11916CNX38, 1191-6CNX3-8, 208F60375, 208F6-0375, 41693622, 416936-22, 5173466, 81402830, 8140-2830, 5325-00-291-3493, 00-291-3493, 5325002913493, 002913493
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-291-3493 | 11444 ( INSERT, SCREW THREAD ) |

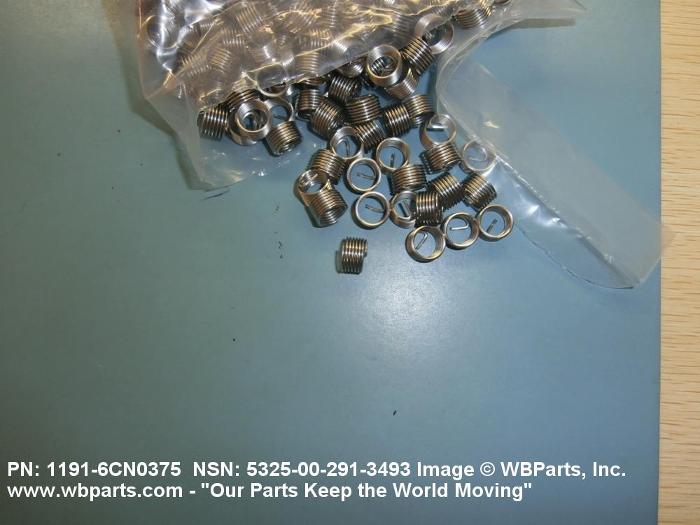

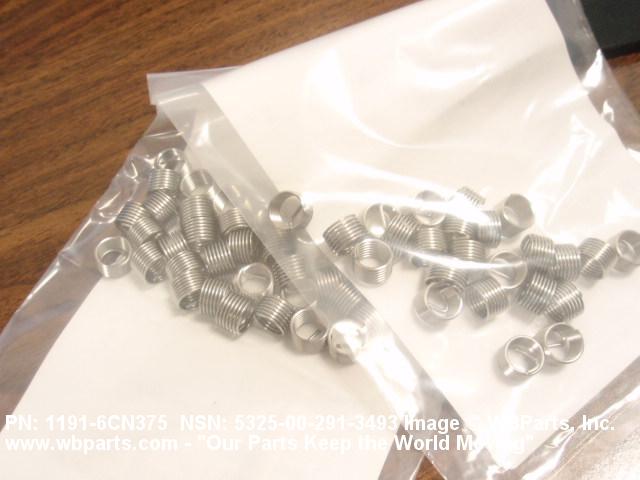

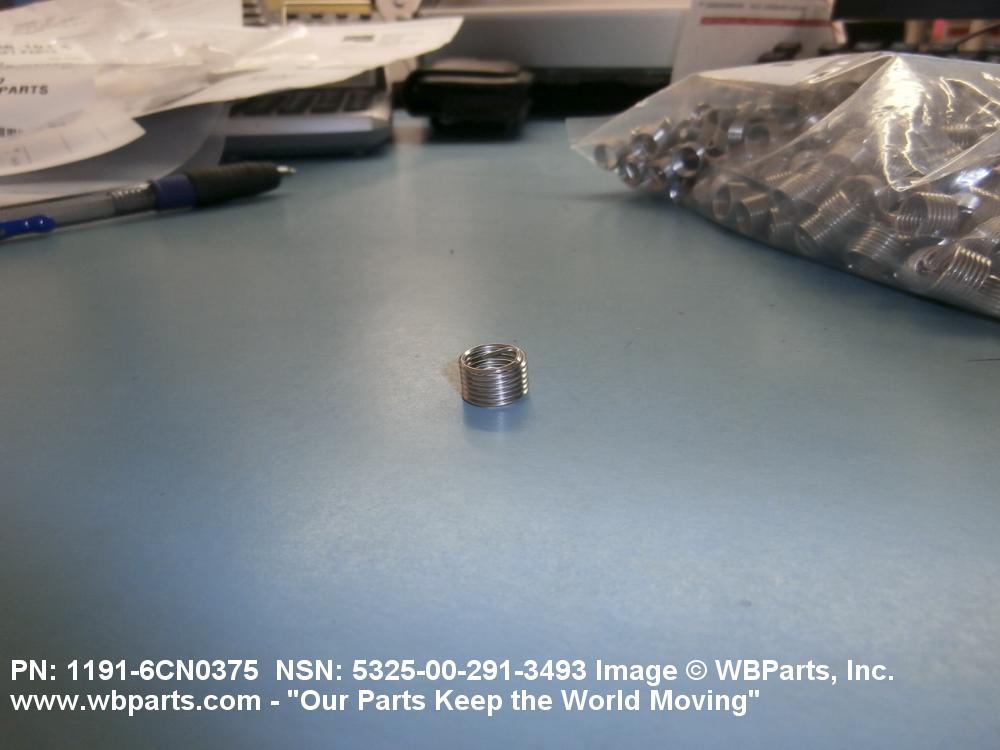

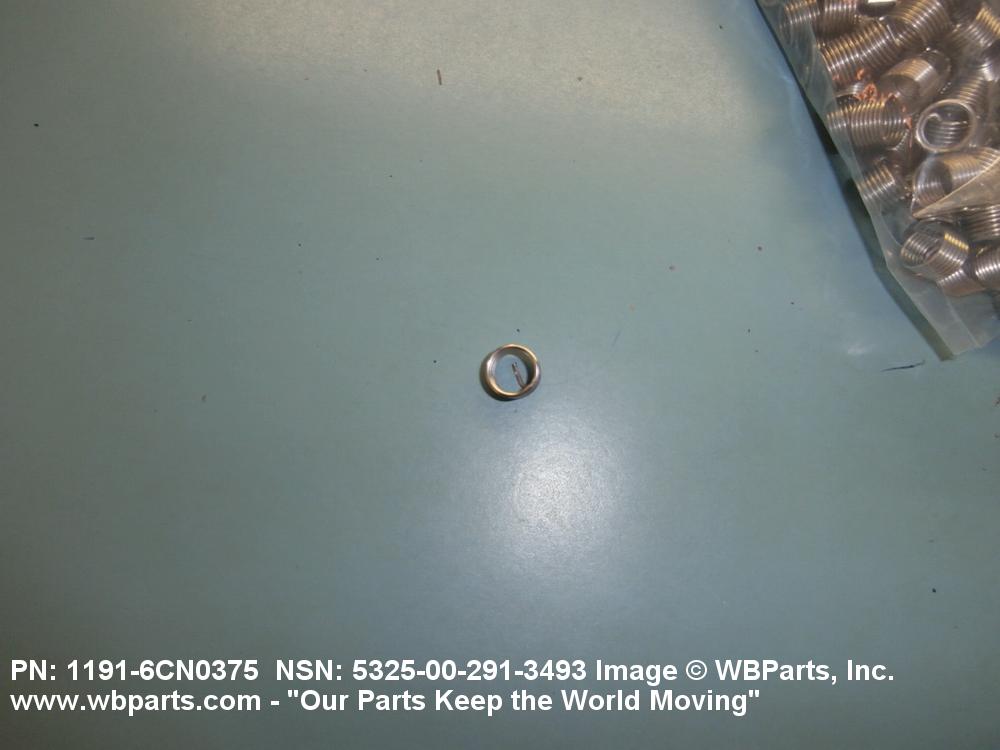

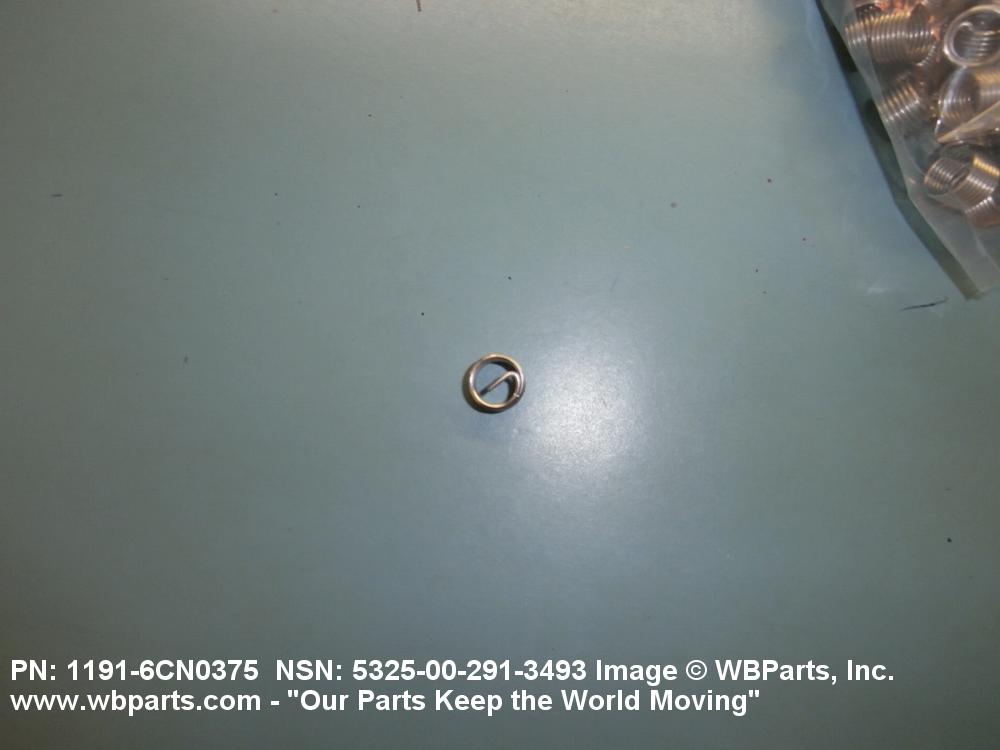

Drawings & Photos | NSN 5325-00-291-3493
Demand History | NSN 5325-00-291-3493
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS124658 | 2023-04-109 | 1547 | DIBBS |
| MS124658 | 2022-08-241 | 2174 | DIBBS |
| 5325-00-291-3493 | 2021-09-264 | 50 | US |
| MS124658 | 2021-01-04 | 2174 | DIBBS |
| MS124658 | 2020-07-205 | 2174 | DIBBS |
| MS124658 | 2020-03-82 | 2174 | DIBBS |
| MS124658 | 2019-07-195 | 2174 | DIBBS |
| 11916CN375 | 2018-02-44 | 10 | KR |
| MS124658 | 2018-01-12 | 50 | United States |
| MS124658 | 2015-03-71 | 8 | United States |
| 11916CN375 | 2014-05-122 | 20 | US |
| MS124658 | 2013-04-120 | 10 | US |
| 11916CN375 | 2013-02-36 | 500 | United States |
| 11916CN375 | 2010-10-281 | 50 | Poland |
| MS124658 | 2009-04-119 | 750 | US |
| 5325-00-291-3493 | 2009-04-110 | 4988 | DIBBS |
| MS124658 | 2009-04-105 | 240 | US |
| 5325-00-291-3493 | 2009-04-99 | 750 | US |
| MS124658 | 2009-04-97 | 950 | US |
Cross Reference | NSN 5325-00-291-3493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0.375-24UNFX0.375L | 0R503 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS INC |
| 1191-6CN0375 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 1191-6CN375 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 1191-6CNX3-8 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
| 208F6-0375 | 12360 | ALBANY FASTENERS PAWTUCKET FASTENERS DIV |
| 416936-22 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 5173466 | 24617 | GENERAL MOTORS CORP |
| 5173466 | 72582 | MTU AMERICA INC. |
| 5325002913493 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8140-2830 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| MS124658 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS12658 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21208F6-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SMB207781-3 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
