Product Details | METALLIC GROMMET

5325-00-291-0291 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.

Part Alternates: MS20230BS5, AN230BS5, 5325-00-291-0291, 00-291-0291, 5325002910291, 002910291

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-291-0291

Drawings & Photos | NSN 5325-00-291-0291


Demand History | NSN 5325-00-291-0291

Part Number Request Date QTY Origin
002910291 2009-08-243 288 United States
5325-00-291-0291 2008-01-14 1 US

Cross Reference | NSN 5325-00-291-0291

Part Number Cage Code Manufacturer
AN230BS5 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS20230BS5 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-291-0291

Technical Data | NSN 5325-00-291-0291

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
COLOR ANY ACCEPTABLE OVERALL
BARREL STYLE 2 TAPERED ROUND TYPE
BARREL HEIGHT 0.370 INCHES NOMINAL
BARREL OUTSIDE DIAMETER 0.600 INCHES MINIMUM AND 0.605 INCHES MAXIMUM
BARREL LARGEST OUTSIDE DIAMETER 0.800 INCHES MINIMUM AND 0.805 INCHES MAXIMUM

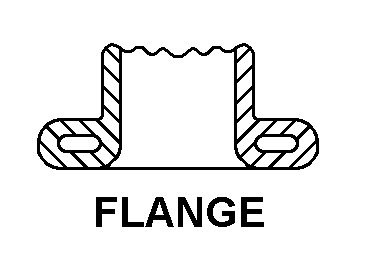

FLANGE STYLE 5 FLANGE
FLANGE OUTSIDE DIAMETER 1.285 INCHES MINIMUM AND 1.290 INCHES MAXIMUM

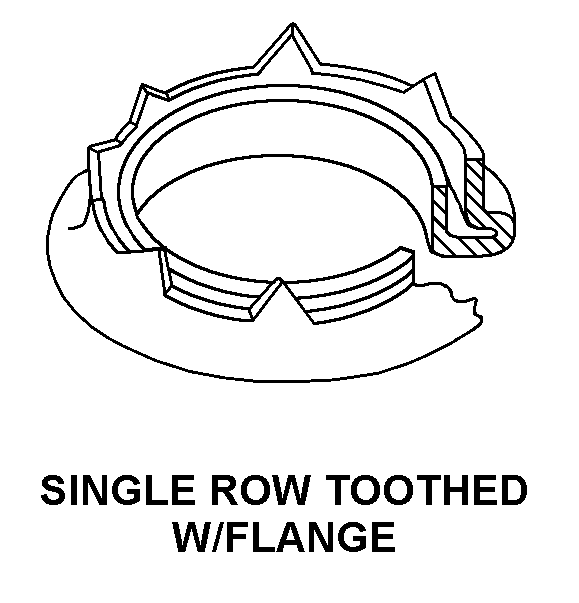

WASHER STYLE 4 SINGLE ROW TOOTHED W/FLANGE
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS20230BS5

Restrictions/Controls & Freight Information | NSN 5325-00-291-0291

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 094533 EYELETS OR EYELET HOOKS NOI
Less than car load rating W Rating Variable
Less than truck load rating P 77.5
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
