NSN 5325-00-291-0296 MS20230A3, NASM20230, MILG16491
Product Details | METALLIC GROMMET
5325-00-291-0296 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Part Alternates: MS20230A3, NASM20230, MILG16491, 5325-00-291-0296, 00-291-0296, 5325002910296, 002910296
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-291-0296 | 06314 ( GROMMET, METALLIC ) |
Drawings & Photos | NSN 5325-00-291-0296
Demand History | NSN 5325-00-291-0296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-291-0296 | 2018-03-65 | 41 | DIBBS |
| MS20230A3 | 2015-06-159 | 48 | United States |
| MS20230A3 | 2015-06-156 | 48 | United States |
| MILG16491 | 2012-08-229 | 1000 | US |
| MILG16491 | 2010-07-188 | 300 | Canada |
| 5325-00-291-0296 | 2008-09-262 | 18 | DIBBS |
| NASM20230 | 2008-08-214 | 9 | MX |
| MS20230A3 | 2007-10-304 | 1000 | US |
Cross Reference | NSN 5325-00-291-0296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILG16491 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20230A3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20230A3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NASM20230 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-291-0296
Related Products | NSN 5325-00-291-0296
Technical Data | NSN 5325-00-291-0296
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| BARREL STYLE | 2 TAPERED ROUND TYPE |
| BARREL HEIGHT | 0.295 INCHES NOMINAL |
| BARREL OUTSIDE DIAMETER | 0.428 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| BARREL LARGEST OUTSIDE DIAMETER | 0.540 INCHES MINIMUM AND 0.550 INCHES MAXIMUM |
| FLANGE STYLE | 3 FLANGE |
| FLANGE OUTSIDE DIAMETER | 0.965 INCHES MINIMUM AND 0.975 INCHES MAXIMUM |

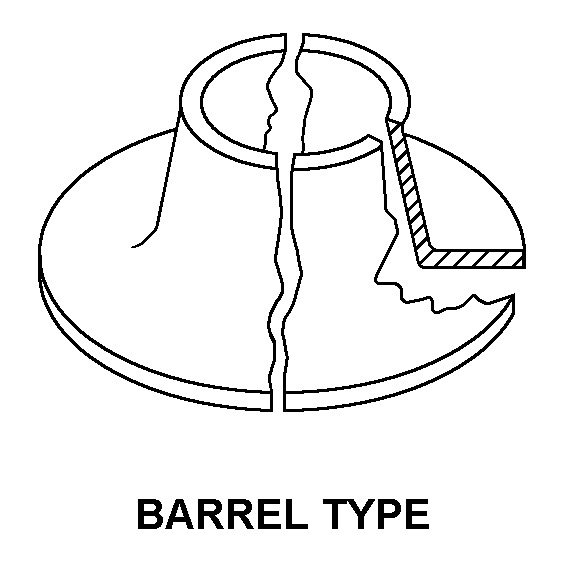

| WASHER STYLE | 6 BARREL TYPE |
