NSN 5325-00-291-0292 MS20230BS4, AN230BS4, 00-291-0292
Product Details | METALLIC GROMMET
5325-00-291-0292 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Part Alternates: MS20230BS4, AN230BS4, 5325-00-291-0292, 00-291-0292, 5325002910292, 002910292
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-291-0292 | 06314 ( GROMMET, METALLIC ) |

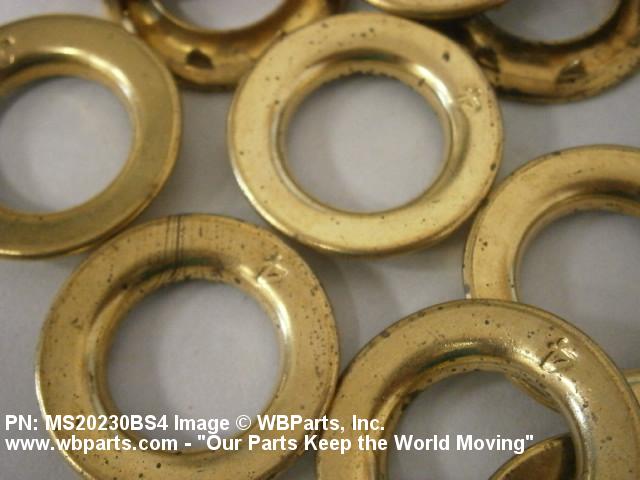

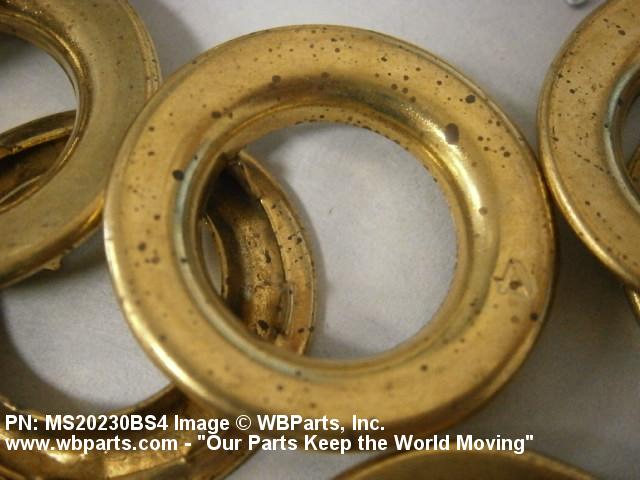

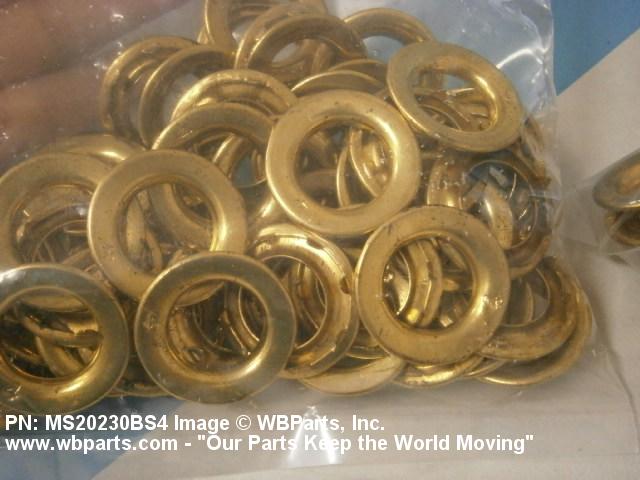

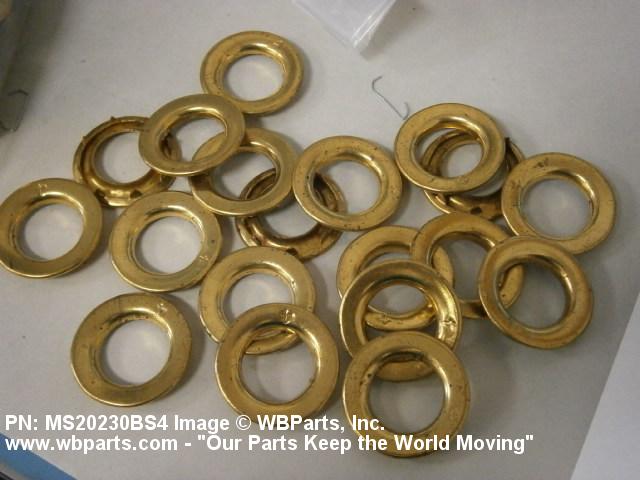

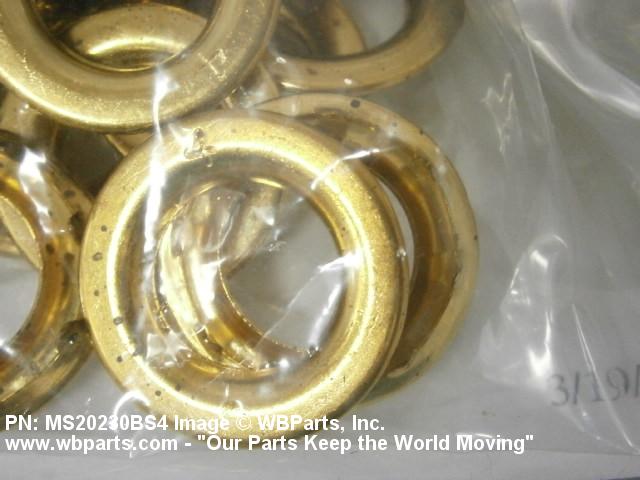

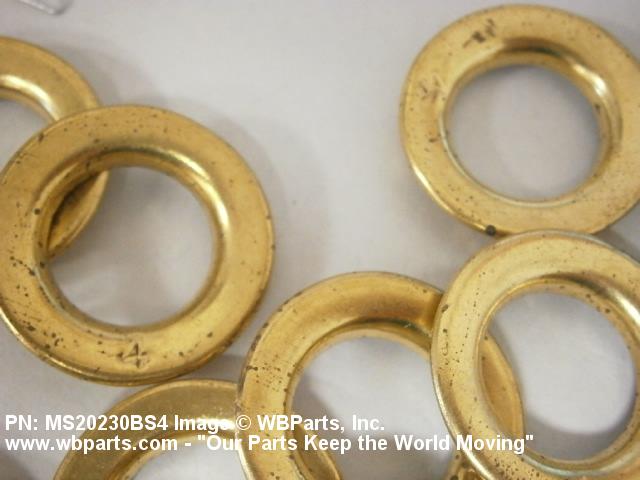

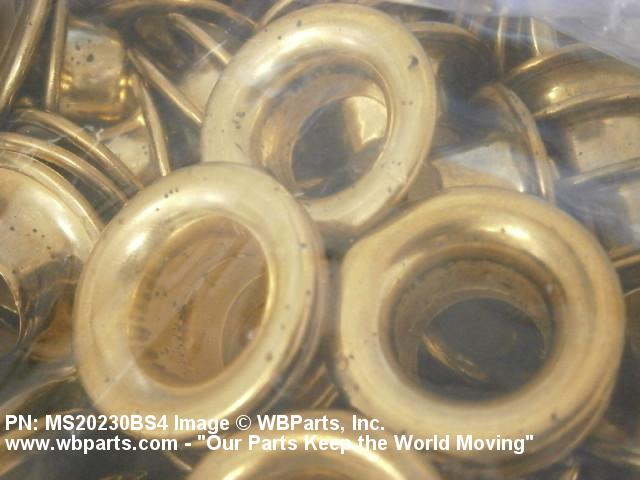

Drawings & Photos | NSN 5325-00-291-0292
Demand History | NSN 5325-00-291-0292
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20230BS4 | 2022-05-129 | 20 | US |
| MS20230BS4 | 2022-01-17 | 10 | SA |
| MS20230BS4 | 2013-08-229 | 378 | Canada |
| 5325-00-291-0292 | 2012-05-145 | 1440 | United States |
| 5325-00-291-0292 | 2012-03-80 | 480 | United States |
| 5325-00-291-0292 | 2012-03-80 | 960 | United States |
| 5325-00-291-0292 | 2012-03-80 | 1440 | United States |
| 5325-00-291-0292 | 2012-03-69 | 300 | United States |
| 5325-00-291-0292 | 2012-02-34 | 300 | United States |
| 5325-00-291-0292 | 2012-02-34 | 900 | United States |
| MS20230BS4 | 2010-04-102 | 35280 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-291-0292
Technical Data | NSN 5325-00-291-0292
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| BARREL STYLE | 2 TAPERED ROUND TYPE |
| BARREL HEIGHT | 0.325 INCHES NOMINAL |
| BARREL OUTSIDE DIAMETER | 0.560 INCHES MINIMUM AND 0.565 INCHES MAXIMUM |
| BARREL LARGEST OUTSIDE DIAMETER | 0.695 INCHES MINIMUM AND 0.704 INCHES MAXIMUM |
| FLANGE STYLE | 5 FLANGE |
| FLANGE OUTSIDE DIAMETER | 1.120 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| WASHER STYLE | 4 SINGLE ROW TOOTHED W/FLANGE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20230BS4 |
Restrictions/Controls & Freight Information | NSN 5325-00-291-0292
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
