NSN 5325-00-281-8164 10245694-2, 00-281-8164, 102456942
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-281-8164 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: 10245694-2, 5325-00-281-8164, 00-281-8164, 5325002818164, 102456942, 002818164
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 AUG 1973 | 00-281-8164 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-281-8164
Cross Reference | NSN 5325-00-281-8164
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10245694-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-281-8164
Related Products | NSN 5325-00-281-8164
Technical Data | NSN 5325-00-281-8164
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY POST STEEL TOP |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/12 7075-T6 FED SPEC 2ND MATERIAL RESPONSE POST QQ-W-470 FED SPEC 1ST MATERIAL RESPONSE TOP |
| SURFACE TREATMENT | ANODIZE POST CADMIUM AND CHROMATE TOP |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TY 2 MIL SPEC SINGLE TREATMENT RESPONSE POST QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE TOP |

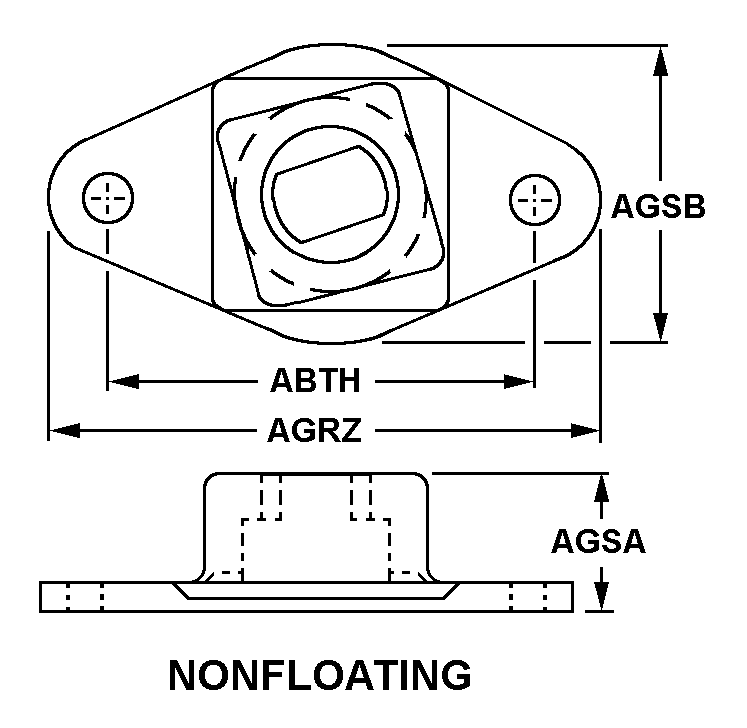

| TURNLOCK RECEPTACLE STYLE | 29 NONFLOATING |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.620 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| RECEPTACLE OVERALL LENGTH | 0.927 INCHES MINIMUM AND 0.947 INCHES MAXIMUM |
| RECEPTACLE HEIGHT | 0.333 INCHES MINIMUM AND 0.353 INCHES MAXIMUM |
| RECEPTACLE WIDTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| RECEPTACLE THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.188-20 QUADRUPLE THD |
| MOUNTING STYLE | 1 PLAIN |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10245694-2 |
Restrictions/Controls & Freight Information | NSN 5325-00-281-8164
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-281-8164
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
