Product Details | SNAPSLIDE FASTENER

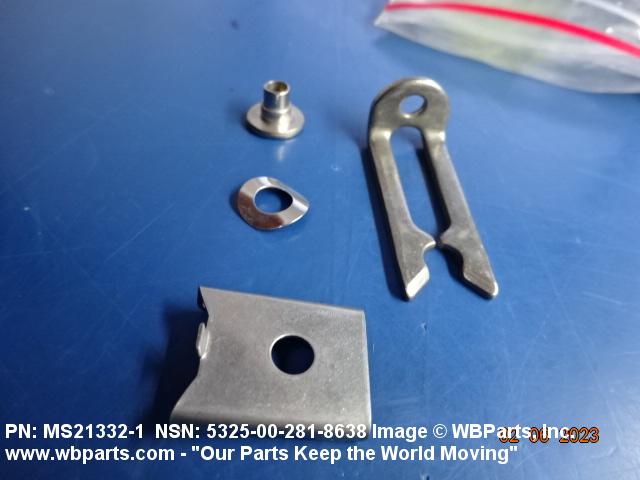

5325-00-281-8638 A mechanical device consisting of a latch, latch guide, post, and washer designed to support and hold equipment in a fixed position. It may or may not include STUD, SNAPSLIDE FASTENER.

Part Alternates: MS213321, MS21332-1, 8786392, 5325-00-281-8638, 00-281-8638, 5325002818638, 002818638

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-281-8638

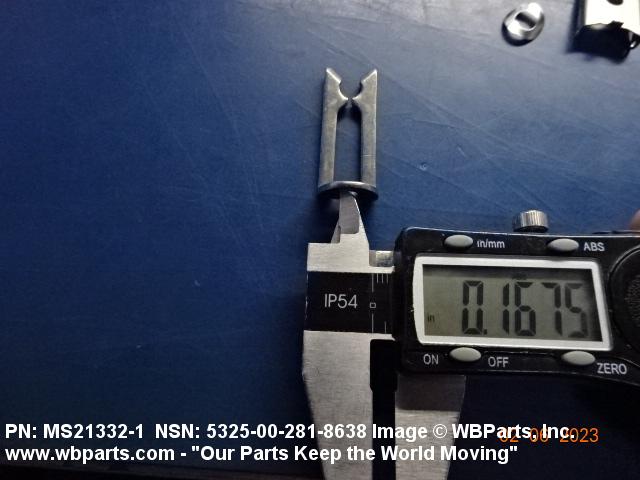

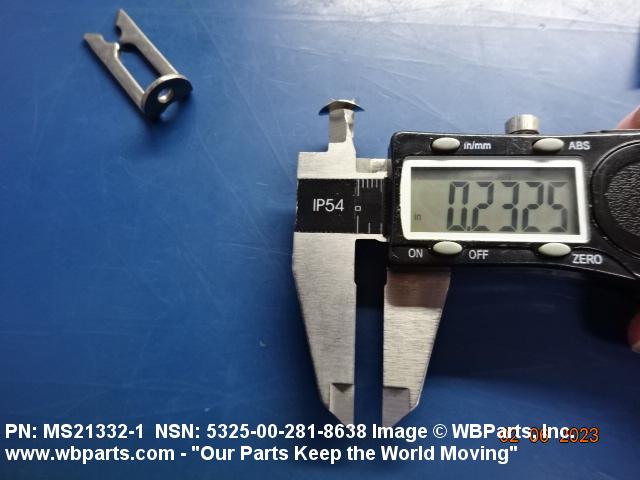

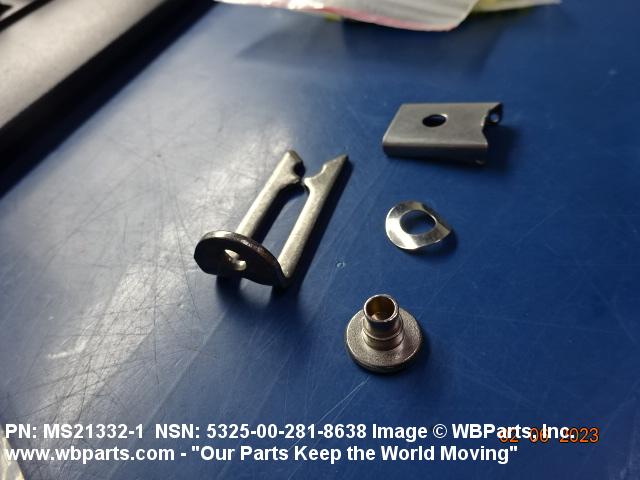

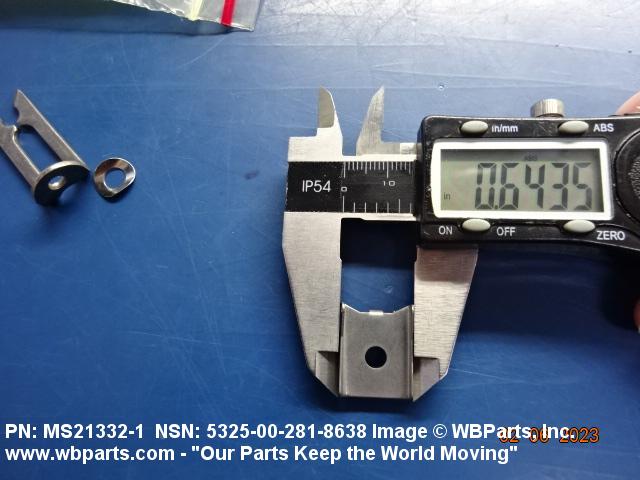

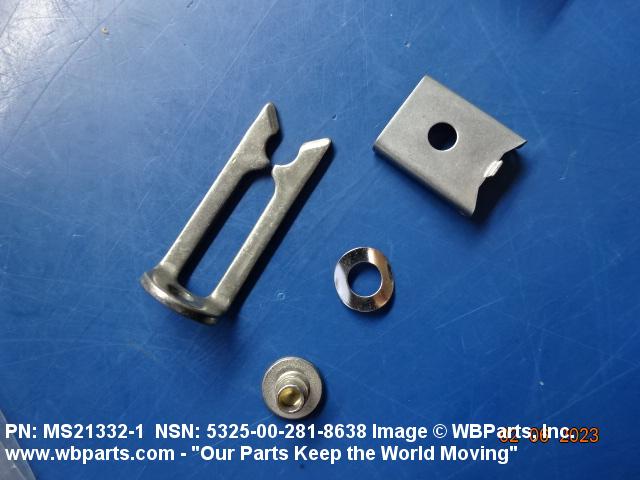

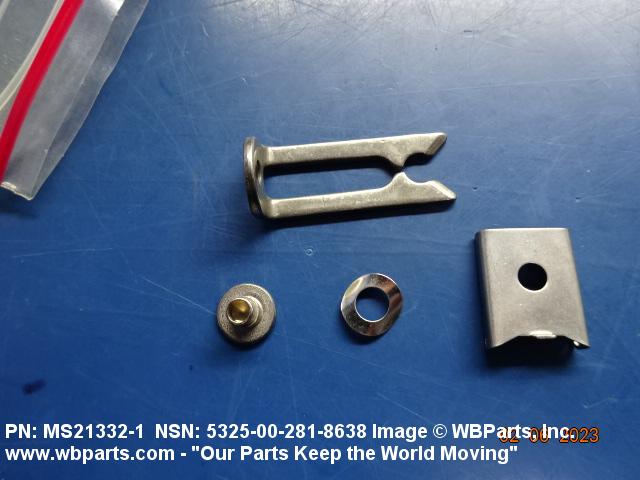

Drawings & Photos | NSN 5325-00-281-8638


Demand History | NSN 5325-00-281-8638

Part Number Request Date QTY Origin
MS213321 2024-09-262 40 US
5325-00-281-8638 2023-09-270 100 US
5325-00-281-8638 2023-09-269 100 US
5325-00-281-8638 2023-01-27 30 United States
5325-00-281-8638 2018-12-340 130 US
5325-00-281-8638 2018-08-221 5 United Kingdom
5325-00-281-8638 2018-04-105 131 DIBBS
5325-00-281-8638 2017-11-309 131 DIBBS
8786392 2015-07-182 20 UK
MS213321 2012-04-95 40 US
5325-00-281-8638 2010-05-146 211 DIBBS
5325-00-281-8638 2009-01-05 42 DIBBS

Cross Reference | NSN 5325-00-281-8638

Part Number Cage Code Manufacturer
8786392 19203 PICATINNY ARSENAL
MS21332-1 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21332-1 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-281-8638

Technical Data | NSN 5325-00-281-8638

Characteristic Specifications
MATERIAL STEEL LOCKSPRING STEEL RECEPTACLE COPPER ALLOY WASHER
SURFACE TREATMENT PASSIVATE OVERALL
LATCH STYLE 2 FLAT TURNED-UP END

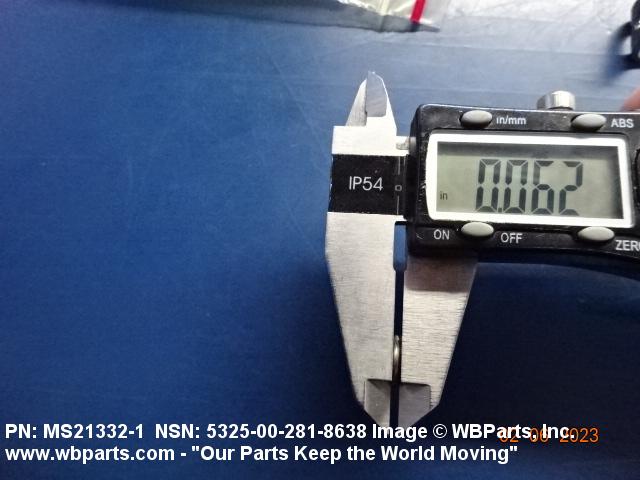

THICKNESS 0.078 INCHES NOMINAL

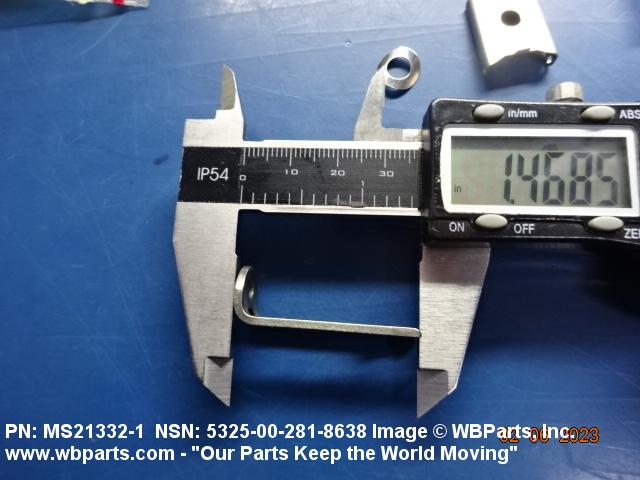

LATCH OVERALL LENGTH 1.469 INCHES NOMINAL
NOTCH DIAMETER 0.250 INCHES NOMINAL

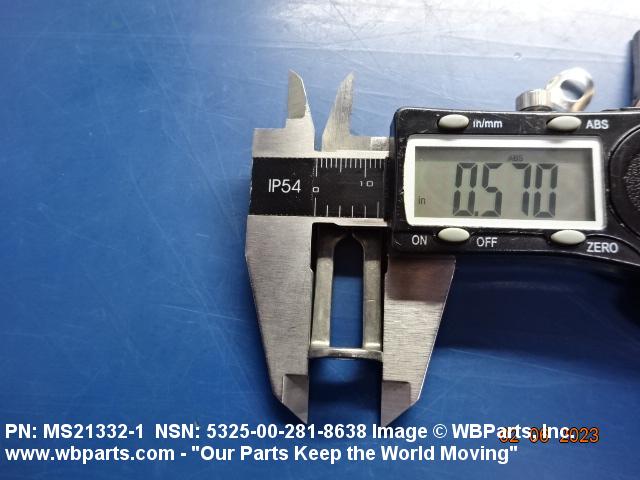

LATCH OVERALL WIDTH 0.562 INCHES NOMINAL
LATCH GUIDE STYLE 1 INDENTED END
INSIDE WIDTH 0.594 INCHES NOMINAL

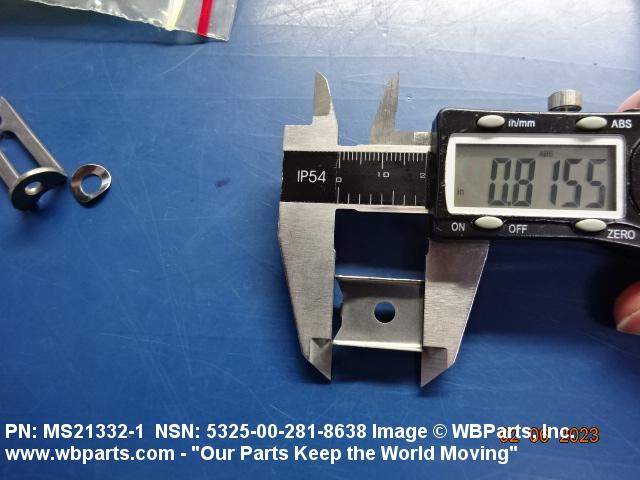

GUIDE LENGTH 0.812 INCHES NOMINAL

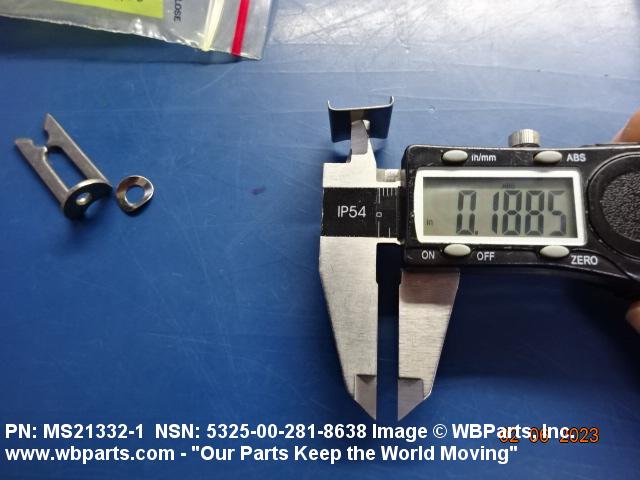

GUIDE HOLE DIAMETER 0.189 INCHES NOMINAL
SNAPSLIDE POST STYLE 1 POST
HOLE DEPTH 0.200 INCHES NOMINAL

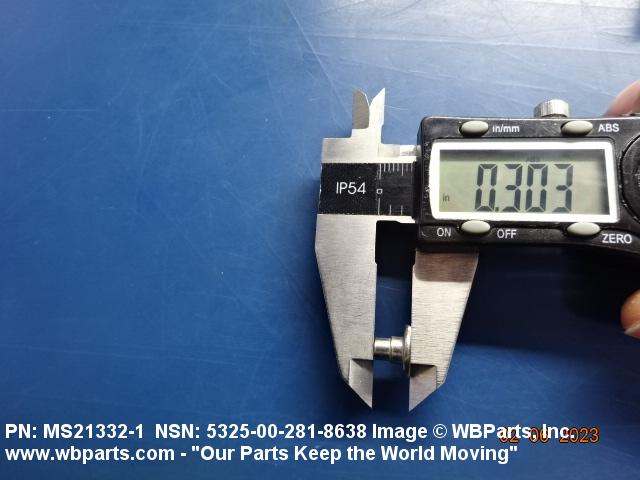

OVERALL LENGTH 0.300 INCHES NOMINAL
MOUNTING HOLE DIAMETER 0.147 INCHES NOMINAL
SHANK OUTSIDE DIAMETER 0.187 INCHES NOMINAL

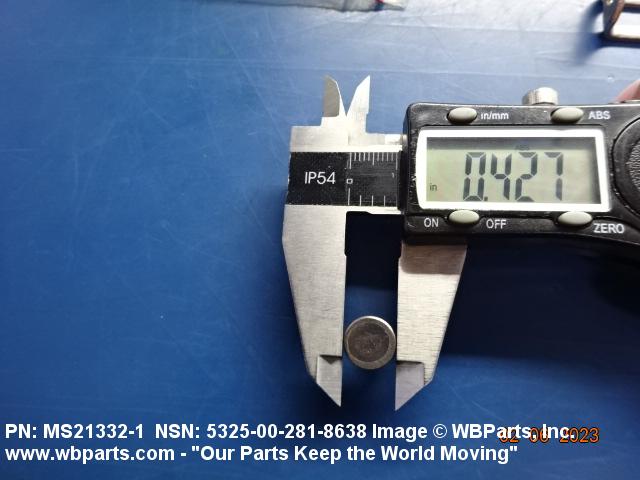

HEAD OUTSIDE DIAMETER 0.438 INCHES NOMINAL
SHOULDER OUTSIDE DIAMETER 0.227 INCHES NOMINAL
POST SHOULDER LENGTH 0.100 INCHES NOMINAL
POST SHANK LENGTH 0.138 INCHES NOMINAL
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS21332-1

Restrictions/Controls & Freight Information | NSN 5325-00-281-8638

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 066440 FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-00-281-8638

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
SE : Set
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
SE : Set
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code2Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification CodeKReserved
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
SE : Set
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
SE : Set
