Product Details | SNAP FASTENER CAP

5325-00-276-4977 An item designed to permanently fasten a SOCKET, SNAP FASTENER to a material. It may be either hemispherical in shape with prongs on the underside or have a hemispherical shaped head with a tubular shank. See also SOCKET, SNAP FASTENER.

Part Alternates: AN22732C, AN227-32C, 5325-00-276-4977, 00-276-4977, 5325002764977, 002764977

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-276-4977

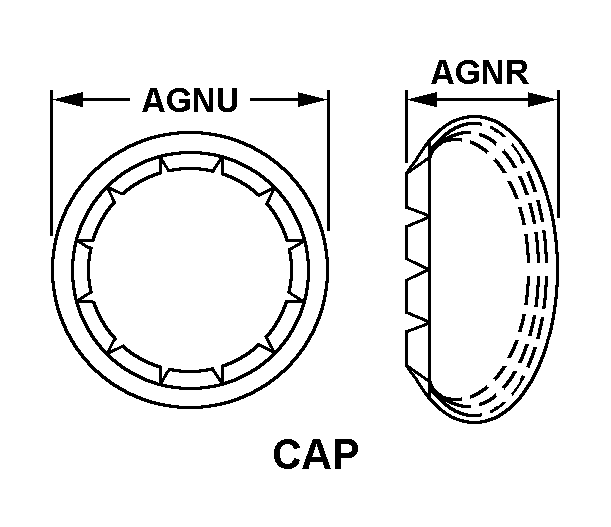

Drawings & Photos | NSN 5325-00-276-4977


Demand History | NSN 5325-00-276-4977

Part Number Request Date QTY Origin
5325-00-276-4977 2016-07-207 100 DIBBS
5325-00-276-4977 2016-07-199 100 DIBBS

Cross Reference | NSN 5325-00-276-4977

Part Number Cage Code Manufacturer
AN227-32C 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-276-4977

Technical Data | NSN 5325-00-276-4977

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL
SURFACE TREATMENT ENAMEL OVERALL
CAP STYLE 5 CAP
CAP OVERALL LENGTH 0.141 INCHES NOMINAL
CAP HEAD DIAMETER 0.453 INCHES NOMINAL
SPECIAL FEATURES CELLULOID OR PLASTIC TOP COVER
MANUFACTURERS CODE 88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AN227-32C

Restrictions/Controls & Freight Information | NSN 5325-00-276-4977

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 066440 FASTENERS CURTAIN/SNAP METAL
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5325-00-276-4977

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
