NSN 5325-00-276-4922 MS2797730N, MS27977-30N, AN22723
Product Details | SNAP FASTENER STUD

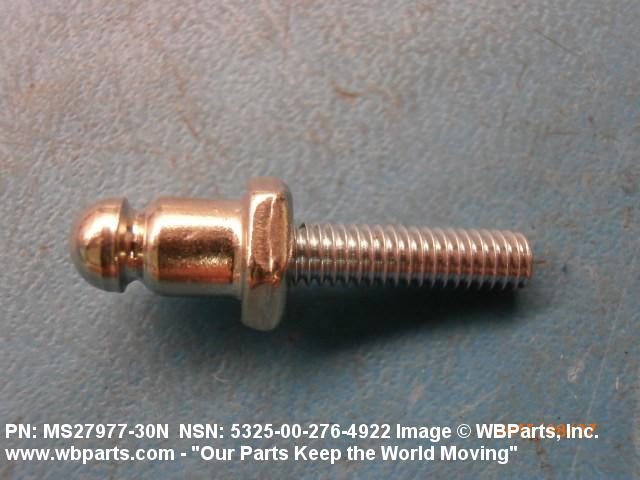

5325-00-276-4922 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.
Part Alternates: MS2797730N, MS27977-30N, AN22723, AN227-23, XX1636220, XX-16362-20, 8168500, 882, 5325-00-276-4922, 00-276-4922, 5325002764922, 002764922
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-276-4922 | 16550 ( STUD, SNAP FASTENER ) |

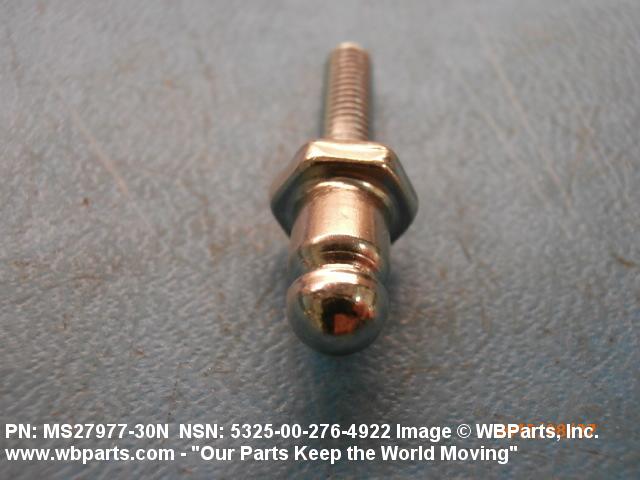

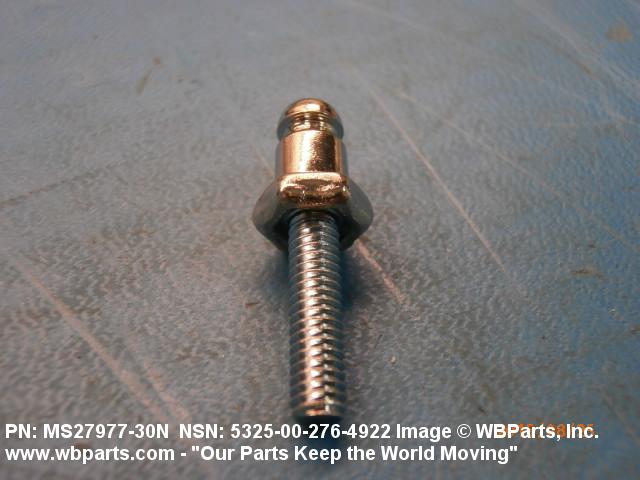

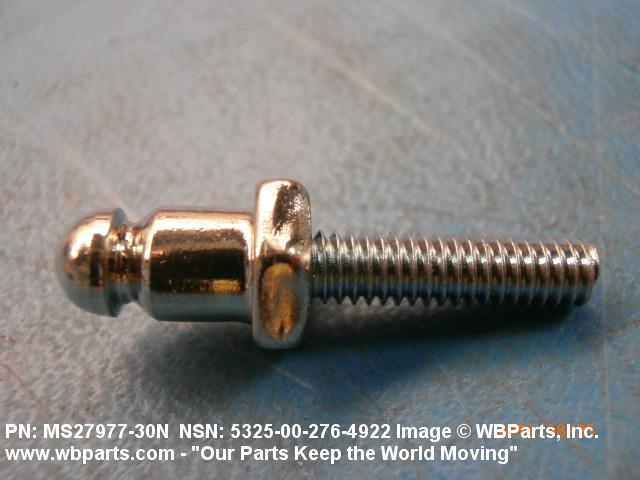

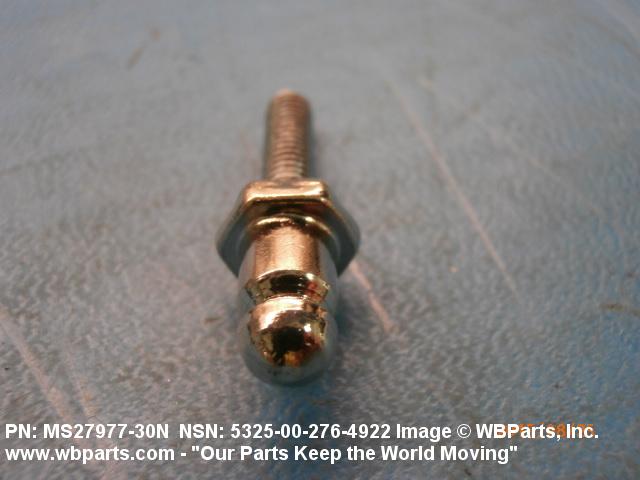

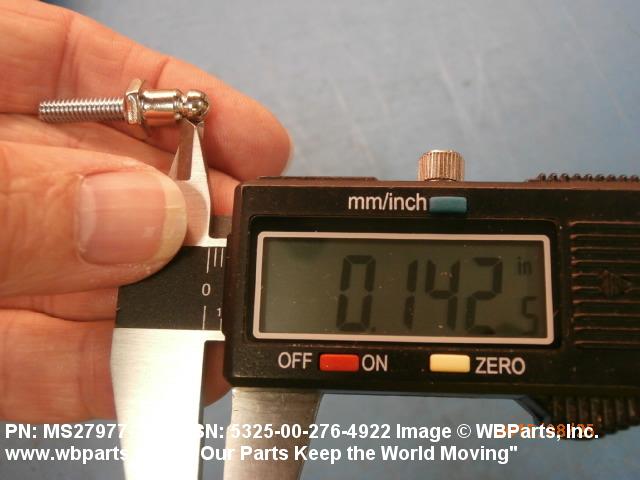

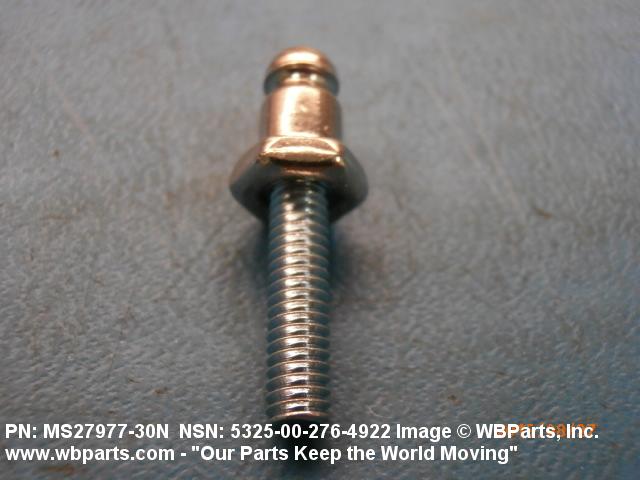

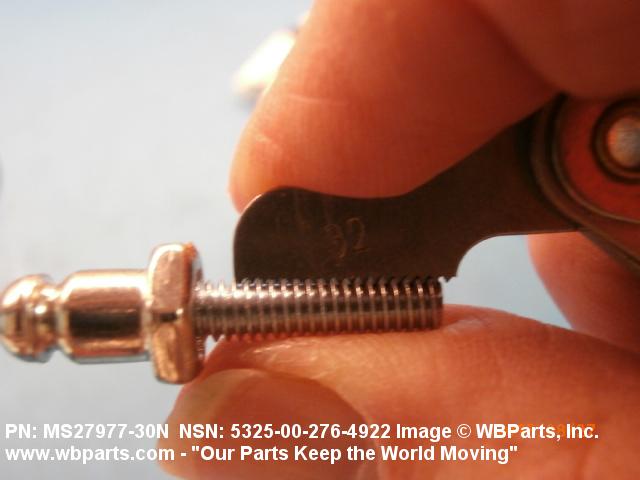

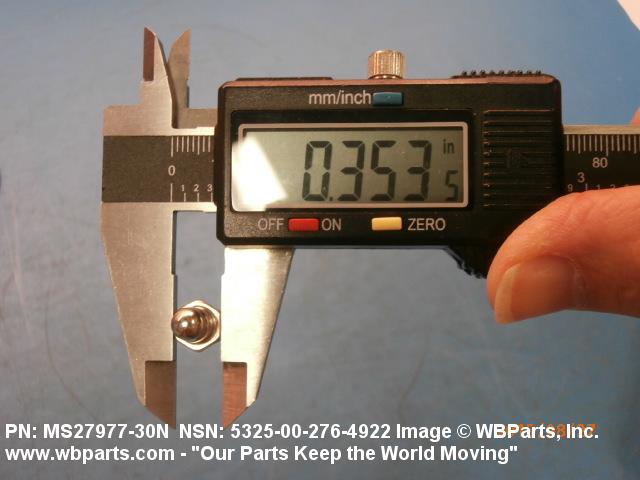

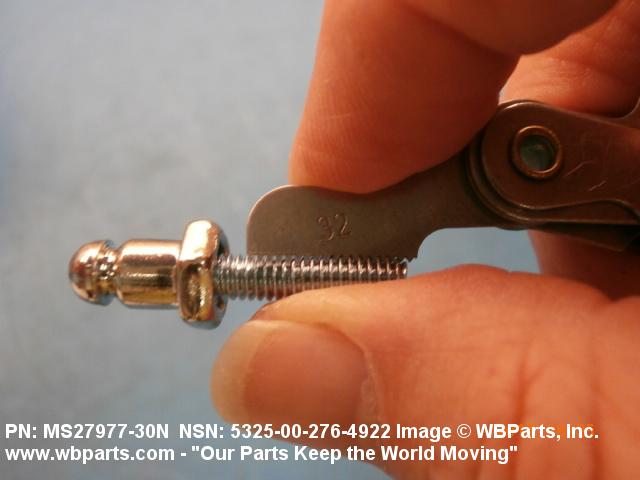

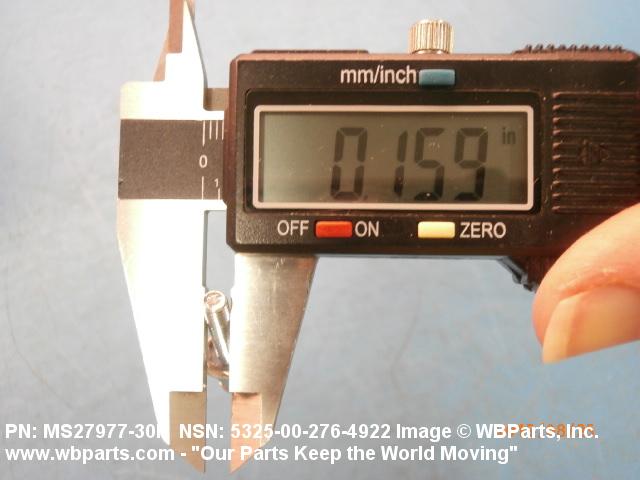

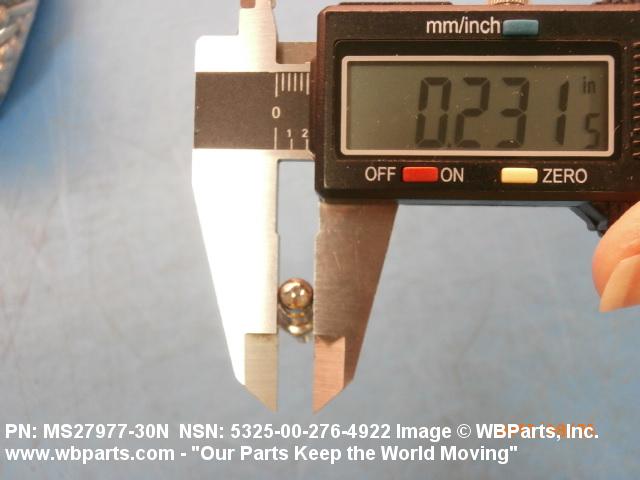

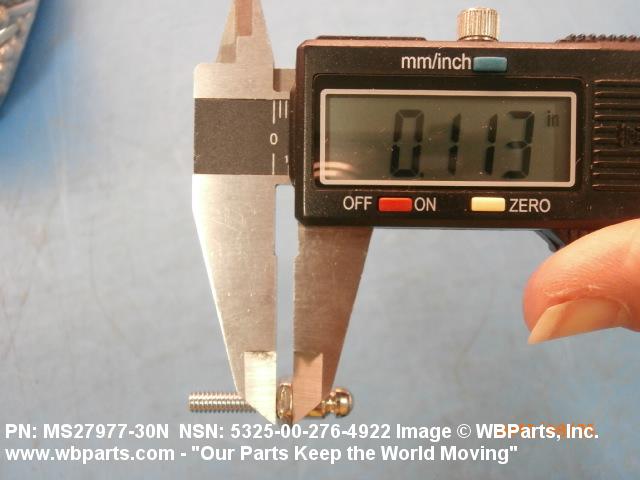

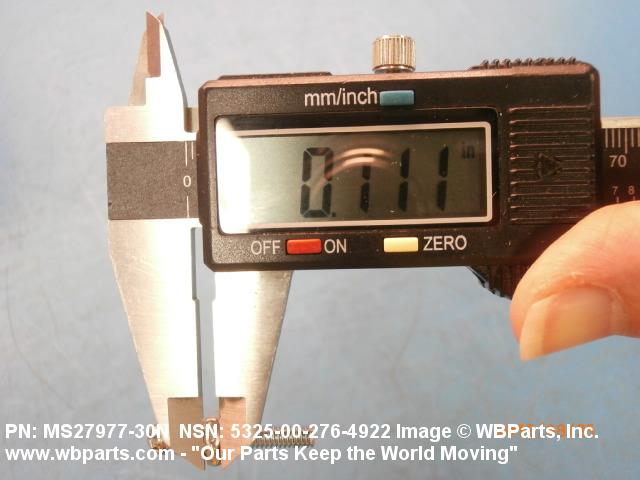

Drawings & Photos | NSN 5325-00-276-4922
Demand History | NSN 5325-00-276-4922
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-276-4922 | 2021-06-153 | 2 | US |
| 5325-00-276-4922 | 2017-06-157 | 762 | DIBBS |
| 5325-00-276-4922 | 2017-05-132 | 762 | DIBBS |
| 5325-00-276-4922 | 2017-05-124 | 762 | DIBBS |
| MS2797730N | 2016-05-134 | 1000 | United States |
| MS2797730N | 2016-05-134 | 5000 | United States |
| MS2797730N | 2016-01-14 | 800 | United States |
| MS2797730N | 2015-08-217 | 1000 | United States |
| 5325-00-276-4922 | 2012-05-129 | 755 | DIBBS |
Cross Reference | NSN 5325-00-276-4922
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8168500 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 882 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| AN227-23 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS27977-30N | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| XX-16362-20 | 13940 | GSG FASTENERS, LLC DBA SCOVILL FASTENERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-276-4922
Related Products | NSN 5325-00-276-4922

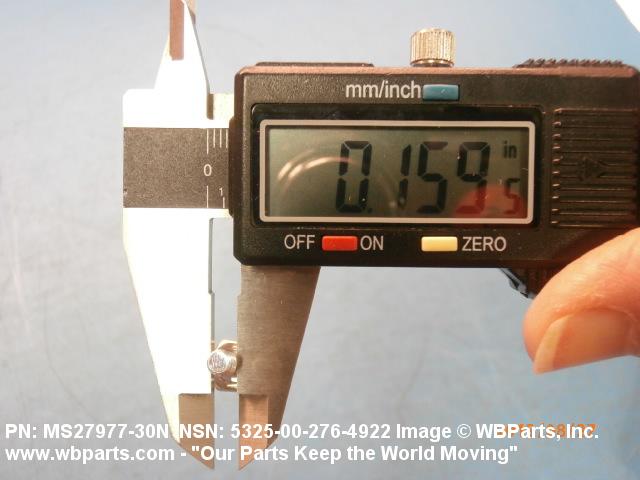

Technical Data | NSN 5325-00-276-4922

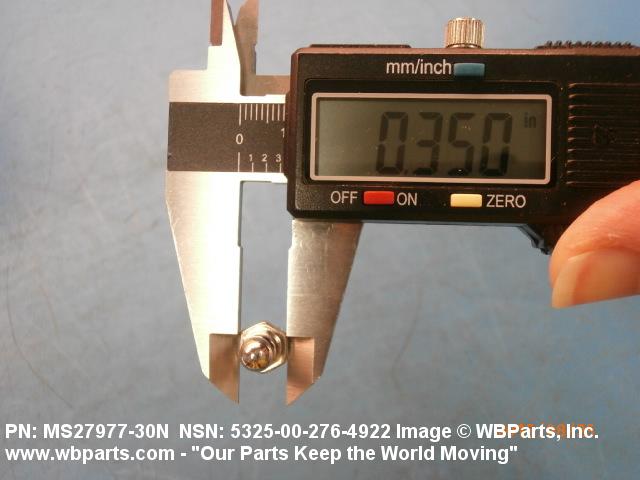

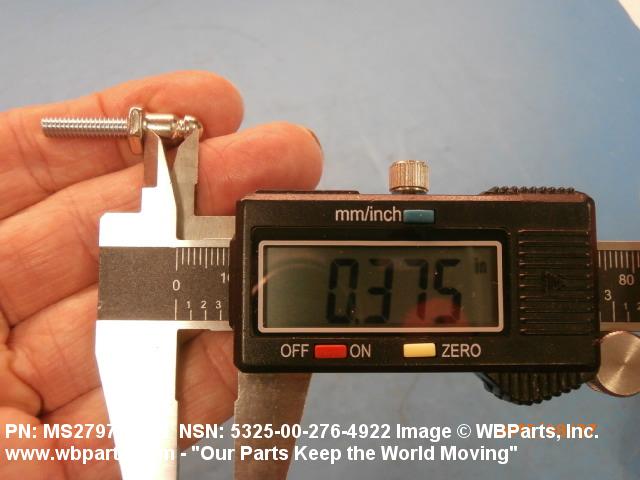

| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| SNAP FASTENER STUD STYLE | 3 STUD |
| BODY LENGTH | 0.359 INCHES NOMINAL |

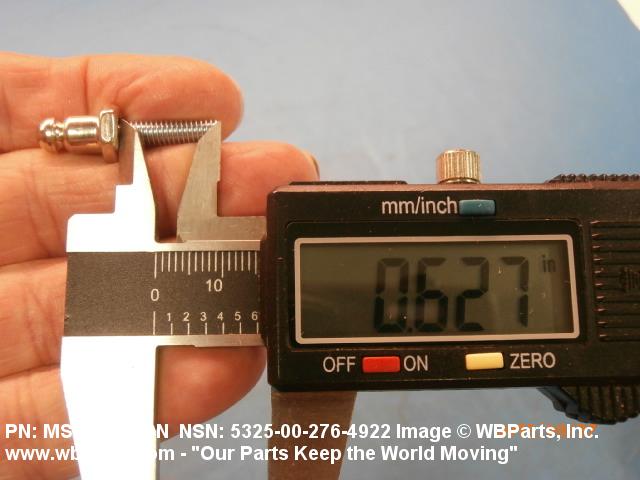

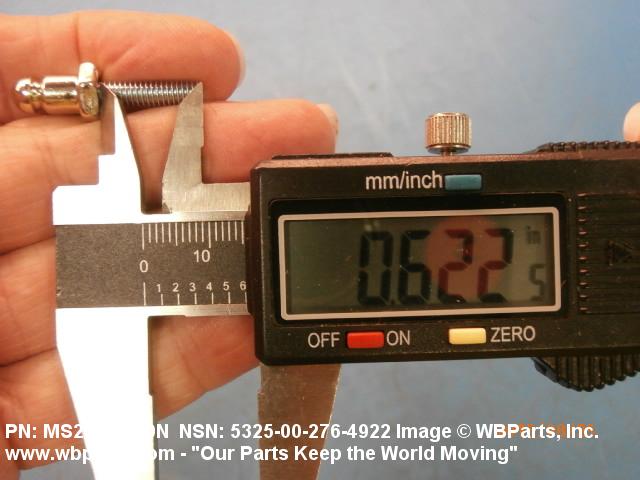

| STUD SHANK LENGTH | 0.625 INCHES NOMINAL |
