Product Details | SNAP FASTENER STUD

5325-00-276-4924 A component of a FASTENER, SNAP; which is designed for insertion into a SOCKET, SNAP FASTENER. It may be furnished with POST, SNAP FASTENER or CLINCH PLATE, SNAP FASTENER. Excludes STUD, SNAPSLIDE FASTENER.

Part Alternates: AN22751, AN227-51, 1280066008, 128-0066-008, 31232551, 312325-51, 5325-00-276-4924, 00-276-4924, 5325002764924, 002764924

Hardware and Abrasives | Fastening Devices

Supply Group (FSG) NSN Assign. NIIN
53 01-JAN-63 00-276-4924

Drawings & Photos | NSN 5325-00-276-4924


Cross Reference | NSN 5325-00-276-4924

Part Number Cage Code Manufacturer
128-0066-008 94756 BOEING COMPANY, THE DBA BOEING
312325-51 80020 NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
AN227-51 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
B590307 61864 TRW ASSEMBLIES AND FASTENERS GROUP
MS27982-4N 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-276-4924

Technical Data | NSN 5325-00-276-4924

Characteristic Specifications
MATERIAL COPPER ALLOY 260 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-B-613 FED SPEC 1ST MATERIAL RESPONSE OR MIL-C-50 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT NICKEL OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-N-290,CL 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

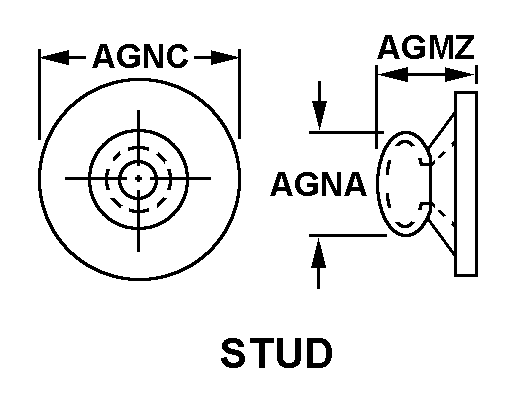

SNAP FASTENER STUD STYLE 6 STUD
STUD OVERALL LENGTH 0.094 INCHES NOMINAL
STUD HEAD DIAMETER 0.156 INCHES NOMINAL
STUD BASE DIAMETER 0.469 INCHES NOMINAL
STUD RETENTION METHOD EYELET
MANUFACTURERS CODE 88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AN227-51
