NSN 5325-00-245-4808 SL19663, SL1966-3, F12CL439002
Product Details | PANEL FASTENER INSERT
5325-00-245-4808 An insert which must have a hole that may be internally threaded with a flange on one end. It may have an undercut on the end opposite the flange to provide a shoulder to allow for mating with another insert. Pre-assembled items will consist of an expansion sleeve and a body which may be flared. Internally threaded items may have a self-locking feature. Excludes INSERT, SCREW THREAD.
Part Alternates: SL19663, SL1966-3, F12CL439002, F12CL4390-02, F12CL469002, F12CL4690-02, 10119073 , 3M225A3, 642AS06781, 642AS0678-1, 5325-00-245-4808, 00-245-4808, 5325002454808, 002454808
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JUL 1969 | 00-245-4808 | 37444 ( INSERT, PANEL FASTENER ) |

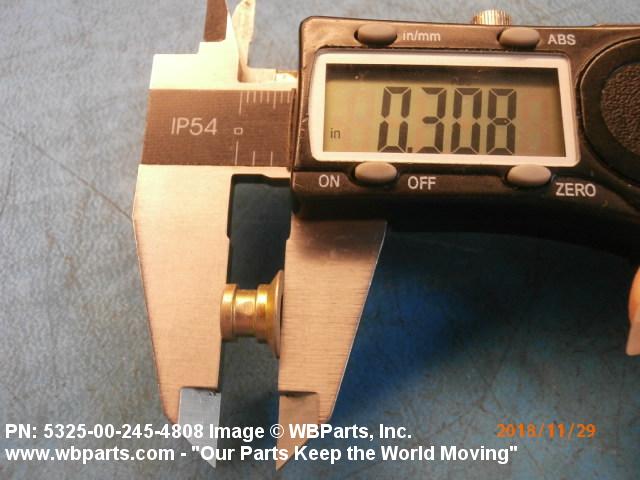

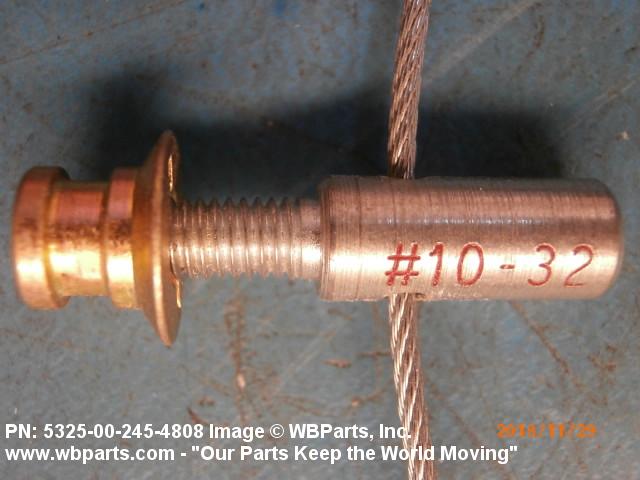

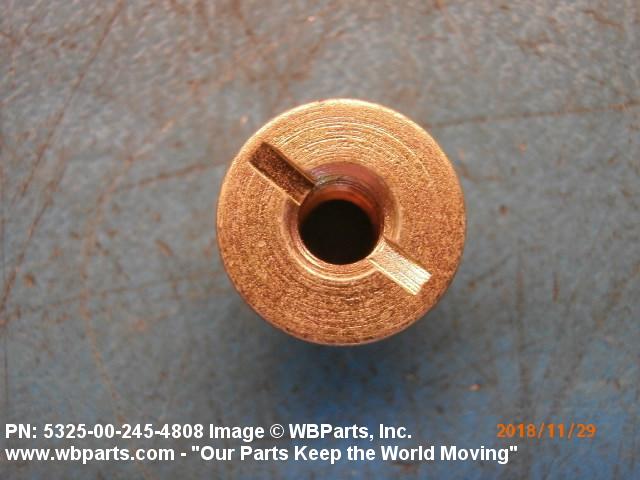

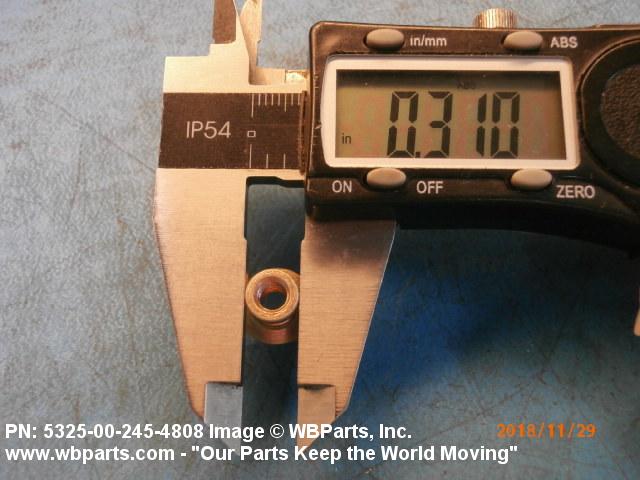

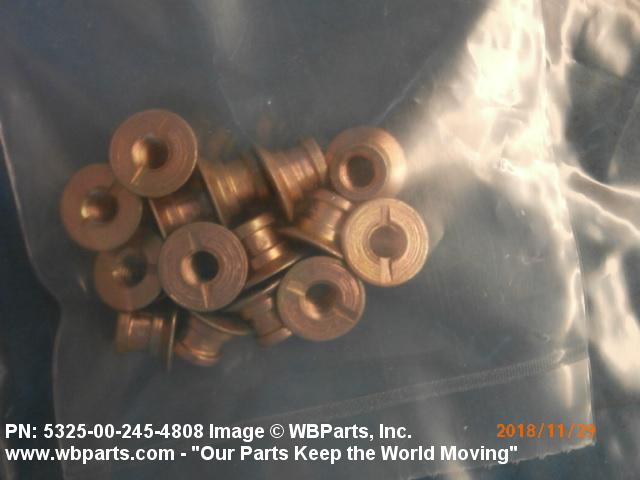

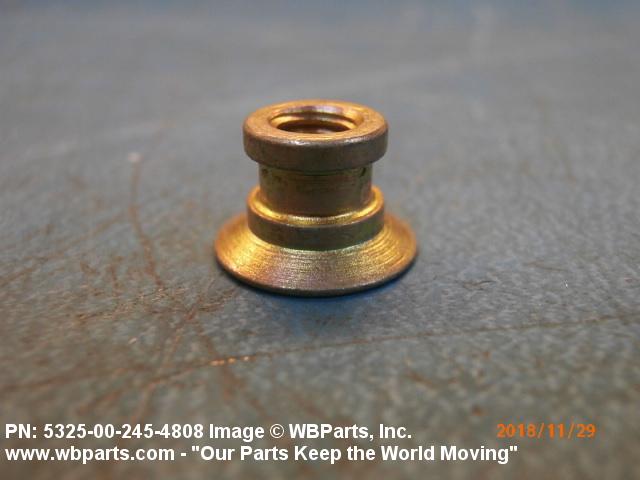

Drawings & Photos | NSN 5325-00-245-4808
Demand History | NSN 5325-00-245-4808
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M225A3 | 2020-10-281 | 517 | DIBBS |
| SL1966-3 | 2020-10-281 | 517 | DIBBS |
| 3M225A3 | 2020-06-166 | 440 | DIBBS |
| SL1966-3 | 2020-06-166 | 440 | DIBBS |
| 5325-00-245-4808 | 2020-05-122 | 1 | DIBBS-RFPs |
| 642AS06781 | 2020-02-56 | 140 | United Kingdom |
| 3M225A3 | 2019-01-31 | 646 | DIBBS |
| SL1966-3 | 2019-01-31 | 646 | DIBBS |
| 3M225A3 | 2019-01-23 | 646 | DIBBS |
| SL1966-3 | 2019-01-23 | 646 | DIBBS |
| 5325-00-245-4808 | 2018-09-267 | 9 | United States |
| 5325-00-245-4808 | 2018-06-164 | 646 | DIBBS |
| 5325-00-245-4808 | 2018-06-156 | 646 | DIBBS |
| 642AS06781 | 2013-07-204 | 16 | United Kingdom |
| 642AS06781 | 2012-01-20 | 8 | United States |
| 5325-00-245-4808 | 2008-04-105 | 5804 | DIBBS |
| 5325-00-245-4808 | 2008-03-70 | 5696 | DIBBS |
Cross Reference | NSN 5325-00-245-4808
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M225A3 | 1V757 | WESCO AIRCRAFT HARDWARE CORP. |
| 3M225A3 | 72962 | HARVARD INDUSTRIES INC |
| 3M225A3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M225A3 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| 642AS0678-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 642AS0678-1 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
| F12CL4390-02 | 72962 | HARVARD INDUSTRIES INC |
| F12CL4690-02 | 72962 | HARVARD INDUSTRIES INC |
| SL1966-3 | 97393 | SHUR-LOK CORPORATION DBA SPS FASTENER DIVISION, A PCC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-245-4808
Related Products | NSN 5325-00-245-4808
Technical Data | NSN 5325-00-245-4808
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHOULDER DIAMETER | 0.312 INCHES MAXIMUM |
| OVERALL LENGTH | 0.305 INCHES NOMINAL |
| HOLE TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-32 UNJF |
Restrictions/Controls & Freight Information | NSN 5325-00-245-4808
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-245-4808
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
