NSN 5325-00-245-5195 MS21209C0610, MS21209-C0610, MS21209C0610L

Product Details | SCREW THREAD INSERT

5325-00-245-5195 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS21209C0610, MS21209-C0610, MS21209C0610L, SSRI1812DDRA1, SSRI-1812DDRA1 , SSZ99R8XR1CJ , 69678069, 69678-06-9, 9994567156A, 999-4567-156A, 15890220-2 , 209C060138, 209-C06-0138, 358506CN0138, 3585-06CN0138, 3585-06CN-0138, 358506CN138, 3585-06CN138, 40563000619, 4235079012, 423-507-9012, 0124931250, 012-4931-250, 10107365 , 125C37811, 125C3781-1 , 0000012039, 000-0012-039, 5325-00-245-5195, 00-245-5195, 5325002455195, 002455195, 158902202

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JUL 1969	00-245-5195	11444 ( INSERT, SCREW THREAD )

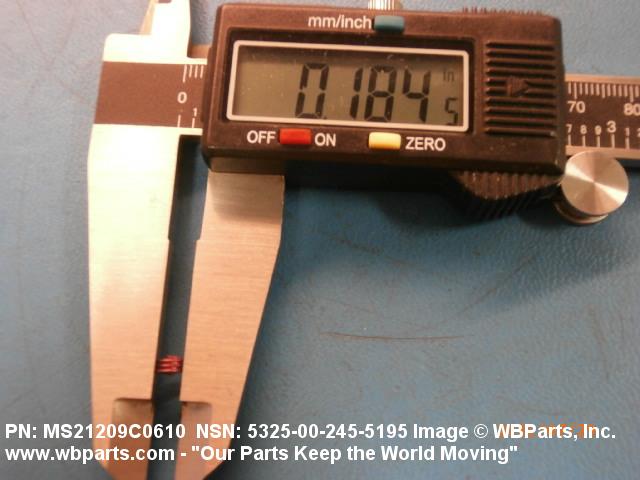

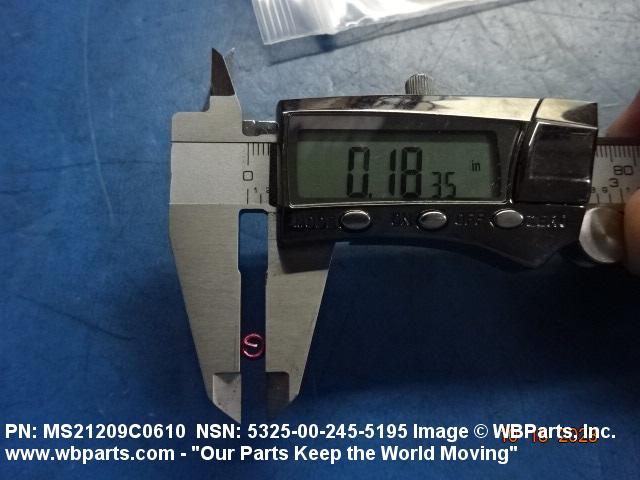

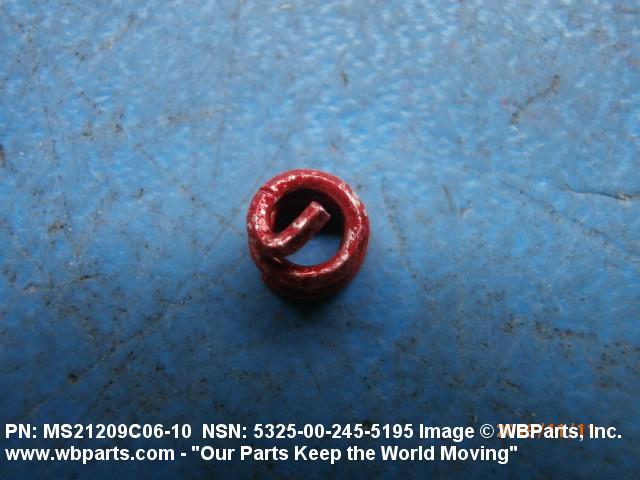

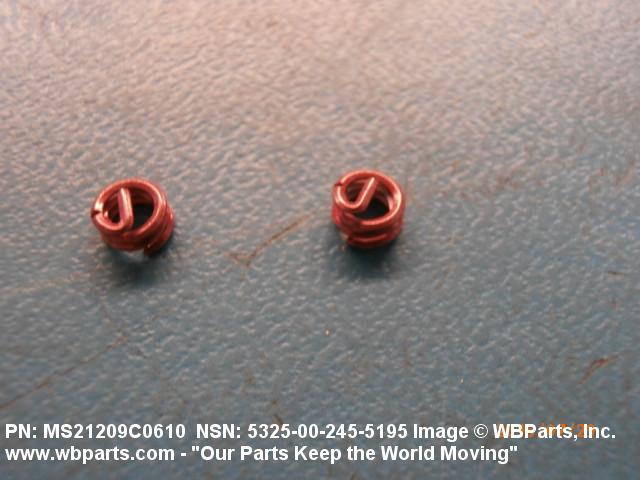

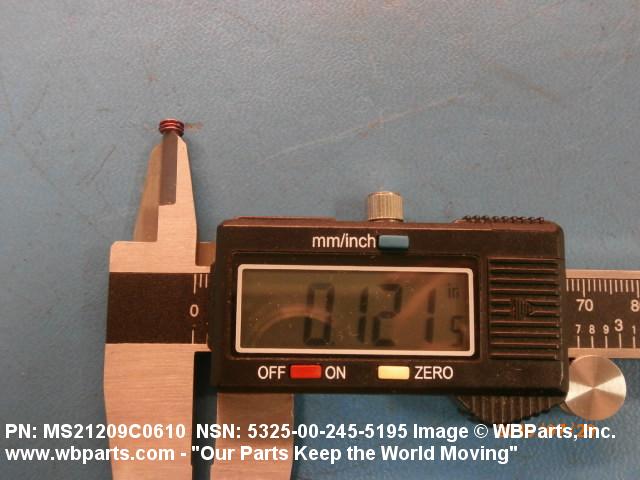

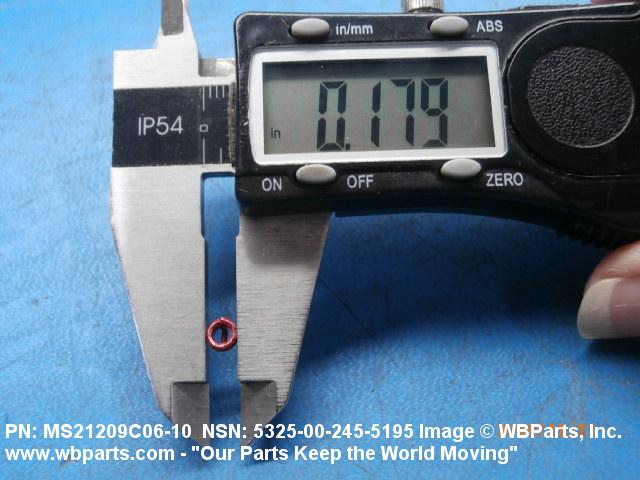

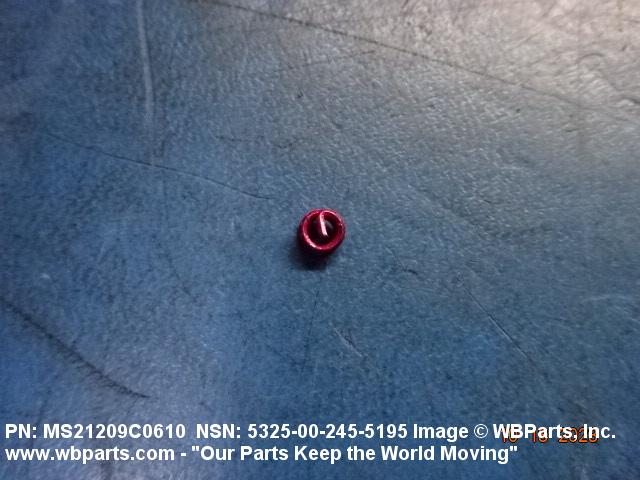

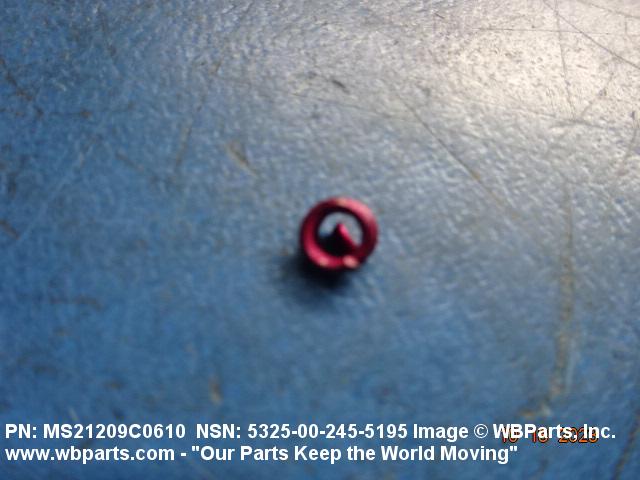

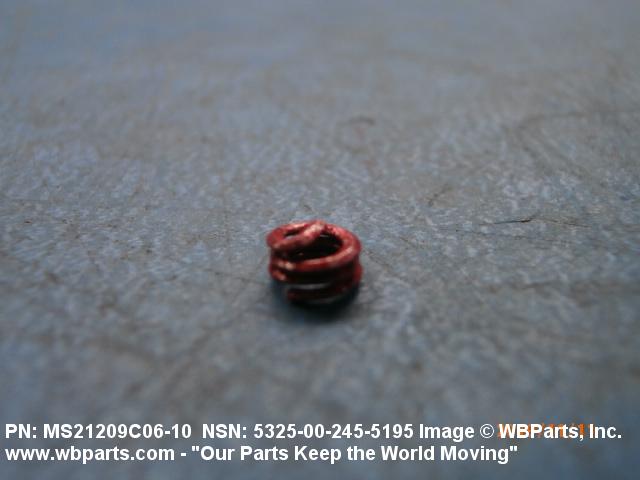

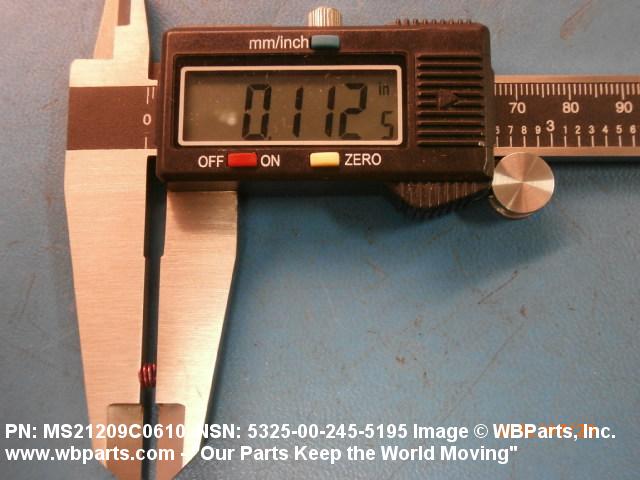

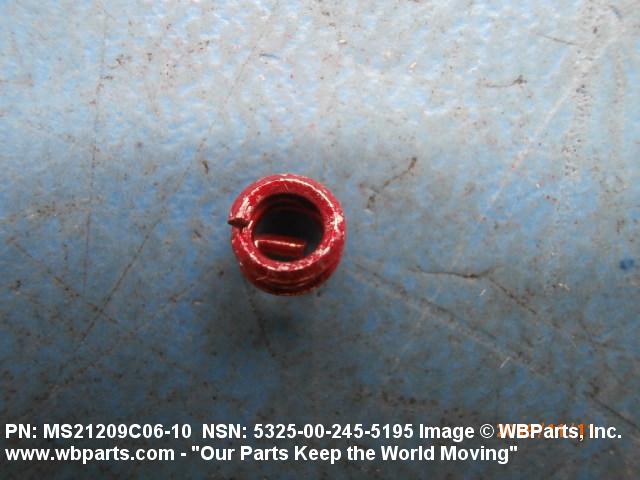

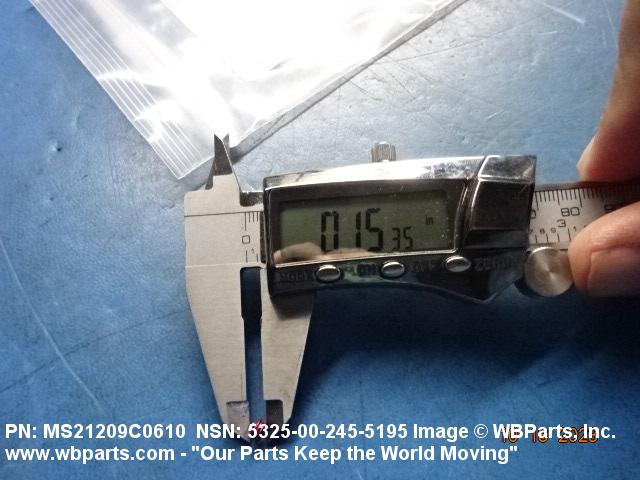

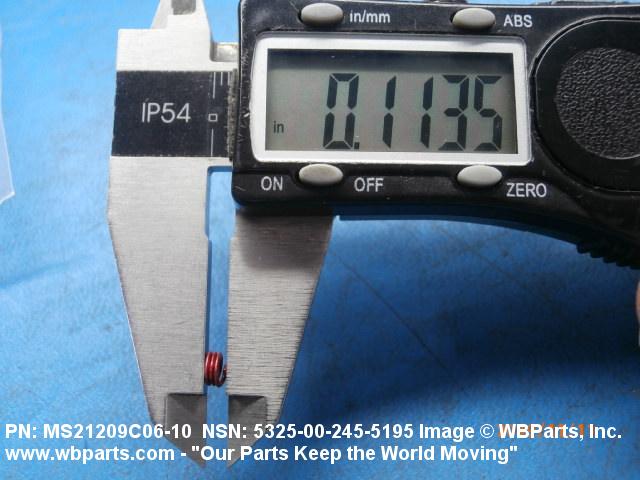

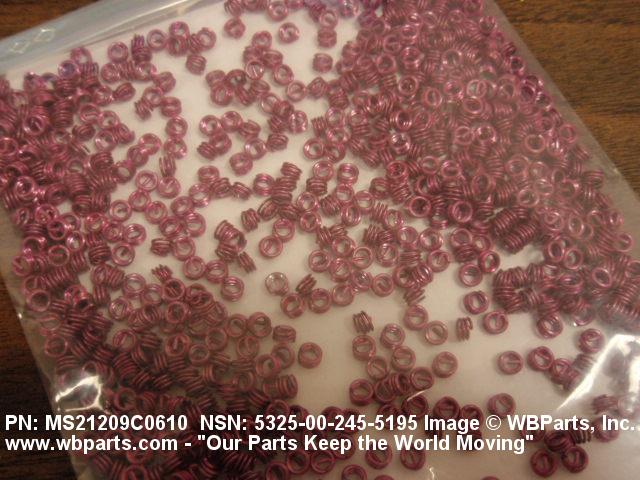

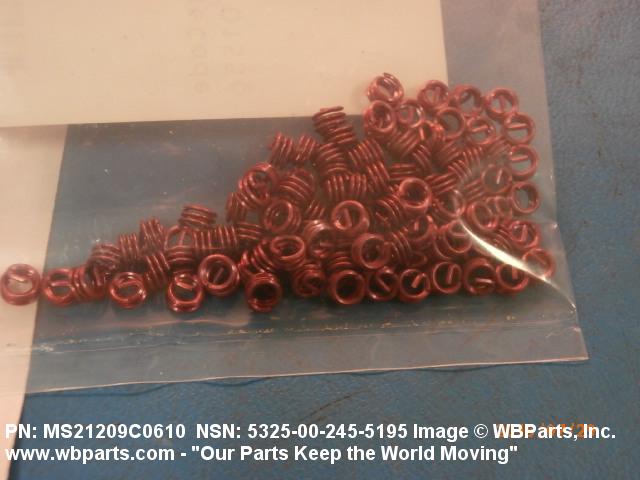

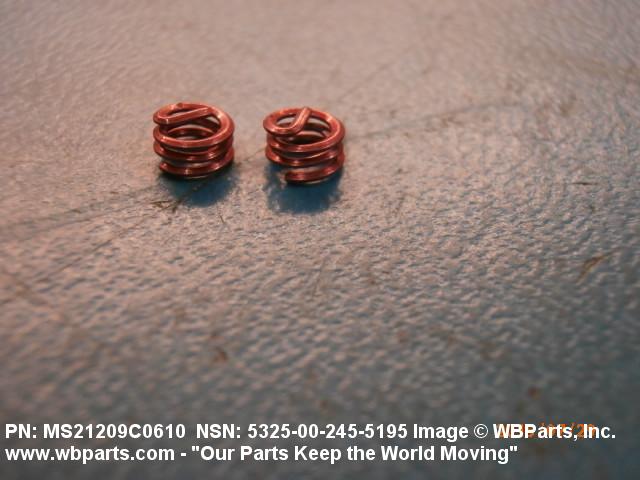

Drawings & Photos | NSN 5325-00-245-5195

Part Number	Request Date	QTY	Origin
MS21209C0610	2024-09-260	70	Japan
MS21209C0610	2024-04-115	100	us
MS21209C0610	2024-03-85	20	United States
MS21209C0610	2023-10-286	210	United States
MS21209C0610L	2023-02-52	150	Saudi Arabia
MS21209C0610	2019-12-345	1200	IN
5325-00-245-5195	2019-10-302	100	United States
5325-00-245-5195	2019-10-297	100	United States
MS21209C0610	2019-08-225	24	United States
5325-00-245-5195	2019-06-155	6	US
5325-00-245-5195	2018-05-145	45	US
MS21209C0610	2017-11-307	5	UK
5325-00-245-5195	2017-08-243	4050	DIBBS
5325-00-245-5195	2017-07-204	8758	DIBBS
5325-00-245-5195	2016-11-325	1112	DIBBS
5325-00-245-5195	2016-10-280	2226	DIBBS
5325-00-245-5195	2016-06-174	3860	DIBBS
MS21209C0610	2016-01-05	60	US
MS21209C0610L	2015-09-252	460	United States
MS21209C0610	2015-06-168	10	United States
MS21209C0610	2015-06-156	214	US
MS21209C0610	2015-04-92	5000	US
MS21209C0610L	2015-02-58	4	United States
MS21209C0610	2015-01-26	5	PH
MS21209C0610L	2014-05-134	115	US
MS21209C0610L	2014-05-133	57	US
MS21209C0610	2014-02-42	200	US
MS21209C0610L	2013-10-302	17	United States
MS21209C0610	2013-07-200	30
4235079012	2013-05-148	2	US
5325-00-245-5195	2013-04-108	20	MANUAL
MS21209C0610	2012-06-163	2200	CN
MS21209C0610	2011-11-327	100	United States
5325-00-245-5195	2011-11-311	30	Singapore
MS21209C0610	2011-09-255	64	United States
MS21209C0610L	2011-08-230	30	US
MS21209-C0610	2011-07-192	648	US
MS21209C0610	2011-07-189	648	US
MS21209C0610	2011-06-159	200	United States
MS21209C0610	2011-05-130	20580	Canada
MS21209C0610	2011-03-82	60	United States
5325-00-245-5195	2011-02-42	100	US
5325-00-245-5195	2011-01-10	7754	DIBBS
MS21209C0610	2011-01-05	680	Hong Kong
MS21209C0610	2010-04-101	300	United States
MS21209C0610	2010-02-40	2300	US
MS21209C0610L	2010-02-33	8	United States
MS21209C0610	2009-12-348	500	US
MS21209C0610L	2009-11-315	800	US
5325-00-245-5195	2009-10-302	5	United States
MS21209C0610L	2009-09-251	600	India
5325-00-245-5195	2009-06-180	640	IL
5325-00-245-5195	2009-04-120	25	US
5325-00-245-5195	2009-04-93	100000	US
5325-00-245-5195	2009-01-15	10000	DIBBS
MS21209C0610L	2008-11-319	100	Italy
5325-00-245-5195	2008-10-282	2500	DIBBS
5325-00-245-5195	2008-08-225	1000	Singapore
MS21209C0610	2008-07-204	80	US
SSZ99R8XR1CJ	2008-06-162	20	United Kingdom
MS21209C0610	2008-05-123	600	US
5325-00-245-5195	2008-04-108	2050	MX
5325-00-245-5195	2008-04-108	8500	MX
MS21209C0610L	2008-01-16	100	US
5325-00-245-5195	2008-01-01	150	IL
MS21209C0610	2007-10-303	10	US
MS21209C0610L	2006-10-283	1000	PK

Cross Reference | NSN 5325-00-245-5195

Part Number	Cage Code	Manufacturer
000-0012-039	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
012-4931-250	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
15890220-2	F6151	SAFRAN
15890220-2	FAQ15	SAGEM DEFENSE SECURITE - GROUPESAFRAN
209-C06-0138	12360	ALBANY FASTENERS PAWTUCKET FASTENERS DIV
3585-06CN-0138	26344	NEW HAVEN MFG CORP
3585-06CN0138	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
3585-06CN138	01556	EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES
358506CN0138	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
40563000619	S0522	TADIRAN LTD
423-507-9012	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
69678-06-9	73030	HAMILTON SUNDSTRAND CORPORATION
999-4567-156A	19710	MPC PRODUCTS CORPORATION DBA WOODWARD MPC
9994567156A	19710	MPC PRODUCTS CORPORATION DBA WOODWARD MPC
MS21209-C0610	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS21209C0610	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21209C0610	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21209C0610L	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-245-5195

Compare

Related Products | NSN 5325-00-245-5195

5325-00-245-6276, 5325-00-245-6413, 5325-00-245-6771, 5325-00-245-7688, 5325-00-245-8267

Restrictions/Controls & Freight Information | NSN 5325-00-245-5195

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	SG	403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-245-5195

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
