NSN 5325-00-177-3963 MS51830103, MS51830-103, MS518303

Product Details | SCREW THREAD INSERT

5325-00-177-3963 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS51830103, MS51830-103, MS518303, MS51830-3, A05230, B68150, K990506, K9905-06, KC0632, KC0632J, KNCA0632, KNCA0632J, 10045083 , 10070478, 5325-00-177-3963, 00-177-3963, 5325001773963, 001773963

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	24 SEP 1969	00-177-3963	11444 ( INSERT, SCREW THREAD )

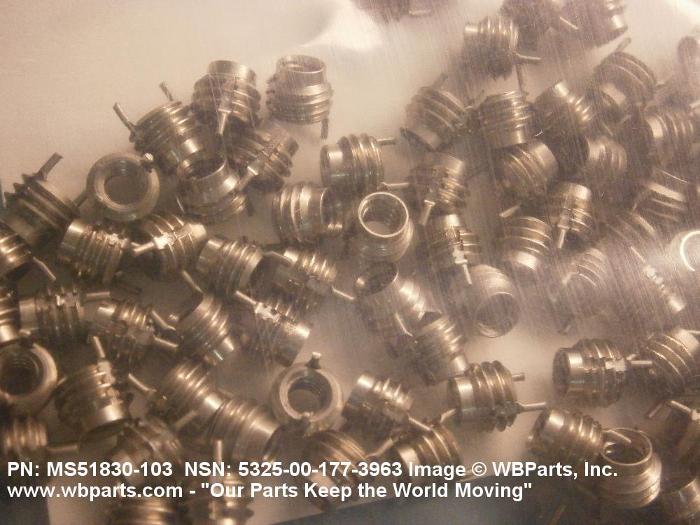

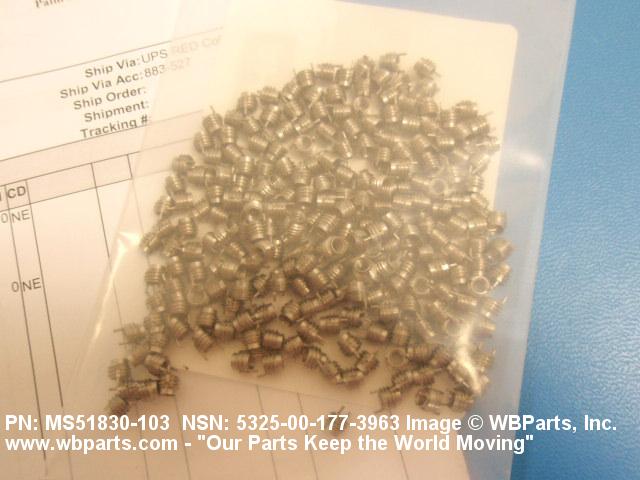

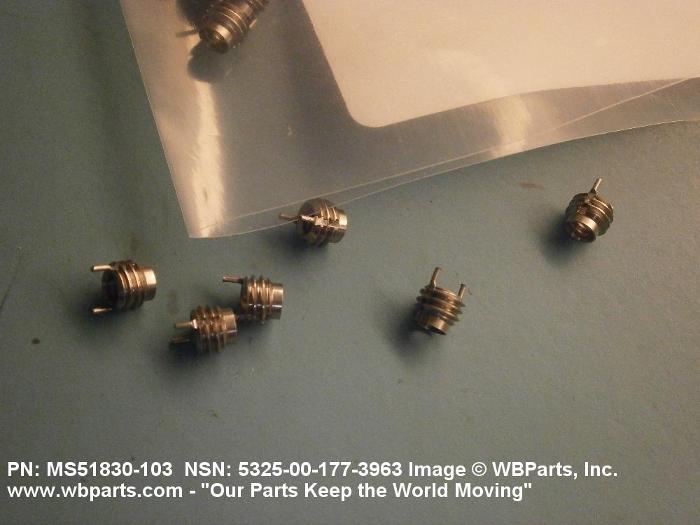

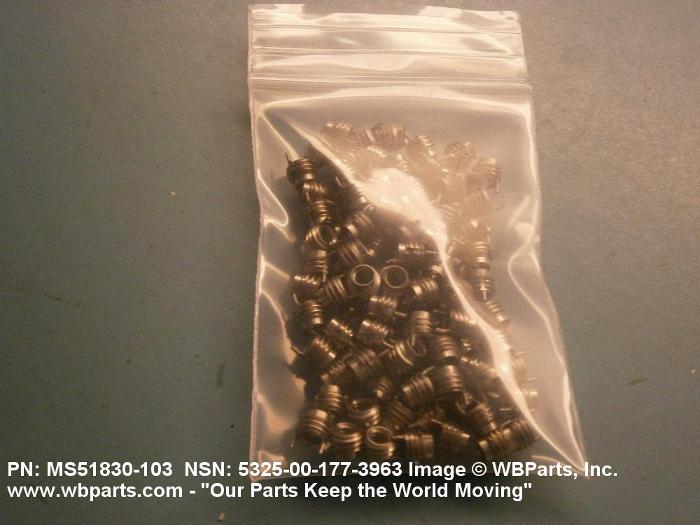

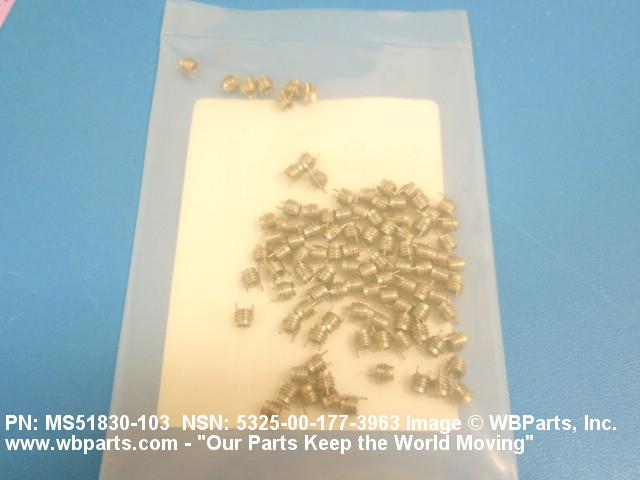

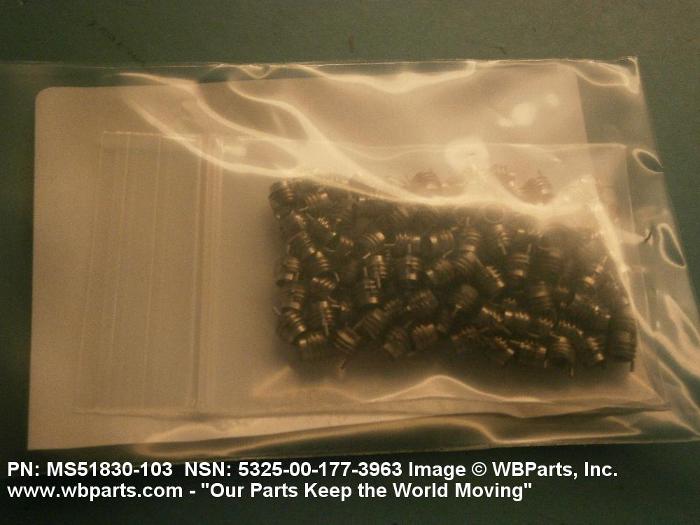

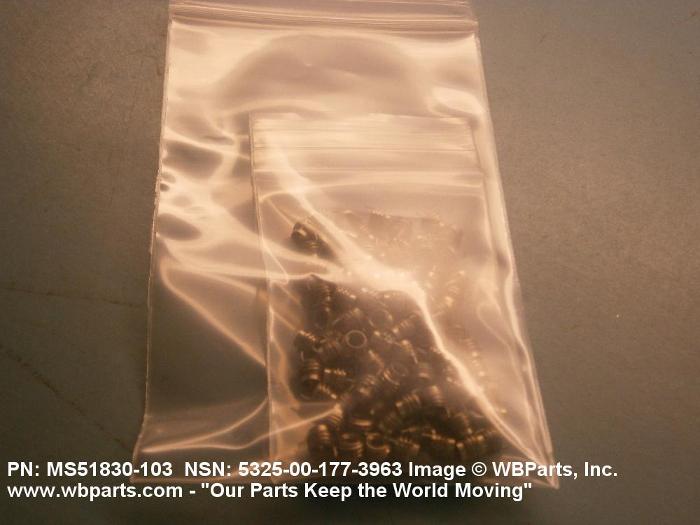

Drawings & Photos | NSN 5325-00-177-3963

Part Number	Request Date	QTY	Origin
5325-00-177-3963	2024-08-231	316	DIBBS
5325-00-177-3963	2024-06-154	218	DIBBS
5325-00-177-3963	2023-12-351	104	DIBBS
5325-00-177-3963	2023-07-197	366	DIBBS
5325-00-177-3963	2023-02-51	116	DIBBS
MS51830103	2022-11-326	30	China
5325-00-177-3963	2022-10-289	636	DIBBS
5325-00-177-3963	2022-07-185	612	DIBBS
5325-00-177-3963	2022-03-80	112	DIBBS
MS51830103	2022-01-17	478	United States
MS51830103	2021-11-333	30	United States
5325-00-177-3963	2021-11-326	292	DIBBS
5325-00-177-3963	2021-07-207	2	US
MS51830103	2021-07-196	10	US
MS51830103	2021-06-179	9	United States
MS51830103	2021-04-99	12	United States
MS51830103	2020-09-247	672	United States
5325-00-177-3963	2019-07-197	1200	DIBBS
5325-00-177-3963	2018-12-339	1114	DIBBS
5325-00-177-3963	2017-07-201	310	TW
MS51830103	2016-03-84	500	United States
5325-00-177-3963	2015-10-279	320	United States
MS51830103	2015-09-258	1000	United States
MS51830-103	2015-05-141	72	United States
MS51830-103	2015-05-141	72	United States
MS51830103	2014-02-38	900	US
5325-00-177-3963	2013-12-346	15	United States
MS51830103	2013-08-235	64	US
MS51830103	2013-06-175	2000	United States
MS51830103	2012-12-347	20	US
MS51830103	2012-11-335	44	US
MS51830103	2012-05-144	100	United States
MS51830103	2012-04-101	176	US
MS51830103	2011-09-258	1330	US
5325-00-177-3963	2011-06-152	40	US
MS51830103	2011-02-32	1	United States
5325-00-177-3963	2011-01-13	170	US
5325-00-177-3963	2011-01-13	250	US
KNCA0632J	2011-01-13	170	US
MS51830103	2011-01-07	35	US
5325-00-177-3963	2010-08-238	40	US
5325-00-177-3963	2010-08-228	210	United States
5325-00-177-3963	2010-07-197	121	US
MS51830103	2010-07-196	128	US
5325-00-177-3963	2010-06-162	3600	India
5325-00-177-3963	2010-04-109	6	YU
MS51830103	2010-03-63	500	US
5325-00-177-3963	2010-03-61	700	US
5325-00-177-3963	2009-11-313	3	US
MS51830103	2009-09-260	100	US
5325-00-177-3963	2009-09-258	10	US
5325-00-177-3963	2009-07-205	300	us
5325-00-177-3963	2008-10-282	3349	DIBBS
5325-00-177-3963	2008-10-275	4	US
MS51830103	2008-06-165	350	US
MS51830103	2008-06-161	200	US
5325-00-177-3963	2008-04-112	10	US
MS51830103	2008-01-07	30	US
MS51830103	2007-12-348	1	US

Cross Reference | NSN 5325-00-177-3963

Part Number	Cage Code	Manufacturer
10070478	18876	U S ARMY AVIATION AND MISSILE COMMAND
A05230	K0967	MBDA UK LTD
B68150	K0967	MBDA UK LTD
K9905-06	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
K9905-06	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KC0632	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KC0632J	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KC0632J	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
KNCA0632	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNCA0632J	29371	MOOG INC. DIV CHATSWORTH OPERATIONS
MS51830-103	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51830-103	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51830-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-177-3963

Compare

Related Products | NSN 5325-00-177-3963

5325-00-177-3972, 5325-00-177-3979, 5325-00-177-3984, 5325-00-177-3985, 5325-00-177-4008

Technical Data | NSN 5325-00-177-3963

Characteristic	Specifications
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	H26 KEYLOCK
LENGTH	0.170 INCHES NOMINAL
FULL INTERNAL THREAD LENGTH	0.170 INCHES NOMINAL
INSERT SIZE	0.216-28 UNF CLASS 2A
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51830-103

Restrictions/Controls & Freight Information | NSN 5325-00-177-3963

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-177-3963

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
