NSN 5325-00-177-3984 MS51830104, MS51830-104, A05229

Product Details | SCREW THREAD INSERT

5325-00-177-3984 A cylindrical item which may have wrenching and/or driving facilities and/or shoulders. It is designed to be inserted in a drilled, tapped or a pretapped hole, or molded or pressed into soft material to reduce the size of a tapped hole; to provide threads; to add strength, and/or to prevent stripping. It is one of the following: (1) a one-piece, flanged or unflanged, internally threaded item which may have external threads, and/or serrations around the periphery of the collar, designed to engage a serrated lock ring which is not included with the item; (2) a one-piece precision coiled wire; (3) a two-piece item consisting of an internally threaded cylinder and a mating externally threaded part; or (4) a one-piece internally threaded item whose outside diameter is tapered and/or knurled and/or with fin(s). The internal thread of the item may have a locking feature. Excludes items having a sleeve on on its under portion which can be clinched or crimped. Excludes BUSHING,MACHINE THREAD; NUT,PLAIN,KNURLED; NUT,PLAIN,ROUND; NUT,PLAIN,CLINCH and NUT,SELF-LOCKING,CLINCH. See also NUT,PLAIN,PLATE

Part Alternates: MS51830104, MS51830-104, A05229, K990508, K9905-08, KNCA0832, KNCA0832J, 5325-00-177-3984, 00-177-3984, 5325001773984, 5340001773984 , 001773984

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 OCT 1969	00-177-3984	11444 ( INSERT, SCREW THREAD )

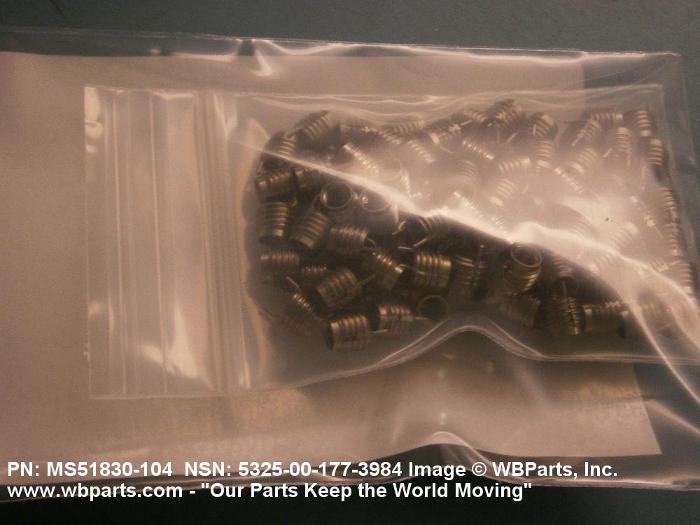

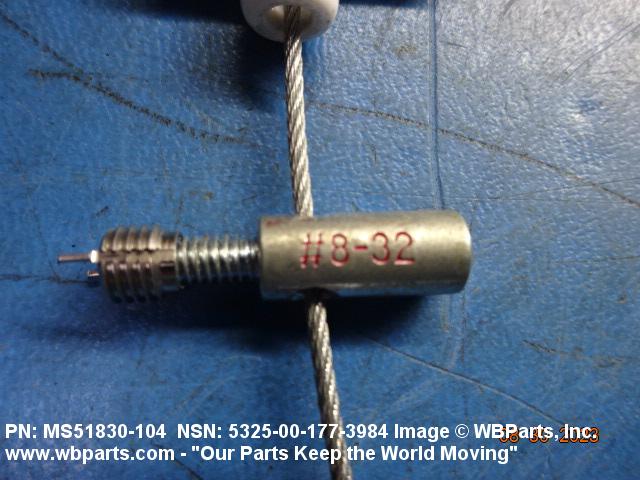

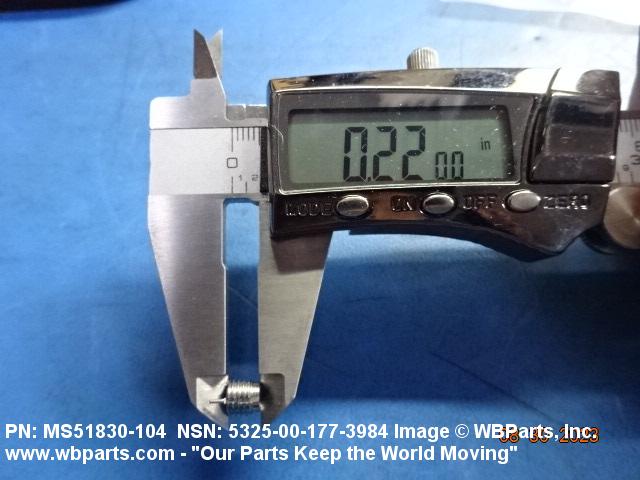

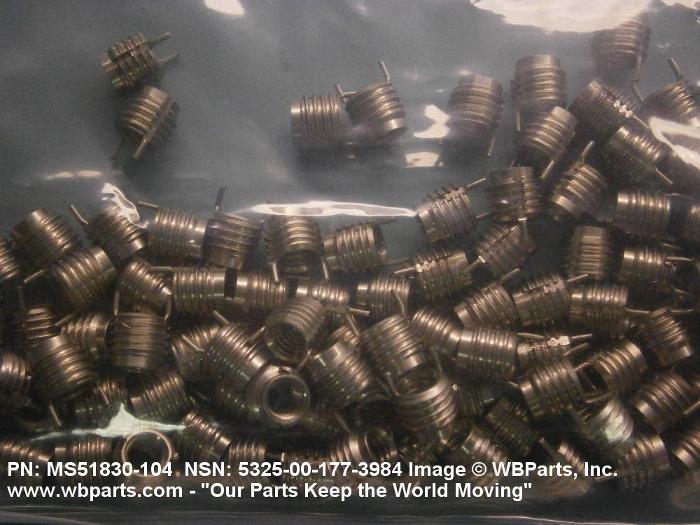

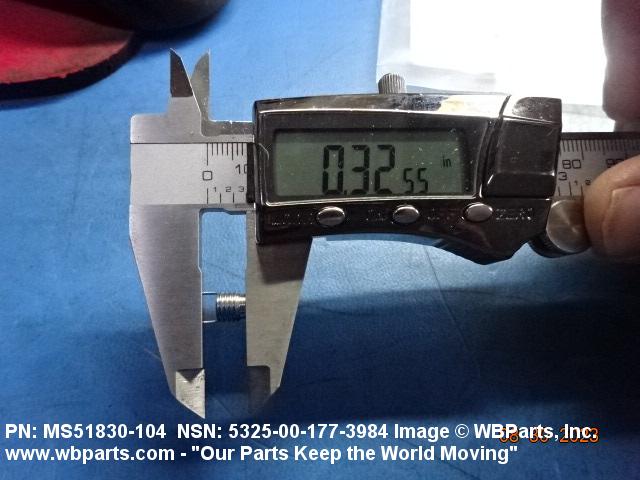

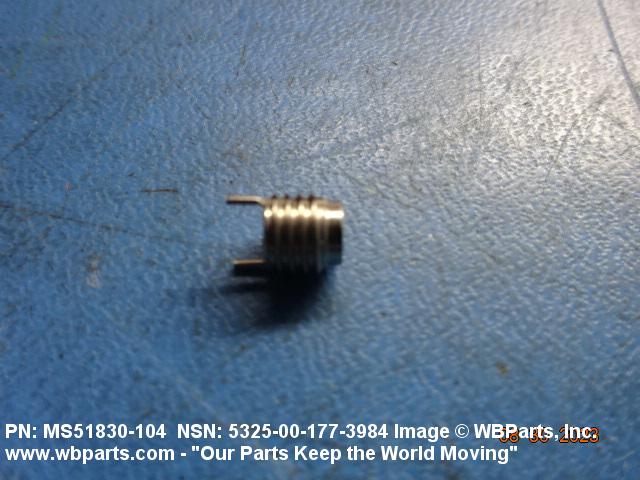

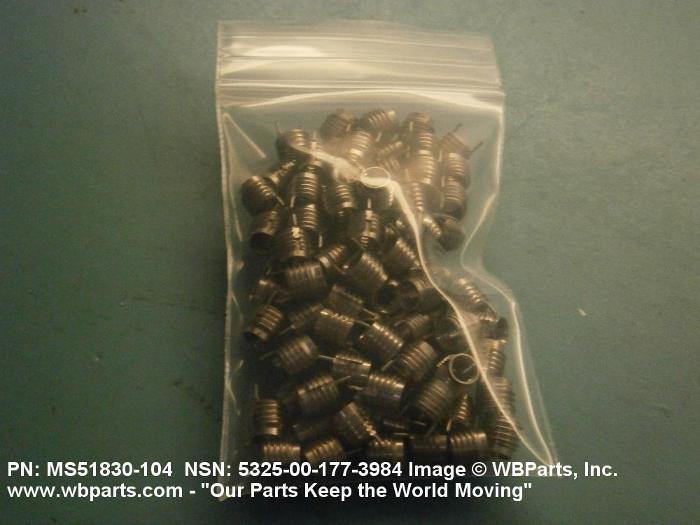

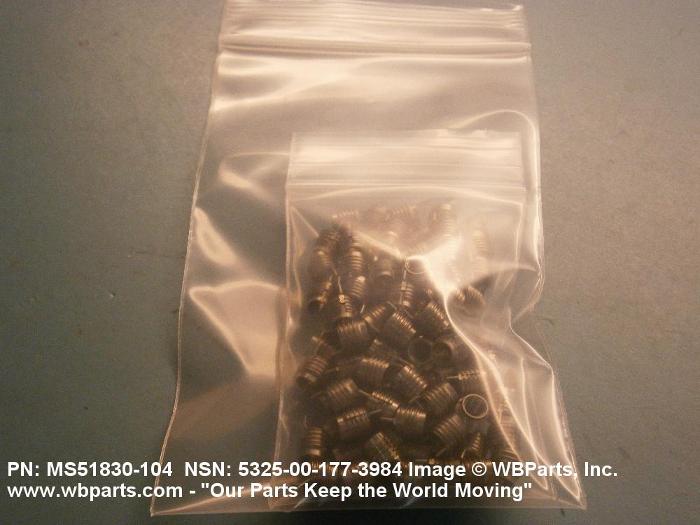

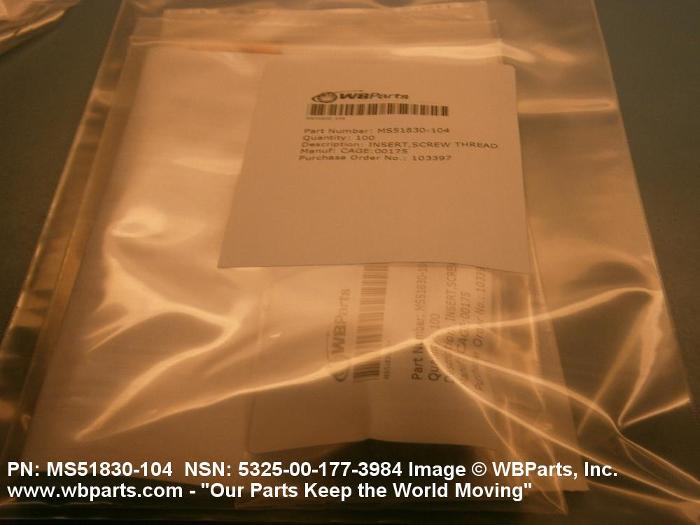

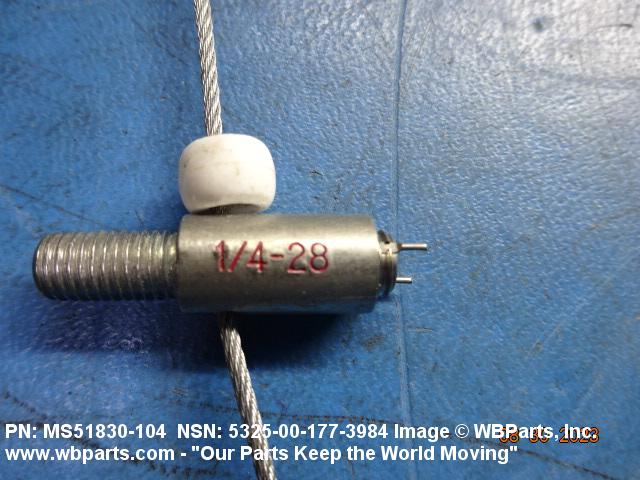

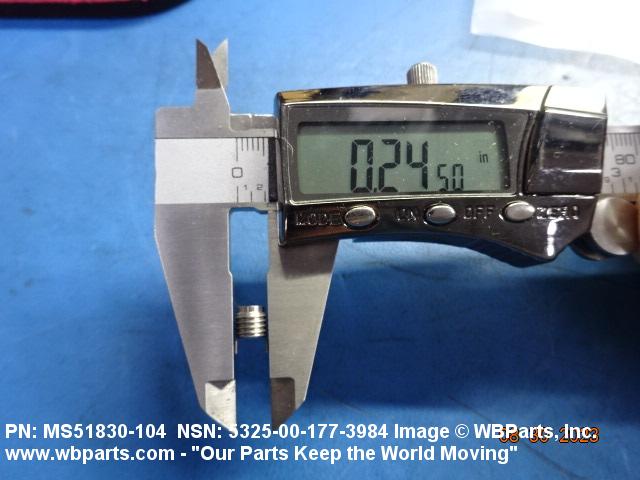

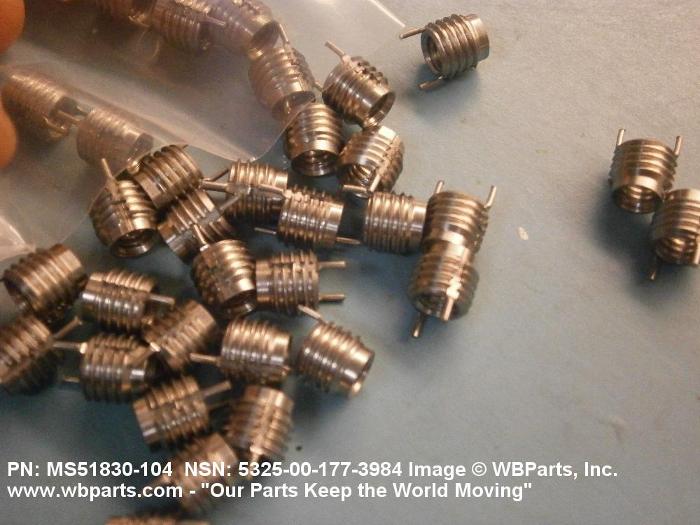

Drawings & Photos | NSN 5325-00-177-3984

Part Number	Request Date	QTY	Origin
MS51830104	2024-09-256	100	US
KNCA0832	2023-08-237	10	United States
5325-00-177-3984	2022-06-173	394	DIBBS
MS51830104	2022-06-172	6	United States
5325-00-177-3984	2022-03-67	3352	DIBBS
5325-00-177-3984	2022-02-48	838	DIBBS
MS51830104	2021-06-179	13	United States
5325-00-177-3984	2021-06-153	3192	DIBBS
5325-00-177-3984	2020-10-289	1411	DIBBS
5325-00-177-3984	2020-10-278	1411	DIBBS
MS51830104	2020-09-247	768	United States
5325-00-177-3984	2020-06-157	25	United States
5325-00-177-3984	2018-05-138	410	US
5325-00-177-3984	2017-07-201	190	TW
MS51830-104	2016-05-137	4
MS51830-104	2016-05-137	4
5325-00-177-3984	2016-04-102	25	US
MS51830104	2016-03-76	500	United States
MS51830104	2015-08-237	30	South Korea
5325-00-177-3984	2015-08-218	20	US
MS51830104	2015-05-146	2100	United States
5325-00-177-3984	2014-10-274	40	South Korea
MS51830104	2014-06-168	172	UM
5325-00-177-3984	2014-04-100	50	US
5325-00-177-3984	2013-04-101	208	US
MS51830104	2013-04-101	208	US
MS51830104	2012-12-347	50	US
KNCA0832J	2012-05-144	1000	US
MS51830104	2012-05-144	100	United States
5340-00-177-3984	2012-05-142	2500	United States
KNCA0832J	2012-05-136	2500	US
MS51830104	2012-04-101	176	US
5325-00-177-3984	2012-02-45	10000	US
MS51830104	2012-02-41	1000	US
5325-00-177-3984	2012-01-20	1000	US
5325-00-177-3984	2012-01-20	5000	US
5325-00-177-3984	2012-01-20	10000	US
MS51830104	2011-11-322	200	United States
5325-00-177-3984	2011-08-229	45	United States
MS51830104	2011-07-209	170	US
MS51830104	2011-07-187	5000	United States
KNCA0832J	2011-05-139	1000	CN
MS51830104	2011-05-130	100	US
5325-00-177-3984	2011-01-13	340	US
KNCA0832J	2010-12-347	35	US
MS51830104	2010-12-341	1000	us
5325-00-177-3984	2010-11-322	110	US
KNCA0832J	2010-10-297	15000	CN
5325-00-177-3984	2010-10-274	330	Germany
5325-00-177-3984	2010-09-272	330	Germany
5325-00-177-3984	2010-09-259	10	RO
KNCA0832J	2010-08-229	100	United States
5325-00-177-3984	2010-07-209	650	DE
5325-00-177-3984	2010-07-197	110	US
5325-00-177-3984	2010-07-194	10	US
5325-00-177-3984	2010-06-155	3425	US
5325-00-177-3984	2010-06-153	30	Canada
5325-00-177-3984	2010-05-144	4	US
5325-00-177-3984	2010-03-74	24	South Korea
KNCA0832J	2009-11-320	8	US
5325-00-177-3984	2009-08-238	200	United Kingdom
KNCA0832J	2009-07-188	7525	United Kingdom
KNCA0832J	2009-07-188	7525	United Kingdom
KNCA0832J	2009-06-169	150	IL
5325-00-177-3984	2009-06-154	150	United States
5325-00-177-3984	2009-01-27	100	US
KNCA0832J	2009-01-22	7700	United Kingdom
MS51830104	2009-01-22	7700	United Kingdom
5325-00-177-3984	2008-11-323	12	US
5325-00-177-3984	2008-11-317	110	Canada
5325-00-177-3984	2008-11-317	180	Canada
KNCA0832J	2008-10-304	20	US
MS51830104	2008-10-283	4000	United States
5325-00-177-3984	2008-02-59	2500	US
5325-00-177-3984	2007-10-303	50	US
MS51830104	2007-05-121	30	US

Cross Reference | NSN 5325-00-177-3984

Part Number	Cage Code	Manufacturer
5340001773984	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
A05229	K0967	MBDA UK LTD
K9905-08	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
K9905-08	75237	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNCA0832	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNCA0832J	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
KNCA0832J	D0680	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC
MS51830-104	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-177-3984

Compare

Related Products | NSN 5325-00-177-3984

5325-00-177-3985, 5325-00-177-4008, 5325-00-177-4036, 5325-00-177-4069, 5325-00-177-4085

Technical Data | NSN 5325-00-177-3984

Characteristic	Specifications
MATERIAL	STEEL COMP 303 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7720,COND B MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	H25 GROOVED KEYLOCK
INSERT SIZE	0.250-28 UNF CLASS 2A
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51830-104

Restrictions/Controls & Freight Information | NSN 5325-00-177-3984

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-177-3984

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
