NSN 5320-01-033-8639 M7885/7-4-02, M7885/7-4-2, M78857402

Product Details | BLIND RIVET

5320-01-033-8639 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/7-4-02, M7885/7-4-2, M78857402, M7885742, AF3242402, AF3242-4-02, AF324242, AF3242-4-2, NAS9305BNS402, NAS9305BNS-4-02, CR3242, CR3242402, CR3242-4-02, CR324242, CR3242-4-2, HC3242402, HC3242-4-02, HC3243604, HC3243-6-04, HR3242402, HR3242-4-02, MIL-R-7885/7, MILR78857, 5320-01-033-8639, 01-033-8639, 5320010338639, 010338639

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 JAN 1977	01-033-8639	00864 ( RIVET, BLIND )

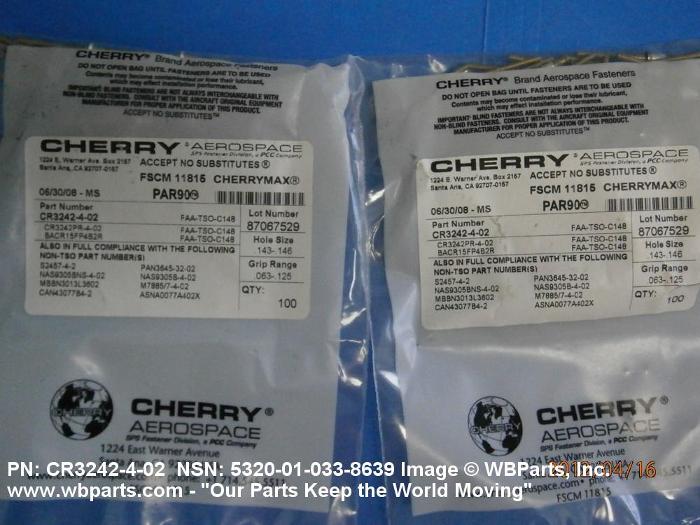

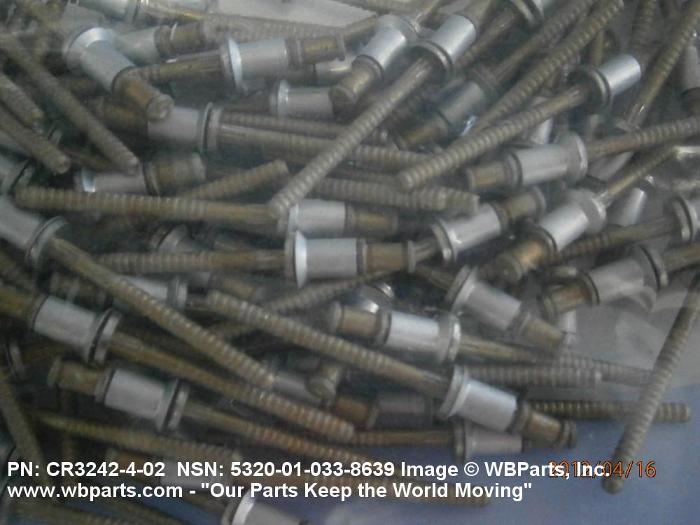

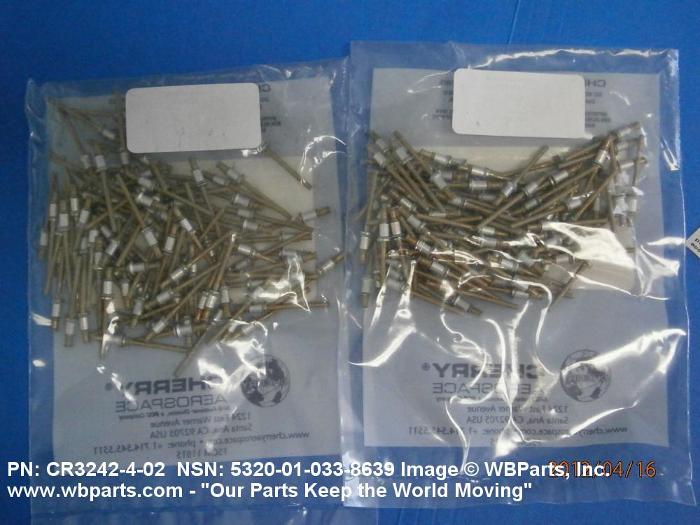

Drawings & Photos | NSN 5320-01-033-8639

Part Number	Request Date	QTY	Origin
M7885742	2024-05-137	950	US
CR324242	2024-04-96	500	BR
5320-01-033-8639	2024-02-44	180300	United States
CR3242402	2023-11-305	100	US
M78857402	2019-05-141	200	US
5320-01-033-8639	2018-02-52	1	DIBBS-RFPs
5320-01-033-8639	2017-08-243	1527	DIBBS
5320-01-033-8639	2017-07-208	808	DIBBS
5320-01-033-8639	2017-07-198	1485	DIBBS
5320-01-033-8639	2017-05-128	808	DIBBS
5320-01-033-8639	2016-08-244	980	DIBBS
M7885742	2016-08-238	100	United States
CR3242402	2016-06-180	1	United States
5320-01-033-8639	2016-03-82	108	DIBBS
5320-01-033-8639	2016-01-19	423	DIBBS
5320-01-033-8639	2015-06-154	309	DIBBS
5320-01-033-8639	2015-02-34	664	DIBBS
CR3242402	2014-07-196	1	AR
CR324242	2014-06-169	20	ZA
5320-01-033-8639	2014-03-64	669	DIBBS
5320-01-033-8639	2013-10-297	300	MANUAL
NAS9305BNS-4-02	2013-10-297	300	AR
5320-01-033-8639	2013-10-288	574	DIBBS
AF3242-4-02	2013-08-238	14	US
CR3242-4-02	2013-05-134	50	CZ
CR3242402	2012-12-338	500	CO
CR3242402	2012-07-207	2000	US
5320-01-033-8639	2012-05-150	550	DIBBS
CR324242	2012-03-65	200	United States
CR324242	2012-03-65	200	United States
CR324242	2011-09-262	100	CZ
M7885742	2011-08-228	16	United States
CR324242	2011-02-34	200	US
5320-01-033-8639	2009-04-92	4	US
5320-01-033-8639	2008-06-178	500	Colombia

Cross Reference | NSN 5320-01-033-8639

Part Number	Cage Code	Manufacturer
AF3242-4-02	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3242-4-2	53551	ALLFAST FASTENING SYSTEMS, LLC
CR3242	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3242	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3242-4-02	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3242-4-2	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
HC3242-4-02	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HC3243-6-04	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HR3242-4-02	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/7-4-02	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M7885/7-4-2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-7885/7	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9305BNS-4-02	53551	ALLFAST FASTENING SYSTEMS, LLC
NAS9305BNS-4-02	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-033-8639

Compare

Related Products | NSN 5320-01-033-8639

5320-01-033-8640, 5320-01-033-8641, 5320-01-033-8642, 5320-01-033-8643, 5320-01-033-8644

Technical Data | NSN 5320-01-033-8639

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 BODY STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	CHROMATE BODY CADMIUM STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM
HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.225 INCHES NOMINAL
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	0.205 INCHES MINIMUM AND 0.225 INCHES MAXIMUM
SHANK DIAMETER	0.140 INCHES MINIMUM AND 0.143 INCHES MAXIMUM
GRIP LENGTH	0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
SPECIAL FEATURES	"NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY.

Restrictions/Controls & Freight Information | NSN 5320-01-033-8639

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-033-8639

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
