NSN 5320-01-033-8641 M7885/6-4-01, M7885/6-4-03 , M78856401

Product Details | BLIND RIVET

5320-01-033-8641 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/6-4-01, M7885/6-4-03 , M78856401, M78856403, NAS9304BNS401, NAS9304BNS-4-01, NAS9304BNS403, NAS9304BNS-4-03 , AF3243401, AF3243-4-01, AF324341, AF3243-4-1, AF324343, AF3243-4-3 , BACR15FR4B1, BACR15FR4B3, CR3243401, CR3243-4-01, CR324341, CR3243-4-1, CR324343, CR3243-4-3 , HC 3243-4-03 , HC3243403, HC324343, HC3243-4-3 , HR3243401, HR3243-4-01, HR3243403, HR3243-4-03 , OHCPB0405, OHCP-B04-05, MIL-R-7885/6, MILR78856, 7198113, 719811-3 , 5320-01-033-8641, 01-033-8641, 5320010338641, 010338641

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 JAN 1977	01-033-8641	00864 ( RIVET, BLIND )

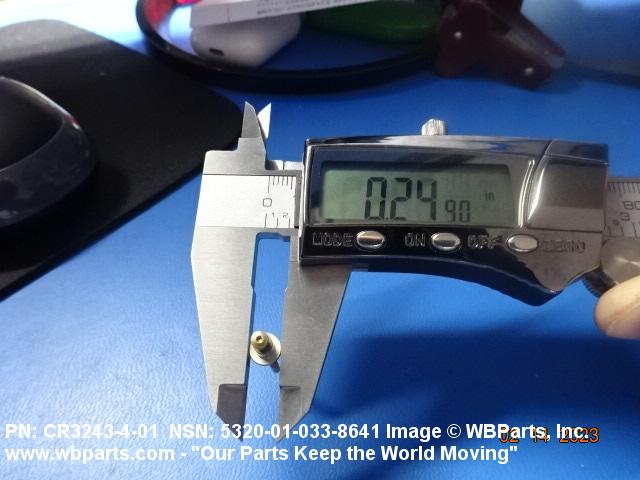

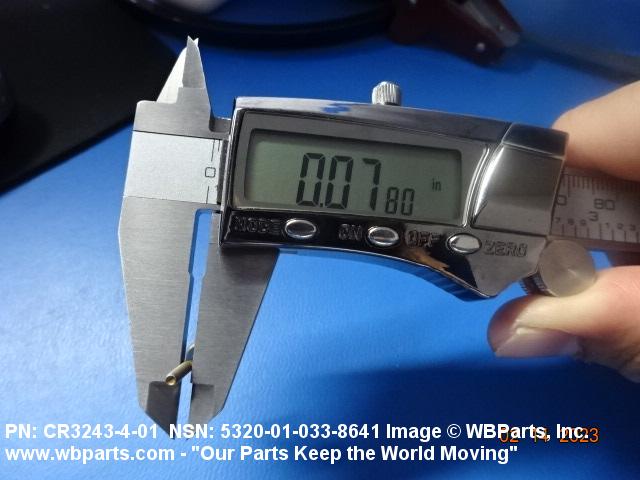

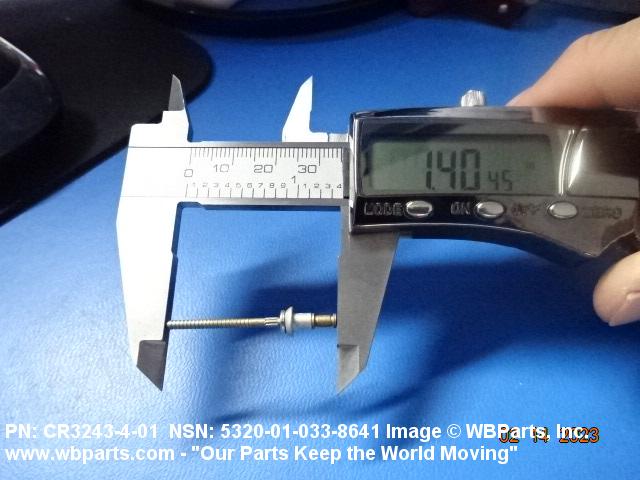

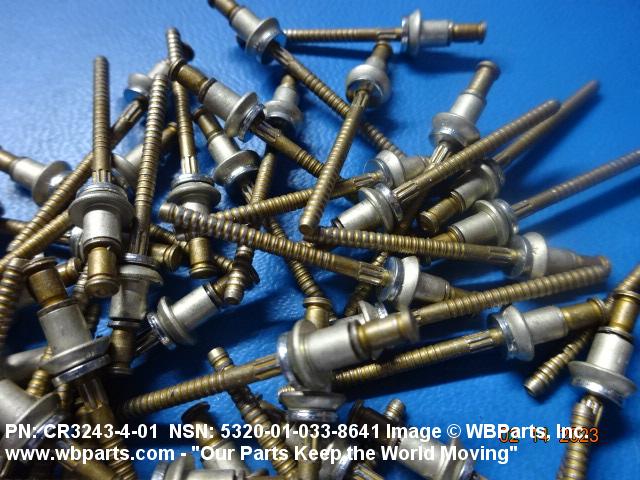

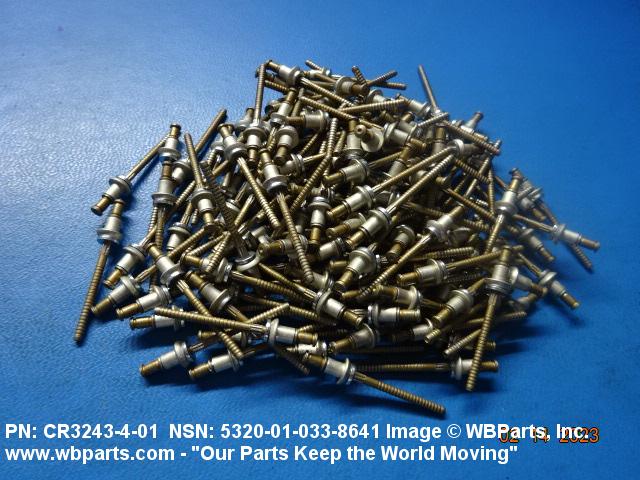

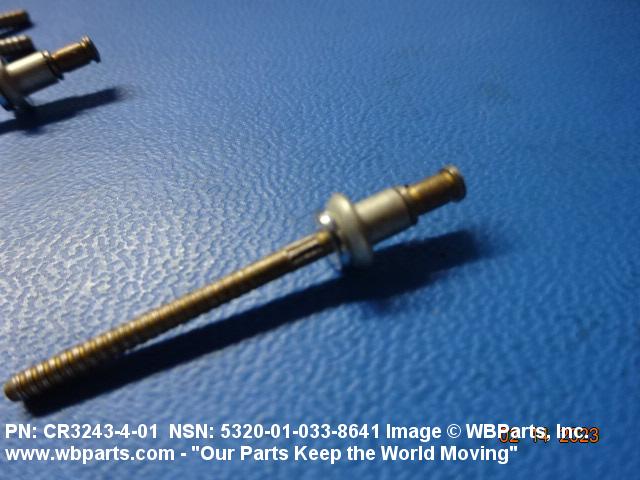

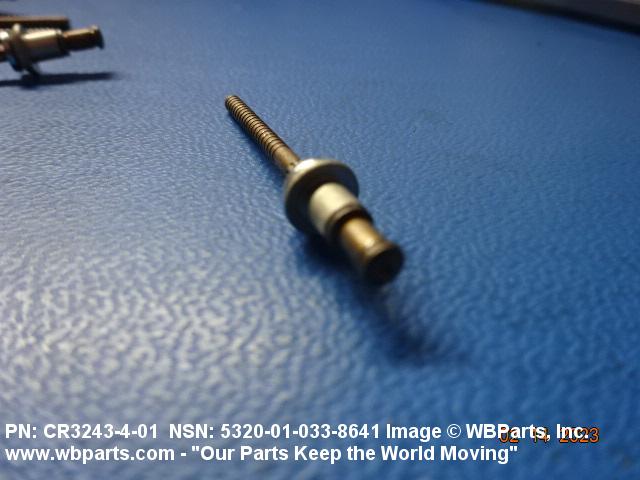

Drawings & Photos | NSN 5320-01-033-8641

Part Number	Request Date	QTY	Origin
CR3243401	2022-12-349	100	Philippines
5320-01-033-8641	2019-10-301	1000	Lebanon
5320-01-033-8641	2018-05-128	533	DIBBS
5320-01-033-8641	2017-08-243	637	DIBBS
CR324343	2017-07-186	200	Canada
CR3243401	2017-05-142	250	US
CR324341	2016-08-242	100	US
CR324343	2016-08-242	100	US
5320-01-033-8641	2016-07-197	564	DIBBS
CR324343	2016-06-172	100	SG
5320-01-033-8641	2016-04-108	392	DIBBS
5320-01-033-8641	2016-03-78	394	DIBBS
5320-01-033-8641	2016-03-70	394	DIBBS
CR324343	2015-11-310	100	US
5320-01-033-8641	2015-11-309	211	DIBBS
CR324341	2015-10-275	250	us
CR324343	2015-10-275	250	us
CR324343	2015-06-173	500	US
AF3243-4-3	2013-08-238	14	US
CR3243-4-01	2013-05-134	50	CZ
CR324343	2013-01-17	2000	Philippines
CR3243-4-3	2012-04-114	20	Taiwan
CR324343	2012-03-83	2000	Philippines
5320-01-033-8641	2011-07-210	2	CO
CR324343	2011-05-124	1	Taiwan
CR324343	2011-02-34	200	US
5320-01-033-8641	2010-12-335	500	US
CR324341	2010-11-333	500	United States
CR324343	2010-11-333	500	United States
CR3243401	2010-06-176	100	BO
M78856403	2010-03-89	80	US
5320-01-033-8641	2008-06-178	500	Colombia
M78856403	2006-10-292	48	United Arab Emirates
CR324341	2006-08-226	10	Colombia

Cross Reference | NSN 5320-01-033-8641

Part Number	Cage Code	Manufacturer
AF3243-4-01	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3243-4-1	53551	ALLFAST FASTENING SYSTEMS, LLC
BACR15FR4B1	81205	THE BOEING COMPANY DBA BOEING
CR3243-4-01	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3243-4-1	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3243-4-1	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3243-4-1	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3243-4-1	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3243-4-1	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
HR3243-4-01	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/6-4-01	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-7885/6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9304BNS-4-01	53551	ALLFAST FASTENING SYSTEMS, LLC
NAS9304BNS-4-01	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
OHCP-B04-05	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-033-8641

Compare

Related Products | NSN 5320-01-033-8641

5320-01-033-8642, 5320-01-033-8643, 5320-01-033-8644, 5320-01-033-9125, 5320-01-033-9126

Technical Data | NSN 5320-01-033-8641

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 BODY STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	CHROMATE BODY CADMIUM STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM
HEAD STYLE	C28 UNIVERSAL
HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	0.160 INCHES MINIMUM AND 0.180 INCHES MAXIMUM
SHANK DIAMETER	0.140 INCHES MINIMUM AND 0.143 INCHES MAXIMUM
GRIP LENGTH	0.020 INCHES MINIMUM AND 0.062 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
SPECIAL FEATURES	"NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY.
III END ITEM IDENTIFICATION	ENGINE, AIRCRAFT, TF-33-P-7 (C-141A/B); AIRCRAFT, AC-130H, MC-130H, EC-130E, HC-130); HELICOPTER, SEARCH AND RESCUE, HH-60H; HELICOPTER, USCG SEARCH AND RESCUE, HH-60J; AIRCRAFT, PHANTOM F-4; HELICOPTER, CARRIER BASED ASW, SH-60F; JOINT STARS TARGET RADAR SYSTEM; HELICOPTER, ELECTRONIC COUNTERMEASURES, EH-60A; AIRCRAFT MH-47E SPECIAL OPERATIONS AIRCRAFT

Restrictions/Controls & Freight Information | NSN 5320-01-033-8641

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-033-8641

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
