NSN 5320-01-033-8642 M7885/6-4-03, M78856403, AF324343

Product Details | BLIND RIVET

5320-01-033-8642 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/6-4-03, M78856403, AF324343, AF3243-4-3, NAS9304BNS403, NAS9304BNS-4-03, BACR15FR4B3, CR324343, CR3243-4-3, HC 3243-4-03, HC3243403, HC324343, HC3243-4-3, HR3243403, HR3243-4-03, MIL-R-7885/6, MILR78856, 7198113, 719811-3, 5320-01-033-8642, 01-033-8642, 5320010338642, 010338642

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 JAN 1977	01-033-8642	00864 ( RIVET, BLIND )

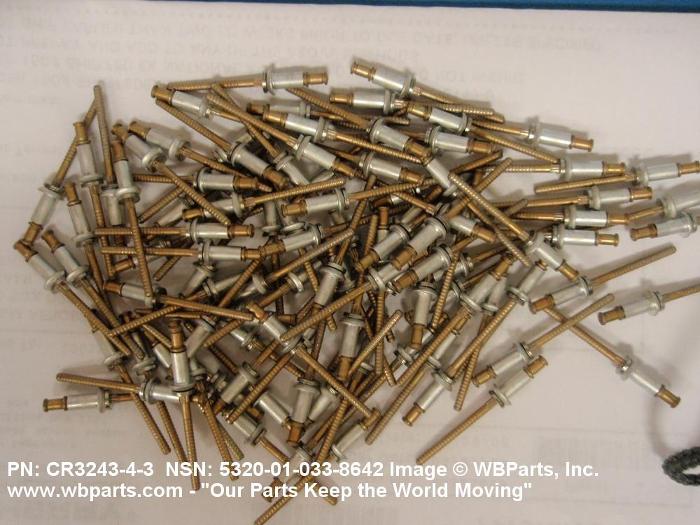

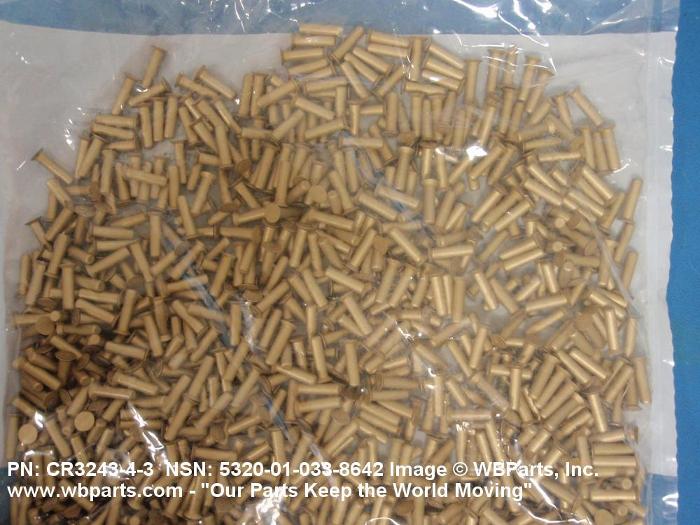

Drawings & Photos | NSN 5320-01-033-8642

Part Number	Request Date	QTY	Origin
5320-01-033-8642	2024-09-270	525	DIBBS
5320-01-033-8642	2024-02-32	410	DIBBS
5320-01-033-8642	2024-01-08	25	US
5320-01-033-8642	2024-01-07	414	DIBBS
5320-01-033-8642	2020-05-135	200	TR
5320-01-033-8642	2019-10-301	1000	Lebanon
5320-01-033-8642	2018-06-156	2380	DIBBS
5320-01-033-8642	2018-05-151	100	MX
5320-01-033-8642	2018-05-128	2000	DIBBS
5320-01-033-8642	2018-05-122	1000	DIBBS
5320-01-033-8642	2018-04-109	1000	DIBBS
5320-01-033-8642	2017-11-318	5000	DIBBS
5320-01-033-8642	2017-09-257	500	TR
5320-01-033-8642	2017-09-248	5000	DIBBS
CR324343	2017-07-186	200	Canada
5320-01-033-8642	2017-04-116	5000	DIBBS
5320-01-033-8642	2017-03-64	2851	DIBBS
5320-01-033-8642	2017-01-17	700	DIBBS
5320-01-033-8642	2016-10-293	1200	DIBBS
5320-01-033-8642	2016-10-290	664	DIBBS
CR324343	2016-08-242	100	US
CR324343	2016-06-172	100	SG
5320-01-033-8642	2016-05-151	518	DIBBS
5320-01-033-8642	2016-04-115	890	DIBBS
5320-01-033-8642	2016-01-19	623	DIBBS
CR324343	2015-11-310	100	US
CR324343	2015-10-275	250	us
5320-01-033-8642	2015-09-251	634	DIBBS
CR324343	2015-06-173	500	US
5320-01-033-8642	2014-07-204	704	DIBBS
5320-01-033-8642	2014-04-115	1516	US
5320-01-033-8642	2014-04-110	1516	DIBBS
5320-01-033-8642	2014-01-21	630	DIBBS
5320-01-033-8642	2013-10-295	2265	DIBBS
5320-01-033-8642	2013-09-268	571	DIBBS
5320-01-033-8642	2013-09-268	1550	DIBBS
AF3243-4-3	2013-08-238	14	US
5320-01-033-8642	2013-02-44	3500	DIBBS
CR324343	2013-01-17	2000	Philippines
5320-01-033-8642	2012-04-114	20	MANUAL
CR3243-4-3	2012-04-114	20	Taiwan
CR324343	2012-03-83	2000	Philippines
CR324343	2011-05-124	1	Taiwan
CR324343	2011-02-34	200	US
5320-01-033-8642	2010-12-336	1000	DIBBS
5320-01-033-8642	2010-12-335	500	US
CR324343	2010-11-333	500	United States
5320-01-033-8642	2010-04-113	100	Chile
M78856403	2010-03-89	80	US
5320-01-033-8642	2009-02-35	10	Indonesia
5320-01-033-8642	2008-03-72	3800	DIBBS
M78856403	2006-10-292	48	United Arab Emirates

Cross Reference | NSN 5320-01-033-8642

Part Number	Cage Code	Manufacturer
719811-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AF3243-4-3	53551	ALLFAST FASTENING SYSTEMS, LLC
BACR15FR4B3	81205	THE BOEING COMPANY DBA BOEING
CR3243-4-3	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3243-4-3	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3243-4-3	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3243-4-3	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
HC 3243-4-03	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HC3243-4-3	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HR3243-4-03	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
M7885/6-4-03	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-7885/6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9304BNS-4-03	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-033-8642

Compare

Related Products | NSN 5320-01-033-8642

5320-01-033-8643, 5320-01-033-8644, 5320-01-033-9125, 5320-01-033-9126, 5320-01-033-9127

Technical Data | NSN 5320-01-033-8642

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 BODY STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	CHROMATE BODY CADMIUM STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM
HEAD STYLE	C28 UNIVERSAL
HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	0.267 INCHES MINIMUM AND 0.287 INCHES MAXIMUM
SHANK DIAMETER	0.140 INCHES MINIMUM AND 0.143 INCHES MAXIMUM
GRIP LENGTH	0.126 INCHES MINIMUM AND 0.187 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
SPECIAL FEATURES	"NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY.

Restrictions/Controls & Freight Information | NSN 5320-01-033-8642

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-033-8642

Army

Category	Code	Description
Materiel Category and Inventory Manager	H	Aircraft, Air Materiel
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BP	OH-58A and OH-58C
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	B17	US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230
Agency	DA	Department of the Army
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
