NSN 5320-00-631-3429 HL706, HL70-6, HM0256121
Product Details | PIN-RIVET COLLAR
5320-00-631-3429 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL706, HL70-6, HM0256121, HM025-612-1, HS55816, HS5581-6, STSAE00706, STSAE007-06, GN512H3, 11501703-1, 0147611, 014761-1, 5320-00-631-3429, 00-631-3429, 5320006313429, 006313429, 115017031
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-631-3429 | 67166 ( COLLAR, PIN-RIVET ) |

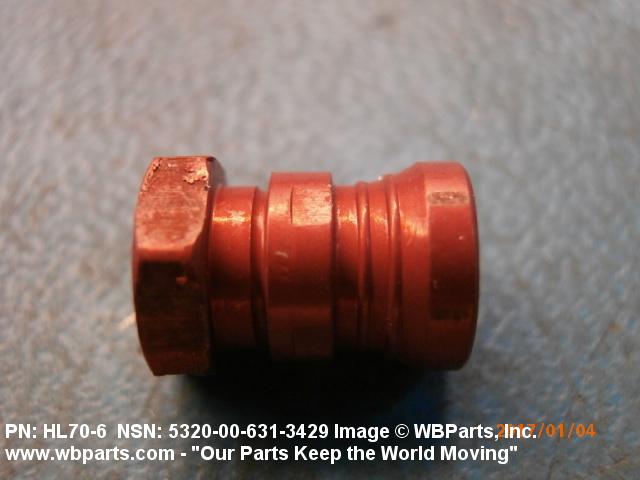

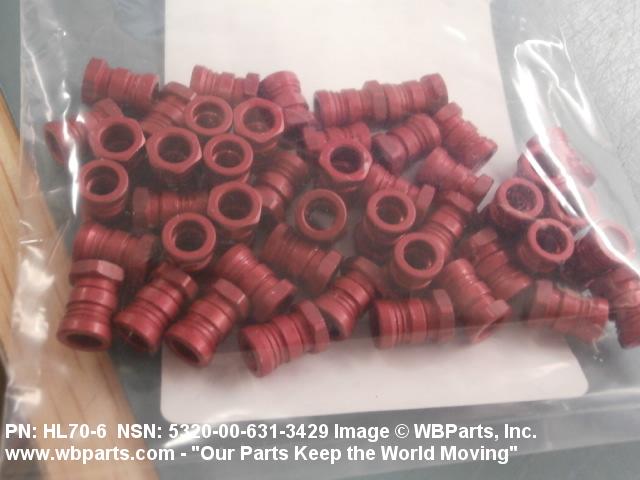

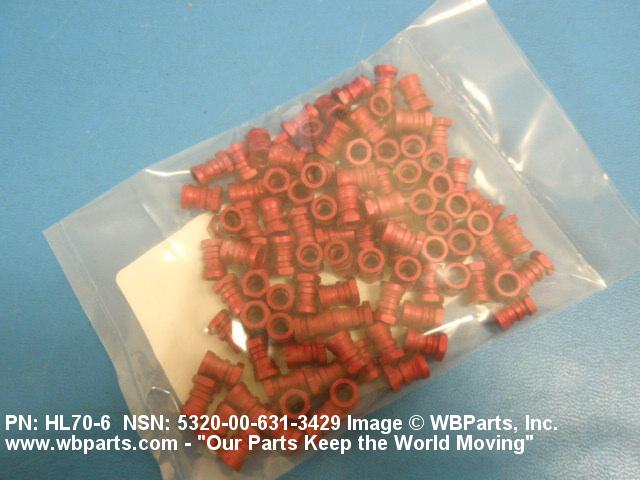

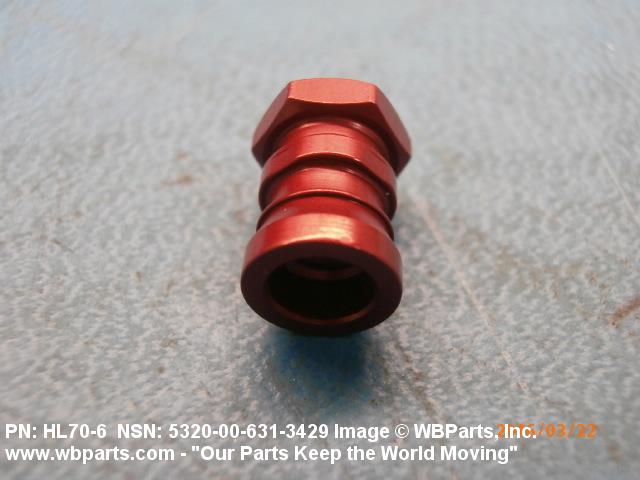

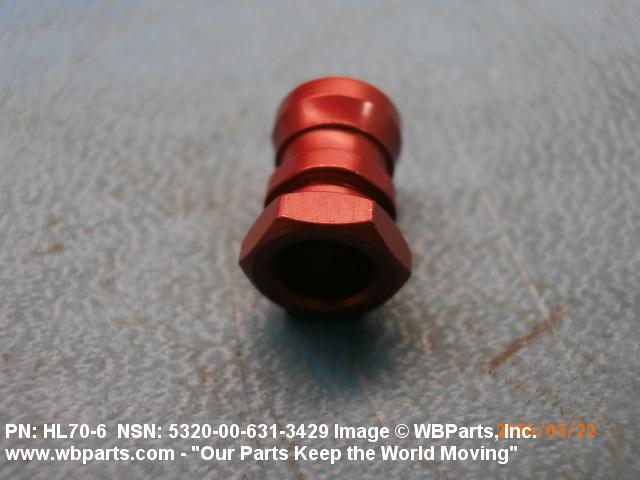

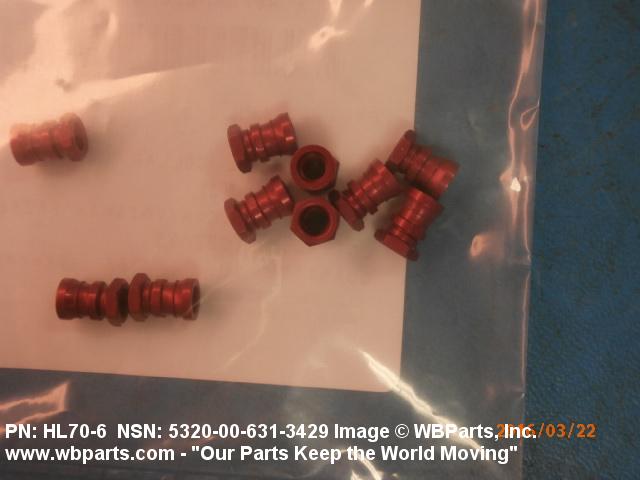

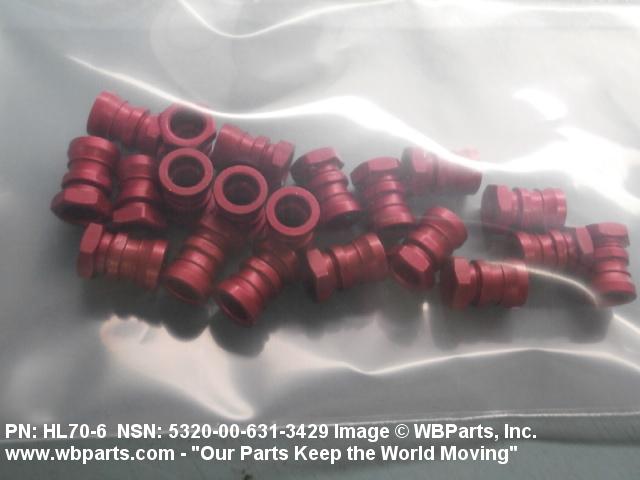

Drawings & Photos | NSN 5320-00-631-3429
Demand History | NSN 5320-00-631-3429
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-631-3429 | 2024-12-346 | 1700 | United States |
| 5320-00-631-3429 | 2024-11-318 | 1 | US |
| HL706 | 2024-10-275 | 2000 | US |
| 5320-00-631-3429 | 2024-09-267 | 2000 | United States |
| HL706 | 2024-09-264 | 1000 | US |
| HL706 | 2024-09-264 | 2000 | US |
| HL706 | 2024-09-264 | 5000 | US |
| HL706 | 2024-08-243 | 35 | United States |
| 5320-00-631-3429 | 2024-08-240 | 490 | US |
| HL706 | 2024-05-144 | 2000 | US |
| HL706 | 2024-04-95 | 30 | UK |
| HL706 | 2024-04-94 | 141 | US |
| HL706 | 2024-03-67 | 28 | United States |
| HL706 | 2024-03-64 | 110 | US |
| HL706 | 2024-02-60 | 200 | US |
| 5320-00-631-3429 | 2024-02-57 | 600 | United Arab Emirates |
| HL706 | 2024-02-52 | 300 | US |
| HL706 | 2024-02-47 | 216 | us |
| HL706 | 2024-02-43 | 75 | US |
| 5320-00-631-3429 | 2023-12-341 | 2229 | US |
| HL706 | 2023-12-338 | 500 | AE |
| HL706 | 2023-09-258 | 356 | United Arab Emirates |
| HL706 | 2023-08-220 | 1000 | us |
| HL706 | 2023-07-209 | 2500 | UK |
| 5320-00-631-3429 | 2023-07-207 | 6000 | IN |
| 5320-00-631-3429 | 2023-07-206 | 200 | US |
| HL706 | 2023-07-200 | 100 | US |
| HL706 | 2023-03-82 | 28 | IN |
| 5320-00-631-3429 | 2022-11-321 | 250 | US |
| HL706 | 2022-10-280 | 100 | Malaysia |
| HL706 | 2022-09-244 | 1540 | Philippines |
| HL706 | 2022-07-209 | 8 | us |
| HS55816 | 2022-05-151 | 20 | Saudi Arabia |
| HL706 | 2021-11-319 | 20 | United States |
| 5320-00-631-3429 | 2021-11-307 | 4620 | MY |
| STSAE00706 | 2020-10-289 | 125 | United States |
| HL706 | 2020-08-237 | 20 | CO |
| HL70-6 | 2020-06-175 | 6 | Italy |
| HL706 | 2020-04-97 | 600 | Malaysia |
| HL70-6 | 2019-10-288 | 200000 | DIBBS |
| HL70-6 | 2019-05-122 | 270000 | DIBBS |
| HL70-6 | 2019-04-114 | 270000 | DIBBS |
| HL706 | 2018-08-222 | 100 | US |
| 5320-00-631-3429 | 2018-04-107 | 100 | Russian Federation |
| 5320-00-631-3429 | 2018-04-103 | 100 | Russian Federation |
| 5320-00-631-3429 | 2017-10-283 | 192971 | DIBBS |
| 5320-00-631-3429 | 2017-08-219 | 136298 | DIBBS |
| HL706 | 2017-07-202 | 2040 | United States |
| 5320-00-631-3429 | 2017-07-200 | 294 | Malaysia |
| HL706 | 2016-11-322 | 750 | Germany |
| 5320-00-631-3429 | 2016-11-312 | 34704 | DIBBS |
| HL706 | 2016-08-236 | 100 | United States |
| 5320-00-631-3429 | 2016-08-214 | 89661 | DIBBS |
| 5320-00-631-3429 | 2016-07-192 | 93295 | DIBBS |
| STSAE00706 | 2016-06-166 | 50 | United States |
| 5320-00-631-3429 | 2016-05-126 | 92432 | DIBBS |
| HL706 | 2016-04-95 | 150 | United States |
| HL706 | 2016-03-75 | 6 | United States |
| HL706 | 2016-02-54 | 42 | United States |
| 5320-00-631-3429 | 2015-01-03 | 150 | United States |
| HL70-6 | 2014-11-317 | 4032 | United States |
| HL706 | 2014-09-273 | 10 | Philippines |
| HL70-6 | 2014-02-56 | 144 | United States |
| 5320-00-631-3429 | 2014-01-06 | 14 | United States |
| HL70-6 | 2014-01-06 | 6 | US |
| 5320-00-631-3429 | 2013-11-315 | 20 | United States |
| 5320-00-631-3429 | 2013-11-315 | 45 | United States |
| HL706 | 2013-10-301 | 85 | United States |
| HL706 | 2013-04-112 | 1494 | United States |
| HL706 | 2013-03-79 | 6 | United States |
| HL706 | 2012-10-277 | 200 | us |
| HL706 | 2012-09-248 | 18 | AR |
| 5320-00-631-3429 | 2012-03-80 | 32 | AR |
| HL706 | 2012-03-79 | 500 | US |
| HL706 | 2012-03-69 | 840 | US |
| HL706 | 2012-02-46 | 540 | MX |
| 5320-00-631-3429 | 2012-02-39 | 360 | US |
| 5320-00-631-3429 | 2011-08-222 | 150 | US |
| HL706 | 2011-03-77 | 50 | United States |
| 5320-00-631-3429 | 2011-02-39 | 128 | United States |
| STSAE00706 | 2011-02-39 | 128 | United States |
| STSAE00706 | 2011-01-24 | 120 | United States |
| HL706 | 2010-08-238 | 14196 | US |
| 5320-00-631-3429 | 2010-04-113 | 133683 | DIBBS |
| 5320-00-631-3429 | 2010-03-77 | 400 | Indonesia |
| HL706 | 2010-03-68 | 4070 | GL |
| 5320-00-631-3429 | 2010-01-29 | 25 | US |
| STSAE00706 | 2009-12-343 | 50 | US |
| HL706 | 2009-10-279 | 20 | United States |
| 5320-00-631-3429 | 2009-09-261 | 30342 | DIBBS |
| 5320-00-631-3429 | 2009-08-243 | 5 | US |
| 5320-00-631-3429 | 2009-07-205 | 50574 | DIBBS |
| STSAE00706 | 2009-06-155 | 4 | US |
| 5320-00-631-3429 | 2009-02-42 | 58300 | DIBBS |
| HL706 | 2009-01-26 | 2000 | Canada |
| 5320-00-631-3429 | 2009-01-26 | 100905 | DIBBS |
| STSAE00706 | 2008-11-330 | 25 | United States |
| 5320-00-631-3429 | 2008-10-296 | 40 | India |
| 5320-00-631-3429 | 2008-10-281 | 26975 | DIBBS |
| STSAE00706 | 2008-07-197 | 80 | US |
| 5320-00-631-3429 | 2008-07-197 | 12804 | DIBBS |
| 5320-00-631-3429 | 2008-05-143 | 100 | Indonesia |
| 5320-00-631-3429 | 2008-05-135 | 54000 | Indonesia |
| 5320-00-631-3429 | 2008-02-60 | 4872 | Pakistan |
| HL706 | 2007-12-360 | 60 | US |
| 5320-00-631-3429 | 2007-12-347 | 85 | us |
| 5320-00-631-3429 | 2007-11-325 | 1000 | Iraq |
| 5320-00-631-3429 | 2007-10-282 | 250 | US |
| HL706 | 2007-07-183 | 800 | US |
Cross Reference | NSN 5320-00-631-3429
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 014761-1 | 59027 | MEGGITT DEFENSE SYSTEMS, INC. DBA MEGGITT WESTERN DESIGN |
| 014761-1 | 62228 | MEGGITT DEFENSE SYSTEMS, INC. |
| 11501703-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| GN512H3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HL70-6 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL70-6 | 0PTK6 | SPS TECHNOLOGIES INC |
| HL70-6 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL70-6 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| HL70-6 | 1V757 | WESCO AIRCRAFT HARDWARE CORP. |
| HL70-6 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL70-6 | 60516 | WEST COAST AEROSPACE INC |
| HL70-6 | 73197 | HI-SHEAR CORPORATION |
| HL70-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL70-6 | 97928 | HUCK INTL INC |
| HL70-6 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL70-6 | L4528 | LISI AEROSPACE CANADA CORP |
| HL70-6 | R1120 | SATAIR A/S |
| HM025-612-1 | 1T765 | ROBERTSON FUEL SYSTEMS, L.L.C. |
| HS5581-6 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS5581-6 | 8V613 | BOEING COMPANY, THE DBA BOEING |
| STSAE007-06 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-631-3429
Related Products | NSN 5320-00-631-3429
Technical Data | NSN 5320-00-631-3429

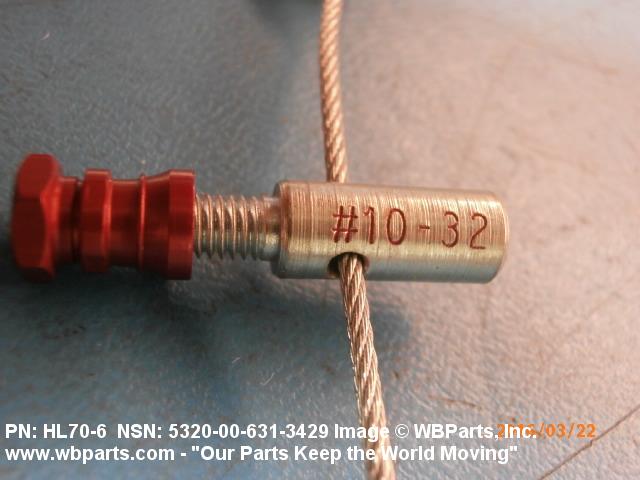

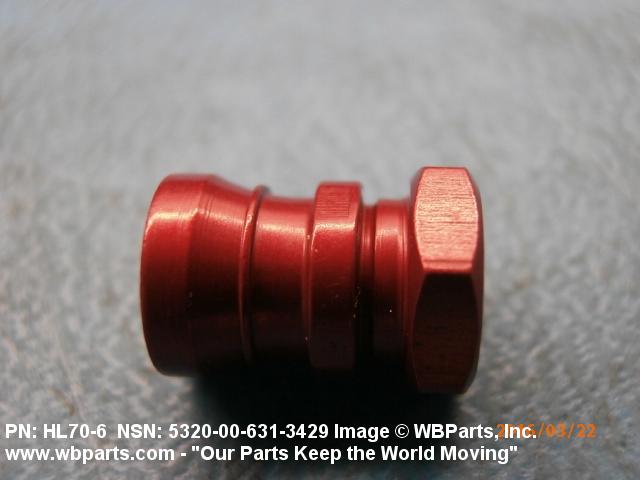

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-6 SOLUTION HEAT TREATED OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

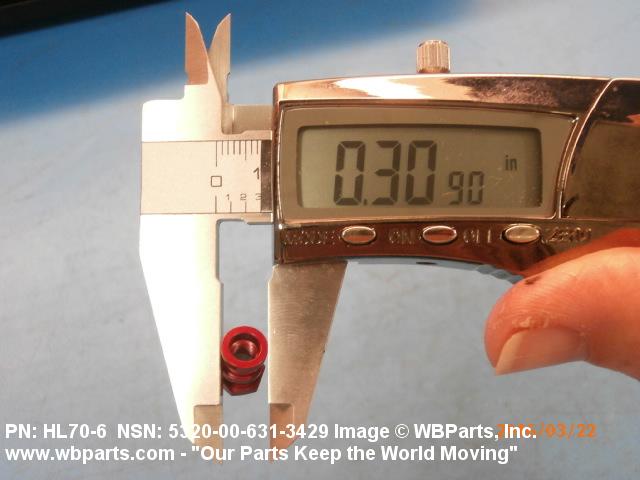

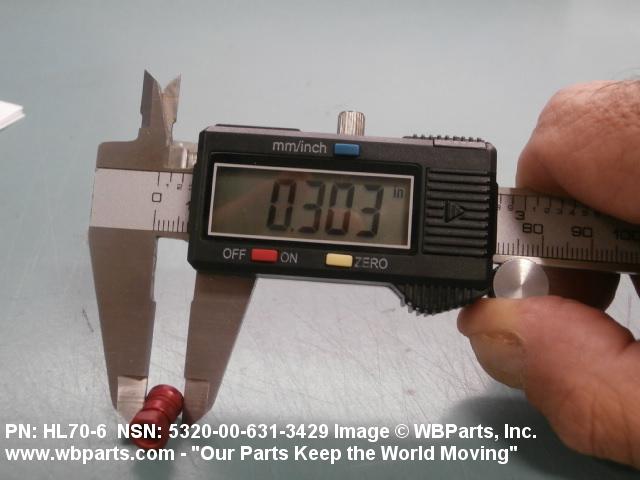

| COLLAR OUTSIDE DIAMETER | 0.303 INCHES MINIMUM AND 0.307 INCHES MAXIMUM |

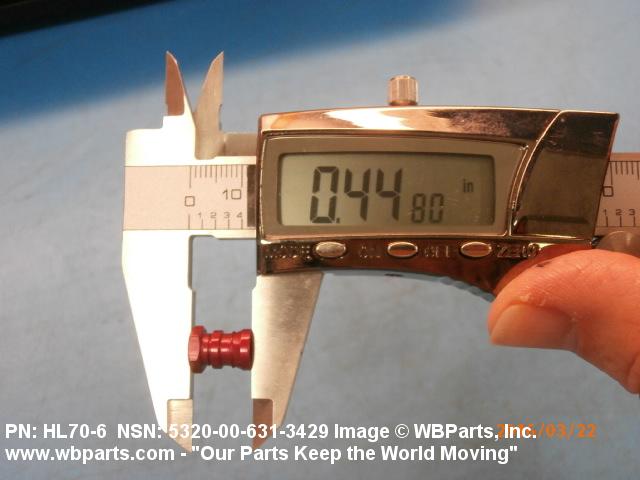

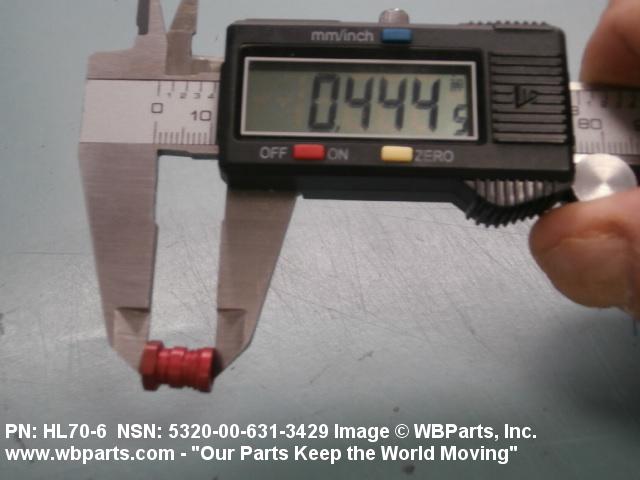

| COLLAR OVERALL HEIGHT | 0.437 INCHES MINIMUM AND 0.457 INCHES MAXIMUM |

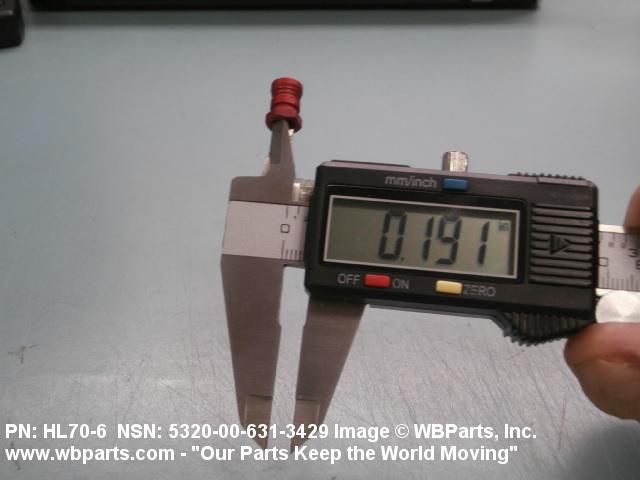

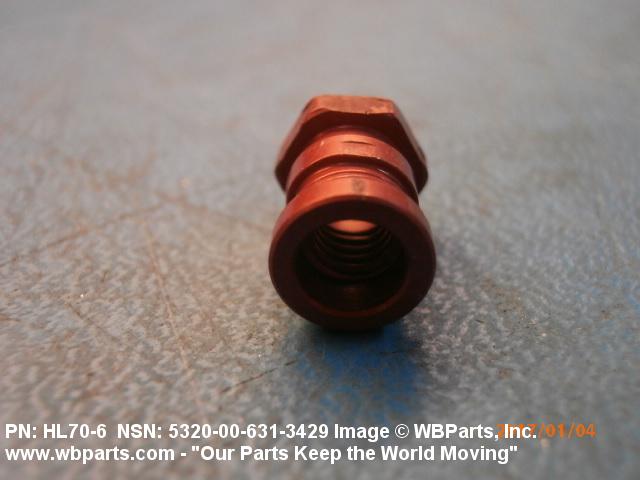

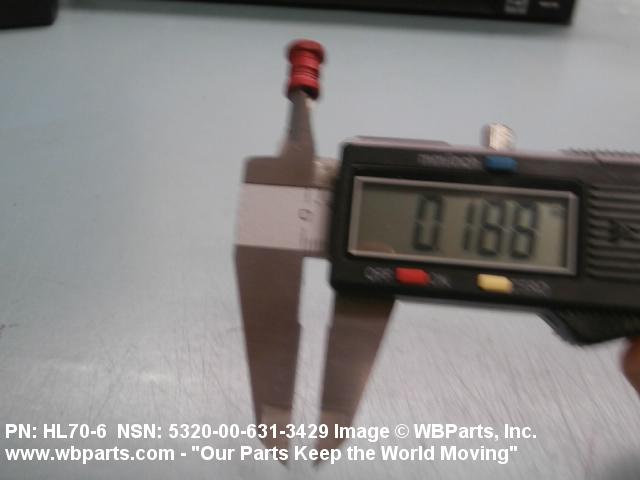

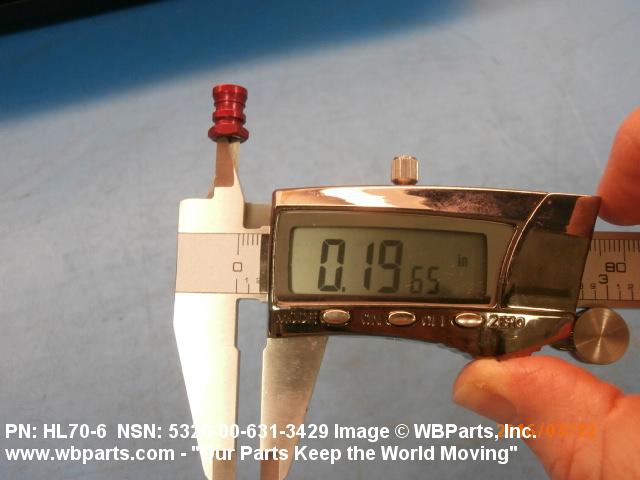

| COLLAR INSIDE DIAMETER | 0.188 INCHES NOMINAL |
