NSN 5320-00-631-3430 HL708, HL70-8, HS55818
Product Details | PIN-RIVET COLLAR

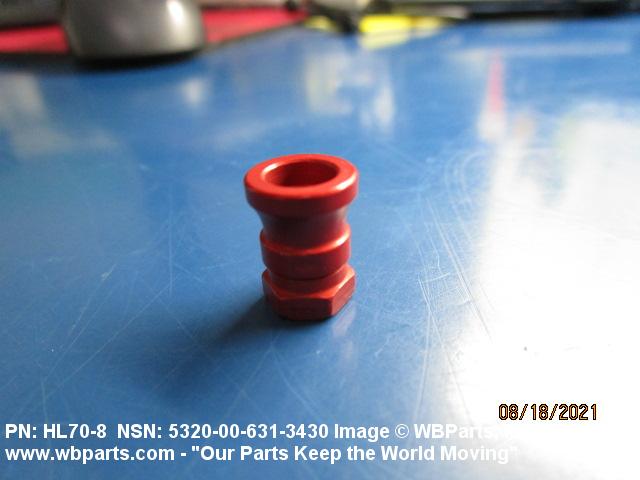

5320-00-631-3430 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: HL708, HL70-8, HS55818, HS5581-8, STSAE00708, STSAE007-08, GN512H4, R2232P58, 014761-503, 642AS07103, 642AS0710-3, 5320-00-631-3430, 00-631-3430, 5320006313430, 014761503, 006313430
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-631-3430 | 67166 ( COLLAR, PIN-RIVET ) |

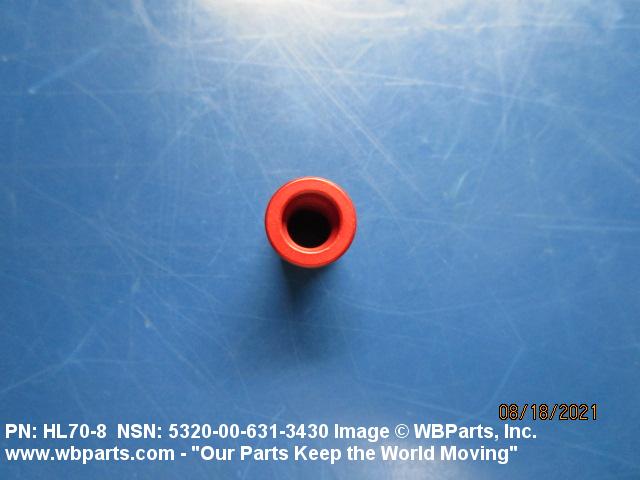

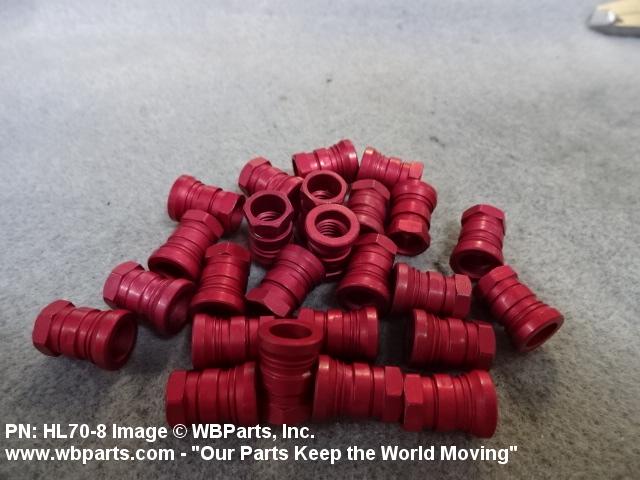

Drawings & Photos | NSN 5320-00-631-3430
Demand History | NSN 5320-00-631-3430
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HS55818 | 2024-11-313 | 228 | United States |
| HL708 | 2024-10-283 | 5 | Japan |
| 5320-00-631-3430 | 2024-10-278 | 1000 | US |
| 5320-00-631-3430 | 2024-09-267 | 250 | United States |
| HL708 | 2024-08-232 | 64 | US |
| HL708 | 2024-07-199 | 6 | Japan |
| HL708 | 2022-12-335 | 350 | SG |
| HL708 | 2022-09-244 | 28 | Philippines |
| 5320-00-631-3430 | 2022-08-229 | 300 | US |
| 5320-00-631-3430 | 2021-11-307 | 1800 | MY |
| 5320-00-631-3430 | 2021-09-245 | 40 | UK |
| HS55818 | 2021-02-54 | 5 | us |
| 5320-00-631-3430 | 2020-04-118 | 100 | US |
| 5320-00-631-3430 | 2017-07-212 | 14 | US |
| HS55818 | 2016-08-237 | 1 | United States |
| HS55818 | 2016-08-237 | 12 | United States |
| 5320-00-631-3430 | 2016-07-196 | 22039 | DIBBS |
| 5320-00-631-3430 | 2015-10-299 | 1 | DIBBS-RFPs |
| HL70-8 | 2015-10-279 | 3000 | |
| HL708 | 2015-06-174 | 6600 | United States |
| HL70-8 | 2014-11-317 | 672 | United States |
| HL708 | 2014-07-188 | 200 | Thailand |
| HL708 | 2013-09-254 | 1700 | US |
| HS55818 | 2013-07-207 | 12 | us |
| 5320-00-631-3430 | 2011-12-362 | 4260 | DIBBS |
| 5320-00-631-3430 | 2011-11-327 | 8536 | DIBBS |
| 5320-00-631-3430 | 2011-09-257 | 34025 | DIBBS |
| HL708 | 2011-05-143 | 10 | HU |
| 5320-00-631-3430 | 2011-02-53 | 19223 | DIBBS |
| 5320-00-631-3430 | 2011-01-12 | 20797 | DIBBS |
| 5320-00-631-3430 | 2010-09-266 | 17839 | DIBBS |
| HL708 | 2010-09-250 | 65 | US |
| 5320-00-631-3430 | 2009-07-187 | 16876 | DIBBS |
| 5320-00-631-3430 | 2009-04-111 | 16160 | DIBBS |
| 5320-00-631-3430 | 2009-02-56 | 3358 | DIBBS |
| 5320-00-631-3430 | 2009-02-36 | 40000 | DIBBS |
| HL708 | 2009-01-27 | 60 | Israel |
| 5320-00-631-3430 | 2009-01-27 | 40000 | DIBBS |
| 5320-00-631-3430 | 2008-12-350 | 16959 | DIBBS |
| 5320-00-631-3430 | 2008-09-253 | 16 | US |
| 5320-00-631-3430 | 2008-09-253 | 16076 | DIBBS |
| 5320-00-631-3430 | 2008-07-193 | 8236 | DIBBS |
| 5320-00-631-3430 | 2008-06-165 | 25 | US |
| 5320-00-631-3430 | 2008-02-60 | 1540 | Pakistan |
Cross Reference | NSN 5320-00-631-3430
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 014761-503 | 59027 | MEGGITT DEFENSE SYSTEMS, INC. DBA MEGGITT WESTERN DESIGN |
| 014761-503 | 62228 | MEGGITT DEFENSE SYSTEMS, INC. |
| 642AS0710-3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| GN512H4 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HL70-8 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL70-8 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL70-8 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL70-8 | 2N935 | B/E AEROSPACE, INC. DBA BE AEROSPACE CONSUMABLES |
| HL70-8 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL70-8 | 73197 | HI-SHEAR CORPORATION |
| HL70-8 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL70-8 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL70-8 | L4528 | LISI AEROSPACE CANADA CORP |
| HL70-8 | R1120 | SATAIR A/S |
| HS5581-8 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS5581-8 | 8V613 | BOEING COMPANY, THE DBA BOEING |
| R2232P58 | 15336 | STEINBERGER BROS INC |
| STSAE007-08 | 73197 | HI-SHEAR CORPORATION |
| STSAE007-08 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-631-3430
Related Products | NSN 5320-00-631-3430
Technical Data | NSN 5320-00-631-3430
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

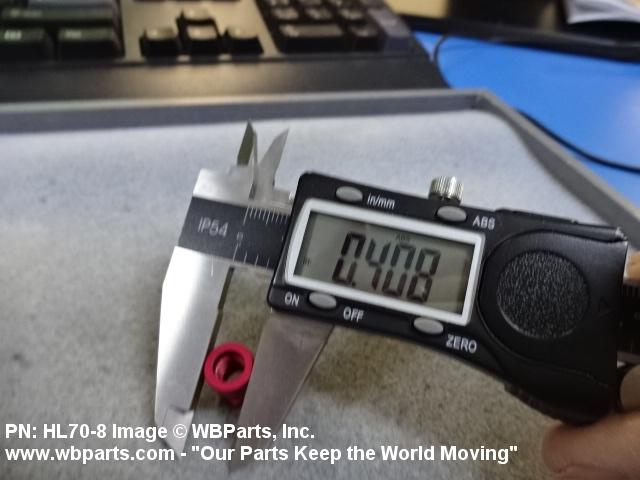

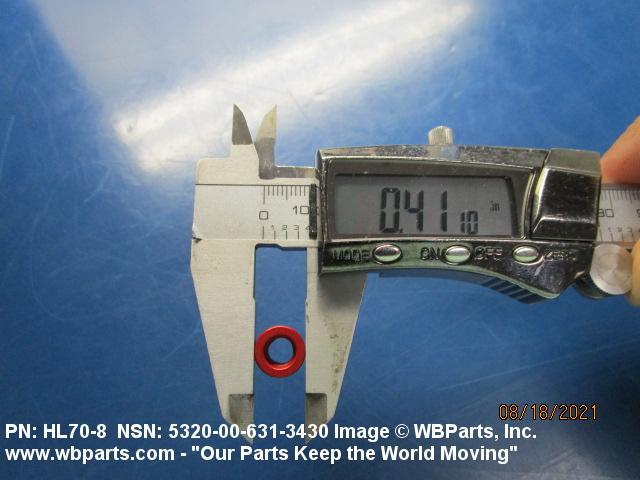

| COLLAR OUTSIDE DIAMETER | 0.408 INCHES MINIMUM AND 0.412 INCHES MAXIMUM |

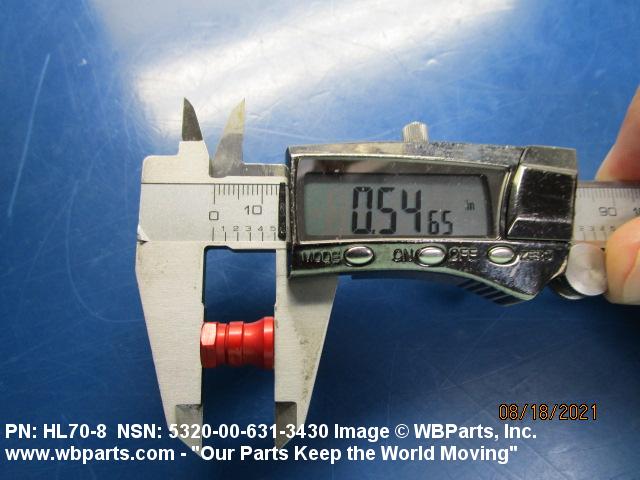

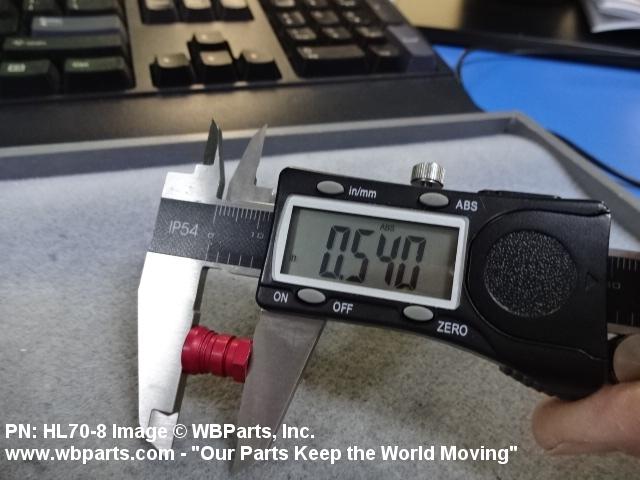

| COLLAR OVERALL HEIGHT | 0.532 INCHES MINIMUM AND 0.552 INCHES MAXIMUM |

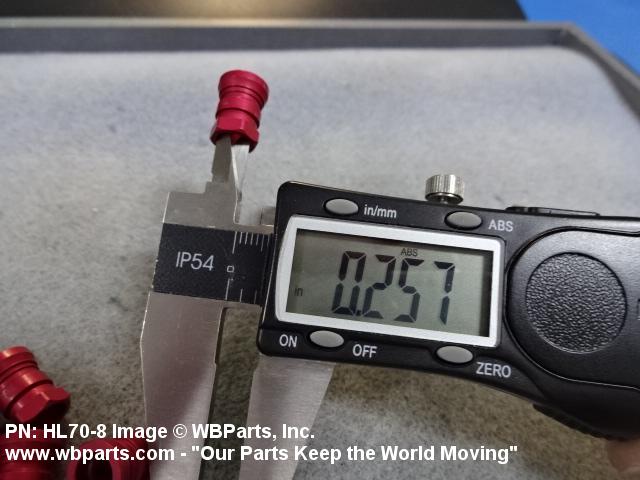

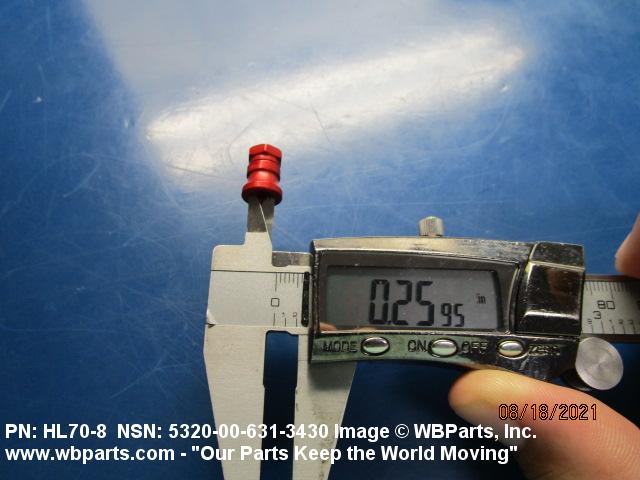

| COLLAR INSIDE DIAMETER | 0.252 INCHES MINIMUM AND 0.261 INCHES MAXIMUM |
