NSN 5320-01-339-8188 BACC30X16S, HL1187DU16, HL1187DU-16
Product Details | PIN-RIVET COLLAR
5320-01-339-8188 A soft metal or nonmetal sleeve, designed to mate with a PIN-RIVET. It may include an external wrenching facility which breaks off at a perdetermined torque to form a head.
Part Alternates: BACC30X16S, HL1187DU16, HL1187DU-16, 5320-01-339-8188, 01-339-8188, 5320013398188, 013398188
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 MAY 1991 | 01-339-8188 | 67166 ( COLLAR, PIN-RIVET ) |

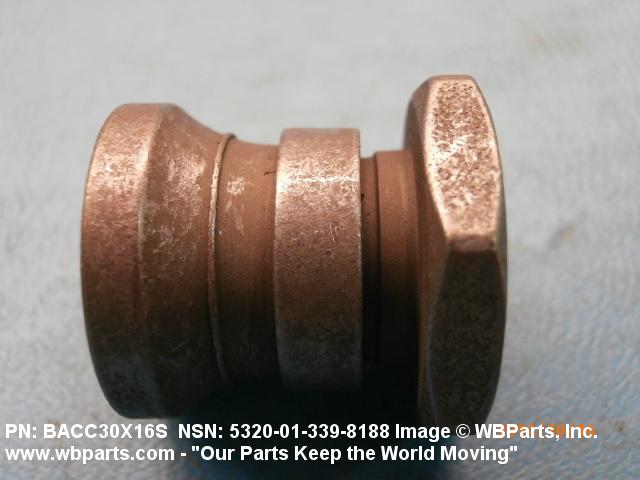

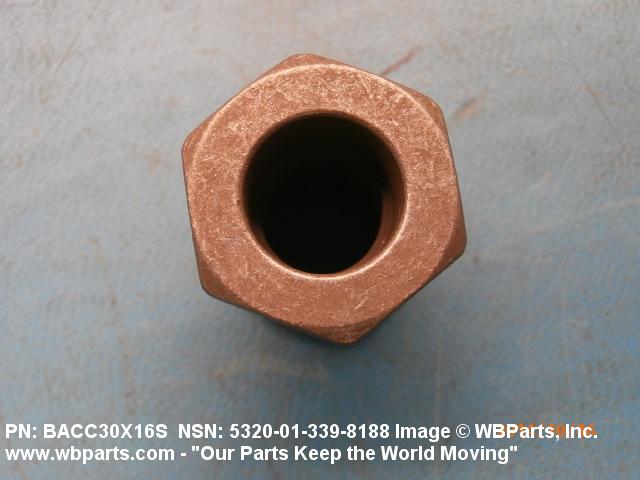

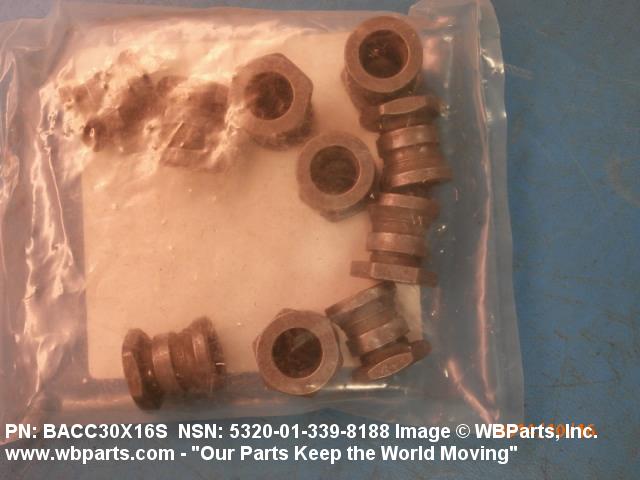

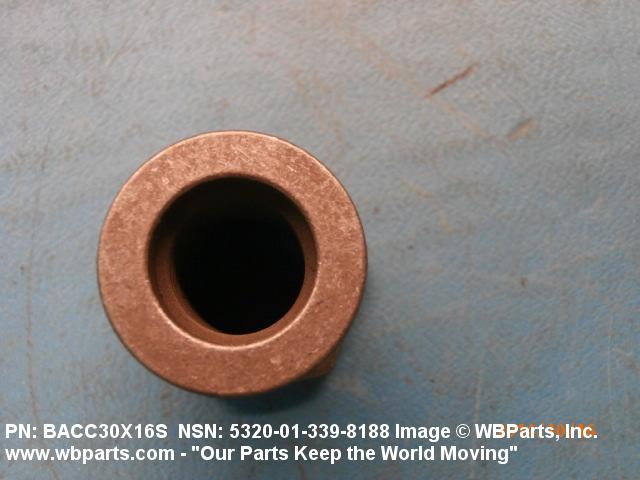

Drawings & Photos | NSN 5320-01-339-8188
Demand History | NSN 5320-01-339-8188
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL1187DU-16 | 2022-01-20 | 1 | DIBBS |
| BACC30X16S | 2014-10-276 | 10 | United States |
Cross Reference | NSN 5320-01-339-8188
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACC30X16S | 81205 | THE BOEING COMPANY DBA BOEING |
| HL1187DU-16 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL1187DU-16 | 73197 | HI-SHEAR CORPORATION |
| HL1187DU-16 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL1187DU-16 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-339-8188
Related Products | NSN 5320-01-339-8188
Technical Data | NSN 5320-01-339-8188
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| COLLAR STYLE | A3 THREADED (BREAK OFF) TYPE |

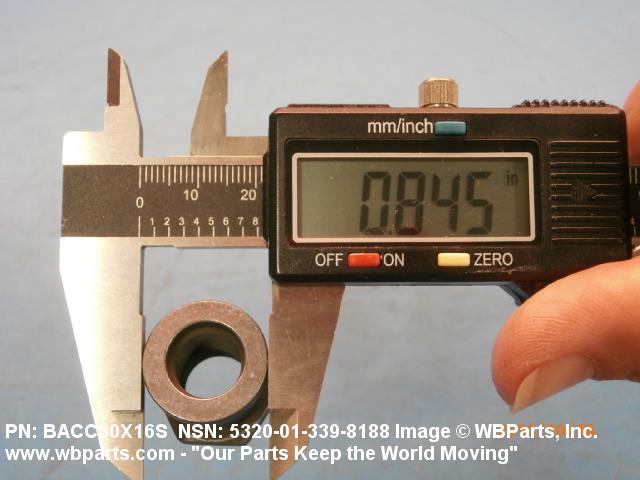

| COLLAR OUTSIDE DIAMETER | 0.842 INCHES MINIMUM AND 0.848 INCHES MAXIMUM |

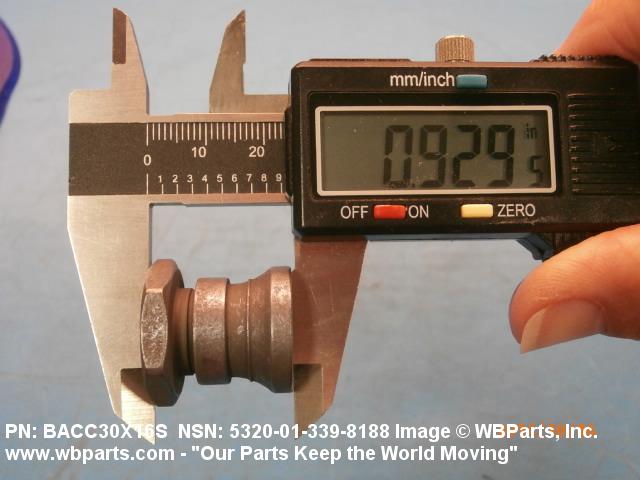

| COLLAR OVERALL HEIGHT | 0.942 INCHES MAXIMUM |

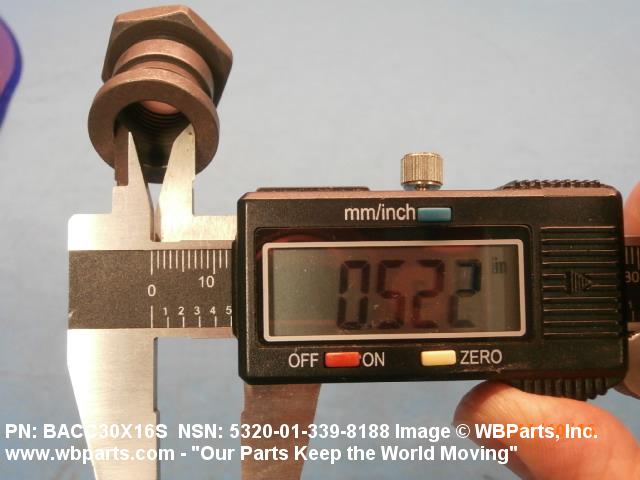

| COLLAR INSIDE DIAMETER | 0.522 INCHES MINIMUM AND 0.528 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION | DRY FILM |
Restrictions/Controls & Freight Information | NSN 5320-01-339-8188
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-339-8188
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
