NSN 5315-01-644-0036 93750A115 , 01-644-0036, 016440036
Product Details | QUICK RELEASE PIN
5315-01-644-0036 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: 93750A115 , 5315-01-644-0036, 01-644-0036, 5315016440036, 016440036
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2015108 | 01-644-0036 | 08323 ( PIN, QUICK RELEASE ) |

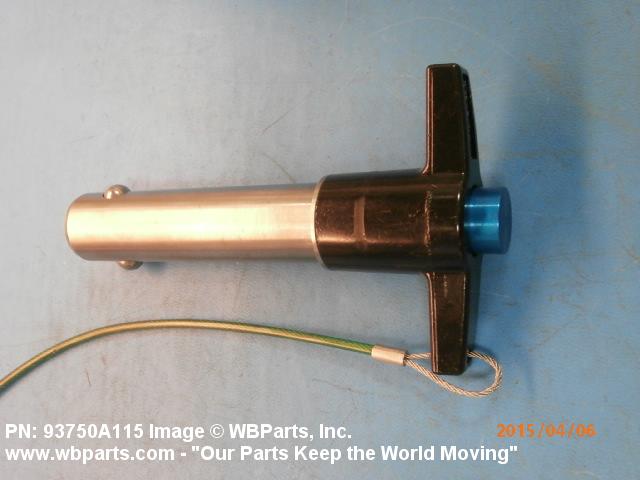

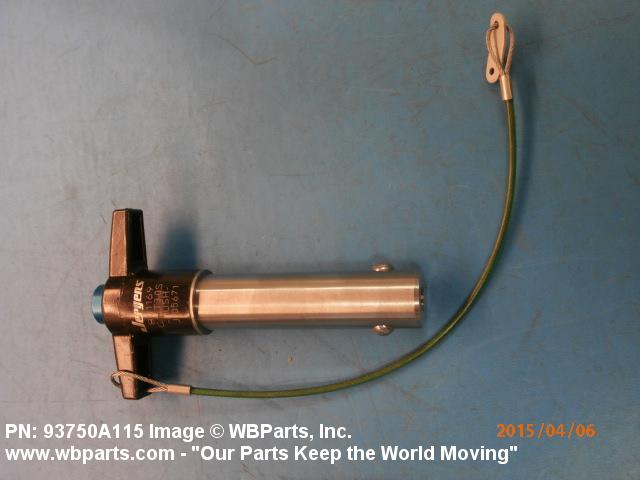

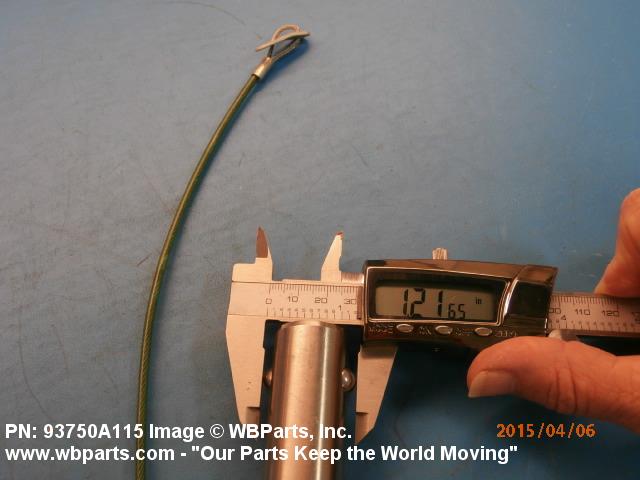

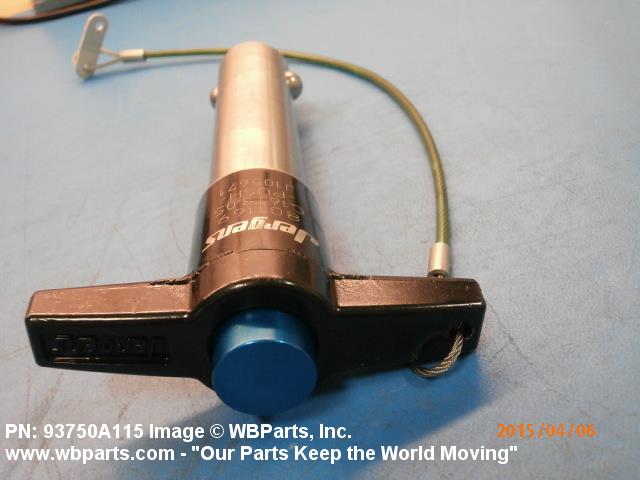

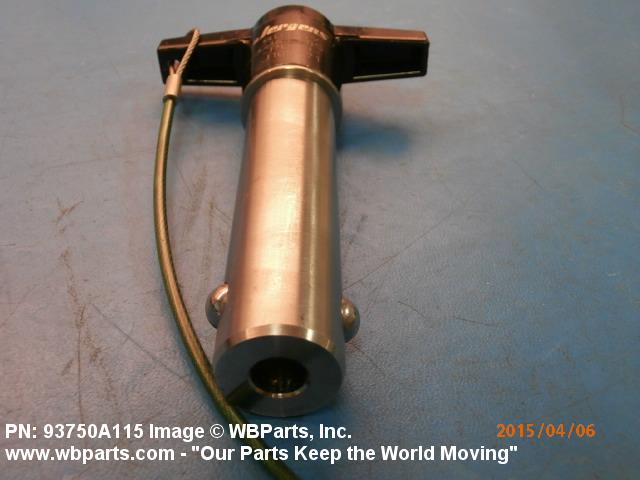

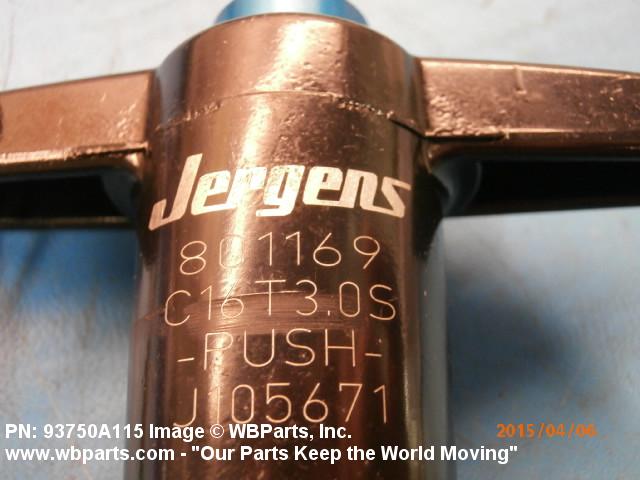

Drawings & Photos | NSN 5315-01-644-0036
Demand History | NSN 5315-01-644-0036
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 93750A115 | 2019-01-21 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-644-0036
Technical Data | NSN 5315-01-644-0036
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM HANDLE |
| HARDNESS RATING | 40.0 ROCKWELL C NOMINAL SHANK |
| STYLE DESIGNATOR | T HANDLE |

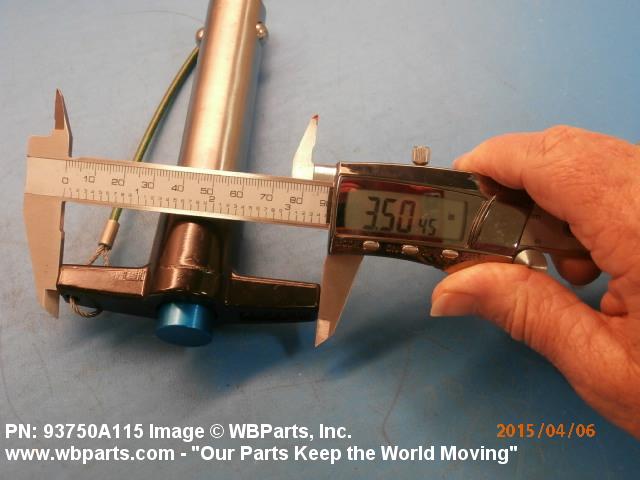

| HANDLE LENGTH | 3.50 INCHES NOMINAL |

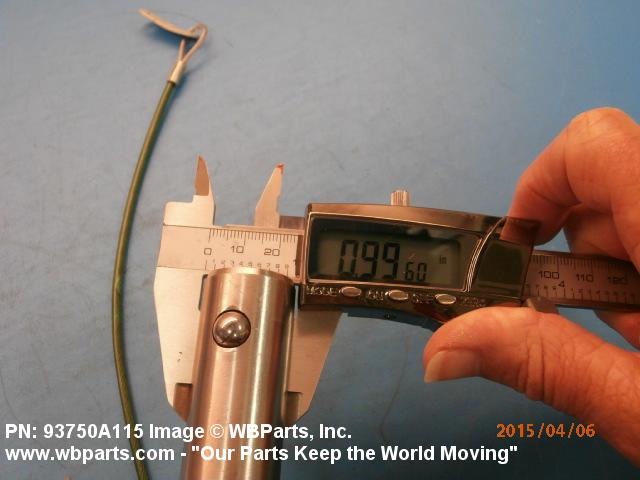

| SHANK DIAMETER | 0.997 INCHES MINIMUM AND |

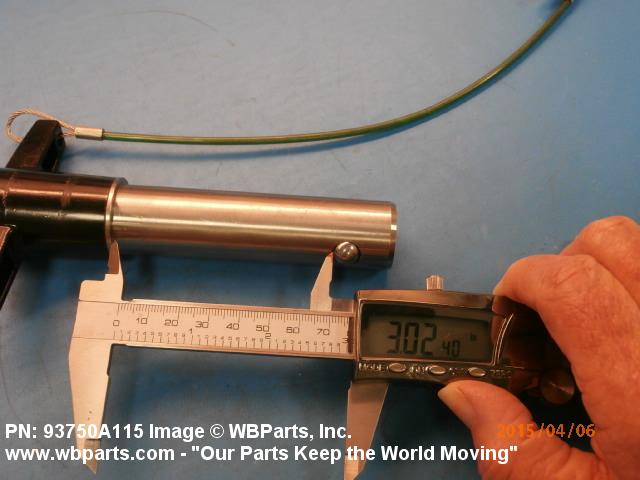

| GRIP LENGTH | 3.000 INCHES MINIMUM AND |
| SHOULDER TO HEAD END DISTANCE | 1.34 INCHES MAXIMUM |

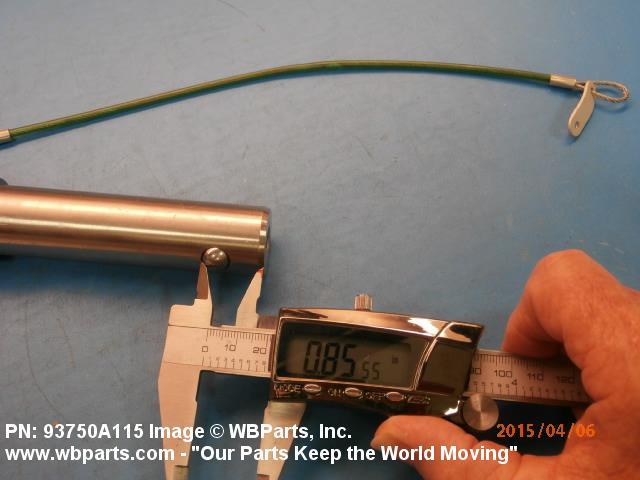

| DETENT TO TAPERED END DISTANCE | 0.886 INCHES MINIMUM AND |
| ACTUATION TYPE | PUSH |
| DETENT QUANTITY | 2 |
| SPECIAL FEATURES | LANYARD 12 INCH LONG PLASTIC COATED STAINLESS STEEL W/ALUMINUMTAB |
| III END ITEM IDENTIFICATION | F-15SA |
Restrictions/Controls & Freight Information | NSN 5315-01-644-0036
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-01-644-0036
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | VU | Vendor to user-of-supply concept. |
| Budget Code | W | 8457X3080:Other Base Maintenance and Support Replenishment Spares |
| Materiel Management Aggregation Code | XZ | TG:FMS UNIQUE/WR-ALC |
| Source of Supply | F2U | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | P | RESTRICTED REQUISITION - SECURITY ASSISTANCE PROGRAM (SAP) 1. Indicates item is stocked or acquired only for SAP (replaces Military Assistance Program (MAP)) requirements, or 2. Indicates item is nonstocked and materiel is ordered from the contractor for shipment directly to the foreign government. 3. Base, post, camp, or station will not requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
