NSN 5315-01-575-8390 MS203925P63, MS20392-5P63, 01-575-8390
Product Details | HEADED STRAIGHT PIN

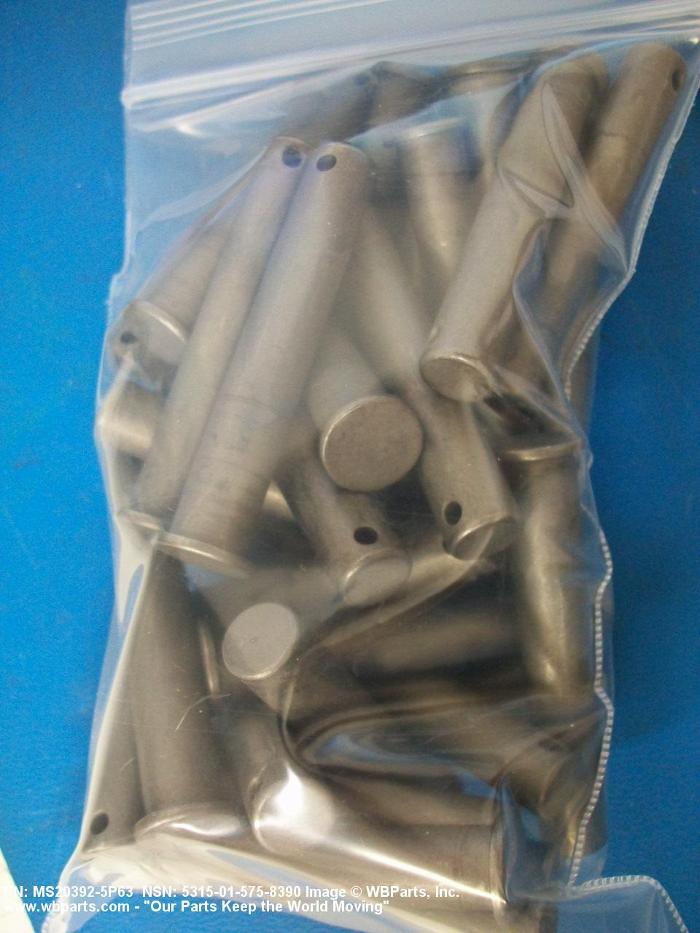

5315-01-575-8390 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203925P63, MS20392-5P63, 5315-01-575-8390, 01-575-8390, 5315015758390, 015758390
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JUL 2009 | 01-575-8390 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-575-8390
Demand History | NSN 5315-01-575-8390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS203925P63 | 2012-02-55 | 65 | US |
| MS203925P63 | 2012-02-55 | 250 | US |
| MS203925P63 | 2012-02-55 | 500 | US |
| MS203925P63 | 2011-07-209 | 36 | United States |
| MS203925P63 | 2010-06-160 | 50 | Australia |
