Product Details | QUICK RELEASE PIN

5315-01-571-5706 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: 90302A313, 5315-01-571-5706, 01-571-5706, 5315015715706, 015715706

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 09 FEB 2009 01-571-5706

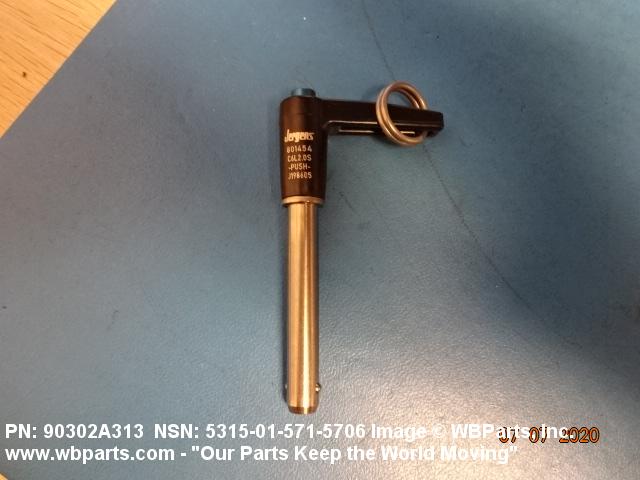

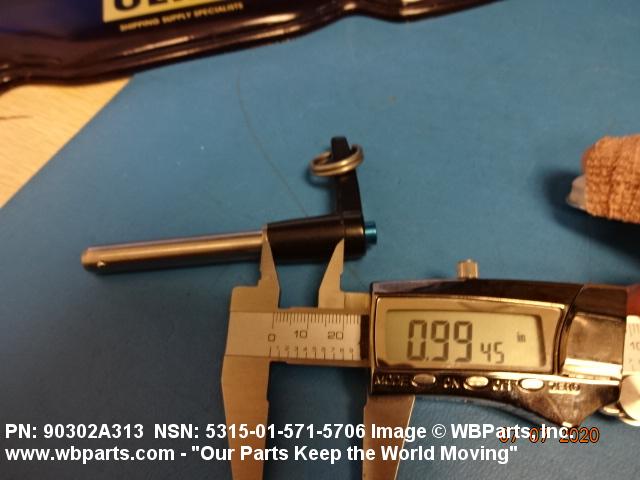

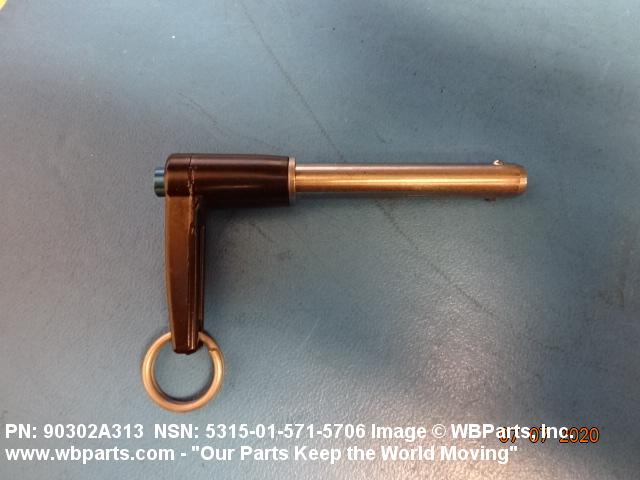

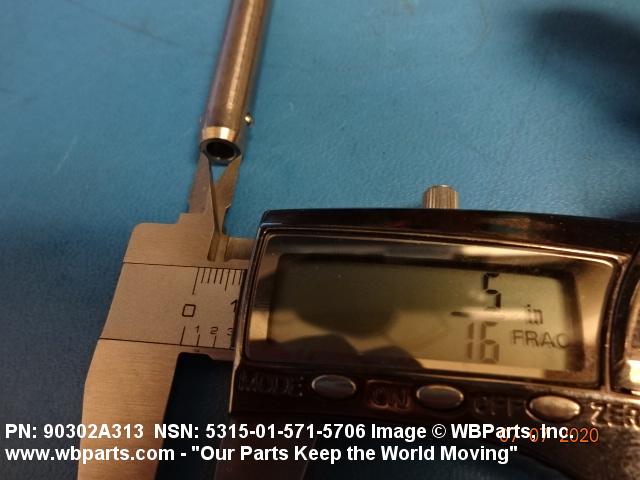

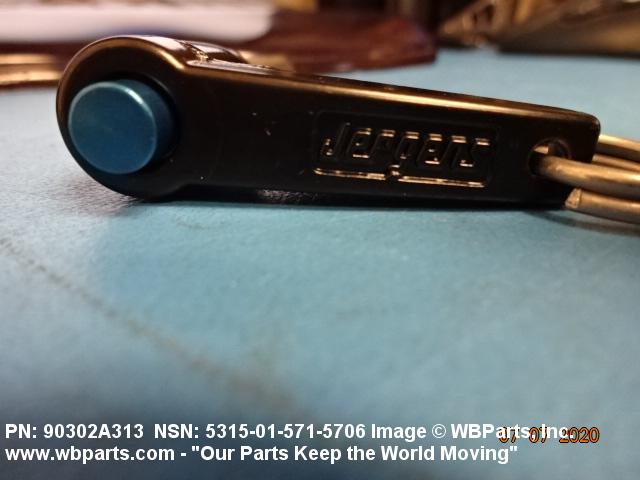

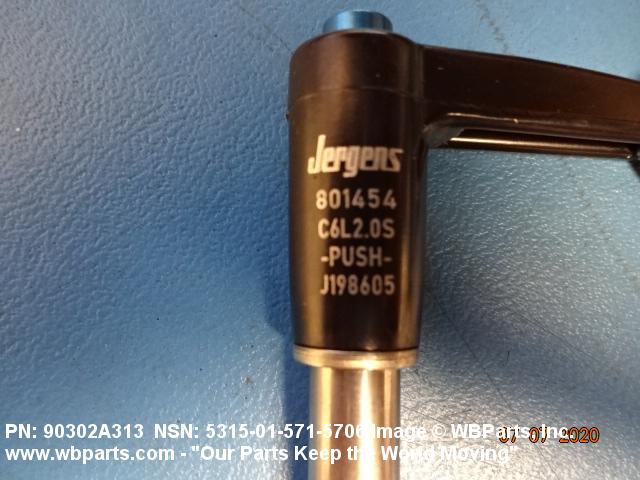

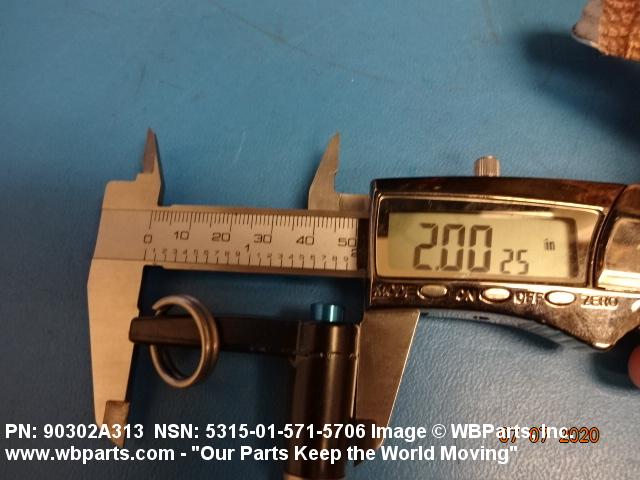

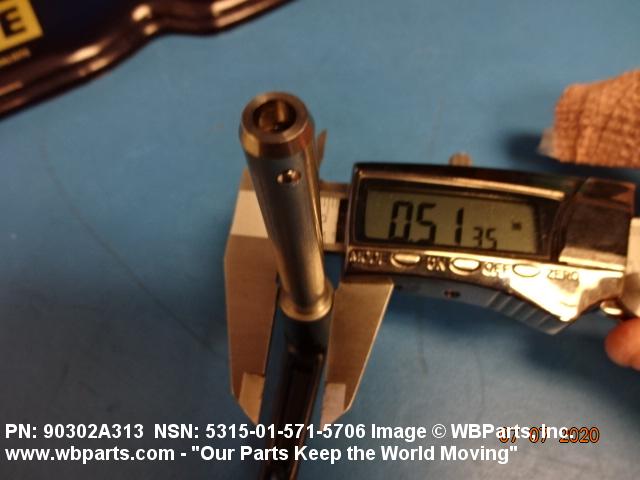

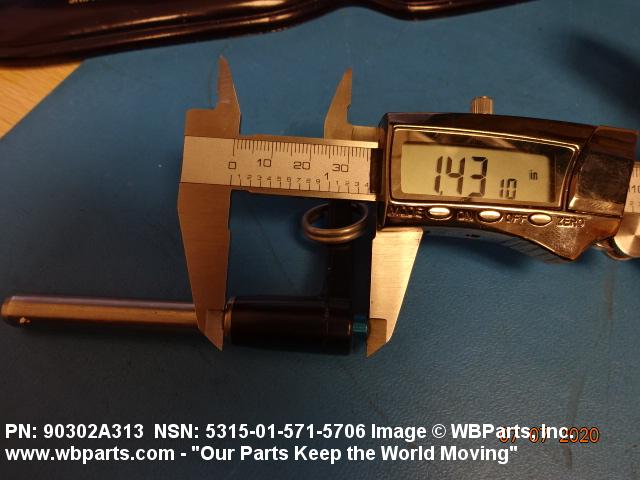

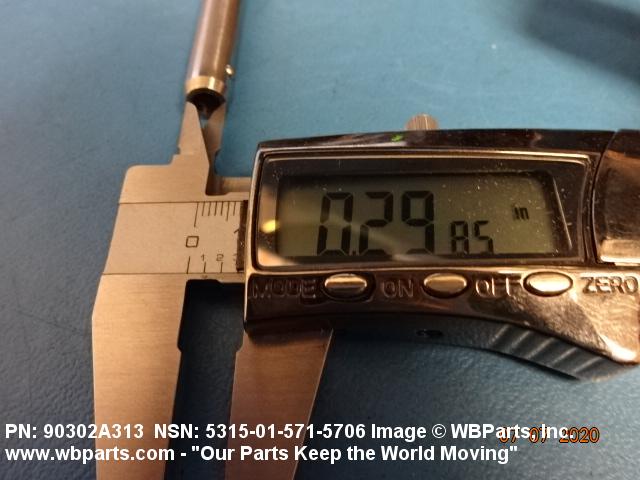

Drawings & Photos | NSN 5315-01-571-5706


Demand History | NSN 5315-01-571-5706

Part Number Request Date QTY Origin
90302A313 2020-04-115 14 United States
5315-01-571-5706 2020-03-85 14 us

Cross Reference | NSN 5315-01-571-5706

Part Number Cage Code Manufacturer
90302A313 0KVE6 MCMASTER-CARR SUPPLY COMPANY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-571-5706

Technical Data | NSN 5315-01-571-5706

Characteristic Specifications
ACTUATION TYPE PUSH
PART NAME ASSIGNED BY CONTROLLING AGENCY QUICK RELEASE PIN
MATERIAL STEEL CORROSION RESISTING OVERALL

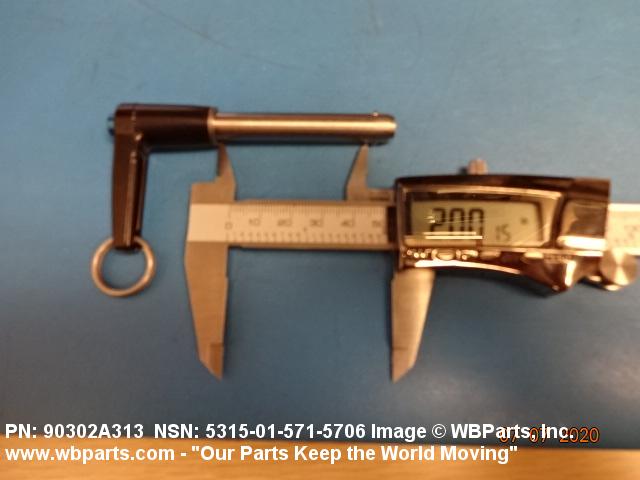

SPECIAL FEATURES L HANDLE PUSH BUTTON, DIAMETER 3/8 INCHES, USABLE LENGTH 2 INCHES, HOLESIZE 3/8 INCHES

Restrictions/Controls & Freight Information | NSN 5315-01-571-5706

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
