NSN 5315-01-548-8054 QRP3C0610, 90302A311, 01-548-8054
Product Details | QUICK RELEASE PIN
5315-01-548-8054 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: QRP3C0610, 90302A311, 5315-01-548-8054, 01-548-8054, 5315015488054, 015488054
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAR 2007 | 01-548-8054 | 08323 ( PIN, QUICK RELEASE ) |

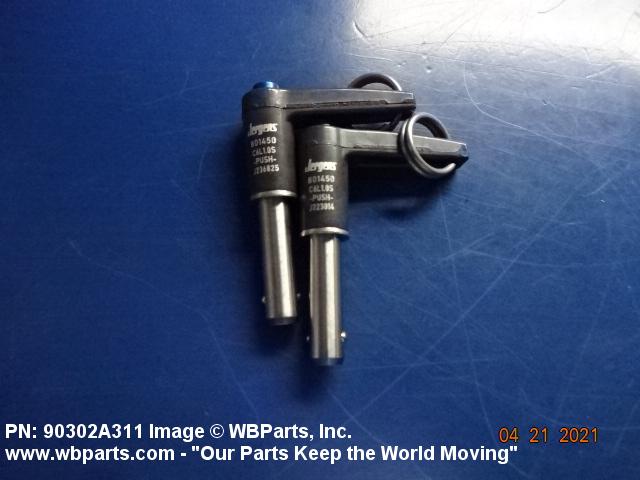

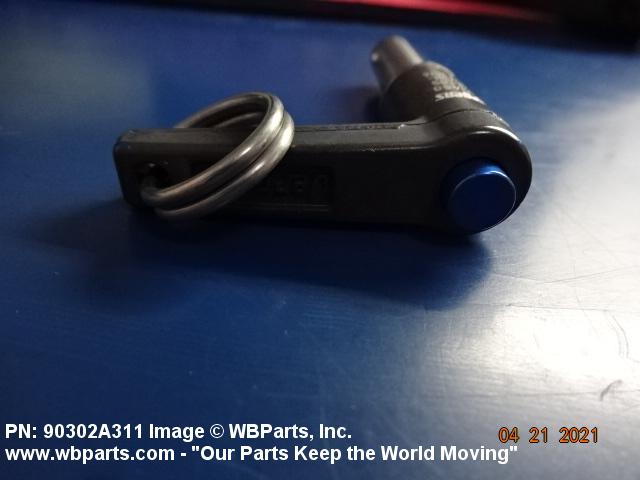

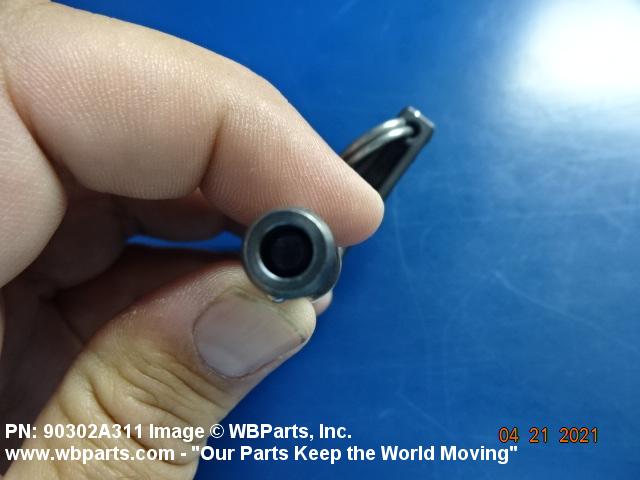

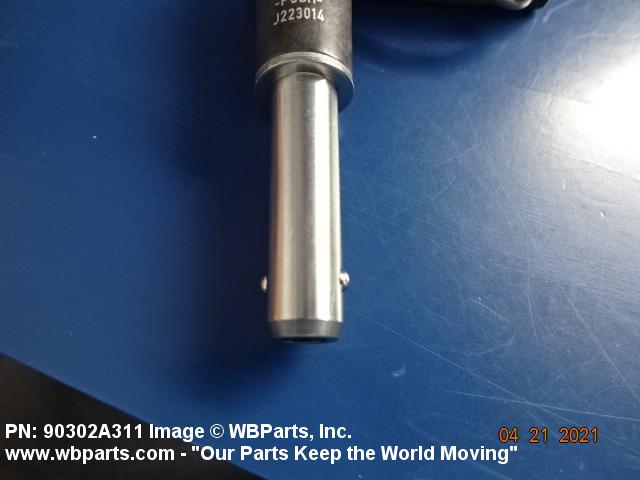

Drawings & Photos | NSN 5315-01-548-8054
Demand History | NSN 5315-01-548-8054
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 90302A311 | 2024-09-259 | 10 | DIBBS |
| QRP3C0610 | 2024-09-259 | 10 | DIBBS |
| 90302A311 | 2023-10-285 | 29 | DIBBS |
| QRP3C0610 | 2023-10-285 | 29 | DIBBS |
| 90302A311 | 2023-07-197 | 29 | DIBBS |
| QRP3C0610 | 2023-07-197 | 29 | DIBBS |
| 90302A311 | 2021-03-71 | 2 | Japan |
| 90302A311 | 2019-12-349 | 134 | DIBBS |
| QRP3C0610 | 2019-12-349 | 134 | DIBBS |
| 90302A311 | 2019-01-31 | 85 | DIBBS |
| QRP3C0610 | 2019-01-31 | 85 | DIBBS |
| 5315-01-548-8054 | 2018-03-73 | 25 | DIBBS |
| 5315-01-548-8054 | 2016-08-214 | 27 | DIBBS |
| 5315-01-548-8054 | 2015-06-162 | 29 | DIBBS |
| 5315-01-548-8054 | 2014-03-63 | 32 | DIBBS |
| 5315-01-548-8054 | 2012-05-136 | 11 | DIBBS |
| 5315-01-548-8054 | 2012-01-17 | 8 | DIBBS |
| 5315-01-548-8054 | 2011-08-237 | 8 | DIBBS |
| 5315-01-548-8054 | 2011-06-181 | 6 | DIBBS |
| 5315-01-548-8054 | 2010-03-70 | 8 | DIBBS |
| 5315-01-548-8054 | 2010-01-05 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-548-8054
Related Products | NSN 5315-01-548-8054
Technical Data | NSN 5315-01-548-8054
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL SHANK STEEL SPINDLE ALUMINUM BUTTON |
| HARDNESS RATING | 40.0 ROCKWELL C NOMINAL SHANK 40.0 ROCKWELL C NOMINAL SPINDLE |
| SHEAR STRENGTH | 20600 DOUBLE POUND |
| STYLE DESIGNATOR | Q244 L HANDLE |

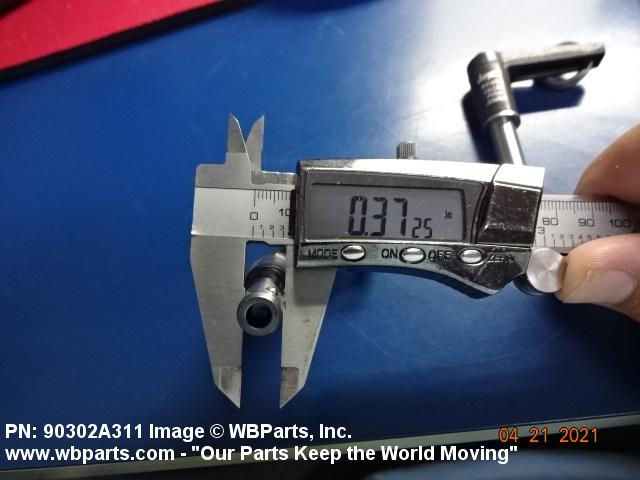

| SHANK DIAMETER | 0.375 INCHES NOMINAL |
| PIN CENTER TO HANDLE END DISTANCE | 1.000 INCHES NOMINAL |
| ACTUATION TYPE | PUSH |

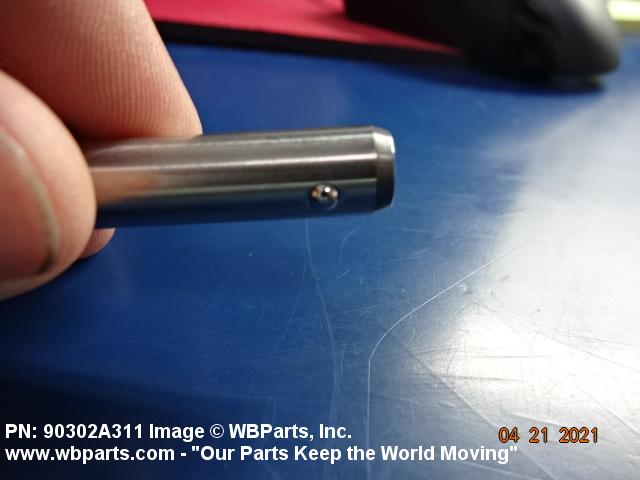

| DETENT QUANTITY | 1 |
| III END ITEM IDENTIFICATION | 5411-01-522-4822 |
Restrictions/Controls & Freight Information | NSN 5315-01-548-8054
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-548-8054
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
