NSN 5315-01-536-2575 MS9845, MS984514, MS9845-14
Product Details | HEADED STRAIGHT PIN
5315-01-536-2575 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS9845, MS984514, MS9845-14, 5315-01-536-2575, 01-536-2575, 5315015362575, 015362575
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 DEC 2005 | 01-536-2575 | 02384 ( PIN, STRAIGHT, HEADED ) |

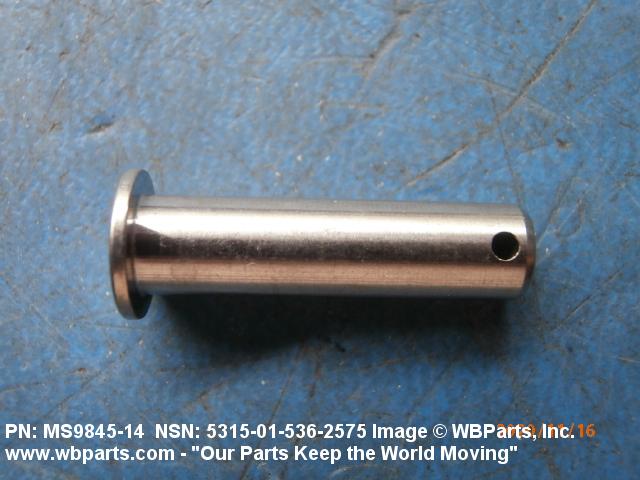

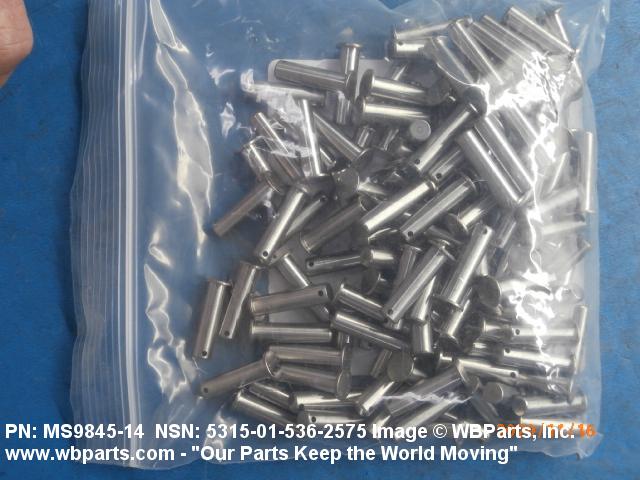

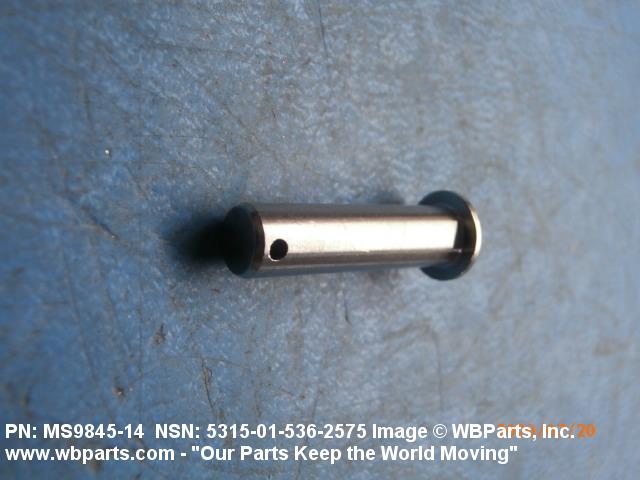

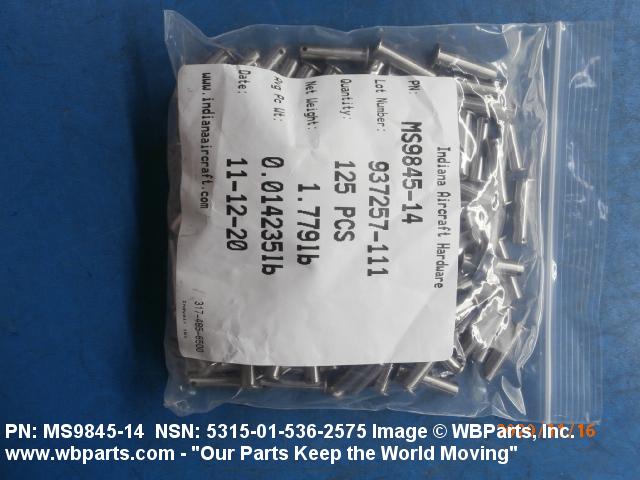

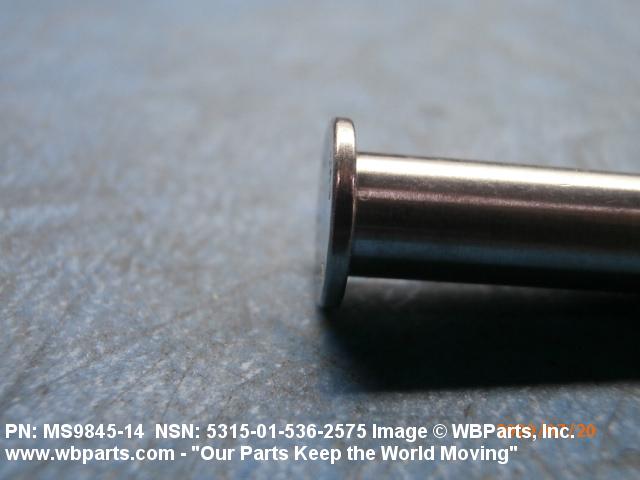

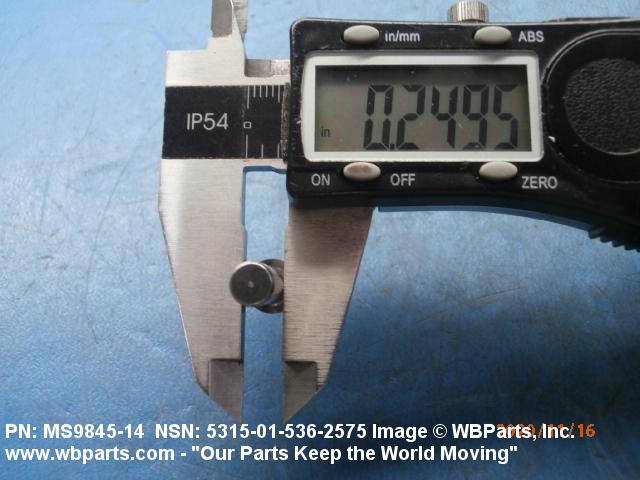

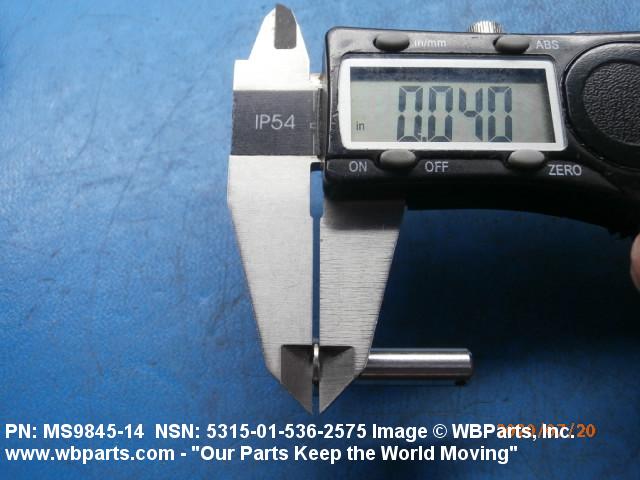

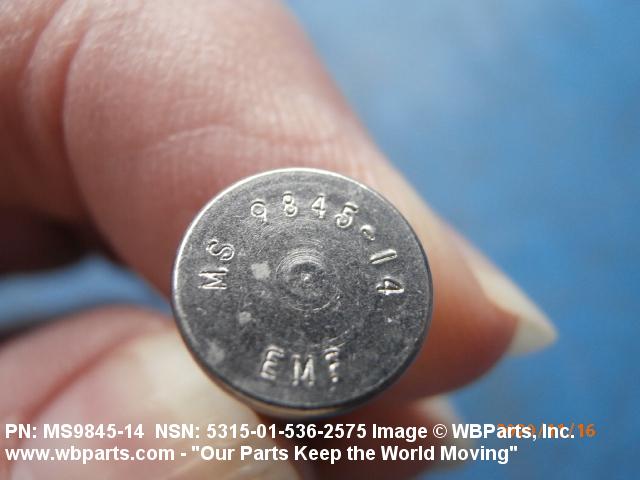

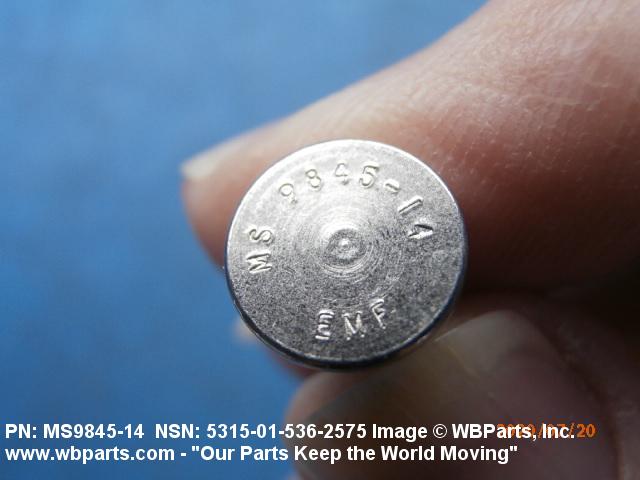

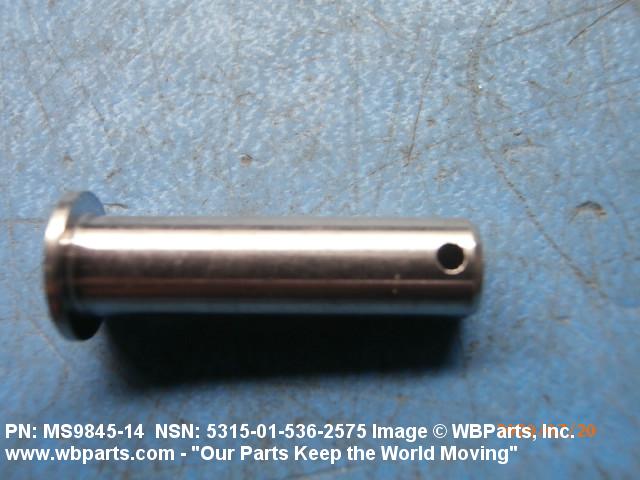

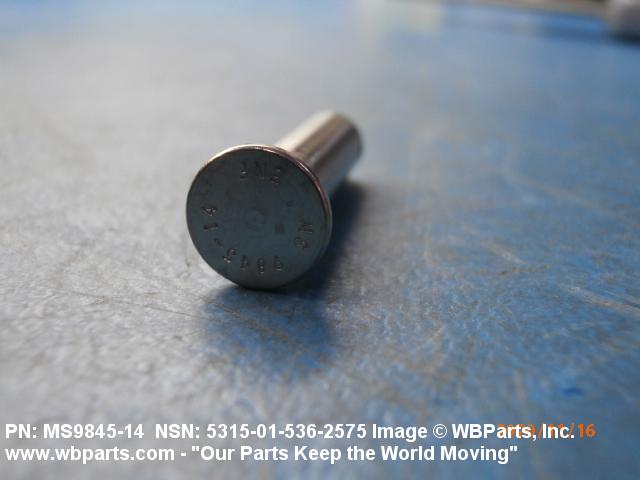

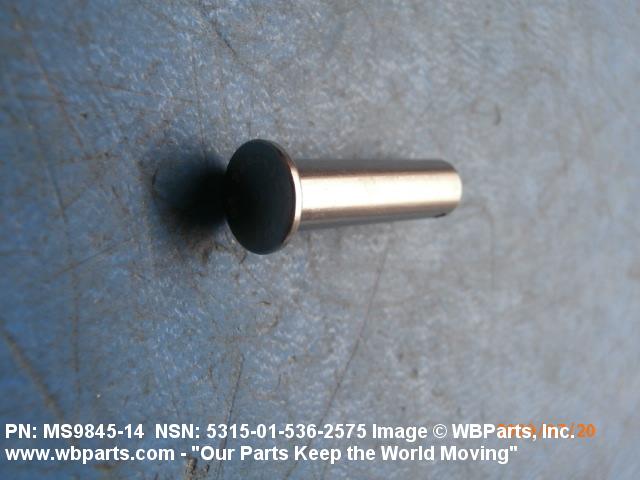

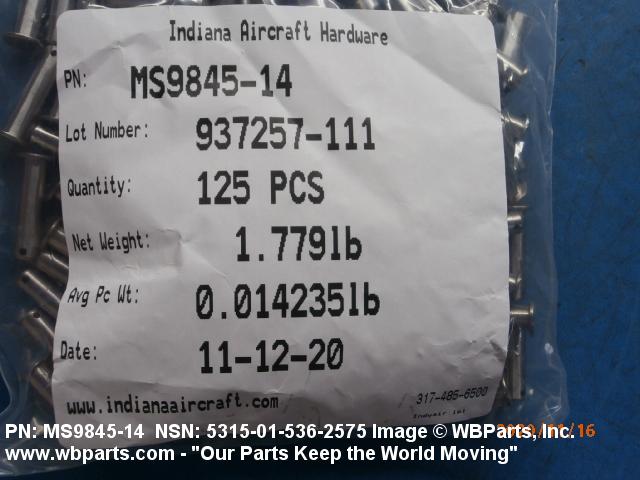

Drawings & Photos | NSN 5315-01-536-2575
Demand History | NSN 5315-01-536-2575
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-536-2575 | 2024-11-318 | 55 | US |
| MS984514 | 2024-10-282 | 1300 | United States |
| MS984514 | 2024-09-262 | 524 | United States |
| MS984514 | 2024-09-260 | 110 | United States |
| MS984514 | 2024-09-260 | 765 | United States |
| MS984514 | 2024-06-179 | 765 | United States |
| 5315-01-536-2575 | 2023-10-300 | 375 | United States |
| 5315-01-536-2575 | 2022-02-53 | 250 | United States |
| 5315-01-536-2575 | 2021-10-285 | 10 | United States |
| 5315-01-536-2575 | 2021-05-131 | 100 | United States |
| 5315-01-536-2575 | 2021-03-68 | 6 | United States |
| 5315-01-536-2575 | 2020-11-316 | 125 | United States |
| 5315-01-536-2575 | 2020-07-196 | 93 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-536-2575
Technical Data | NSN 5315-01-536-2575
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 615 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5616 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.030 INCHES NOMINAL |

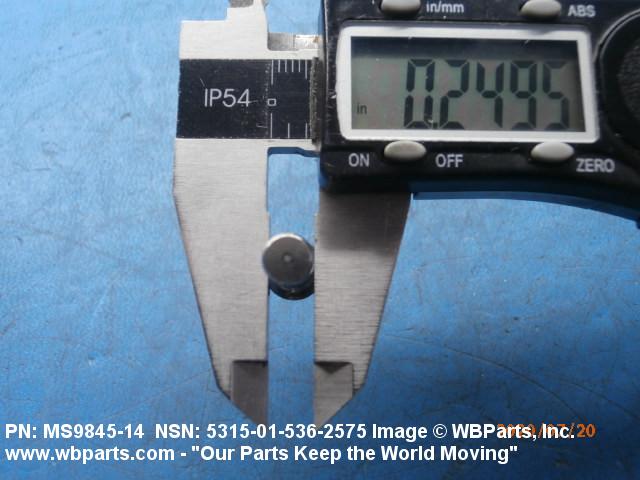

| DIAMETER | 0.2494 INCHES MINIMUM AND 0.2499 INCHES MAXIMUM |

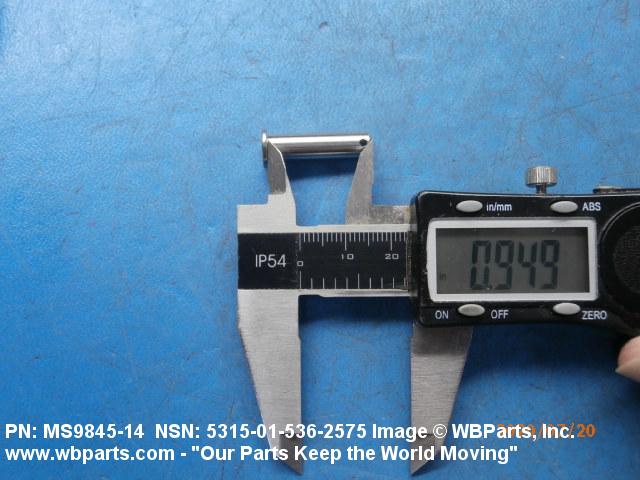

| UNDER HEAD LENGTH | 0.948 INCHES MINIMUM AND 0.958 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 32.0 DEGREES NOMINAL |
| HEAD STYLE | 33 PAN |

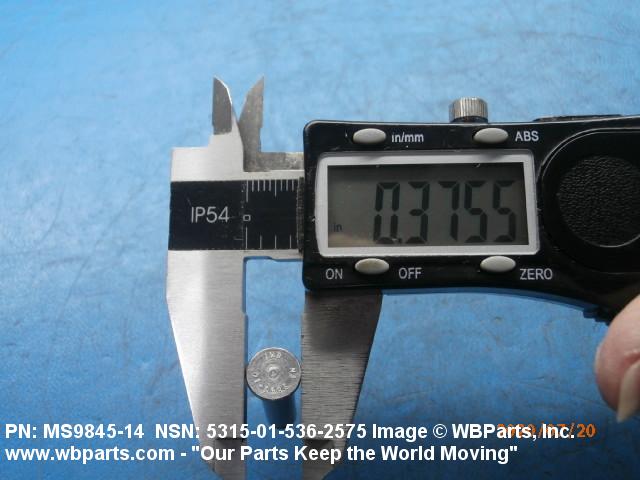

| PIN HEAD DIAMETER | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| HEIGHT | 0.035 INCHES NOMINAL |
| SURFACE FINISH | 125.0 MICRONS OVERALL |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9845 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9845-14 |
Restrictions/Controls & Freight Information | NSN 5315-01-536-2575
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
