NSN 5315-01-476-6925 74A4280712001, 74A428071-2001 , 74A4280712007
Product Details | HEADED STRAIGHT PIN
5315-01-476-6925 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 74A4280712001, 74A428071-2001 , 74A4280712007, 74A428071-2007, 5315-01-476-6925, 01-476-6925, 5315014766925, 014766925
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JUL 2000 | 01-476-6925 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-476-6925
Demand History | NSN 5315-01-476-6925
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-476-6925 | 2013-11-315 | 1 | DIBBS |
| 5315-01-476-6925 | 2012-10-295 | 1 | DIBBS |
Cross Reference | NSN 5315-01-476-6925
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A428071-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A428071-2001 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 74A428071-2007 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A428071-2007 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-476-6925
Related Products | NSN 5315-01-476-6925
Technical Data | NSN 5315-01-476-6925
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-13 OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.0600 INCHES NOMINAL |
| DIAMETER | 0.3110 INCHES NOMINAL |
| UNDER HEAD LENGTH | 2.3470 INCHES NOMINAL |
| PIN CHAMFER ANGLE | 20.0 DEGREES NOMINAL |

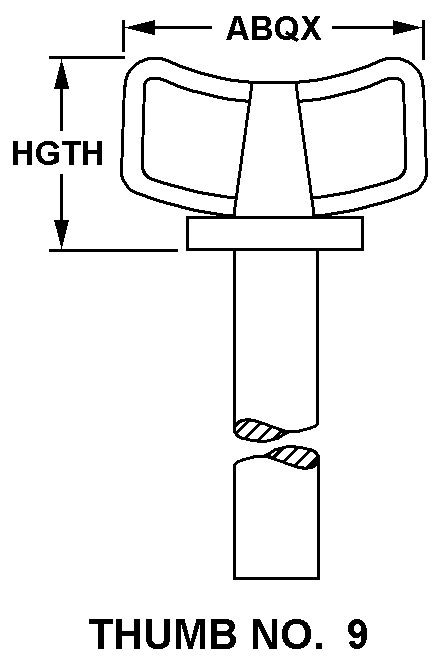

| HEAD STYLE | 53 THUMB NO. 9 |
| HEAD WIDTH | 0.9010 INCHES NOMINAL |
| HEIGHT | 0.0700 INCHES NOMINAL |
| SPECIAL FEATURES | HOLE RUNS THROUGH THREADED END .250-28 UNJF-3A |
| III END ITEM IDENTIFICATION | F/18 E-F |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN,HINGE-MAIN LANDING GEAR STRUT DOOR, AFT CENTER FUS |
