Product Details | HEADED STRAIGHT PIN

5315-01-471-6708 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.

Part Alternates: 74A2313101005, 74A231310-1005, 5315-01-471-6708, 01-471-6708, 5315014716708, 014716708

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 10 FEB 2000 01-471-6708

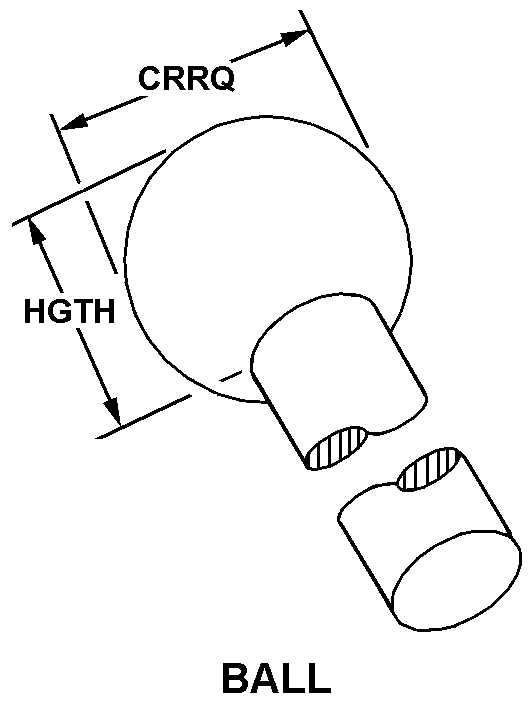

Drawings & Photos | NSN 5315-01-471-6708


Demand History | NSN 5315-01-471-6708

Part Number Request Date QTY Origin
5315-01-471-6708 2016-09-271 63 DIBBS
5315-01-471-6708 2016-05-124 46 DIBBS
5315-01-471-6708 2016-01-26 171 DIBBS
5315-01-471-6708 2016-01-13 171 DIBBS
5315-01-471-6708 2015-11-312 123 DIBBS
5315-01-471-6708 2015-10-288 161 DIBBS
5315-01-471-6708 2015-10-285 53 DIBBS
5315-01-471-6708 2015-08-225 108 DIBBS
5315-01-471-6708 2015-03-69 86 DIBBS
5315-01-471-6708 2013-10-292 1 DIBBS-RFPs
5315-01-471-6708 2013-04-103 23 DIBBS
74A2313101005 2012-05-146 20 US
5315-01-471-6708 2012-05-146 20 US

Cross Reference | NSN 5315-01-471-6708

Part Number Cage Code Manufacturer
74A231310-1005 76301 BOEING COMPANY, THE DBA BOEING
74A231310-1005 76823 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-471-6708

Technical Data | NSN 5315-01-471-6708

Characteristic Specifications
MATERIAL STEEL OVERALL
STYLE DESIGNATOR L193 STRAIGHT
CHAMFER LENGTH 0.046 INCHES NOMINAL
DIAMETER 0.3125 INCHES NOMINAL
UNDER HEAD LENGTH 1.696 INCHES NOMINAL
PIN CHAMFER ANGLE 45.0 DEGREES NOMINAL
HEAD STYLE 1 BALL
PIN HEAD DIAMETER 0.800 INCHES NOMINAL
HEIGHT 0.690 INCHES NOMINAL
III END ITEM IDENTIFICATION FS18 E & F

Restrictions/Controls & Freight Information | NSN 5315-01-471-6708

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code KE Naval ICP
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5315-01-471-6708

Category Code Description
Cognizance Codes3BNavy-owned stocks of field level repairable DLA material
Naval Inventory Control Point, Mechanicsburg
Special Material IDQEFIGHTERAIRCRAFT-FIRST(F18 E/F)
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityDField Level Reparables
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
