NSN 5315-01-468-5944 74B501758201, 74B501758-201, 01-468-5944
Product Details | HEADED STRAIGHT PIN
5315-01-468-5944 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 74B501758201, 74B501758-201, 5315-01-468-5944, 01-468-5944, 5315014685944, 014685944
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 OCT 1999 | 01-468-5944 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-468-5944
Cross Reference | NSN 5315-01-468-5944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74B501758-201 | 0PXV4 | BOEING COMPANY, THE DBA BOEING |
| 74B501758-201 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| 74B501758-201 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 74B501758-201 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74B501758-201 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-468-5944
Related Products | NSN 5315-01-468-5944
Technical Data | NSN 5315-01-468-5944
| Characteristic | Specifications |
|---|---|
| MATERIAL | COBALT COMP MP-35-N OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.6730 INCHES MINIMUM AND 0.6880 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 2.1000 INCHES NOMINAL |

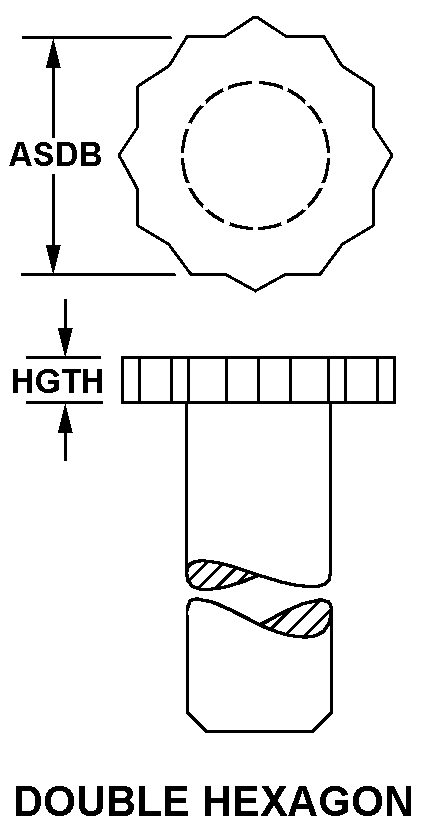

| HEAD STYLE | 11 DOUBLE HEXAGON |
| WIDTH ACROSS FLATS | 0.9010 INCHES MINIMUM AND 1.1630 INCHES MAXIMUM |
| SPECIAL FEATURES | FRACTURE CRITICAL |
| III END ITEM IDENTIFICATION | F-18 E/F |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN,THRUST MOUNT, ENGINE - Y618.000 TO Y631.250 |
Restrictions/Controls & Freight Information | NSN 5315-01-468-5944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-468-5944
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QE | FIGHTERAIRCRAFT-FIRST(F18 E/F) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
