NSN 5315-01-467-8457 BLS4B09S, 5440409BR, 5440-4-09BR
Product Details | QUICK RELEASE PIN
5315-01-467-8457 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: BLS4B09S, 5440409BR, 5440-4-09BR, 5315-01-467-8457, 01-467-8457, 5315014678457, 014678457
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1999 | 01-467-8457 | 08323 ( PIN, QUICK RELEASE ) |

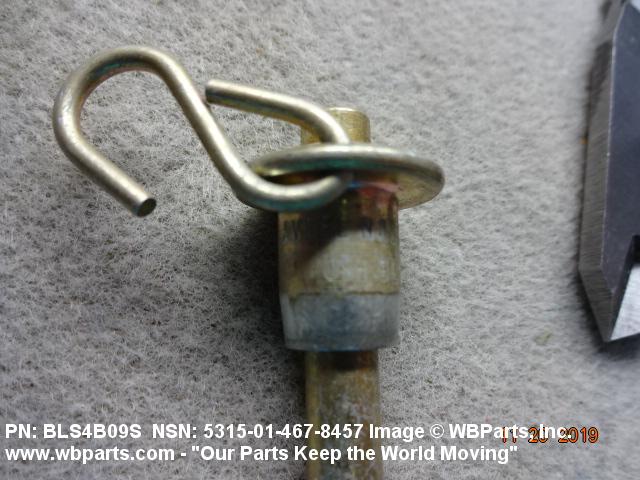

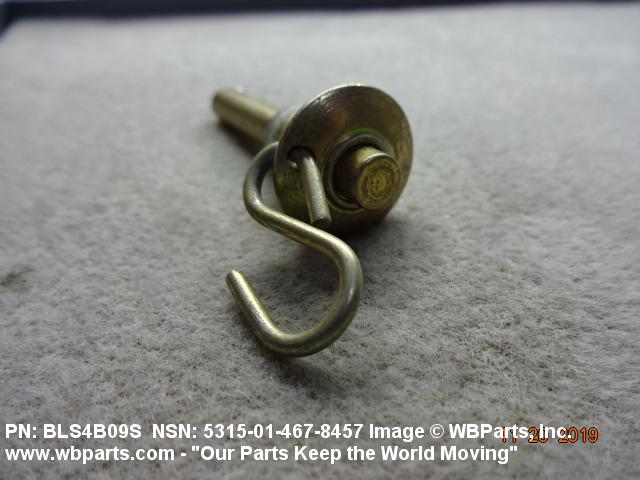

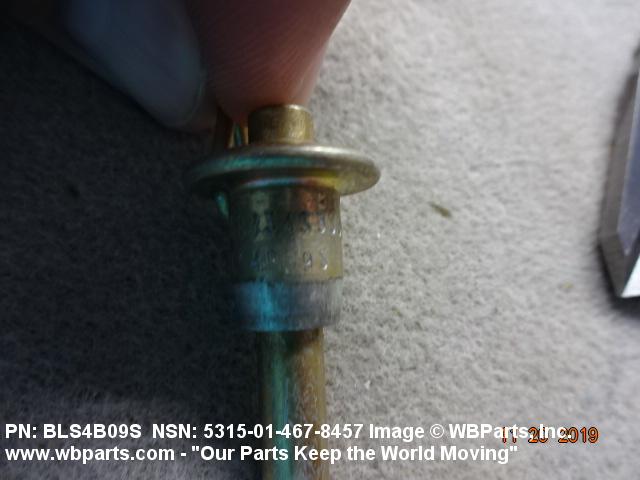

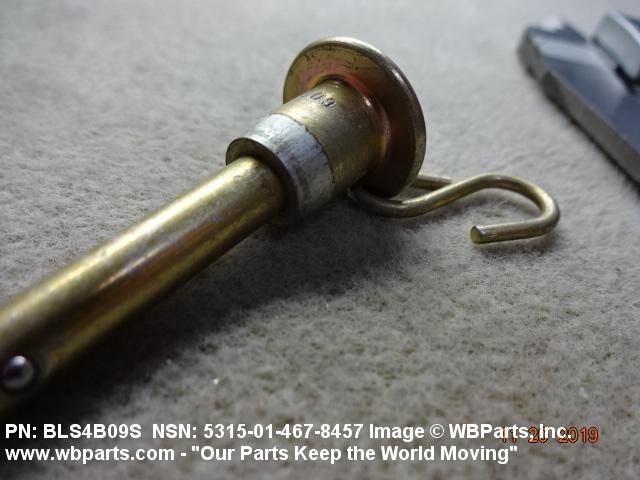

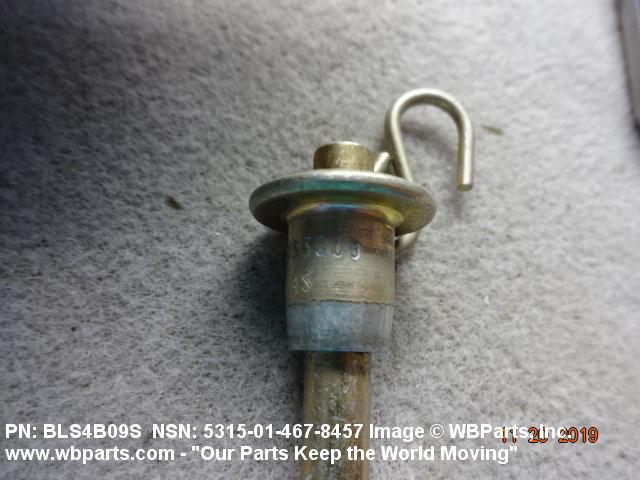

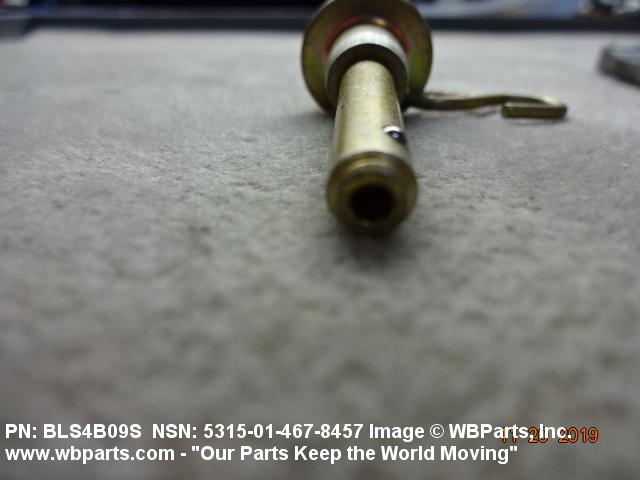

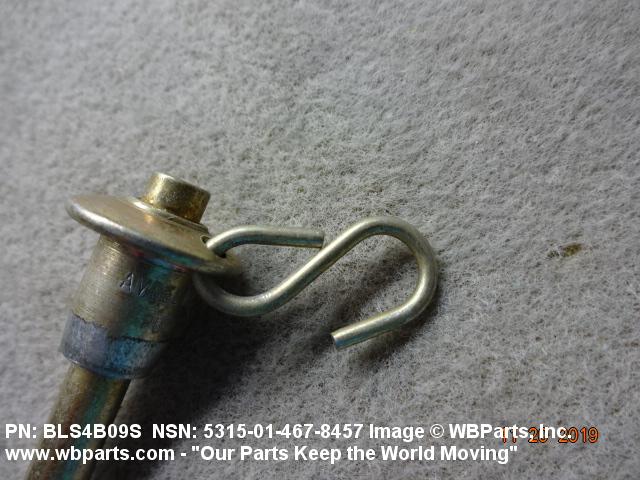

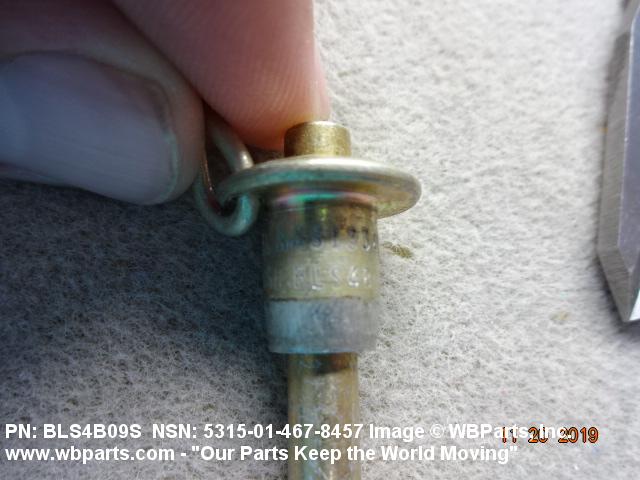

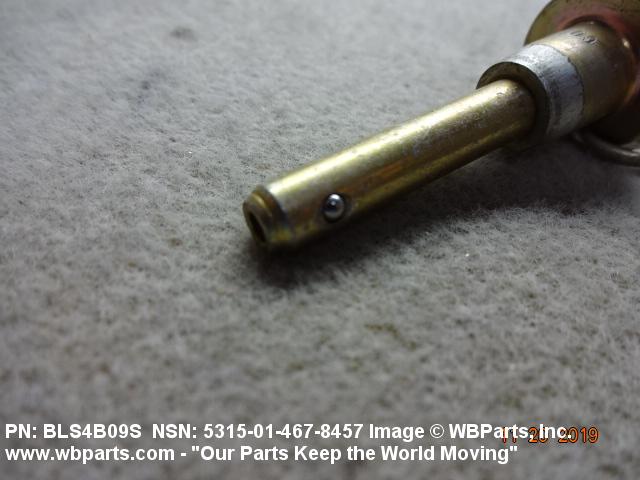

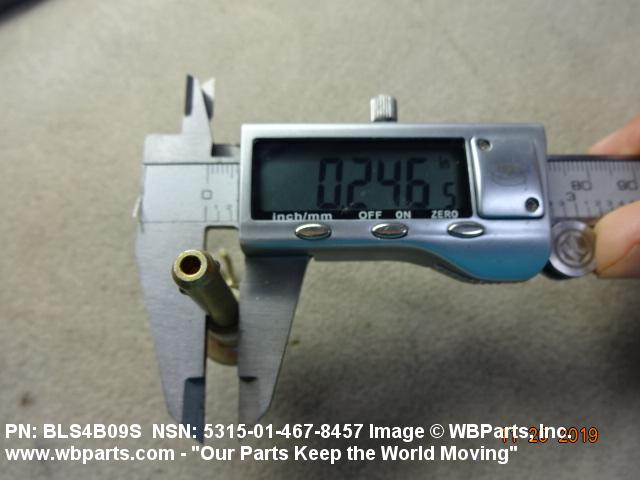

Drawings & Photos | NSN 5315-01-467-8457
Demand History | NSN 5315-01-467-8457
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-467-8457 | 2019-11-324 | 20 | United States |
| 5315-01-467-8457 | 2019-08-232 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-467-8457
Technical Data | NSN 5315-01-467-8457
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | Q243 BUTTON |
| SHANK DIAMETER | 0.289 INCHES NOMINAL |

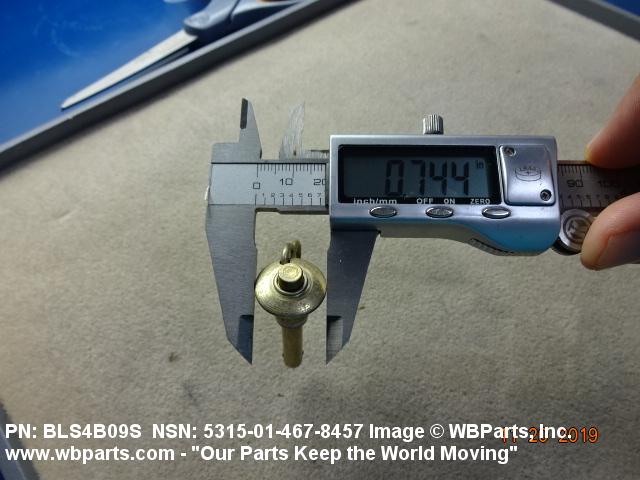

| BUTTON HANDLE DIAMETER | 0.760 INCHES NOMINAL |

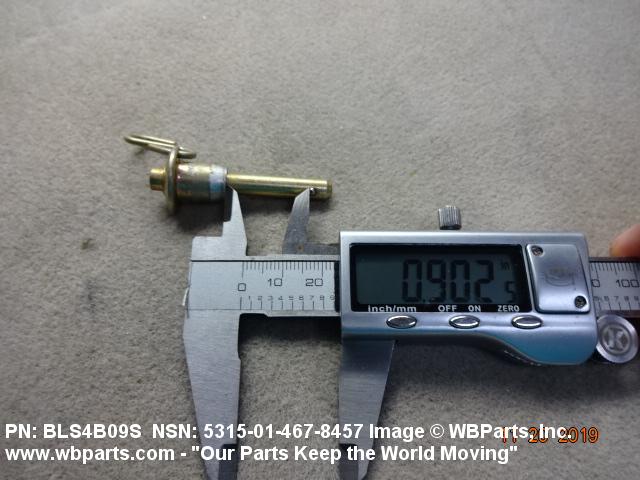

| GRIP LENGTH | 0.900 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 1.006 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.290 INCHES NOMINAL |
| ACTUATION TYPE | PUSH |
| DETENT QUANTITY | 1 |
| PIN ATTACHMENT TYPE | RING |
| SPECIAL FEATURES | ALL PINS FURNISHED WITH ATTACHING RINGS; NO KNOWN BAR CODE |
| III END ITEM IDENTIFICATION | ANTI SUBMARINE AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5315-01-467-8457
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
