NSN 5315-01-467-0450 1834M34P01, 01-467-0450, 014670450
Product Details | HEADED STRAIGHT PIN
5315-01-467-0450 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 1834M34P01, 5315-01-467-0450, 01-467-0450, 5315014670450, 014670450
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 AUG 1999 | 01-467-0450 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-467-0450
Cross Reference | NSN 5315-01-467-0450
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1834M34P01 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-467-0450
Related Products | NSN 5315-01-467-0450
Technical Data | NSN 5315-01-467-0450
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

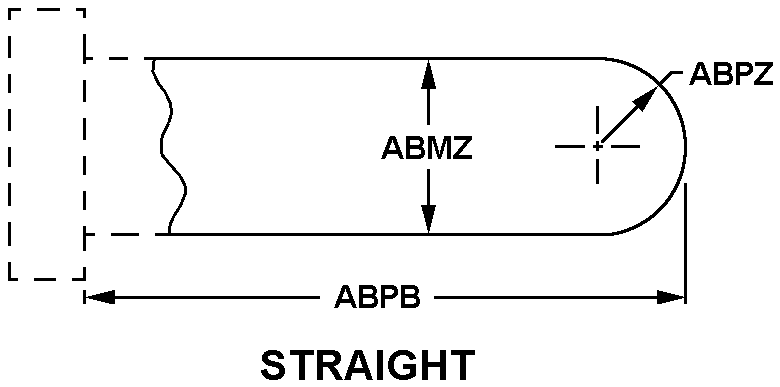

| STYLE DESIGNATOR | L194 STRAIGHT |
| DIAMETER | 0.112 INCHES MINIMUM AND 0.122 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.277 INCHES NOMINAL |

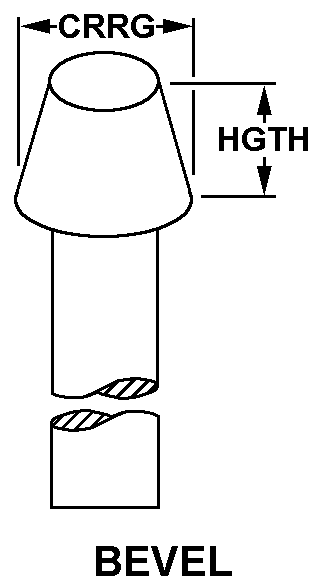

| HEAD STYLE | 2 BEVEL |
| PIN HEAD DIAMETER | 0.285 INCHES MINIMUM AND 0.295 INCHES MAXIMUM |
| HEIGHT | 0.100 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| SPECIAL FEATURES | DOUBLE BEVELED HEAD, 30 DEG + 44 DEG; REQUESTED NAME - PIN,SPRING GUIDE |
| III END ITEM IDENTIFICATION | 2840 JF |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 1834M34P01 |
