Product Details | QUICK RELEASE PIN

5315-01-367-4908 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.

Part Alternates: MS17987528, MS17987-528, MS17987C528, SLS5R28, BLS5R28S, BLS5R28SM, LG5SR2800, 5315-01-367-4908, 01-367-4908, 5315013674908, 013674908

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 13 NOV 1992 01-367-4908

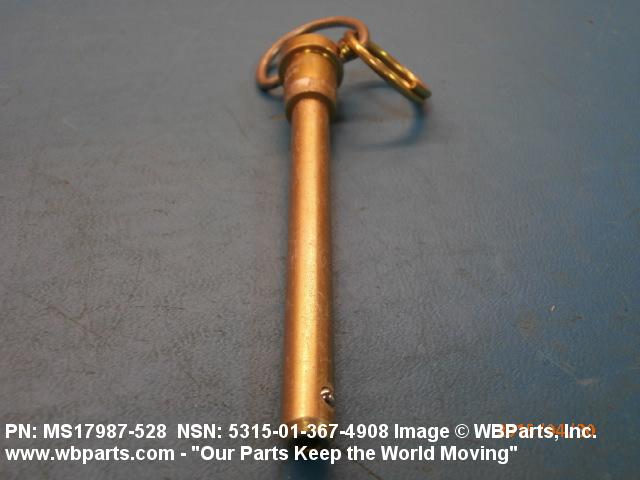

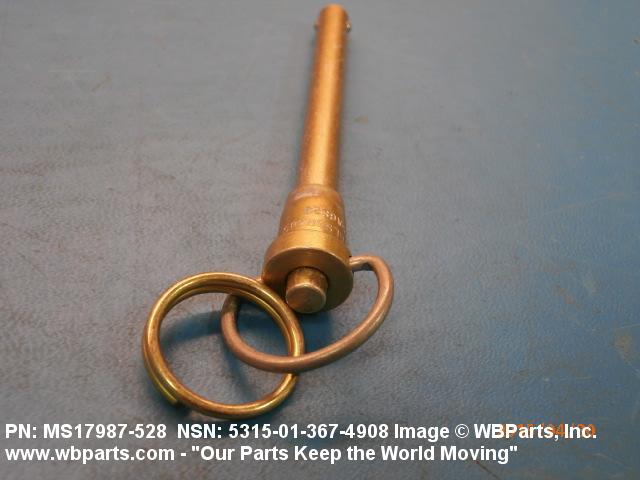

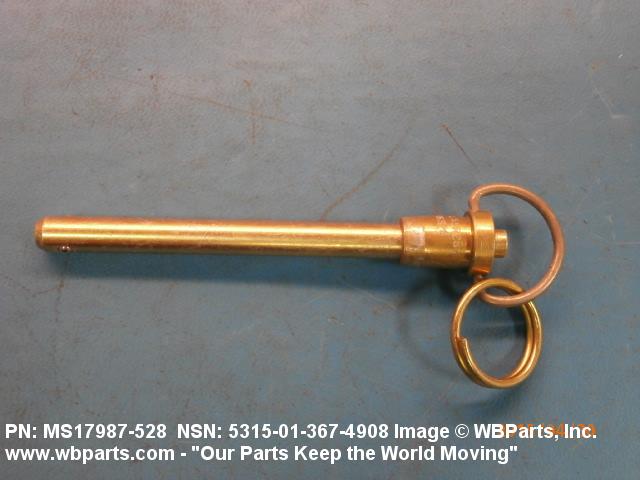

Drawings & Photos | NSN 5315-01-367-4908


Demand History | NSN 5315-01-367-4908

Part Number Request Date QTY Origin
MS17987C528 2015-04-97 4 United States

Cross Reference | NSN 5315-01-367-4908

Part Number Cage Code Manufacturer
BLS5R28S 84256 AVIBANK MFG., INC.
BLS5R28SM 84256 AVIBANK MFG., INC.
LG5SR2800 83014 HARTWELL CORPORATION
MS17987-528 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS17987C528 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS17987C528 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SLS5R28 16258 SPACELOK INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-367-4908

Technical Data | NSN 5315-01-367-4908

Characteristic Specifications
MATERIAL STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE
MATERIAL DOCUMENT AND CLASSIFICATION AMS5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE
SURFACE TREATMENT PASSIVATE SHANK PASSIVATE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
HARDNESS RATING 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE
SHEAR STRENGTH 14400 DOUBLE POUND

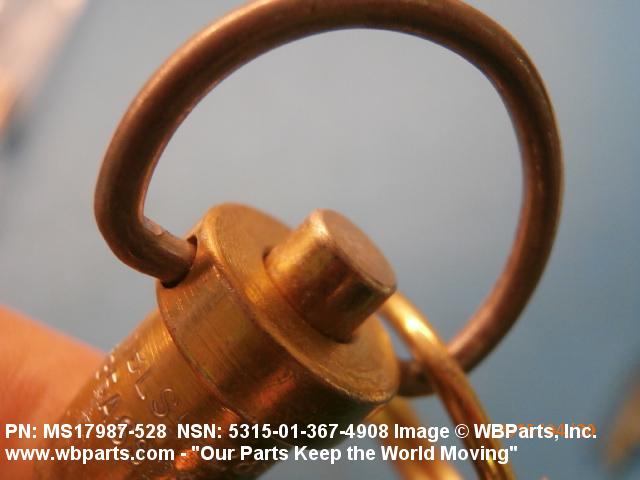

STYLE DESIGNATOR Q240 RING HANDLE

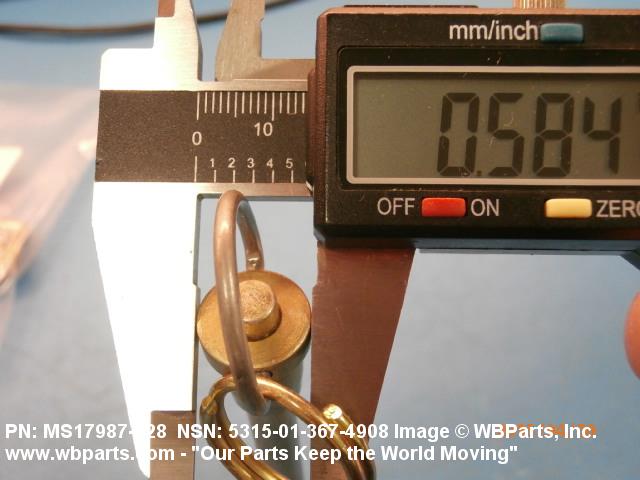

HEAD DIAMETER 0.410 INCHES MINIMUM AND 0.590 INCHES MAXIMUM

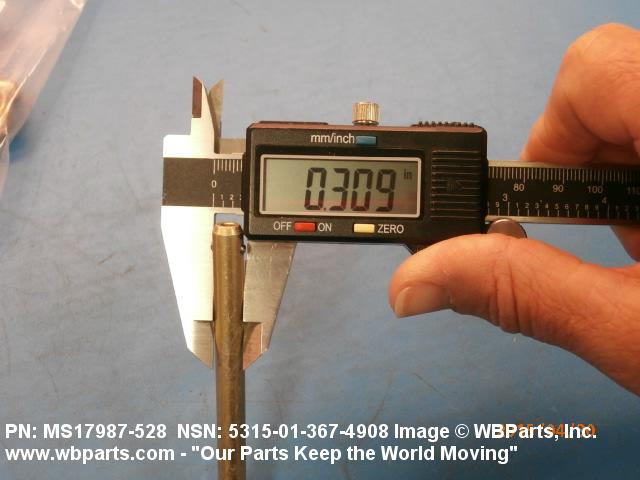

SHANK DIAMETER 0.3095 INCHES MINIMUM AND 0.3110 INCHES MAXIMUM

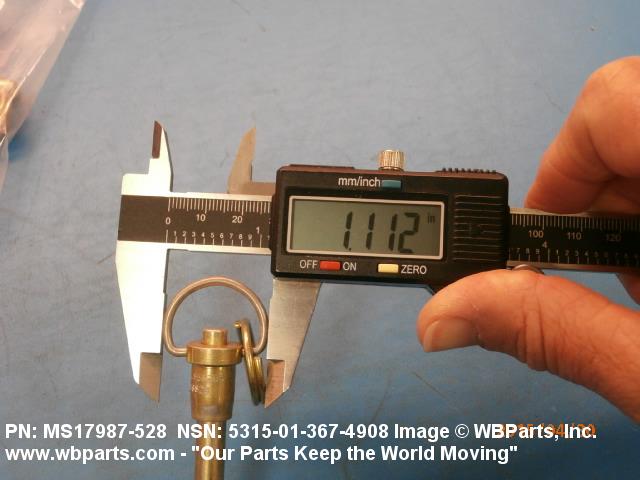

RING HANDLE DIAMETER 1.060 INCHES MINIMUM

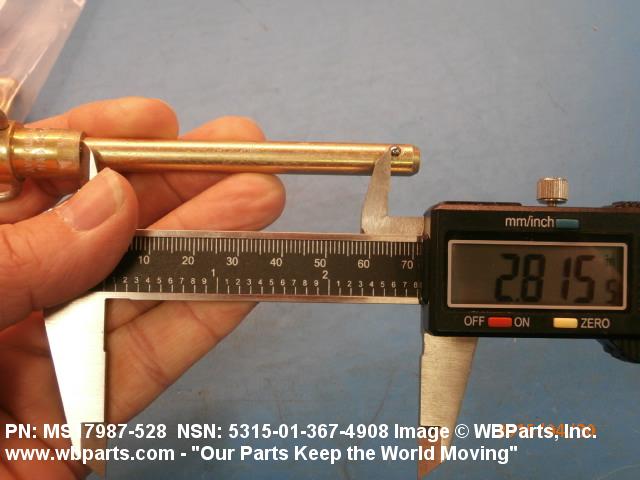

GRIP LENGTH 2.800 INCHES MINIMUM AND 2.820 INCHES MAXIMUM
SHOULDER TO HEAD END DISTANCE 1.650 INCHES MINIMUM

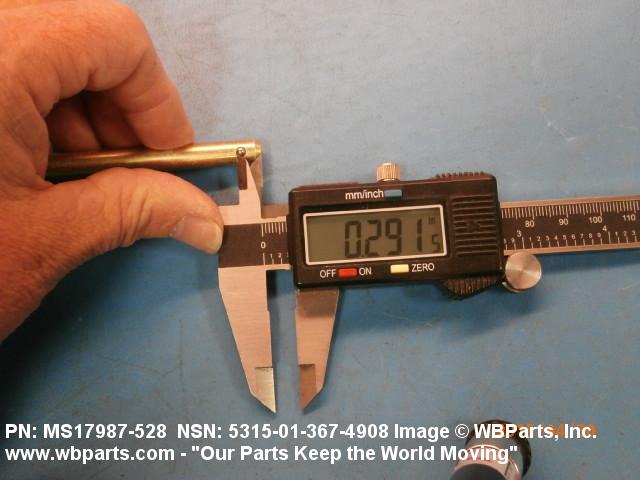

DETENT TO TAPERED END DISTANCE 0.290 INCHES MINIMUM AND 0.330 INCHES MAXIMUM
ACTUATION TYPE PUSH
ACTUATION METHOD PUSH BUTTON

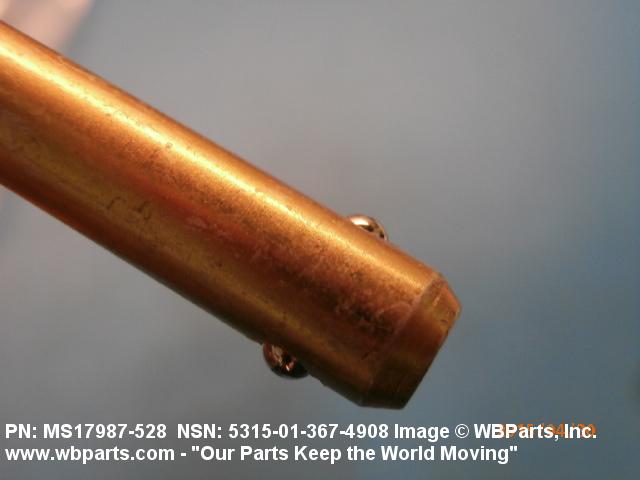

DETENT QUANTITY 2
PIN ATTACHMENT TYPE LINK OR RING
