NSN 5315-01-366-8828 MS17984343, MS17984-343, MS17984C343
Product Details | QUICK RELEASE PIN
5315-01-366-8828 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17984343, MS17984-343, MS17984C343, NAS1333A3S43, NASM1794, SLS3B42, BLS 3B43S, BLS3B43S, LG3SB4300, LG3SB43M, 5315-01-366-8828, 01-366-8828, 5315013668828, 013668828
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 NOV 1992 | 01-366-8828 | 08323 ( PIN, QUICK RELEASE ) |

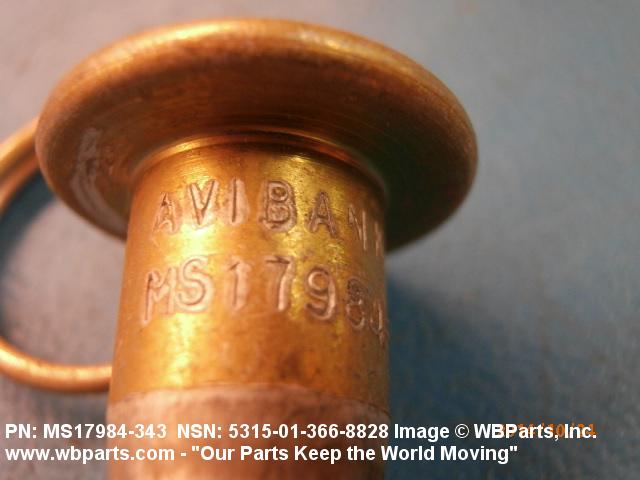

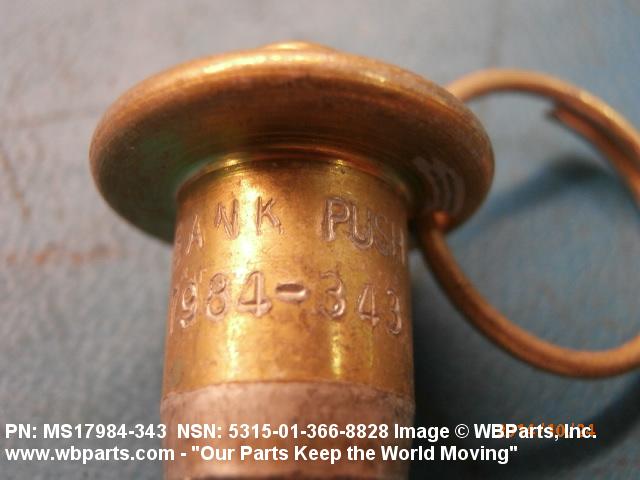

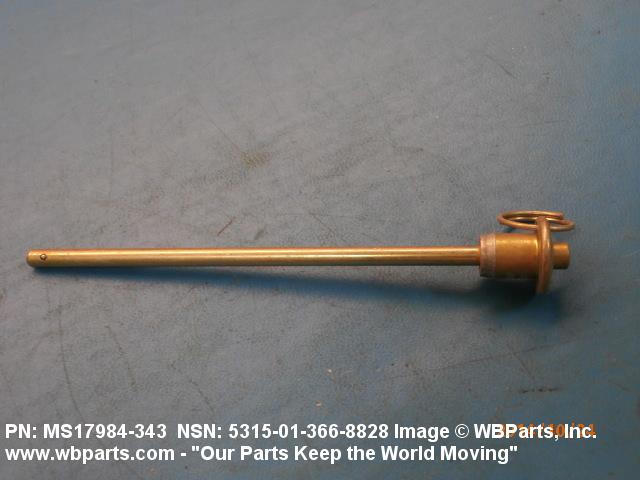

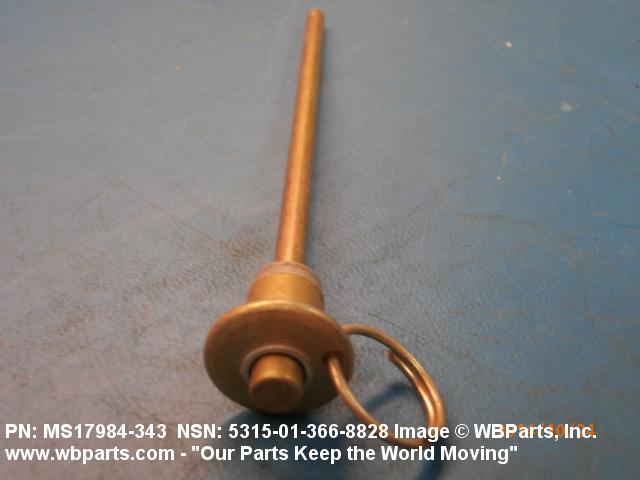

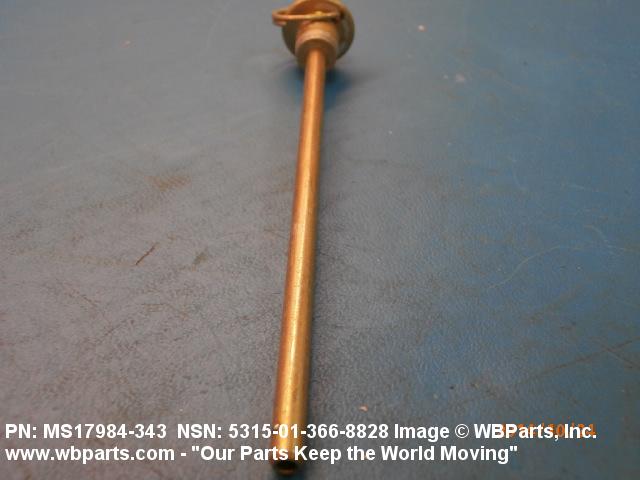

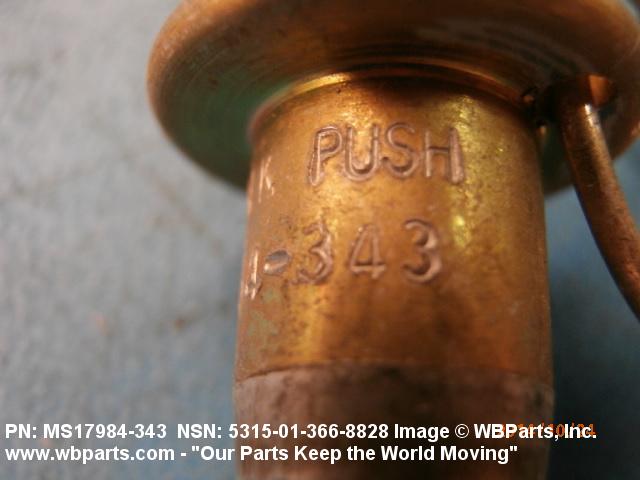

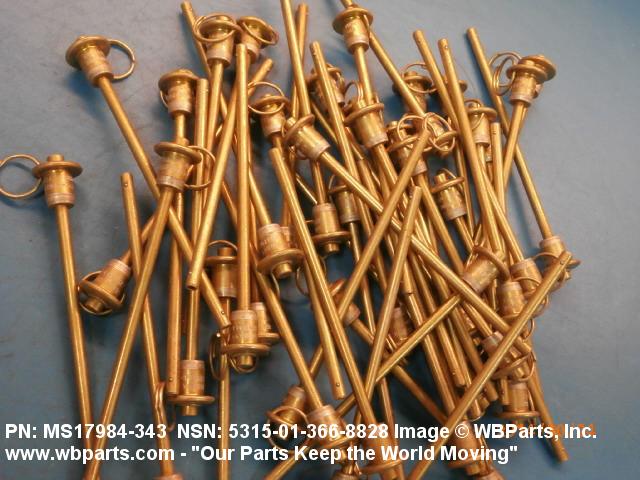

Drawings & Photos | NSN 5315-01-366-8828
Demand History | NSN 5315-01-366-8828
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-366-8828 | 2014-11-311 | 100 | Italy |
| MS17984C343 | 2014-11-311 | 0 | Italy |
| MS17984C343 | 2014-10-281 | 100 | Italy |
| 5315-01-366-8828 | 2011-05-133 | 3 | DIBBS |
| 5315-01-366-8828 | 2008-01-16 | 88 | IT |
Cross Reference | NSN 5315-01-366-8828
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLS 3B43S | 71366 | BUNTING BEARINGS CORP |
| BLS3B43S | 84256 | AVIBANK MFG., INC. |
| LG3SB4300 | 62060 | SOUTHCO INC. |
| LG3SB4300 | 83014 | HARTWELL CORPORATION |
| LG3SB43M | 62060 | SOUTHCO INC. |
| LG3SB43M | 83014 | HARTWELL CORPORATION |
| MS17984-343 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17984-343 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS17984C343 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS17984C343 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS1333A3S43 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NASM1794 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SLS3B42 | 16258 | SPACELOK INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-366-8828
Related Products | NSN 5315-01-366-8828
Technical Data | NSN 5315-01-366-8828

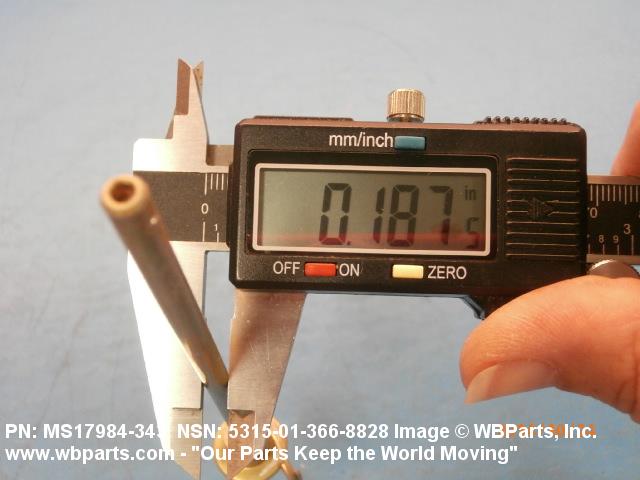

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK 40.0 ROCKWELL C MINIMUM SPINDLE |
| SHEAR STRENGTH | 5150 DOUBLE POUND |
| STYLE DESIGNATOR | Q243 BUTTON |
| SHANK DIAMETER | 0.1870 INCHES MINIMUM AND 0.1885 INCHES MAXIMUM |

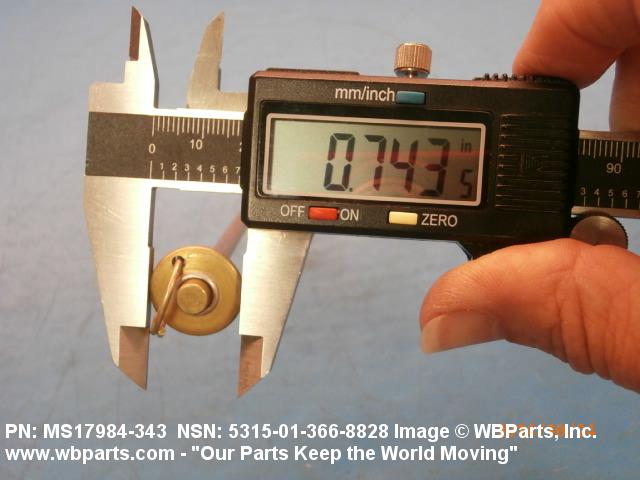

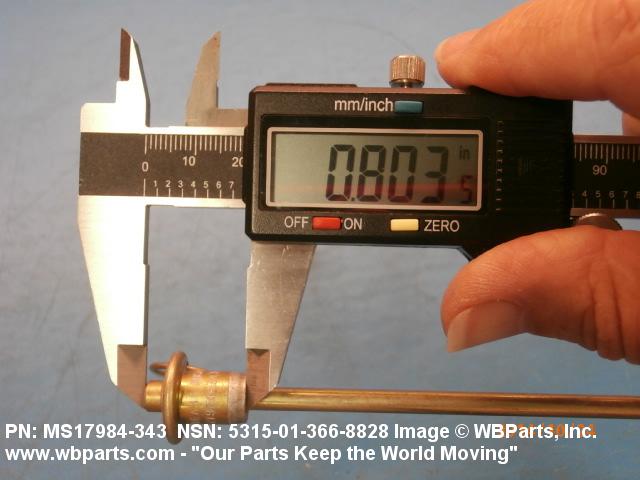

| BUTTON HANDLE DIAMETER | 0.720 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |

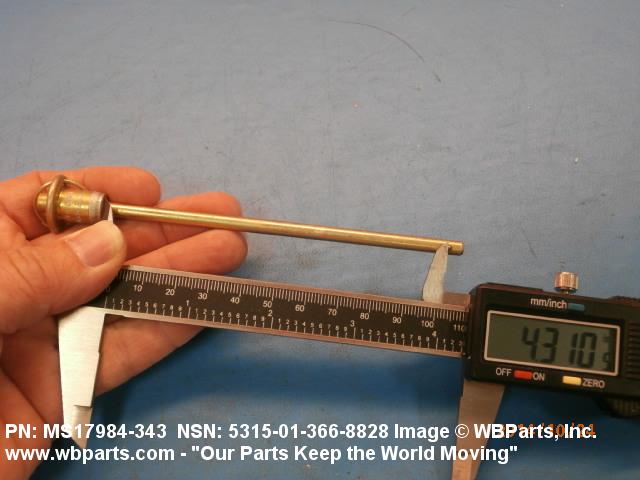

| GRIP LENGTH | 4.300 INCHES MINIMUM AND 4.320 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 0.830 INCHES MAXIMUM |

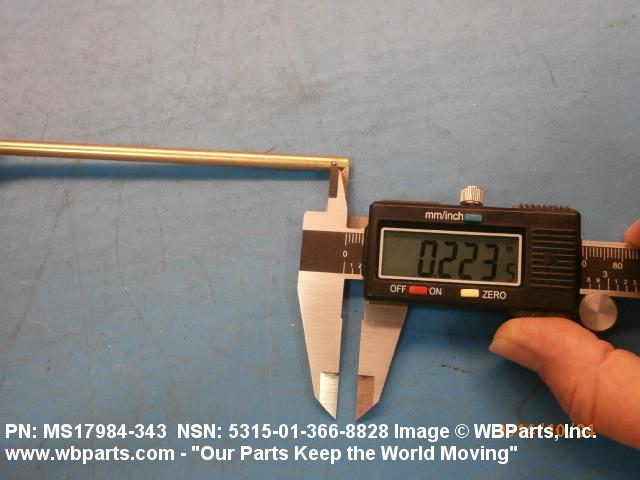

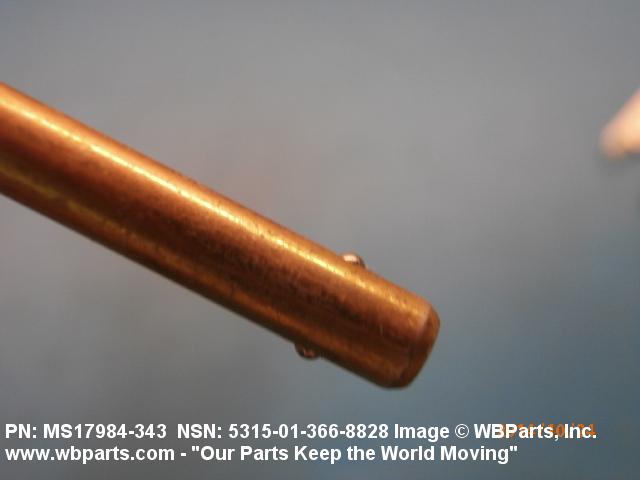

| DETENT TO TAPERED END DISTANCE | 0.220 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | LINK |
