NSN 5315-01-357-4786 MS203924R21, MS20392-4R21, 01-357-4786
Product Details | HEADED STRAIGHT PIN
5315-01-357-4786 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203924R21, MS20392-4R21, 5315-01-357-4786, 01-357-4786, 5315013574786, 013574786
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 APR 1992 | 01-357-4786 | 02384 ( PIN, STRAIGHT, HEADED ) |

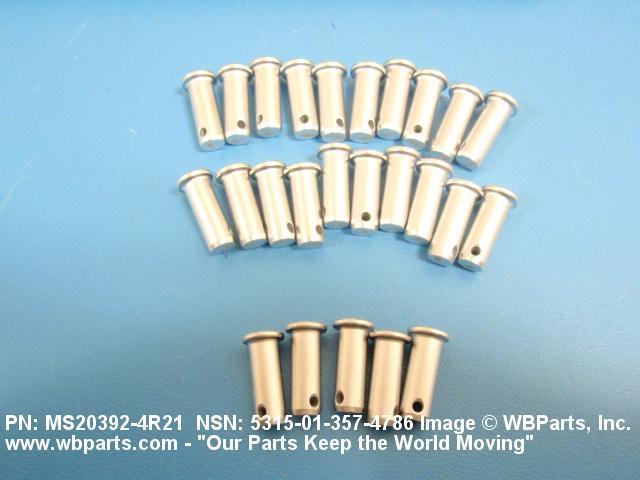

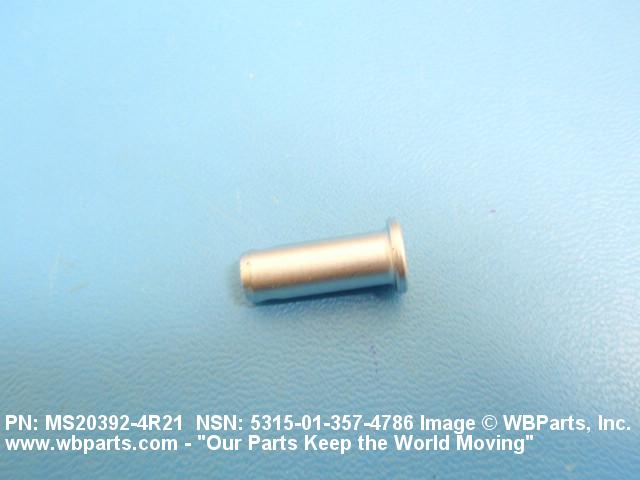

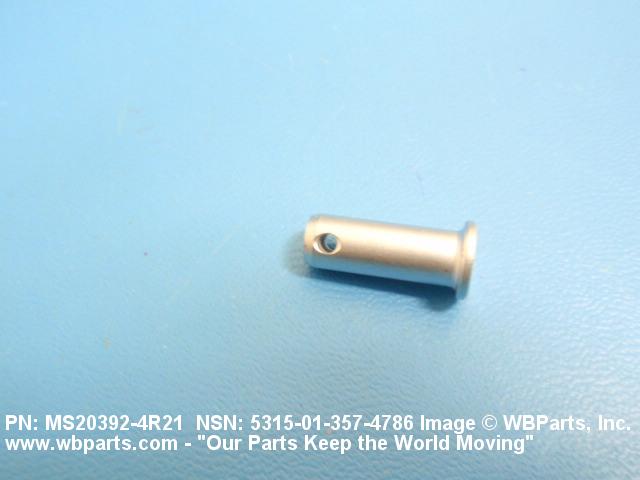

Drawings & Photos | NSN 5315-01-357-4786
Demand History | NSN 5315-01-357-4786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-357-4786 | 2021-08-220 | 2 | DIBBS |
| 5315-01-357-4786 | 2018-10-276 | 16 | DIBBS |
| 5315-01-357-4786 | 2018-06-158 | 6 | DIBBS |
| 5315-01-357-4786 | 2018-05-150 | 2 | DIBBS |
| 5315-01-357-4786 | 2017-10-276 | 1 | DIBBS |
| 5315-01-357-4786 | 2015-06-180 | 2 | DIBBS |
| 5315-01-357-4786 | 2015-06-167 | 2 | DIBBS |
| 5315-01-357-4786 | 2009-03-63 | 10 | United States |
| MS203924R21 | 2006-09-271 | 2 | US |
Cross Reference | NSN 5315-01-357-4786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20392-4R21 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-357-4786
Technical Data | NSN 5315-01-357-4786
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.078 INCHES NOMINAL |
| DIAMETER | 0.311 INCHES NOMINAL |
| HEAD STYLE | 16 FLAT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-4R21 |
Restrictions/Controls & Freight Information | NSN 5315-01-357-4786
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZC | Canada ZD ZE |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-357-4786
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
