Product Details | HEADED STRAIGHT PIN
5315-01-312-0314 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 3C3200P04, 5315-01-312-0314, 01-312-0314, 5315013120314, 013120314
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 DEC 1989 | 01-312-0314 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-01-312-0314
Cross Reference | NSN 5315-01-312-0314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3C3200P04 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-312-0314
Related Products | NSN 5315-01-312-0314
Technical Data | NSN 5315-01-312-0314
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP O1 OR STEEL COMP O2 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD ALL MATERIAL RESPONSES OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 55.0 ROCKWELL C MAXIMUM OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| DIAMETER | 0.3735 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 2.620 INCHES NOMINAL |

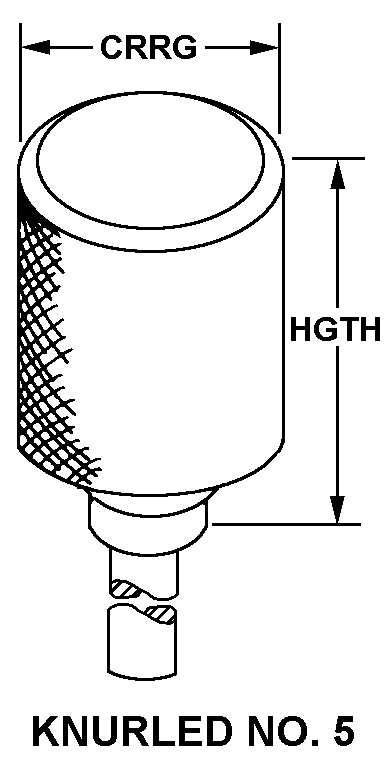

| HEAD STYLE | 29 KNURLED NO. 5 |
