Product Details | QUICK RELEASE PIN
5315-01-269-6426 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: NAS1336C3S31, 5315-01-269-6426, 01-269-6426, 5315012696426, 012696426
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 DEC 1987 | 01-269-6426 | 08323 ( PIN, QUICK RELEASE ) |

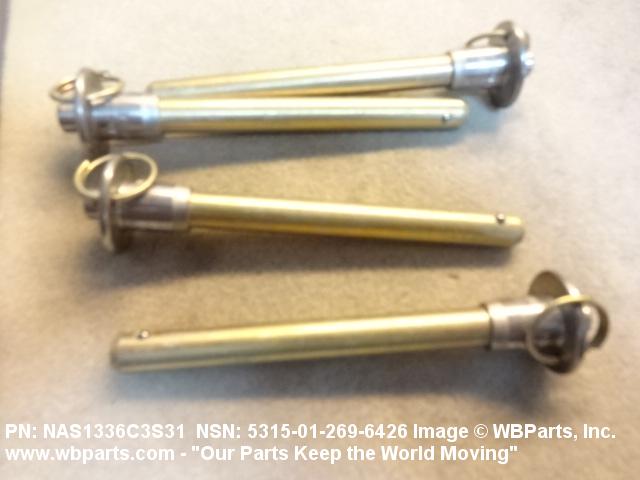

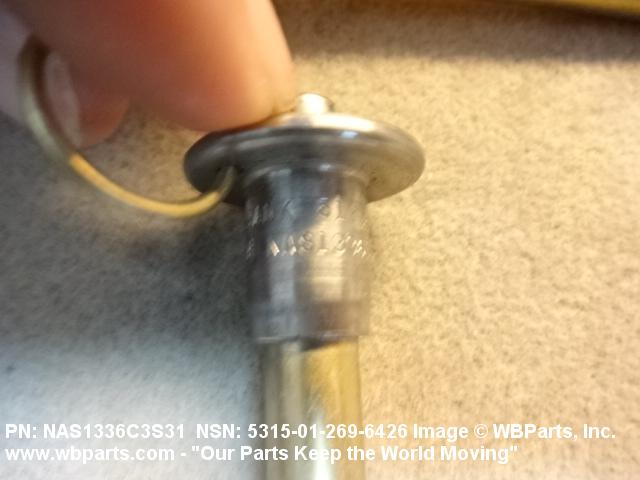

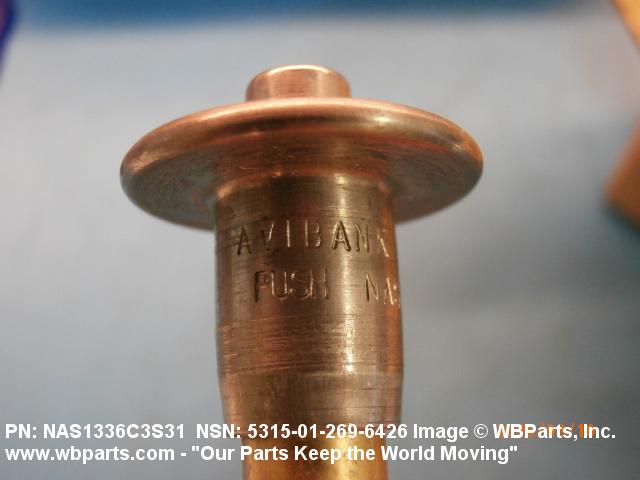

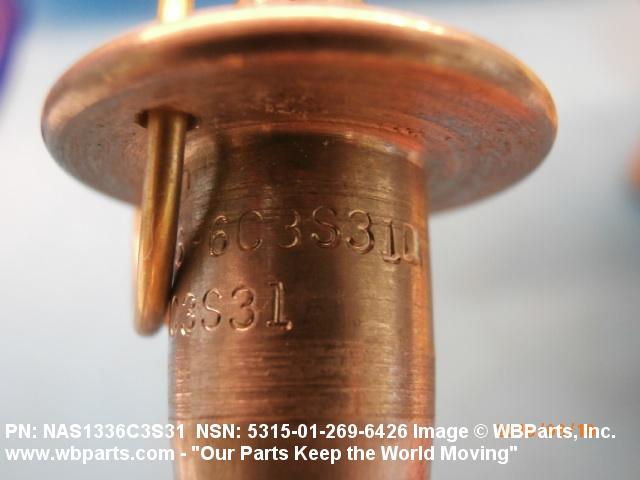

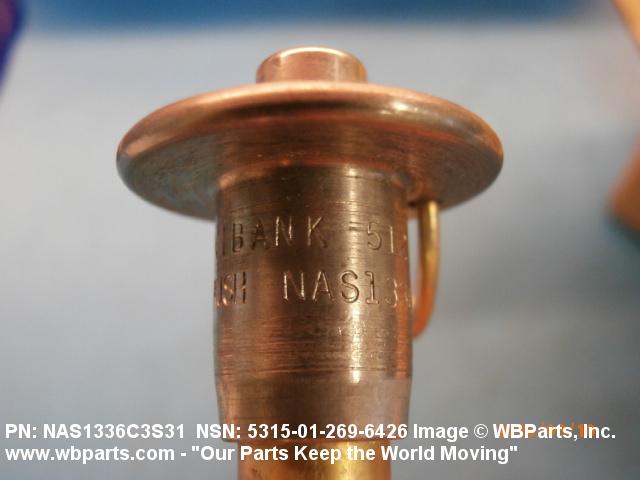

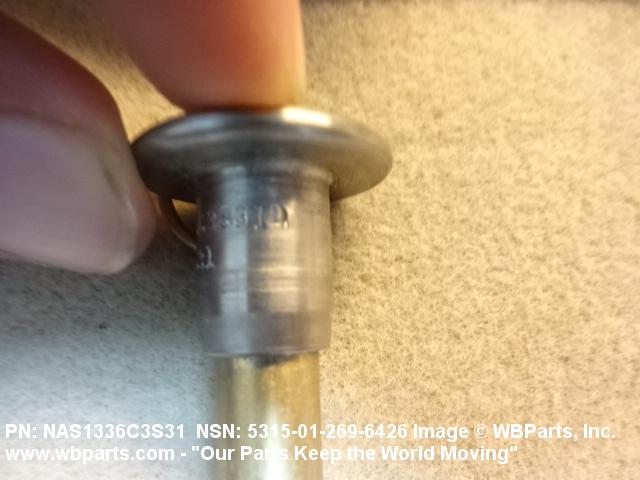

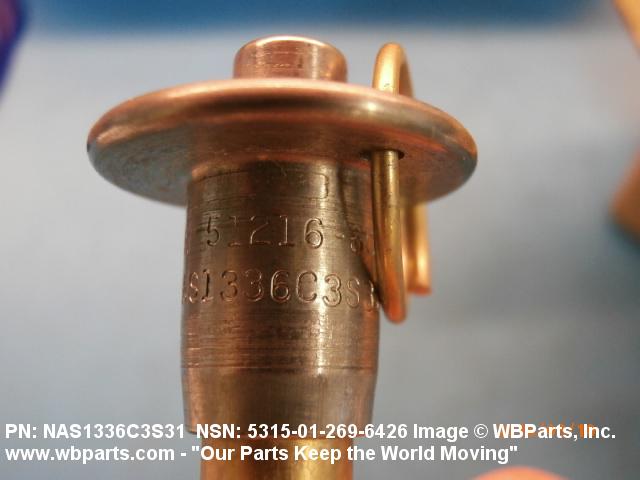

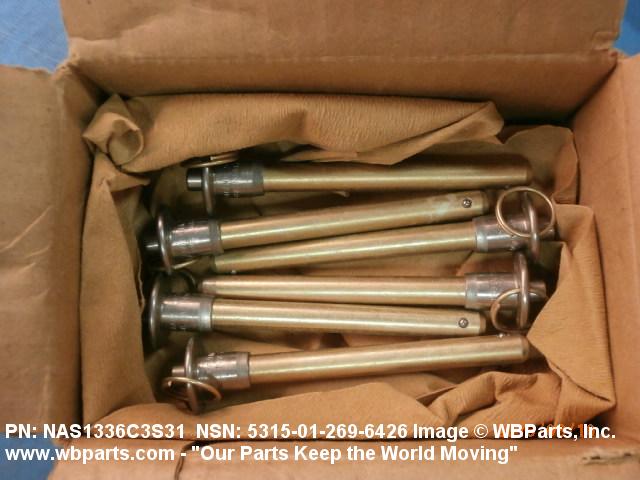

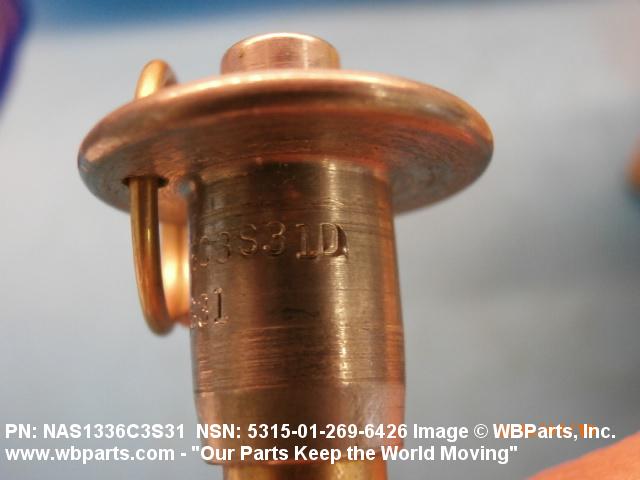

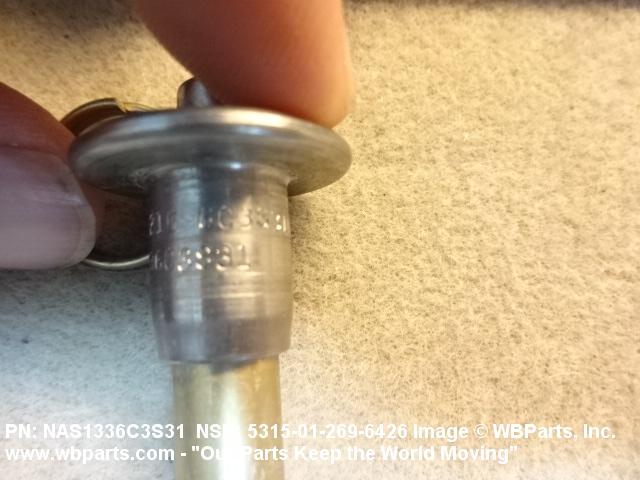

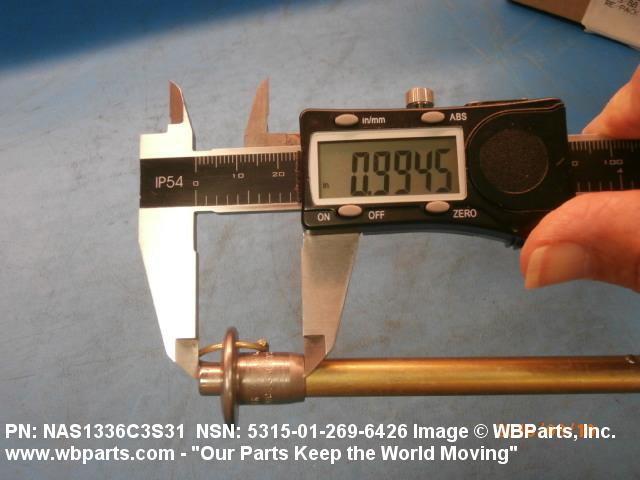

Drawings & Photos | NSN 5315-01-269-6426
Demand History | NSN 5315-01-269-6426
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-269-6426 | 2018-12-337 | 4 | United States |
| NAS1336C3S31 | 2016-08-216 | 6 | United States |
| NAS1336C3S31 | 2016-05-139 | 3 | United States |
Cross Reference | NSN 5315-01-269-6426
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1336C3S31 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-269-6426
Technical Data | NSN 5315-01-269-6426

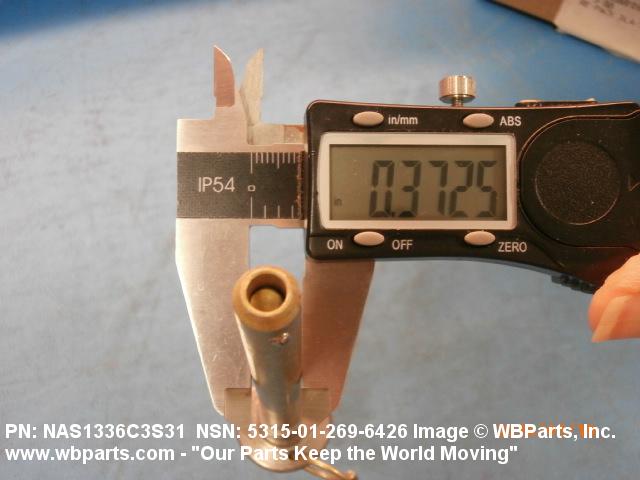

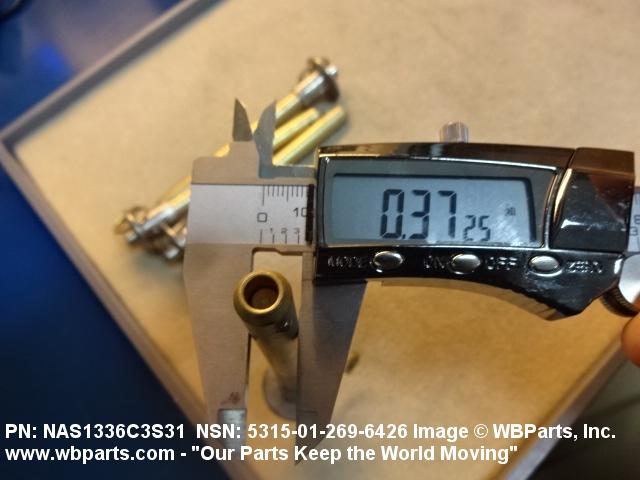

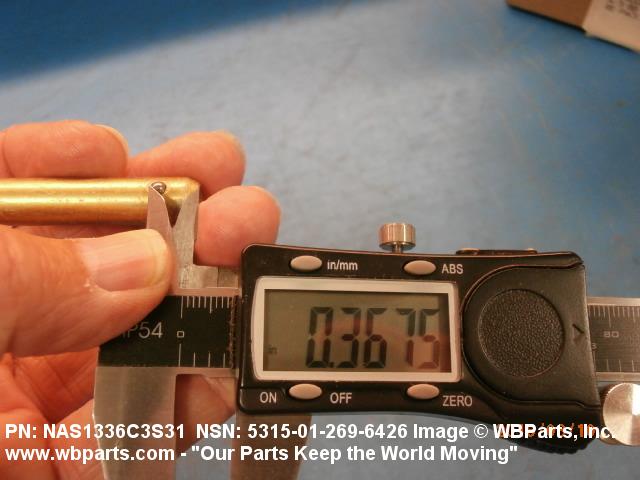

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4135 SHANK STEEL COMP 4130 SPINDLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-T-6736 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-T-6735 MIL SPEC 2ND MATERIAL RESPONSE SHANK MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE SPINDLE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE SHANK CADMIUM AND CHROMATE SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SHANK QQ-P-416,TY 2. CL 2 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK |
| SHEAR STRENGTH | 16400 DOUBLE POUND |
| STYLE DESIGNATOR | Q243 BUTTON |
| SHANK DIAMETER | 0.3720 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM |

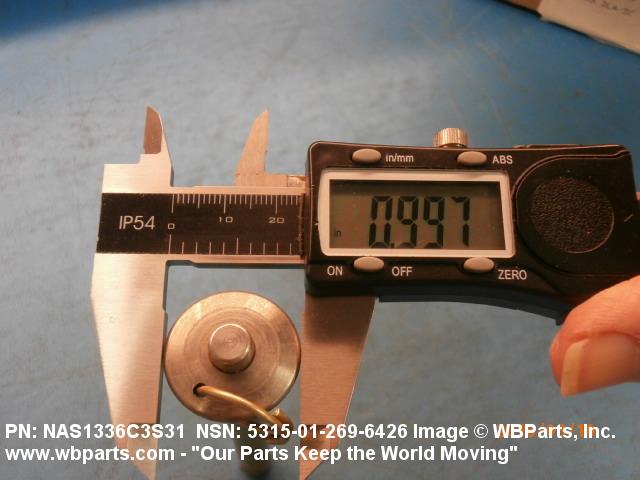

| BUTTON HANDLE DIAMETER | 1.200 INCHES NOMINAL |

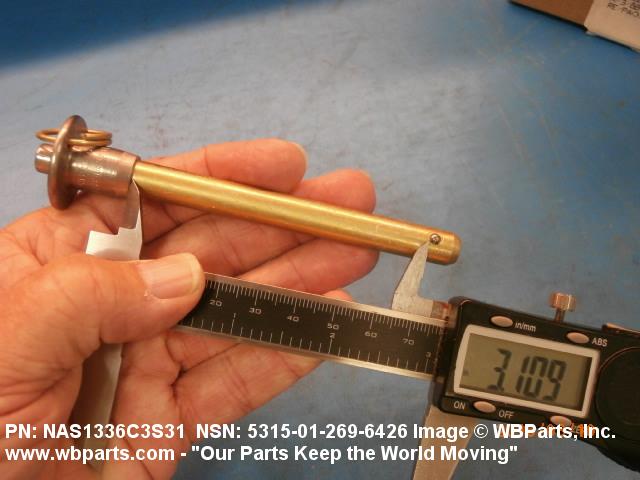

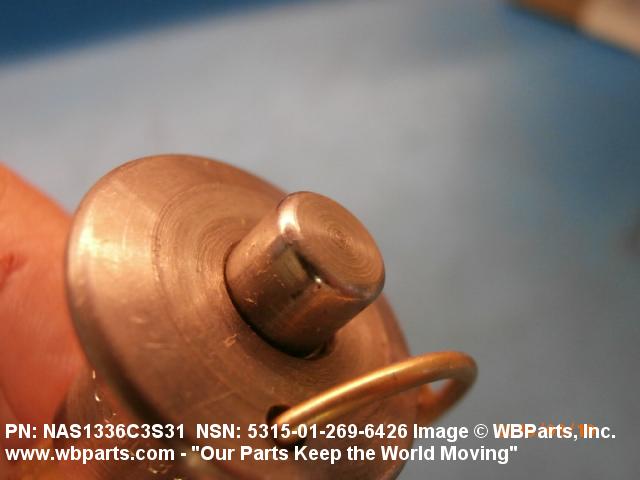

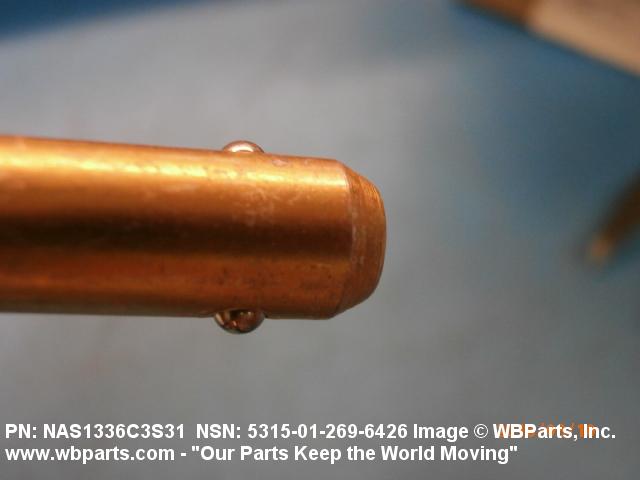

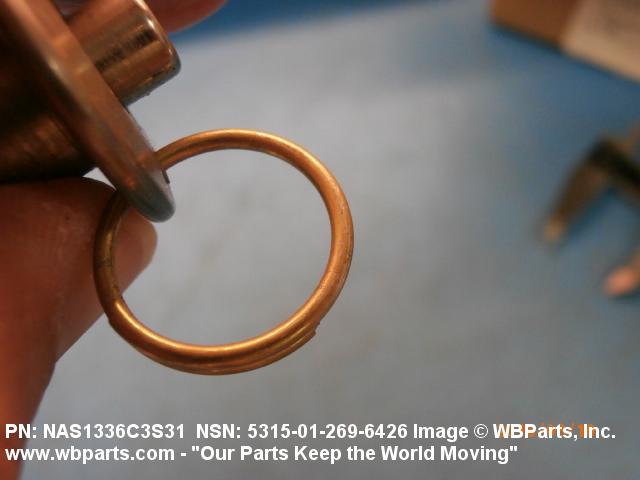

| GRIP LENGTH | 3.100 INCHES MINIMUM AND 3.120 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.550 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.490 INCHES NOMINAL |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | HOOK OR RING |
| SPECIFICATION/STANDARD DATA | 80205-NAS1336 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
